Summary of Contents for ikross IKHD62

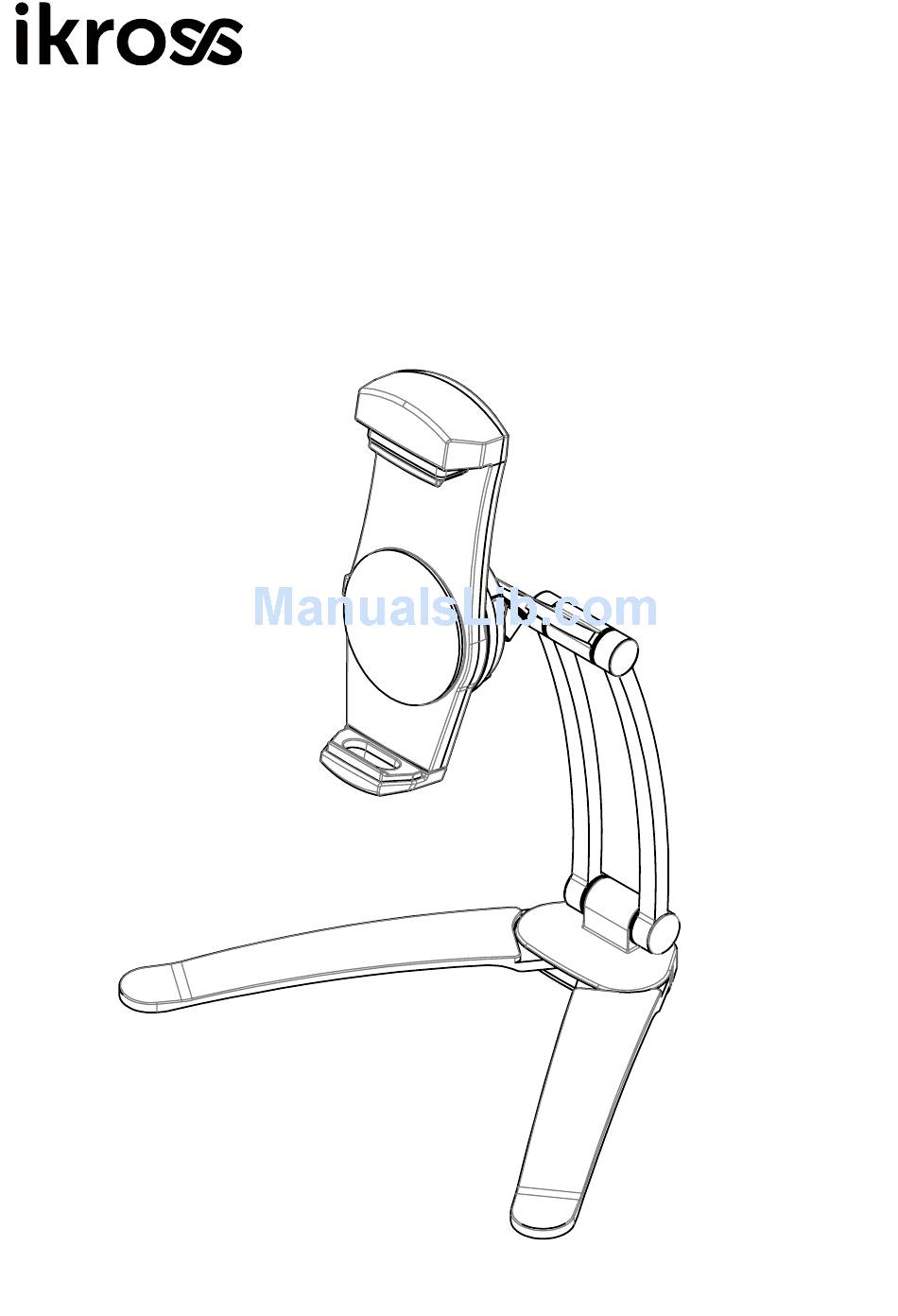

- Page 1 2in1 Wall and Desktop Mount Model No.:IKHD62 User Manual...
-
Page 3: Product Component
Special Function Product Component Item Description Item Description Qty. Attachment Button IKHD62 Stand IKHD62 Legs IKHD62 Mount Base Attachment Socket Universal Holder Button for Vertical Extension Hardware Kit Up Bracket 3mm Allen Wrench Down Bracket 4mm Allen Wrench 5mm Allen Wrench Ø5*1"... - Page 4 Diagram of Operable Parts...
- Page 5 Joint adjustment ※ Please adjust the tightness of the joints - may arrive loose or loosen over time wit Use "A-A" + "A-B" to adjust the tightness of & Use "A-B" + "A-C" to adjust Use "A-B" to adjust (Please remove &...
- Page 6 Concrete Wall Mount Base Installation： 1. Drill hole of 7*30mm and then push B-B into wall. Use B-A to screw 2 . ※ If to install 2 on wood wall or cabinet, drill hole of 4*20mm. Use C-A instead of B-A. There is no need to use B-B.
- Page 7 Concrete Wall 2. Fold and insert it into * Note： After attaching, please check if these two items are fastened well for preventing tablet sliding and damaged.
- Page 8 Mount Base on wall Mount Base under cabinet...
- Page 9 Note for Table-top Stand Forward position： ※ Do not let tablet exceed the front end of B , plane A to prevent 1 from toppling and damaging tablet. Backward position： ※ When in backward position, do not let 1 exceed plane B to prevent 1 from topping backwardly and damaging tablet.
- Page 10 Dimension of Folded Stand 3.20 81.4 mm 2.23 56.6 mm...
- Page 11 Attachment Description 1：Press D and stretch F till larger than the length of tablet. Then release Attachment Description 2：Put tablet onto E and press D . Push F back to fasten tablet. Attachment Description 3：After tablet is fastened, release D . * Note：...
- Page 12 Attachment Description 4：Press A to take o or attach C . * Note：After attaching, please check if these two items are fastened well for preventing tablet sliding and damaged. Attachment Finished Attachment Description 5：After attaching, turn tablet clockwise or anti-clockwise to get the best view.
