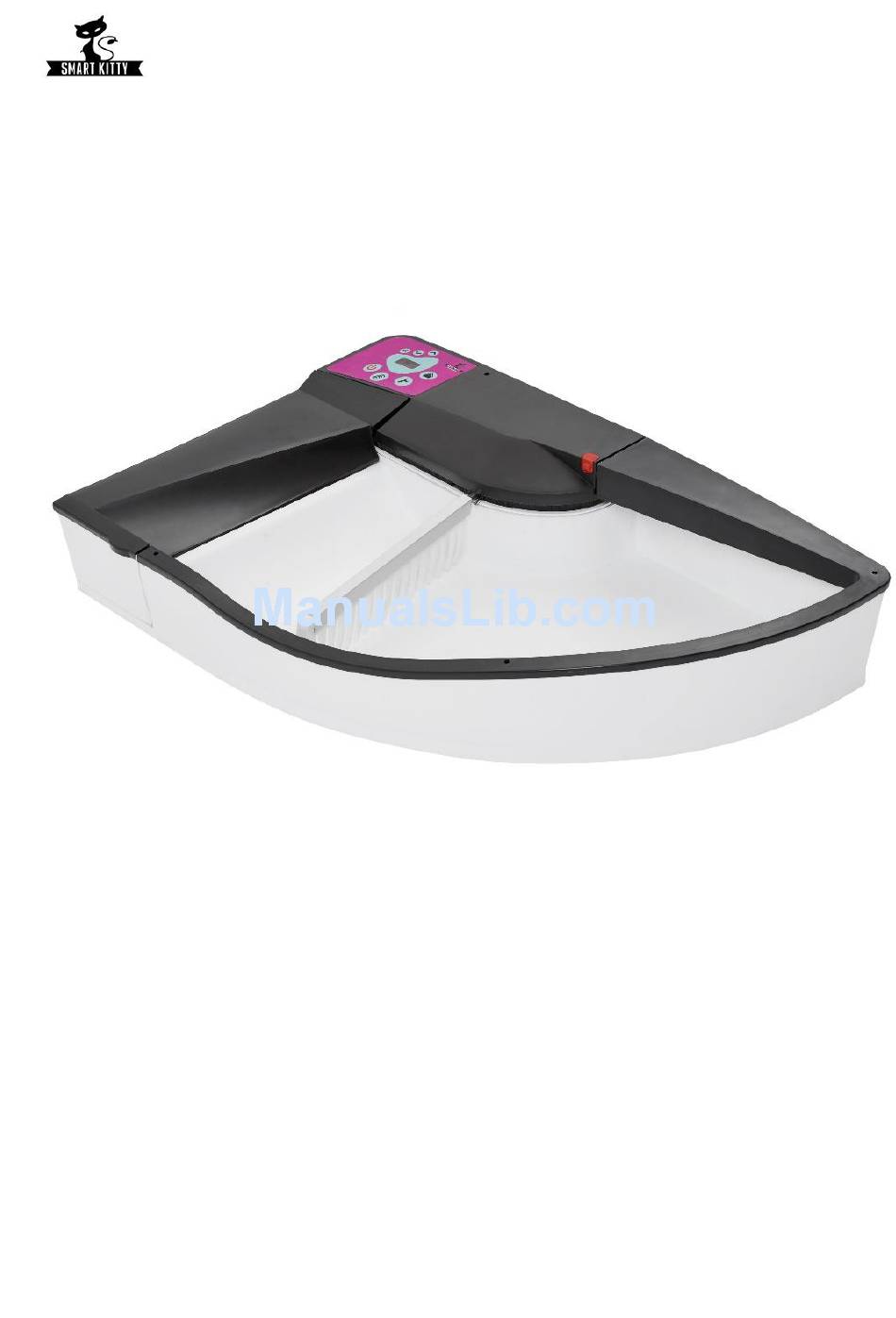

Page 1: Table Of Contents
SELFCLEANING LITTER BOX List of content 1Introduction ........................................2 Copyrights ..........................................2 Safety hazards ........................................3 Size and weight of SmartKitty® litter ............................. 4 Litter box modules ......................................5 Start-up procedure ......................................5 Operating principles ..................................... 7 AUTO MODE ........................................7 Cat sense: Normal .....................................
Page 2: 1Introduction
SmartKitty® is perfectly adapted for all cat sizes and needs. To ensure a safe use, we have implemented sensors and our patented solutions. SmartKitty® is perfect for dealing with toilet waste of any size. The waste is pushed aside into a hygienic container which remains closed.
Page 3: Safety Hazards
Safety hazards While using power devices, the basic safety precautions must be kept in order to decrease the risk of fire, electric shock or any other injuries. In order to maximize safety, the following regulations must be obeyed:: Before using the unit read the following instructions. •...
Page 4: Size And Weight Of Smartkitty® Litter
Size and weight of SmartKitty® litter Weight: 5kg...
Page 5: Litter Box Modules
Litter box modules The device is constructed of 3 independent modules, each of which can easily be removed. 1. Electrical module 4. Cat excrement container 2. Power 5. Disposable excrement containers 3. Rakes 6. Base box There is a USB port and a Wi-Fi card built-in. Start-up procedure 1.
Page 6 3. The cat excrement container should be placed in container No. 4. WARNING : DO NOT place any objects on the power cable. DO NOT plug in the power cord in the area of people/animal movement- the risk of tripping over the cord. Optional: tent assembly.
Page 7: Operating Principles
Operating principles AUTO MODE Cat sense: Normal According to the personal control panel settings, the automatic cleaning process starts in a few minutes after the cat has used the litter box. The excrements are scooped into a special container which closes after receiving the waste. This ensures that next time the cat will use a hygienically clean litter box.
Page 8: Cat Sense: High
AUTO MODE Cat sense: High...
Page 9: Keeping The Litter Box Clean
The litter box stops for 1 minute and then continues to move. If the cat comes in again, it stops, etc. The only action done by a cat owner is to throw out the full excrement container and refill the grit.
Page 10 3. Replace the disposable excrement container. 4. Turn the rakes 90 degrees left (clockwise). 5. Pull out the rakes from the aluminium profile. 6. Pull out the module with the control panel up and place it away from areas exposed to water, damp or damage.
Page 11: Cleaning The Litter Box
WARNING: PULLING OUT THE MODULE REQUIRES PRESSING with one hand 7. Throw the grit and other waste from container 6 into the waste bin. Cleaning the litter box Modules 3,4 and 6 can be cleaned. Litter box components should be cleaned with warm water and cleaning solutions.
Page 12: Replacing Disposable Excrement Containers
Replacing disposable excrement containers Option 1- removing container only Open the lid of component 4 by hand, take out the disposable container and throw it out to the waste bin. Put a new disposable excrement container into container 4. Option 2- with the large container removal. Take out component 4- cat excrement container, remove a disposable container and throw it out to the waste bin.
Page 13 3. Turn the raking module 90 degrees left (clockwise) and insert plastic rakes into it.. 4. Place a clean excrement container into container 4. 5. Insert container 4 into the litter box base (no 6). 6. Plug in the litter box.
Page 14: Panel Functions
Panel functions 1. ‘SmartKitty” function The basic panel function. It starts after pressing the red button. It resets previously programmed or currently operating functions. If the litter box is set to any mode, it is stopped immediately. The function stops all actions: raking, service, set.
Page 15: Setting The Litter Box Time
3. ‘Go Home’ function It causes the rakes to move into ‘Home’ position- a setting in which the litter box should always start its work. Panel Screen Litter box 4. ‘Go to bin’ function Allows to prompt the raking process in the direction of the cat excrement container manually.
Page 16 By pressing up and down arrows find the ‘set clk’ function. Press OK to enter the set clk function A flashing hour appears. By pressing up and down arrows set hour. Confirm the time by pressing OK.. A flashing minutes appears. Set the fixed time for the minutes with up/ down arrows.
Page 17: Setting The Litter Box Working Time
Confirm the time by pressing OK.. Setting the litter box working time Press SET to enter the menu By pressing up and down arrows find the ‘sleep hr’ function. Press OK to enter the ‘sleep hr’ function. A flashing ‘from- to’ appears. Set the fixed time for the beginning of standstill with up/ down arrows (‘from’).
Page 18: Setting The Working Time After Being Used By A Cat
Confirm the time by pressing OK. ’To’ starts to flash. By pressing up/down arrows set the fixed time for the end of standstill. Press OK. The sleep mode of the litter box is set. WARNING: If the fixed time FROM=TO, the litter box will not work. Setting the working time after being used by a cat.
Page 19: The 'Cat Sens' Setting
Press SET to enter the menu. By pressing up and down arrows find the clean dl function Press OK to enter the clean dl function A flashing ‘minutes’ appears. . Set the fixed time with up/ down arrows. Press OK. The ‘cat sens’...
Page 20 WARNING! The litter box is equipped with the additional security system, which will allow for three attempts to remove the obstacle when overloaded before the system is stopped. The safe mode is recommended especially for kittens and with babies in a house. Press SET to enter the menu.
Page 21: Control Via Mobile Application
Control via mobile application The function enables to remotely clean the litter box, at any time. The litter box status function- data on the number of cleaning processes performed from the last replacement of the disposable excrement container. The information about the number of cleaning processes performed from the last grit refilling.
Page 22 The function of moving rakes into the Home position. The function of moving rakes into the Service position The tab with system data, the extra excrement container order alert. Promotional information. The function of setting the type of grit use.
Page 23: Faq
1. It is prohibited to use containers or cat excrement bags other than recommended for SmartKitty® litter box. The warranty is lost in case of any problems or damage caused by the use of non- original containers. The containers can be ordered from www.shop.smartkitty.co.uk...
