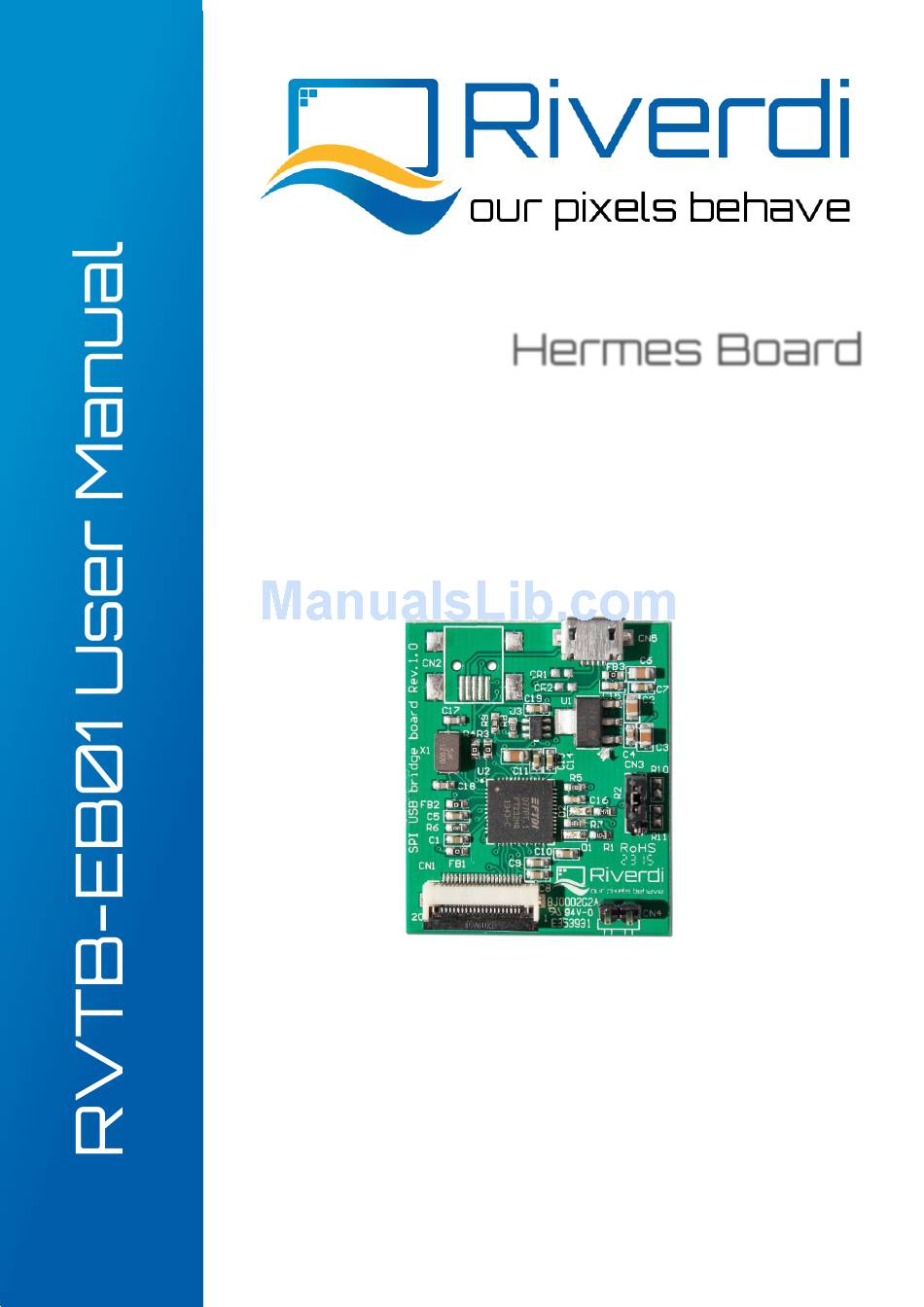

Page 1: User Manual
Hermes Board User Manual Rev.1.2 2016-08-23 Introduction Hermes board is an accessory board which is used to communicate with SPI Interface device via USB cable. It allows you the work directly from your PC. -
Page 2: Table Of Contents
QUICK START GUIDE ........................3 DEVELOPMENT KIT SET........................3 DETAILED BOARD DESCRIPTION ...................... 4 BACKLIGHT SOURCE SELECT ......................4 REFERENCES ............................ 4 ELECTRICAL SCHEMATIC ........................5 MECHANICAL DRAWING ......................... 6 LEGAL INFORMATION ........................7 © 2014 Riverdi Page 2 of 7 www.riverdi.com... -
Page 3: Quick Start Guide
Connect TFT module via CN1 ZIF0520DH connector. Select backlight power supply on CN3. Connect Hermes Board to PC. Install Virtual COM Port drivers for FT232H. Drivers are available on FTDI webpage: http://www.ftdichip.com/Drivers/VCP.htm. Launch Riverdi demo application. Select proper display. Figure 1. Riverdi demo application 2. DEVELOPMENT KIT SET Hermes Board kit contains: ... -
Page 4: Detailed Board Description
Hermes Board datasheet Rev.1.2 3. DETAILED BOARD DESCRIPTION Hermes Board is designed to allow you control Riverdi TFT displays with FT8XX controllers via USB. It allows to develop customer application without hardware designing. Figure 2. Board layout Power supply select jumper... -
Page 5: Electrical Schematic
Hermes Board datasheet Rev.1.2 6. ELECTRICAL SCHEMATIC © 2014 Riverdi Page 5 of 7 www.riverdi.com... -
Page 6: Mechanical Drawing
Hermes Board datasheet Rev.1.2 8. MECHANICAL DRAWING © 2014 Riverdi Page 6 of 7 www.riverdi.com... -
Page 7: Legal Information
Information about device are the property of Riverdi and may be the subject of patents pending or granted. It is not allowed to copy or disclosed this document without prior written permission.
