Summary of Contents for United CoolAir CoolSpot

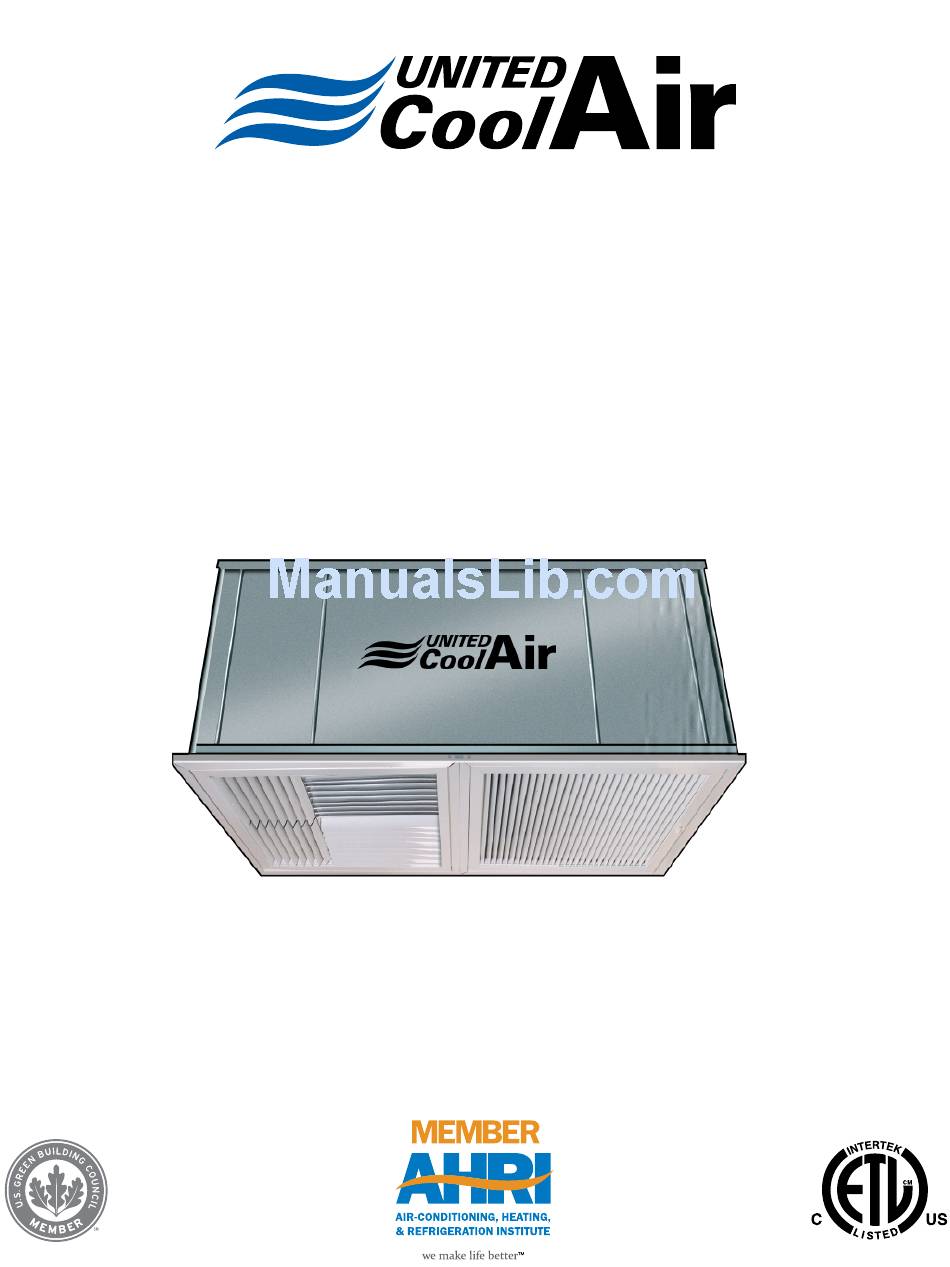

- Page 1 CoolSpot Engineering Guide Effective January 2017 Air-Cooled, Water-Cooled, Chilled Water or Magna Cool Precision Cooling Package...
-
Page 2: Table Of Contents
Air-Cooled Units ���������������������������������������������������������������������������������������������� 9 Water-Cooled, Chilled Water, Air-Cooled with Remote Condenser/ Condensing Unit ���������������������������������������������������������������������������������������������������� 9 Ductless Unit Configurations ������������������������������������������������������������������������������� 10 Features and Options ������������������������������������������������������������������������������������������ 11 Weights for CoolSpot Air-Cooled Units* ������������������������������������������������������� 11 Subject to change without notice. 30.1-ES (0117) (WP) -
Page 3: Product Features
2’ x 4’ ceiling grid. operation� There are five cooling capacities ranging in size from one The CoolSpot is available with optional built in hot gas to three tons making it ideal for supplementary cooling of bypass and electric heat�... -
Page 4: Air-Cooled Units
Engineering Guide CoolSpot Air-Cooled Units Unit Capacity Ratings Temperature F Air/Over Condenser Entering Air Model No. 75 F 95 F 115 F D.b. W.b. Total Sensible Total Sensible Total Sensible 16900 11400 15100 10700 13600 9700 CS12G 15200 10800 14200... -
Page 5: Air-Cooled Units
Engineering Guide CoolSpot Air-Cooled Units Evaporator & Condenser Blower Performance - Options - 2kW, 5kW Heaters Evaporator Blower Specifications Condenser Adjustable From .1 To 1.0 Esp Tons Blower Size Tons Blower Size 9-7 DD 1100 9-7 DD 1200 9-7 DD... -
Page 6: Microprocessor Controlled Air-Cooled Units
Engineering Guide CoolSpot Microprocessor Controlled Air-Cooled Units Unit Capacity Ratings Temperature F Air/Over Condenser Entering Air Model No. 75 F 95 F 115 F D.B. W.B. Total Sensible Total Sensible Total Sensible 16900 11400 15100 10700 13600 9700 MCS12G 15200... -
Page 7: Microprocessor Controlled Water-Cooled Units
Engineering Guide CoolSpot Microprocessor Controlled Water-Cooled Units Unit Capacity Ratings Entering Air Ent. Water Temp. = 85˚F Evaporator Bower Performance Model No. D.B. W.B. Total Sensible Blower Size 15700 11200 MCSW12G 14900 10700 9-7 DD 13900 9500 21500 14100 MCSW18G... -
Page 8: Microprocessor Controlled Chilled Water Units
Engineering Guide CoolSpot Microprocessor Controlled Chilled Water Units Unit Capacity Ratings Entering Air Ent. Water Temp. = 45˚F Evaporator Bower Performance Model No. D.B. W.B. Total Sensible Blower Size 14067 9220 MCSC12G 10271 8228 9-7 DD 9500 8000 19258 12660... -
Page 9: Coolspot Dimensional Data
Engineering Guide CoolSpot CoolSpot Dimensional Data Air-Cooled Units 52.5" 28" 1" 25" 22.5" 1" 11.812" 54.75" 28" 5" 4.188" 10.25" 18" 21" 5.375" 4.813" 3" 20.5" Electrical Entrance Grill Skirt Required for Grill Skirt 46.5" 2.5 and 3 Ton Units Only Water-Cooled, Chilled Water, Air-Cooled with Remote Condenser/Condensing Unit 52.5"... -
Page 10: Ductless Unit Configurations
Engineering Guide CoolSpot Ductless Unit Configurations • Air-Cooled (CS) Shown • Water-Cooled (CSW) Available Self Contained • Chilled Water (CCW) Available Remote Condenser Section CSRC Remote Condensing Section CSRC Multiple Evaporators B (Dual Circuit) * with Single Remote Condensing Section... -
Page 11: Features And Options
• Inherently Protected Motors and Compressors • Variety of Thermostats and Controls • High- and Low-Pressure Switches • 3-way and 350 psig Water Regulating Valves Weights for CoolSpot Air-Cooled Units* Tons Evaporator lbs. Condenser lbs. Total lbs. * Water Cooled is evaporator plus 5 pounds�... - Page 12 Engineered to Order LIMITED WARRANTY Authorized Distributor: United CoolAir Units are backed by a 1 year limited warranty on parts and a 5 year limited warranty on the compressor (labor not included). Maintenance items such as filters and belts are excluded under this limited warranty.
