Instruction Manual
SAjI/YO

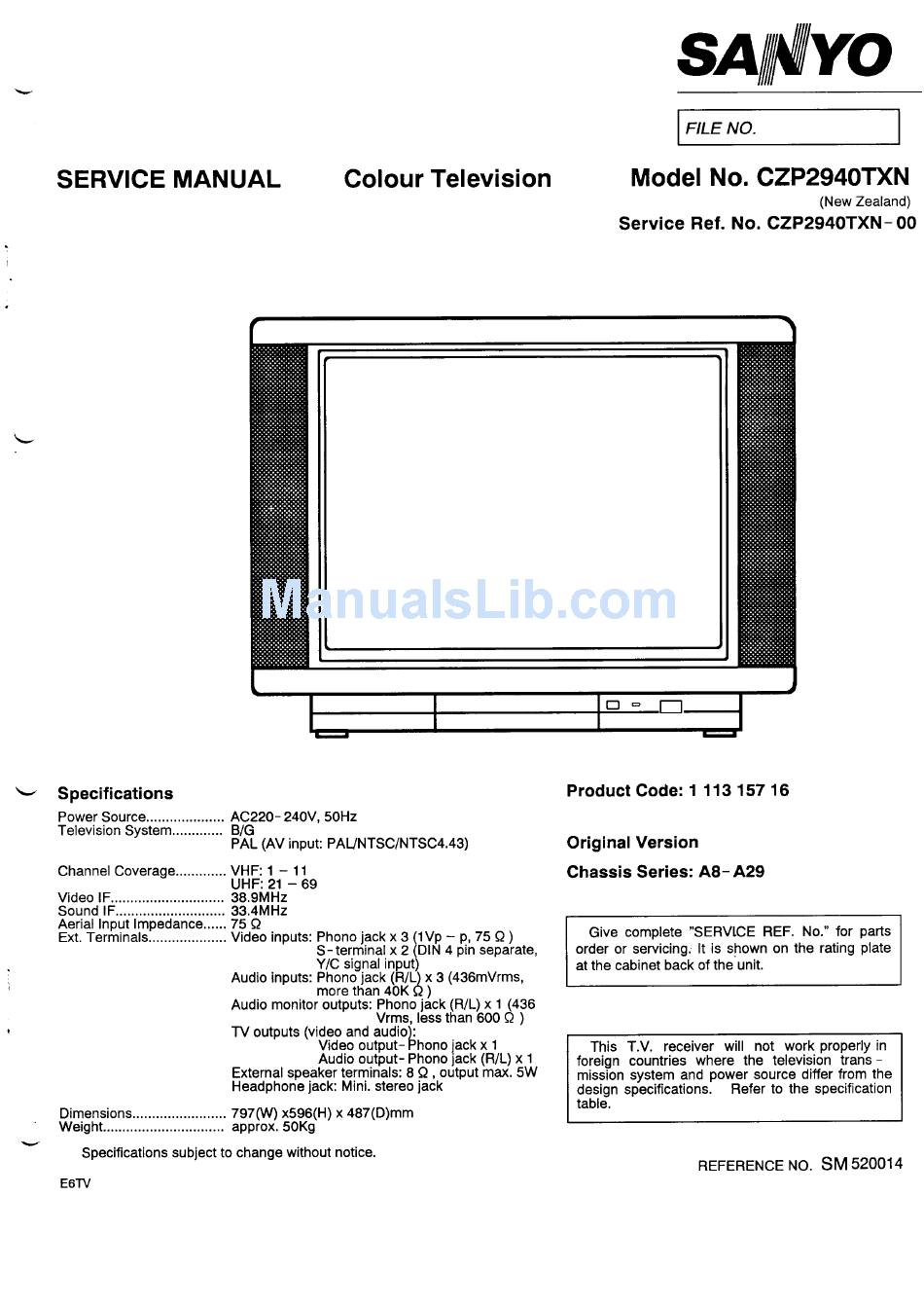

SERVICE MANUAL
.
L
Q
Specifications
Colour Television
I FILE NO.
I
Model No. CZP2940TXN
(New Zealand)
Service Ref. No. CZP2940TXN - 00
t
1
Power Source .................... AC220-240V,
50Hz
Television
System ............. B/G
PAL (AV input: PAlJNTSC/NTSC4.43)
Channel Coverage ............. VHF
1 – 11
UHF: 21 – 69
Video IF ............................. 38.9 MHz
Sound IF.., ......................... 33.4 MHz
Aerial Input Impedance..,..,
75 !2
Ext. Terminals .................... Video inputs: Phono jack x 3 lVP – p, 75 Q )
[
S-terminal
x 2 DIN 4 pm separate,
Y/C signal input)
Audio inputs: Phono jack (R/L x 3 (436mVrms,
A
more than 40K
)
Audio monitor outputs: Phono jack (R/L) x 1 (436
Vrms, less than 600 S2 )
TV outputs (video and audio :
b
Video output-
hono jack x 1
Audio output- Phono jack (R/L) x 1
External speaker terminals: 8 S2, output max. 5W
Headphone
jack: Mini. stereo jack
Dimensions ........................ 797(W)
x596(H)
x 487(D)mm
Weight ............................... approx. 50Kg
w
Specifications
subject to change without notice.
Product
Code:
111315716
Original
Version
Chassis
Series:
A8- A29
Give complete
"SERVICE
REF.
No." for parts
order or servicing.
It is shown on the rating plate
at the cabinet back of the unit.
This
T.V.
receiver
will not work properly in
foreign
countries
where
the television
trans -
mission system and power source differ from the
design specifications.
Refer to the specification
table.
I
REFERENCE
NO.
SM
520014
E6-IV
