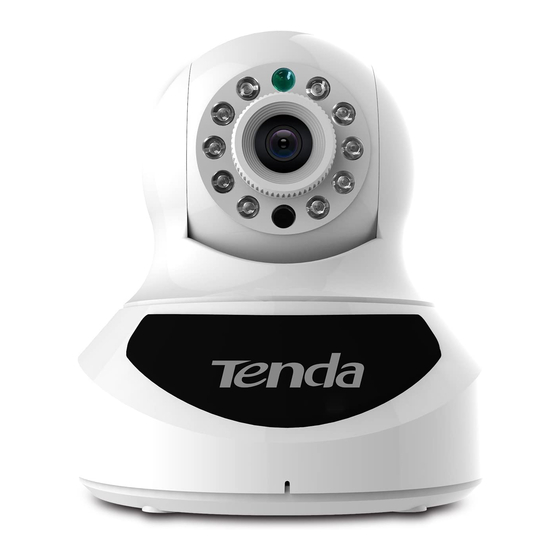

Tenda C50S User Manual
  1. Manuals
  2. Brands
  3. Tenda Manuals
  4. IP Camera
  5. C50S
  6. User manual

Tenda C50S User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

V 2
www.tendacn.com

Advertisement

Table of Contents
loading

Related Manuals for Tenda C50S

Summary of Contents for Tenda C50S

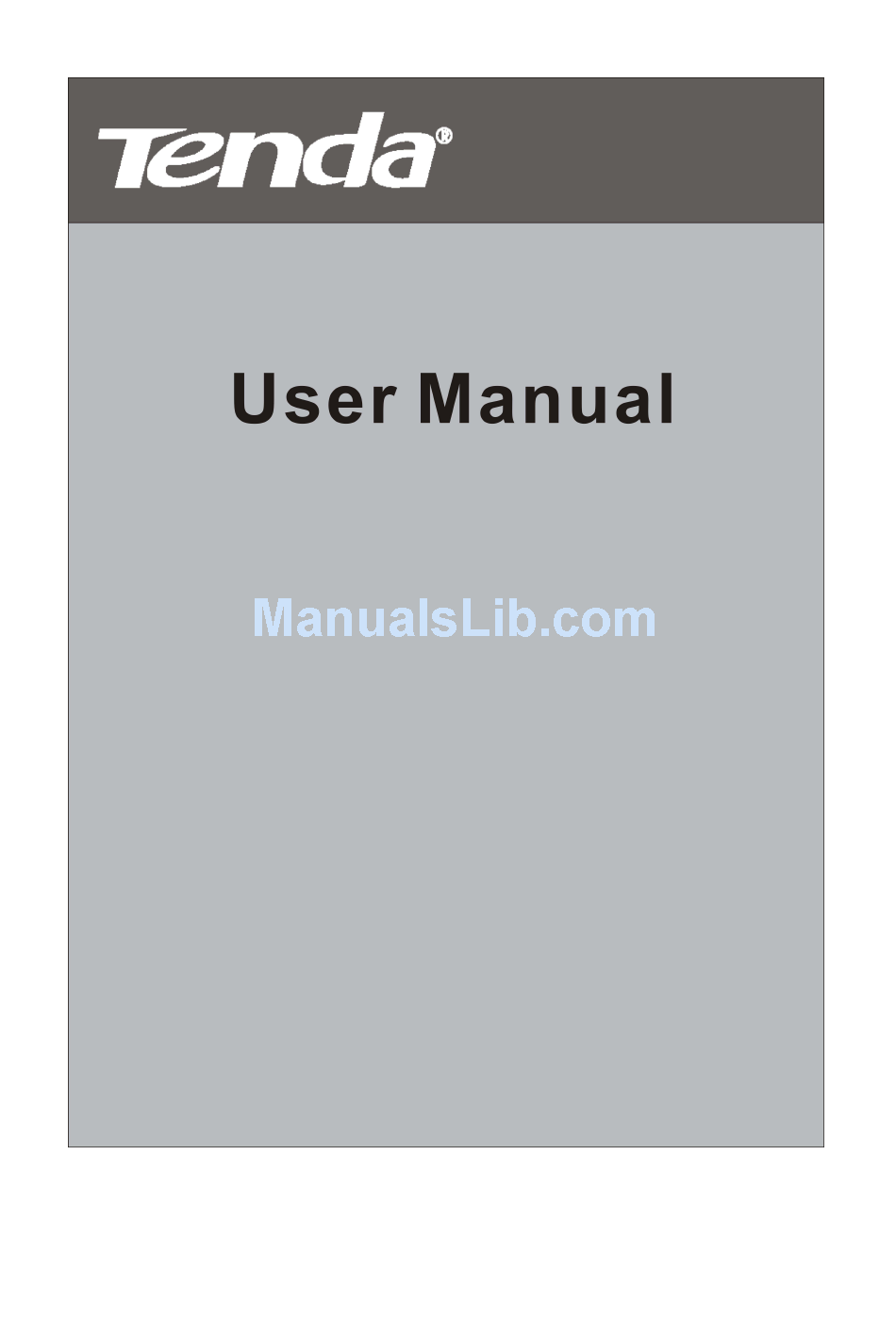

  • Page 1 www.tendacn.com...
  • Page 2 Shenzhen Tenda Technology Co., Ltd. Without prior expressed written permission from Shenzhen Tenda Technology Co., Ltd, any individual or party is not allowed to copy, plagiarize, reproduce, or translate it into other languages.

  • Page 3: Table Of Contents

    Super easy IP Camera Contents 1. Product overview..........................6 1.1 Package list..........................6 1.2 System Requirement......................7 1.3 Introduction........................... 7 1.4 Features..........................7 1.5 Hardware overview....................... 8 2. Installation............................9 2.1.Destop install.........................9 3. Smartphone View and Install......................10 3.1 “CloudNeteye” download and install................. 10 3.1.1 iPhone........................10 3.1.2 Android smartphone....................
  • Page 4 Super easy IP Camera 4.1.1 Add/Delete IP Camera..................... 18 4.1.2 Video display......................18 4.1.3 Main Functions......................19 4.1.3.1 System setting....................... 19 4.1.3.2 Playback, Browse snapshots and Event list............21 4.1.3.3 Software........................ 23 4.1.4 Windows switching area..................23 4.1.5 Device setting......................23 4.1.5.1 Edit Camera......................23 4.1.5.1.1 Schedule Recording...................
  • Page 5 Super easy IP Camera 5.2.5 WIFI......................... 36 5.2.6 Alarm Set......................... 36 5.2.7 Advanced Set......................39 5.2.7.1. Automatic Capture....................39 5.2.7.2. Email........................39 5.2.7.3. FTP........................40 5.2.7.4 PTZ........................41 5.2.7.5. Record to TF/SD card..................42 5.2.8 System Set........................42 5.2.8.1. Time Set....................... 43 5.2.8.2 Initialization......................44 5.2.8.3 System log......................45 Chapter 6 Appendix..........................

  • Page 6: Product Overview

    7.IOS 4.3 or above 1.3 Introduction Tenda super easy IP Camera provides a professional home or small business surveillance Solution. Through our mobile phone APPS “CloudNeteye” and PC software “CloudNeteyeForPC” users can remote view directly, without DDNS domain name or setting any Port mapping on Router.
  • Page 7 Super easy IP Camera 1.HD plus IRCUT(HD series)：720p HD Video Quality, you can get rich detail and crisp image quality. With IRCUT to ensure that the images are real color. 2.PTZ：You can PTZ control, move to the area you want to see, cover wider areas. (PTZ camera) 3.Plug and Play: Based on P2P cloud Technology, no need to configure the wireless Router and DDNS, then you can view immediately, so easy.

  • Page 8: Hardware Overview

    Super easy IP Camera 1.5 Hardware overview Light up when starting, extinguish when normal work C50S V2...

  • Page 9: Installation

    Super easy IP Camera 2. Installation 2.1.Destop install Take out the camera, connect the included power adapter to camera, then connect Ethernet cable between the camera and LAN port on your Router. (Please ensure the DHCP function of your Router is enable.) 2.2Wall install According to your needs, refer to the figure to install.

  • Page 10: Smartphone View And Install

    Super easy IP Camera Figure 1:Turn the collar on the bracket to loosen it then move the camera to the position you want . Figure 2: Turn the collar on the bracket to tighten it,then fix the bracket to the wall using screws. Figure 3:Camera connect to bracket, turn the collar on the bracket clockwise to tighten it.

  • Page 11: Android

    Super easy IP Camera 1. Run “CloudNeteye” APP on your IPhone. 2. You can choose one of following way A. B. C, to add camera. A: If your iPhone and IP camera is connected to the same Router, “CloudNeteye” will search the IP Camera automatically, and appear in the following screen.

  • Page 12: Cloudneteye Live View

    Super easy IP Camera 3. You can choose one of following way A. B. C, to add camera. A: If your smartphone and IP Camera is connected to the same Router, click “Search” to add camera, as show in the following screen. Touch the UID number, then input password “admin”, click “OK”...
  • Page 13 Super easy IP Camera Android You can control PTZ by Finger sliding on screen, UP, Down, Left and Right.

  • Page 14: Ip Camera Setting And Management

    Super easy IP Camera 3.4 IP Camera setting and management 3.4.1 Android smartphone Select device and hold on 3 seconds or click “ ” button near the device to do parameters settings. User can set reconnect, edit camera, view snapshot and remove camera.

  • Page 15: Modify Camera

    Super easy IP Camera 3.4.1.1 Modify Camera Enter “Edit Camera” to do two settings as below: 1. Device Setting 2. Advanced Setting Advanced Set a) Can modify the camera’s password b) Can adjust common video parameters: video quality, video flip, video mirror, Environment mode c) WiFi setting Click “Manage Wi-Fi networks”...

  • Page 16: View Event

    Super easy IP Camera 2. Notification: There is 4 alarm modes, Silent, Tones only, Vibrate only, Ringtone and Vibrate. e) Recording Setting: There is 3 options, Off, Full time, Alarm. If choose “Off”, camera stop recording; if choose “Full time”, camera record all day; if choose “Alarm”, camera start recording after motion detection (need device’s motion detection ON, and insert MicroSD/TF card).

  • Page 17: Modify Camera

    4. PC View and Install Visit Tenda official website www.tendacn.com, search your model on the top right corner, click and enter the product you found. Click the " Downloads" and get the "PC P2P remote Software" , install "CloudNeteyeForPC"...

  • Page 18: Add/Delete Ip Camera

    Super easy IP Camera Below pictures are the screenshot of “CloudNeteyeForPC”, we will explain detailed based on the above 4 functions： 4.1.2 Main functions 4.1.1 Video display 4.1.3 Display Setting 4.1.4 Device list 4.1.1 Add/Delete IP Camera Add/Delete IP camera can search or manually add IP camera, can support max 16 cameras view at the same time.

  • Page 19: Main Functions

    Super easy IP Camera 4.1.2 Video display A. Show IP cam info, include name, connection way (LAN、P2P、RLY), resolutions and FPS. B. Record manually. Click this button, when it shows in red, recording start; click again, recording stop. This function is available when full time or schedule recording closed.
  • Page 20 Super easy IP Camera Snap shot and video recording path setting. Users click “ ” to choose the disk and file in your computer to save snapshot and video recording. Users can set the length of single recording. Users can set the camera stop recording when how many free space left in your disk. Users can set to remove old video recording file when the free space is lower than setting.
  • Page 21 Super easy IP Camera 3) Send email when alarm，users can set their email address through Mail Setting. Note 1：The following form is the parameter configuration of different email server: Email server SMTP host SMTP host port Yahoo smtp.mail.yahoo.com 25 Sohu smtp.sohu.com Gmail smtp.gmail.com...

  • Page 22: Playback, Browse Snapshots And Event List

    Super easy IP Camera 2) Set if close the status bar 3) Confirm when application close 4) Can choose if enable the login form 5) Set all device will be connected when program is started. 6) You can modify the password of the camera here. 4.1.3.2 Playback, Browse snapshots and Event list Click the button ”...

  • Page 23: Software

    Super easy IP Camera Search function, users can search all even list of one or more camera in a certain time. 4.1.3.3 Software Click the button on the top right corner of “CloudNeteyeForPC”, you can get the version information of software. 4.1.4 Windows switching area Display split, include 4, 6, 9, 16 split pane, double click to full screen view.When several camera work together , you can select the suitable window to view, double click the camera can view in...

  • Page 24: Edit Camera

    Super easy IP Camera 4.1.5.1 Edit Camera Choose some one IP camera in device list, click “ ”, can do “Schedule Recording”, “Remote Setting” and “Remote Device Info” 4.1.5.1.1 Schedule Recording 1)Full-time recording. When open this function, manual recording function will stop. 2)According to the schedule.

  • Page 25: Play/Stop All Camera

    Super easy IP Camera network in the following list; input password, then click “Save”. 4.1.5.1.3 Remote device information: check the camera info. 4.1.5.2 Play/Stop all camera “Play/Stop” all camera connected buttion , can support max 16 camera connect or stop at the same time. 4.1.5.3 Export/Import device ,...

  • Page 26: Web View And Setting

    Click the " Downloads" and get the "Setup Wizard" and "User Manual" Double click “C50s v2.0 Setup.exe”, run this software, click “next” according guide info, until to following page. 1.As shown on the picture, click “...
  • Page 27 Super easy IP Camera 3. Click “ ”, input “admin” in both user name and password on the appearing login window, and then click “LOGIN” to enter the Web UI. You will then be able to watch videos or do system setting. If you need to modify the IP address, please refer to the help item on the right “How to Modify the Device IP config”.

  • Page 28: Web Set

    Super easy IP Camera User also can click and install the download play on top right corner web UI as below: Way 2: Use “CloudNeteye” APPs in smartphone, search camera and find IP address, then input the IP address in browser to enter the Web. Pls refer to User Manual “3.2 Add IP Camera” section, use search IP camera function.
  • Page 29 Super easy IP Camera Monitor function button :Click the button,turn it like this you can hear the voice from camera, click it again , it close and you can not hear the voice. b. Communication button . Click the button, turn it like this , the voice will be sent to the camera, click it again ,it close and the voice can not be sent to camera.

  • Page 30: Running

    Super easy IP Camera Click reply, it will pop-up a media player which can play video. Tips： The device supports max 32G MicroSD card. Please format the MicroSD card to FAT32 before use the card on camera. Please check if the TF/SD Card matches the camera or not before purchasing the TF/SD Card.

  • Page 31: Video Set

    Super easy IP Camera You can check some information of the device, such as software version, web version, Mac address, TF/SD card status. 5.2.3 Video Set 5.2.3.1. Video parameter The higher the value of bit rate, the clearer the image, but the occupy band width is also will be higher The higher the value of frame, the smoother the image it is.

  • Page 32: Video Attribute

    Super easy IP Camera 5.2.3.2 Video attribute 1) Click , and then click to adjust the ightness, color and so on, so that can change the image quality. 2) Flip vertical and flip horizontal can adjust the video picture to up, down, left and right. This can be use when device is installed in ceiling.

  • Page 33: Voice Set

    Super easy IP Camera camera is blind 5.2.3.3. Voice set It can adjust the voice of monitor and communication, the bigger the value, the bigger the voice. (Notes: Please click the “Apply” after modified parameter) 5.2.3.4. OSD It can change the name of camera while chose to turn on or turn off the video time and name. (Notes: Please click the “Apply”...
  • Page 34 Super easy IP Camera connect with your camera will assign an IP address to your camera automatically, setting the interface configuration as default. Input the website in wan test bar for testing, such as input www.tendacn.com.cn, click it. If it works, then your camera connecting is success. （Notes: If the Router do not connect to the internet, the camera also can connect with computer via Router (LAN), but it will not success if you do the WAN test.）...

  • Page 35: Remote Access Setting

    Super easy IP Camera Camera support RTSP, if enable RTSP for verifying, you need to input the user name and password when use RTSP to call the video. Note: When you modify the parameters, you need to click “Save” to save your settings 5.2.4.2 Remote Access Setting (DDNS）...

  • Page 36: Wifi

    Super easy IP Camera 5.2.5 WIFI Select “Enable” and click “Scanning”, and then select wireless Router in Wifi List, enter its password, click “Save” to save the wireless settings. After setting successfully, please pull out network cable, then you can use the wireless function. Note: When you modify the parameters, you need to click “Save”...
  • Page 37 Super easy IP Camera 1） Area Press the mouse button and drag it as you want can select the area of random size Enable the "Motion Detection function" , that is you need to set the motion detection area. Meanwhile you can choose high sensitivity ,medium or low in the monitor area 2)Alarm...
  • Page 38 Super easy IP Camera A)Alarm Setting： It can select several alarm way after triggered alarm. B)Time Setting：Arming time is the time in the selected Arming, if exception occurs, alarm will be triggered. Arming time defaults for all time . The Arming time corresponds to motion detection alarm and audible alarm.

  • Page 39: Advanced Set

    Super easy IP Camera Notes: When setting time section, please adjust the system time at first. Please refer to 5.2.9.2 and set up system time. (Note: Click the “apply” after modified parameter) 5.2.7 Advanced Set 5.2.7.1. Automatic Capture Automatically take photo: During the selected time section, take a photo in each time interval and send it to your mailbox.

  • Page 40: Ftp

    Super easy IP Camera The contents filled in this photos is required item, you will fail to set the email if some contents is incorrect. Note: After fill all parameters, pls click “Send Email” to send test email. (Note: Click the “save” after modified parameter) 5.2.7.3.

  • Page 41: Ptz

    Super easy IP Camera FTP user name and password FTP storage space and the authority Create sub-category to store the video or pictures. 5.2.7.4 PTZ PTZ setting: Cruise laps, PTZ speed, self-test center and close the alarm when PTZ moving. When setting up the appropriate data and click the application, then save and it works.

  • Page 42: Record To Tf/Sd Card

    Super easy IP Camera (Note: Click the “save” after modified parameter)s 5.2.7.5. Record to TF/SD card Record to TF/SD card: start record to TF/SD card, it will automatic record and save to TF/SD card in the selected time section. Below is the image of 13：30—16：30 Tuesday. Click the square corresponding to Arming time when settings, it will turn green after selected.

  • Page 43: Time Set

    Super easy IP Camera There are 2 levels of user authorization in it.  Administrator: “admin” has the highest authority, can do any settings. The factory default password: admin.  Guest: User can view the video, but can’t operate the device. The default password is guest. Note: Pls change these 2 level passwords when your first use to ensure your safety.

  • Page 44: Initialization

    Super easy IP Camera 5.2.8.2 Initialization Reboot: When upgrade camera firmware, it will automatic restart camera. ”Audio format” will l automatic restart camera. Factory Default : Enable the camera back to factory setting. Backup Data: If the back set up to date, the camera generate a file that you can save in your computer, and you can directly import the file when needing.

  • Page 45: System Log

    Super easy IP Camera 5.2.8.3 System log System log is to record the user operation and alarm event, it shows the operation and the time of event.

  • Page 46: Chapter 6 Appendix

    Super easy IP Camera Chapter 6 Appendix Appendix 1 FAQs After I connect the camera according to guide of Setup Wizard, and add camera by smartphone scanning UID QR code, it shows “Unknown device”, why ? When run “CloudNeteye” for the first time, pls make sure your smartphone and camera connect to the same Wi-Fi Router.
  • Page 47 Super easy IP Camera Why I fail to recording. When click “Record to TF/SD Card”, then click “Apply” to save setting, But after I refresh the page, the status still “Off”. Pls reset browser first: Tool Internet OptionAdvancedReset. Close browser, and enter again. If the problem is still not solved, then because that browser is not compatible with.
  • Page 48 Super easy IP Camera any special characters, Chinese characters or symbols! C. Manually specify your wireless Router’s security settings, say, WPA2-PSK, AES. Do NOT use the Auto option. D. After you configured your Router as required above, connect your PC to the camera via an Ethernet cable.

  • Page 49: Appendix 2 Fcc

    Super easy IP Camera Appendix 2 FCC FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 50 Super easy IP Camera This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
