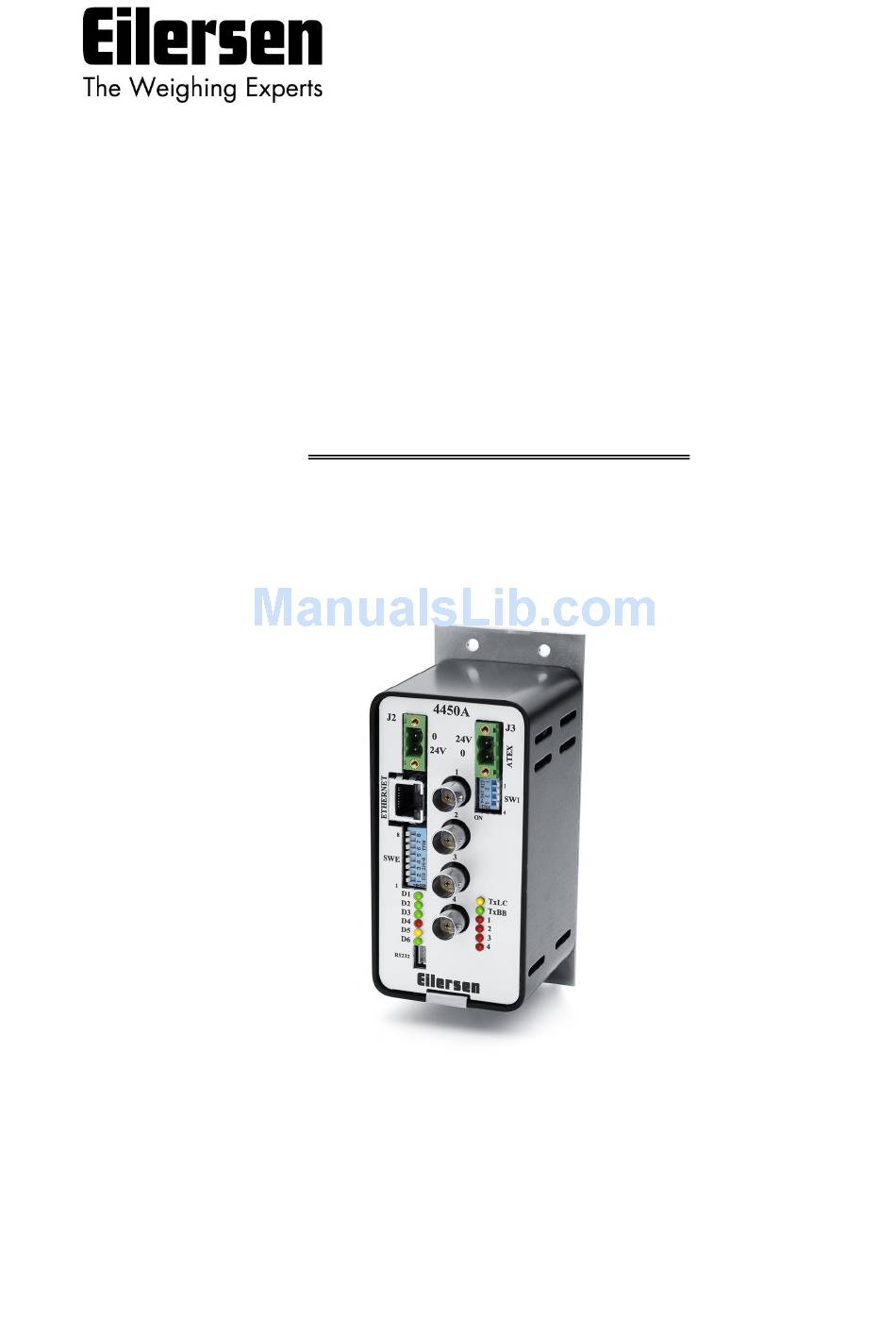

- Page 1 Kokkedal Industripark 4 DK-2980 Kokkedal Denmark info@eilersen.com +45 49 180 100 +45 49 180 200 4X50 ETHERNET SYSTEM Status and weight transfer using EtherNetIP Applies for: Software: ETHERNETIP.100609.3v3 Document no.: 0609mu4X50-3v3a Date: 2017-06-29 Rev.: 3v3a...
-
Page 2: Table Of Contents
7.4.6 Jumper settings ..................... 18 7.4.7 Light Emitting Diodes (LEDs) ................19 7.5 Appendix E – Status Codes ................... 20 7.6 Appendix F – Download of new software ..............21 7.6.1 Download procedure ..................21 WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 2... -
Page 3: Introduction
2) Introduction 2.1 Introduction This document describes the use of a 4X50 Ethernet system unit from Eilersen Electric. The 4X50 system unit consists internally of a 4050 Ethernet module (with the software listed on the front page) and a 4040 communication mod- ule. -
Page 4: Data Exchange
EtherNetIP master. Please refer to the chapter Data Processing for an explanation on how this typically can be done. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 4... -
Page 5: Data Formats
00000000 00000000 00000000 11001000 2000 0x000007D0 00000000 00000000 00000111 11010000 20000 0x00004E20 00000000 00000000 01001110 00100000 200000 0x00030D40 00000000 00000011 00001101 01000000 2000000 0x001E8480 00000000 00011110 10000100 10000000 20000000 0x01312D00 00000001 00110001 00101101 00000000 WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 5... -
Page 6: Scaling
Measurement time 20 ms 100 ms 200 ms 400 ms The hereby found loadcell signals (possibly filtered) are used on the Ethernet un- til new signals are achieved when the next sample period expires. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 6... -
Page 7: Filtering
0.3 Hz 0.15 Hz 0.075 Hz -60dB 1.5 Hz 0.3 Hz 0.15 Hz 0.075 Hz -80dB 1.0 Hz 0.2 Hz 0.10 Hz 0.05 Hz -60dB NOTE: With all switches OFF no filtering is performed. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 7... -
Page 8: Data Processing
LcZero[x]=LcSignal[x] After this the uncalibrated gross weight for loadcell X can be calculated LcGross[X] = LcSignal[X] – LcZero[X] WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 8... -
Page 9: Corner Calibration Of Weighing System
), whether LcGross[x] LcGrossCal[x] they are corner calibrated or not, a uncalibrated system weight can be calcu- lated as either: Gross = LcGross[X1] + LcGross[X2] + … Gross = LcGrossCal[X1] + LcGrossCal[X2] + … WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 9... -
Page 10: System Calibration Of Weighing System
For example on a three legged tank with only one loadcell, you should get a calibration factor of approximately 3 because of the two “dummy” legs. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 10... -
Page 11: Installation Of System
Finally verify that the weighing system(s) returns a value cor- responding to a known actual load. Note that in the above checklist no consideration has been made on which functions are implemented on the EtherNetIP master. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 11... -
Page 12: Hardware Description
(i.e. a 4450 system unit): 6.2 4X50 front panel description This chapter describes the connections, DIP-switch settings and lamp indica- tions that are available on the front panel of the 4X50 system unit. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 12... -
Page 13: Connection Of Power
1) The 2 pole connector (J3), located to the right above the 4 pole DIP-switch block, MUST be powered by a 4051A power supply (+24VDC ATEX approved) from Eilersen Electric. 2) The 2 pole connector (J2), located to the left above the RJ45 Ethernet con- nector, MUST be powered by a separate +24VDC, that has NO connection to the ATEX approved +24VDC from the above mentioned 4051A power supply. -
Page 14: Light Emitting Diodes (Leds)
Bad connection, loadcell not ready or other error detected. Status for loadcell 4 (Red) Bad connection, loadcell not ready or other error detected. The MS and NS LED’s can in conjunction with the table below be used for error finding. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 14... -
Page 15: Hardware Selftest
Update times across the EtherNetIP communication de- pends on the specific EtherNetIP configuration (switches, number of units, mas- ter scan times etc.) and are beyond the scope of this document. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 15... -
Page 16: Appendices
4X50 ETHERNETIP.100609.3v3: User manual 7) Appendices 7.1 Appendix A – Setup The MAC address of the module is preset to a unique value within the Eilersen Electric A/S range. The default settings for IP address etc. are DHCP: Disabled IP Address: 192.168.1.199... -
Page 17: Sw2 Settings
For information on jumper settings, DIP-switch settings, LED status lamps etc. on the 4040 communication module that is not covered in the above, please refer to the separate documentation that describes the 4040 communication module and its specific software. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 17... -
Page 18: Sw2 Settings
OFF (Loadcell connected to 4040 NOT accessible using SEL1) OFF (Loadcell connected to 4040 NOT accessible using SEL6) OFF (Loadcell connected to 4040 NOT accessible using SEL1) OFF (Loadcell connected to 4040 NOT accessible using SEL6) WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 18... -
Page 19: Light Emitting Diodes (Leds)
(light emitting diodes). The lamps have the following functionality when the 4040 communication module is equipped with standard program: FUNCTION Reserved for future use (Red) Reserved for future use (Red) Reserved for future use (Red) Reserved for future use (Red) WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 19... -
Page 20: Appendix E - Status Codes
Reserved for future use 4000 Reserved for future use 8000 Reserved for future use Please note that the above listed status codes are valid when the 4040 com- munication module is equipped with standard program. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 20... -
Page 21: Appendix F - Download Of New Software
Stopbits: Flow control: None 3) When the 4X50 is powered the following will be displayed (or press “Enter” one or more times until the main menu is displayed): Eilersen Electric A/S 4x50 module. Software version: EthernetIP.100609.3.3 -------------------------------------------------- --- MAIN MENU... - Page 22 8) Click the “Next” button to open the connection. Once the connection is estab- lished the following screen will appear: 9) Click the “Next” button to proceed and the following screen will appear: WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 22...
- Page 23 “Next” button. Once the erase operation has been complet- ed the following screen will appear: 12) Click the “Back” button in order to return to the following screen where the “Erase” option was selected: WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 23...
- Page 24 14) Click the “Next” button to start the download and verify process. Once the down- load and verify process has been completed the screen will appear as follows: 15) Click the “Close” button to terminate the “Flash Loader Demonstrator” program. 16) Remove power from the 4X50 module. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 24...
- Page 25 17) Start the terminal emulation program again with the same settings as specified under 2. 18) Apply power to the 4X50 module and verify that the indicated program ID ap- pearing in the terminal program matches the new program that has been down- loaded. WWW.EILERSEN.COM Version: 2017-06-29, rev.: 3v3a Page: 25...
