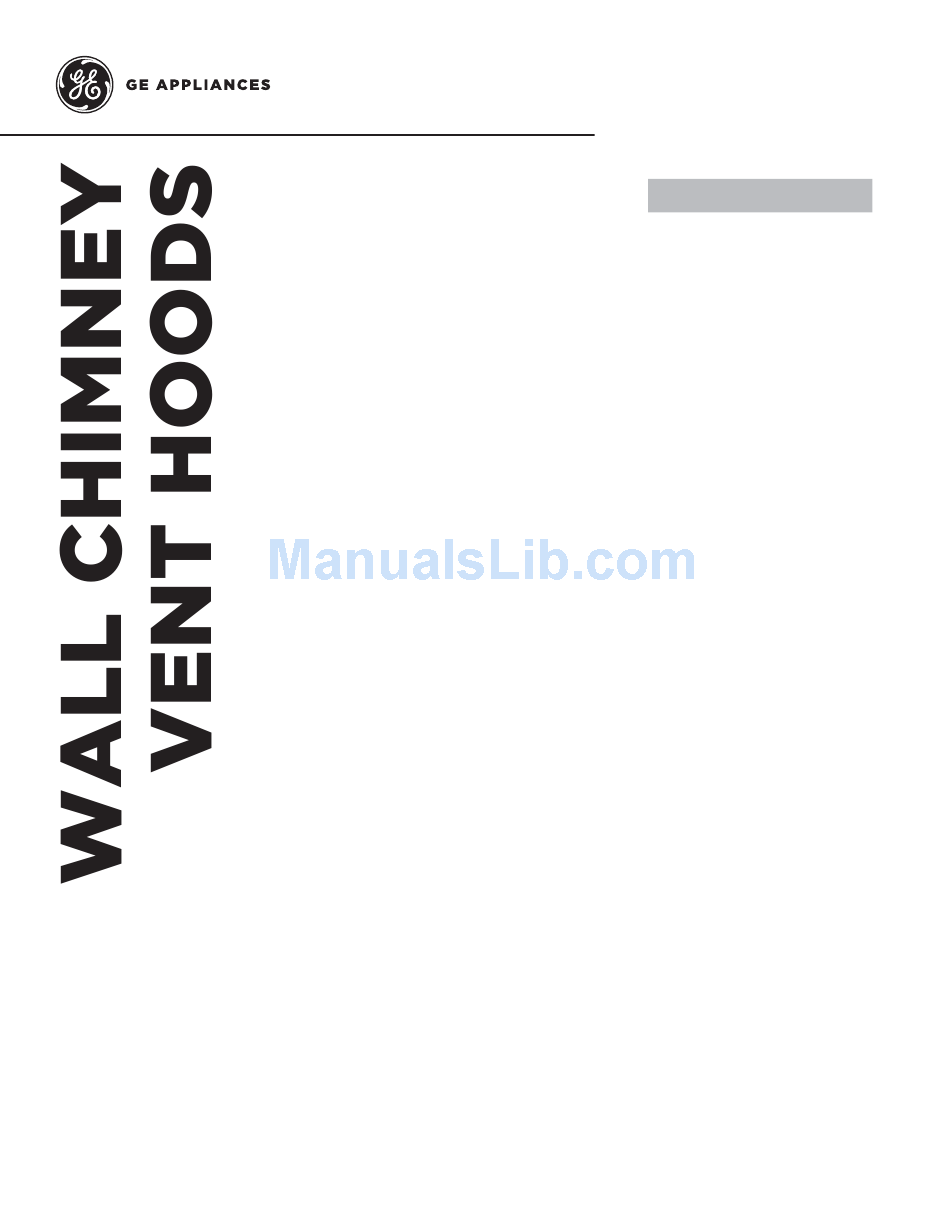

Wall chimney vent hoods
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

USING THE HOOD

Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

CARE AND CLEANING

Surfaces . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
. . . . . . . . . . . . . . . . . . . . . . . . . . 14
Write the model and serial
numbers here:
Model # _________________
Serial # _________________
You can find them on a label
on the inside of the hood.
GE is a trademark of the General Electric Company. Manufactured under trademark license.
. . . . . . . . . . . . .3
. . . . . . . . . .10
. . . . . . . . . . . . . . . . . . . . . . . 15
. . . . . . . . . . . . . . 16
OWNER'S MANUAL
JVW5301 (30" Pyramid)
JVW5361 (36" Pyramid)
PVW7301 (30" Glass)
PVW7361 (36" Glass)
ESPAÑOL
Para consultar una version en
español de este manual de
instrucciones, visite nuestro sitio de
internet GEAppliances.com.
49-80760-2 09-17 GEA

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JVW5361 and is the answer not in the manual?

Questions and answers

Summary of Contents for GEAppliances JVW5361

  • Page 1: Table Of Contents

    Controls ........5 JVW5361 (36" Pyramid) Filter ........6 PVW7301 (30"...
  • Page 2 THANK YOU FOR MAKING GE APPLIANCES A PART OF YOUR HOME. Whether you grew up with GE Appliances, or this is your first, we’re happy to have you in the family. We take pride in the craftsmanship, innovation and design that goes into every GE Appliances product, and we think you will too.
  • Page 3: Important Safety Information

    IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING WARNING WARNING TO REDUCE THE RISK OF FIRE, TO REDUCE THE RISK OF INJURY ELECTRIC SHOCK OR INJURY TO PERSONS, TO PERSONS IN THE EVENT OF A RANGE TOP OBSERVE THE FOLLOWING: GREASE FIRE, OBSERVE THE FOLLOWING*: A.
  • Page 4 Boilovers cause smoking and greasy air system in accordance with local building spillovers that may ignite. Heat oils slowly on code requirements. Visit GEAppliances.com for medium settings. available makeup air solutions. B. Always turn hood ON when cooking at high heat or F.
  • Page 5: Controls

    Controls 1. Rangehood Control Panel: 3. Fan Off Button: The control panel Off switch for the fan. The fan is located on the front of the canopy. The position can be operated by pressing any of the fan setting and function of each control button are noted below. buttons.
  • Page 6: Filter

    Filters (Pyramid Models JVW5301, JVW5361) Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood. Metal Grease Filter The metal filters trap grease during cooking. The filters must ALWAYS be in place when the hood is in use.
  • Page 7 Filters (Glass Models PVW7301, PVW7361) Be sure the circuit breaker is off and all surfaces are cool before cleaning or servicing any part of the vent hood. Metal Grease Filter The metal filter traps grease released by foods from cooking. The filters must ALWAYS be in place when the hood is in use.
  • Page 8: Surfaces

    Always let the light a clean, hot, damp cloth to remove soap. Dry with a dry, cool completely before cleaning around it. clean cloth. Lights (Pyramid Models JVW5301, JVW5361) CAUTION Allow lights to cool before touching. To change the lights: 1.
  • Page 9 Lights (Glass Models PVW7301, PVW7361) CAUTION Allow lights to cool before touching. To change the lights: 1. Before attempting to replace the lights, make sure that the light switch is turned off. 2. Wear gloves. Do not touch the light with your bare fingers.
  • Page 10: Troubleshooting Tips

    Sufficient makeup (replacement) air is required for exhausting appliances to operate to rating. Check with local building codes, which may require or strongly advise the use of makeup air. Visit GEAppliances.com for available makeup air solutions. The hood controls are Control logic confused.
  • Page 11 Notes 49-80760-2...
  • Page 12 Notes 49-80760-2...
  • Page 13 Notes 49-80760-2...
  • Page 14: Warranty

    To schedule ® service online, visit us at www.geappliances.com/service_and_support/, or call GE Appliances at 800.GE.CARES (800.432.2737). Please have your serial number and your model number available when calling for service. Servicing your appliance may require the use of the onboard data port for diagnostics. This gives a GE Appliances factory service technician the ability to quickly diagnose any issues with your appliance and helps GE Appliances improve its products by providing GE Appliances with information on your appliance.
  • Page 15: Accessories

    Accessories Looking For Something More? GE Appliances offers a variety of accessories to improve your cooking and maintenance experiences! Refer to the Consumer Support page for phone numbers and website information. The following products and more are available: Parts Charcoal Filter High Ceiling Duct Cover Kit Remote Control Replacement Lights...
  • Page 16: Consumer Support

    Register your new appliance on-line at your convenience! Timely product registration will allow for enhanced communication and prompt service under the terms of your warranty, should the need arise. You may also mail in the pre-printed registration card included in the packing material. In the US: GEAppliances.com/register Schedule Service Expert GE Appliances repair service is only one step away from your door.
