Page 1 Quick Start Guide...
Page 3: Package Contents
Introduction Thank you for purchasing the Front Row Camera. This Quick Start Guide is designed to guide you through installation and also includes warranty terms. Package Contents Front Row Camera Magnetic Clip USB Cable with Adjustable Adapter Lanyard MicroFiber Cloth...
Page 4: Hardware Overview

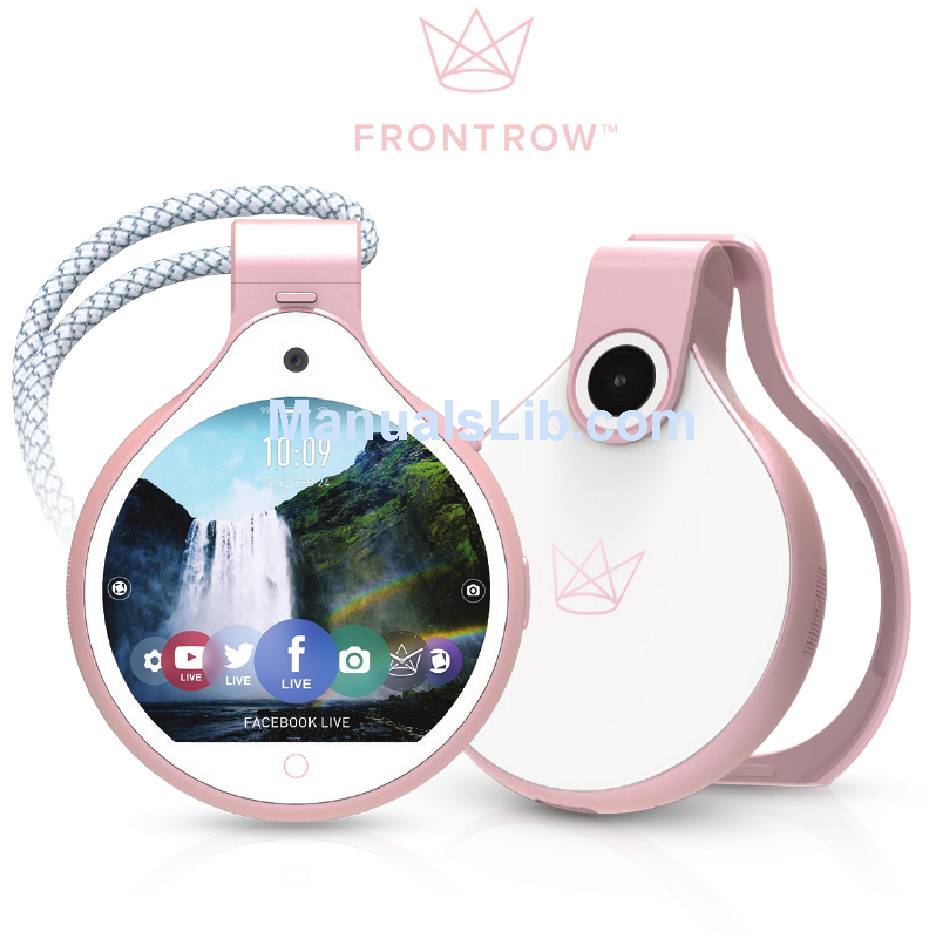

Hardware Overview Display Side Chain Adapter Reverse Camera Media Button Feb 24 Tuesday Power Button Touchscreen Facebook Live Home Button...
Page 5 Chain Adapter The Chain Adapter can be used to wear your Front Row on your favorite necklace. It is removable so that you can connect the included lanyard, clip, or optional accessories such as the car mount and coil mount.
Page 6 Front The Main Camera has a 147.5° viewing angle fisheye lens. The LED behavior is described below: Main Camera Description Solid Blue Fully Charged Blinking Blue Charging Blinking Red Recording...
Page 7: Connecting Accessories
Connecting Accessories Front Row can be used with the included adjustable lanyard, magnetic clip, third party chain adapter, optional car adapter, or optional coil adapter for mounting flexibility. Simply attach the desired accessory (Magnetic Clip shown below). The Magnetic Clip can be tilted for use as a stand,...
Page 8: Before You Begin
Disconnecting Accessories Press and hold the Release Button while you remove the connected accessory. Before You Begin Remove the protective film covering the touchscreen on the Front Row.
Page 9 Adjusting the Lanyard To tighten, press and hold To loosen, pull outwards on the the adjustment buttons and cord from both sides. slide outwards.
Page 10: Installation
Installation Connect the USB Cable to the USB Port.
Page 11 Connect the other end of the USB Cable to your power adapter, laptop, power bank, or mobile phone. USB Adapter (Included) For versatility, it can be charged using the included USB Adapter or remove the adapter to use the USB Type C connector.
Page 12 Press the Power Button on the side of your Front Row. Select your language. 100% 100% 100% Language En g l i s h En g l i s h D e u t s c h 00:45 00:13 1:59:40 日...
Page 13 Select your wireless network. 100% 100% Wi-Fi En g l i s h AmpliFi-OC 日本語 UBNT-OC 繁体中文 UBNT_Test Fra n ç a i s Enter your password and tap OK. Password q w e r t y u i o p a s d f g h j k c v b n m ?123...
Page 14 Tap Set Up Now to set up a security pattern. 100% Security Patter n S E T U P N O W S K I P Draw a security pattern and confirm it. 100% Draw Again...
Page 15 Front Row App Download and install the Front Row app from the App Store or Google Play™ Store. The Front Row app connects your Front Row Camera to your mobile device for video review, editing, and remote access. Preview the video feed, remotely start, and stop...
Page 16: Touchscreen Features
Touchscreen Features Tap the Home button or the center of the screen to show/hide the icons. Swipe left or right over the App icons to navigate to apps and tap the icon to launch. Swipe towards the center of the touchscreen from the Gallery icon to view recordings and photos.
Page 17: Story Mode
Story Mode Story Mode captures a photo every few moments and creates a condensed video of your activities. 100% 100% Draw Again...
Page 18: Live Mode
Live Mode Livestream to your social media accounts by connecting to a Wi-Fi network or tethering from your mobile device. To connect, simply sign in to your social media account at the specified web address from a computer or smartphone and enter the code provided.
Page 19: Camera Mode
Camera Mode Record HD video or take high-resolution photos. Press and hold the media button to begin video recording or tap the record button in the bottom center on the screen. To take a photo, press the media button or tap the button on the bottom right.
Page 20 Settings On the Home screen, swipe from the top down towards the center to access settings. Adjust the volume, display brightness, check Wi-Fi status, and access additional settings. 100% Draw Again...
Page 21 Gallery Go to the Gallery to access your story recordings, video clips, and photos on the Front Row. To access, tap the Gallery icon or swipe from the left towards the center on the Home screen. 100% 100% En g l i s h...
Page 22: Specifications
Specifications Dimensions 59.8 x 70.3 x 12.1 mm (2.354 x 2.768 x 0.476") Weight 59 g (2.08 oz) RAM / Storage 2 GB / 32 GB (Shared with Other Applications) Connectivity USB 3.0/2.0 Type C, 802.11b/g/n/ac, Bluetooth 4.1 LE Camera Front IMX179 (8M) / Rear S5K5E2YA (5M) Lens Main F2.2 / Reverse F2.0...
Page 23: Product Warranty
Very cold conditions may temporarily shorten battery life and could cause the device to turn off. Front Row does generate heat during operation to help keep the battery pack from getting too cold and therefore help minimize a reduction in run times. Front Row does include a rechargeable lithium ion battery pack, which holds up best in cold temperatures.
Page 24 You will be required to supply the following information: name, contact information, and shipping information; date of purchase of the Product (we may request a copy of the invoice as proof of purchase); problem description; MAC Address of the Product; and troubleshooting actions taken so far.
Page 25 or software; or, has had its original Ubiquiti Networks MAC address label removed; or, has not been received by us within thirty (30) days of issuance of the RMA. For a Product to be eligible under this Product Warranty, you shall: use only CAT5 (or above) cabling for all Ethernet cabling runs;...
Page 26 INCLUDING THE INTERNET, AND THAT THE PRODUCTS AND SERVICES MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR SUPPLIERS AND SERVICE AND OTHER PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
Page 27 Operations of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. The Front Row Camera has been approved by the FCC under FCC ID: SWX-FR...
Page 28 2 This device must accept any interference, including interference that may cause undesired operation of the device. The Front Row Camera has been approved by Industry Canada under IC: 6545A-FR. The device could automatically discontinue transmission in case of absence of information to transmit, or operational failure.
Page 29 2 Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif. La Caméra Front Row a été approuvée par Industrie Canada en vertu IC : 6545A-FR. Le dispositif doit interrompre automatiquement l’émission en cas d’absence d’information à...
Page 30 Battery Warning 1 Do not expose cells or batteries to heat or fire. Avoid storage in direct sunlight. 2 Do not use any cell or battery which is not designed for use with the equipment. 3 Always purchase the battery recommended by the device manufacturer for the equipment.
Page 31: Rohs/Weee Compliance Statement
CE Marking CE marking on this product represents the product is in compliance with all directives that are applicable to it. RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
Page 32 Deutsch Die Europäische Richtlinie 2012/19/EU verlangt, dass technische Ausrüstung, die direkt am Gerät und/oder an der Verpackung mit diesem Symbol versehen ist, nicht zusammen mit unsortiertem Gemeindeabfall entsorgt werden darf. Das Symbol weist darauf hin, dass das Produkt von regulärem Haushaltmüll getrennt entsorgt werden sollte. Es liegt in Ihrer Verantwortung, dieses Gerät und andere elektrische und elektronische Geräte über die dafür zuständigen und von der Regierung oder örtlichen Behörden dazu bestimmten Sammelstellen zu entsorgen.
Page 33 Français La directive européenne 2012/19/EU exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé dans un circuit distinct de celui pour les déchets des ménages.
Page 34: Declaration Of Conformity
декларацията за съответствие може да се намери на следния интернет адрес: www.ubnt.com/compliance Hrvatski UBIQUITI NETWORKS ovime izjavljuje da je radijska oprema tipa FR u skladu s Direktivom 2014/53/EU. Cjeloviti tekst EU izjave o sukladnosti dostupan je na [Croatian] sljedećoj internetskoj adresi: www.ubnt.com/compliance Čeština...
Page 35 Français Le soussigné, UBIQUITI NETWORKS, déclare que l’équipement radioélectrique [French] du type FR est conforme à la directive 2014/53/UE. Le texte complet de la déclaration UE de conformité est disponible à l’adresse internet suivante: www.ubnt.com/compliance Deutsch Hiermit erklärt UBIQUITI NETWORKS, dass der Funkanlagentyp FR der Richtlinie 2014/53/EU entspricht.
Page 36 Español Por la presente, UBIQUITI NETWORKS declara que el tipo de equipo radioeléctrico [Spanish] FR es conforme con la Directiva 2014/53/UE. El texto completo de la declaración UE de conformidad está disponible en la dirección Internet siguiente: www.ubnt.com/compliance Svenska Härmed försäkrar UBIQUITI NETWORKS att denna typ av radioutrustning...
Page 37: 24/7 Live Chat Support
24/7 Live Chat Support Live chat support is available at help.frontrow.com, 24 hours a day, 7 days a week. Online help.frontrow.com Email help@frontrow.com...
Page 38 ©2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, U Labs, the U Labs logo, and Front Row are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
