Galileo
Prestige Italian Audio Rack Table
OWNER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the Galileo and is the answer not in the manual?

Questions and answers

Summary of Contents for Gold Note Galileo

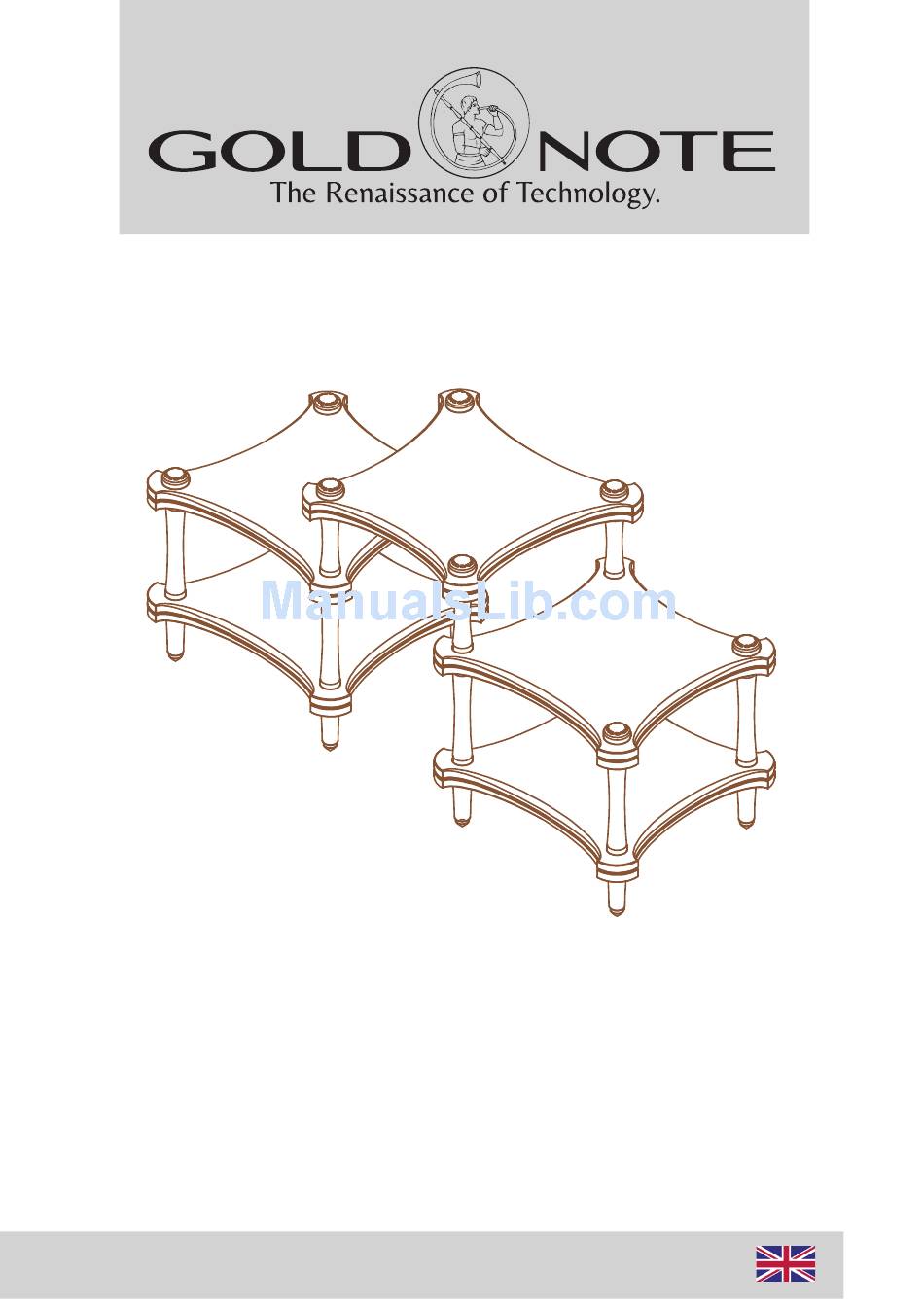

  • Page 1 Galileo Prestige Italian Audio Rack Table OWNER’S MANUAL...

  • Page 2: Important Safety Information

    Protect the product from rain and humidity and keep away from heat sources, electric and electronic motors etc. Gold Note does not have responsibility for any improper use of this unit This appliance has a serial number located on the rear panel.
  • Page 3 IMPORTANT SAFETY INFORMATION 1 Read these instructions. normally, or has been dropped. 2 Keep these instructions. • Do not expose this apparatus to drips or splashes. • Do not place any objects filled with liquids, such as vases, on 3 Heed all warnings. the apparatus.

  • Page 4: Introduction And Features

    INTRODUCTION AND FEATURES The first Gold Note Audio Rack is called GALILEO in honour to the Florentine genius born in the mid of 1500, probably the most illuminated physician, mathematician, astronomer and engineer of the 2° Millennium. The GALILEO Rack design combines several different details come from the best Gold Note turntables, the Bellagio Conquest and the Mediterraneo, offering both a great dampening effect and a beauti- ful unique Italian design, that reminds the "Monumental Staircase of the Biblioteca (Library) Vasariana"...
  • Page 5 GALILEO FEATURES The Galileo is offered in three options completed shelves including the foot to build the own custom audio rack: The GALILEO MAIN SHELF option features: •1pc 45mm thick SHELF made of two massive Italian walnut wood anti-seismic layer with internal 3mm stainless steel polished reinforcement coupled with 16 stainless bolts [25Kilos each] •4pcs Galileo Bottom aluminium Hourglass FOOT with recessed area for spikes 50x140mm...
  • Page 6 GALILEO MAIN SHELF Content - Bottom aluminium Hourglass FOOT completed with adjustable spikes - Foot are 50x140mm (4x) - Spikes are 35x40mm (4x) - Bronze Insert (4x) - 45mm thick SHELF coupled with 16 stainless bolts - Aluminium TOP COVERS 43x70mm (4x) OWNER’S MANUAL...
  • Page 7 GALILEO MAIN SHELF Assembling Instruction STEP 1 For the STEP 1 you need these parts: - Bronze Insert (4x) - Bottom aluminium Hourglass FOOT completed with adjustable spikes - Foot are 50x140mm (4x) - Spikes are 35x40mm (4x) Thread the Bronze Inserts into each aluminium Hourglass FOOT as indicated in the picture below OWNER’S MANUAL...
  • Page 8 GALILEO MAIN SHELF Assembling Instruction STEP 2 For the STEP 2 you need these parts: - 45mm thick SHELF coupled with 16 stainless bolts Just insert the Bottom aluminium Hourglass FOOT as shown in the picture below OWNER’S MANUAL page 7...
  • Page 9 For the STEP 3 you need these parts: - Aluminium TOP COVERS 43x70mm (4x) If you have only one shelf Galileo Rack, thread thigten the Aluminium TOP COVERS on the Bronze Inserts as shown in the picture below: OWNER’S MANUAL OWNER’S MANUAL...
  • Page 10 GALILEO SHORT/LONG FOOT SHELF Content aluminium Hourglass Foot aluminium Hourglass Foot 50x300mm (4x) 50x200mm (4x) (included in the (included in the GALILEO GALILEO LONG FOOT SHELF SHORT FOOT SHELF option) option) - Bronze Insert (4x) - 45mm thick SHELF coupled with 16 stainless bolts - Aluminium TOP COVERS 43x70mm (4x) OWNER’S MANUAL...
  • Page 11 For the STEP 1 you need these parts: - aluminium Hourglass Foot 50x200mm (4x) - aluminium Hourglass Foot 50x300mm (4x) If you have more than just one shelf GALILEO Rack, thread the additional Hourglass FOOT on the Bronze Inserts as shown in the picture below: OWNER’S MANUAL OWNER’S MANUAL...
  • Page 12 GALILEO SHORT/LONG FOOT SHELF Assembling Instruction STEP 2 For the STEP 2 you need these parts: - Bronze Insert (4x) Thread the Bronze Inserts into each aluminium Hourglass FOOT as indicated in the picture below OWNER’S MANUAL OWNER’S MANUAL page 8...
  • Page 13 GALILEO SHORT/LONG FOOT SHELF Assembling Instruction STEP 3 For the STEP 3 you need these parts: - 45mm thick SHELF coupled with 16 stainless bolts Insert the second shelf as indicat- ed in the picture here aside: OWNER’S MANUAL page 12...
  • Page 14 200mm or 300mm STEP 4 For the STEP 4 you need to reinstall the TOP COVER parts of the GALILEO MAIN SHELF: - Aluminium TOP COVERS 43x70mm (4x) Once the GALILEO Rack, is complted reinstall thigten the...
  • Page 15 GALILEO DIMENSIONS TOP PANEL VIEW BOTTOM PANEL VIEW OWNER’S MANUAL page 14...
  • Page 16 GALILEO DIMENSIONS OWNER’S MANUAL page 15...
  • Page 17 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 16...
  • Page 18 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 17...
  • Page 19 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 18...
  • Page 20 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 19...
  • Page 21 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 20...
  • Page 22 GALILEO ASSEMBLY EXAMPLE OWNER’S MANUAL page 21...
  • Page 23 USER NOTE OWNER’S MANUAL page 22...
  • Page 24 Via della Gora, 6 Montespertoli (Florence) Italy 50025 Tel. + 39 0571 675005 Fax. + 39 0571 675013 www.goldnote.it...
