Emax EM 2239 Manual

Bluetooth smart thermometer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

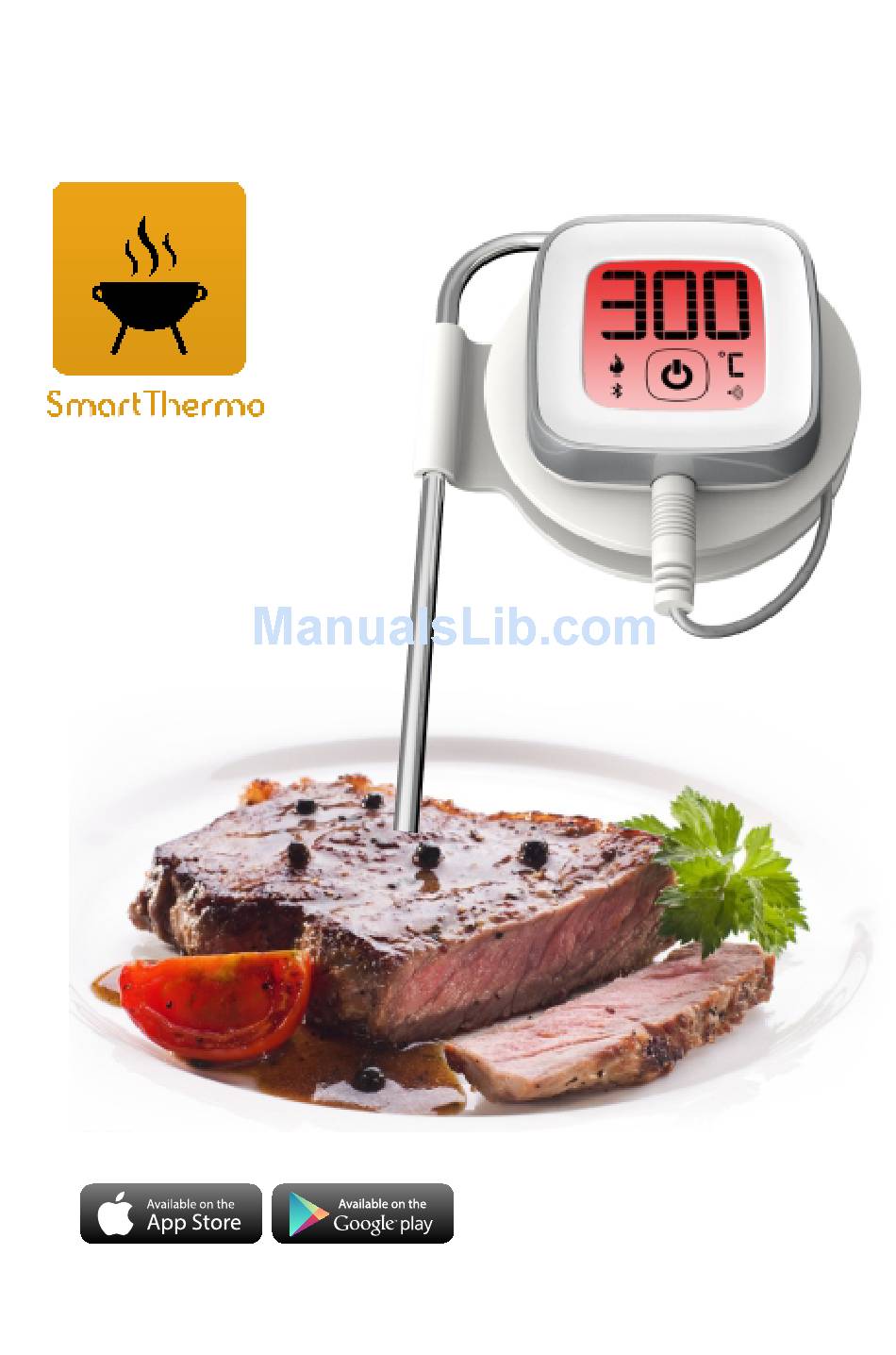

Bluetooth Smart Thermometer
Model: EM 2239
App Downloads:
*Hardware Requirements:
iPhone 4s (or above) or Bluetooth v4.0 enabled smart device
*Software Requirements
iOS 7 (or above) or Android 4.3 (or above)

Advertisement

Table of Contents
loading

Related Manuals for Emax EM 2239

Summary of Contents for Emax EM 2239

  • Page 1 Bluetooth Smart Thermometer Model: EM 2239 App Downloads: *Hardware Requirements: iPhone 4s (or above) or Bluetooth v4.0 enabled smart device *Software Requirements iOS 7 (or above) or Android 4.3 (or above)

  • Page 2: Packaging Contents

    INSTRUCTION Thank you for selecting Smart Thermo.Simply program your choice of meat type,target temperature or cooking time either on the touch-key display unit or your smart device via the corresponding app. When your grill is cooked to perfection,You do not need to wait by the grill to monitor the cooking status.
  • Page 3 OVERVIEW DISPLAY UNIT-FRONT VIEW 1. Current temperature; 2. °C/°F(temperature measurement unit) 3. Pairing indicator 4. power on/off. 5. Bluetooth indicator 6. Thermo logo a. Metal Probe Connector Wire b. Metal probe c. Probe wrap d. Silicone sleeve...

  • Page 4: Display Unit-Rear View

    DISPLAY UNIT-REAR VIEW 1. Battery compartment 2. Magnet 3. Reset button BATTERY INSTALLATION 1. Remove the battery door by twisting it counter-clockwise 2. Replace the battery with a CR2032 coin cell battery. 3. Ensure the battery is in place, matching the polarities (+/-) and replace the battery door.

  • Page 5: Connecting The Probe

    CONNECTING THE PROBE Carefully then plug the meat probe into the bottom socket. Probe Use Meat Probe Acceptable Temperature Range: -13°F to 572°F (-25ºC to 300ºC) The Meat Probe should always be inserted into the center of the item which is being cooked for an accurate temperature.

  • Page 6: Powering On And Off

    POWERING ON & OFF 1. To turn on the SmartThermo, follow these steps: Press the power button located in the bottom of the LCD. The LCD will full screen display while waiting for pairing. 2. To turn off the SmartThermo, follow these steps: Press the power button located in the bottom and hold of the LCD for three seconds.
  • Page 7 NOTE If low battery icon “ ” displays on the screen, please replace with new batteries for the corresponding device. CONNECT WITH YOUR SMART DEVICE To quickly find the application from the Apple Store , please type 'SmartThermo' as keyword in the search engine.
  • Page 8 IOS SERIES MODEL iPhone (4S and later) ® ® iPad (3rd generation and later) iPad mini (all generations) iPod touch (5thgeneration and later) ® PAIRING YOUR Smart Thermo First of all, you need to pair your Smart Thermo with your smart. “ ”...
  • Page 9 HOME DISPLAY UNIT-WORK 1. Profile (Tap to display toggle between Profile, Temperature or Timer display) 2. Meat and doneness display (Tap to change setting) 3. Set temperature 4. Target temperature icon 5. Temperature trend display 6. Current meat temperature (Tap to display temperature history) 7.
  • Page 10 To select the measurement unit: 1. Tap to view the measurement unit options. 2. Tap on your desired unit. 3. Tap to go back to the previous screen to save. Settings the choose food You can set your Smart Thermo through the application, such as measurement units.
  • Page 11 To select food: 1. Tap to view the Profile options of food . 2. Tap on your food type. 3. Tap to select cooking degree and temperature can be adjusted up and down 2 degrees 4. Tap to go back to the previous screen to save.
  • Page 12 Settings the definition temperature You can freely set alarm temperature by remote device To select the temperature: 1. Tap to view the Profile options of temperature 2. Slide down and up to set temperature you need. Temperature measurement range: -25°C to 300ºC (-13°F to 572°F) 3.
  • Page 13 Alarm seting To select the alarm ring : You can choose any alarm ring from 27 rings . 1. Tap to view the Profile options of rings 2. Tap to choose your favorite ring 3. Tap to go back to the previous screen to save. 4.

  • Page 14: View History Readings

    VIEW HISTORY READINGS Tap on temperature in central. You can view history date which is presented in graphs. SHARING You can put the food cooking photos in community and share with others. To select the camera: 1. Tap to view the Profile options of camera 2.

  • Page 15: Specification

    SPECIFICATION TYPE DESCRIPTION DISPLAY UNIT LxWxH 51x51x20.5mm Temperature -25°C to 300ºC (-13°F to 572°F) measuring range °C/°F Temperature unit Power 1xCR2032 3V batteries PROBE WRAP LxWxH 77x65x13.5mm METAL PROBE Length 122mm Heat resistance for Around 300°C(572°F) metal probe Temperature range -25°C to 300ºC (-13°F to 572°F) 100-hour Battery life...
  • Page 16 The statements should be displayed in the user manual: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
