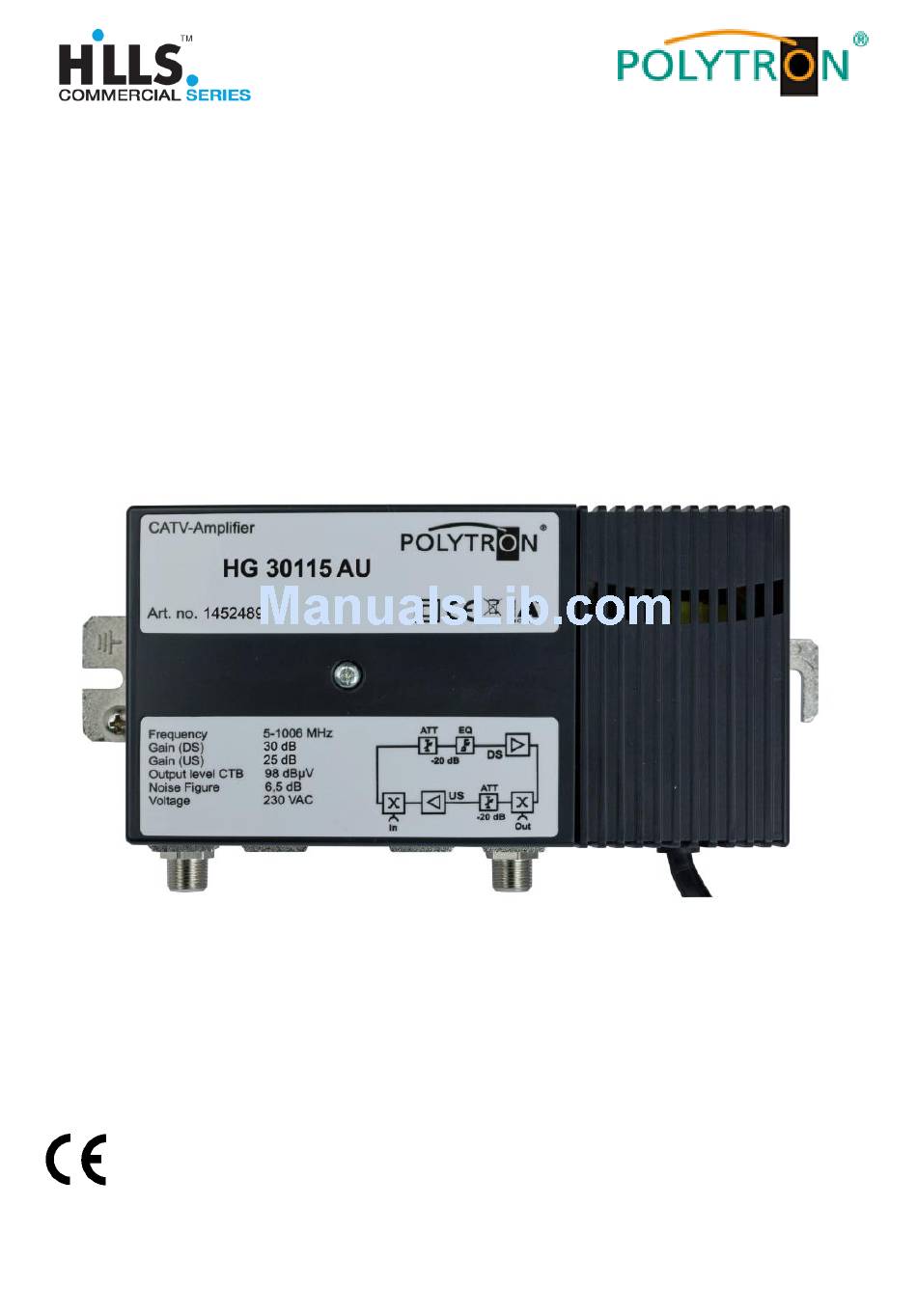

- Page 1 User manual CATV-Home Distribution Amplifier Model HG 30115 AU Operating manual 0901871 V2 Copyright © Polytron-Vertrieb GmbH Subject to change without prior notice.
- Page 2 Mounting and safety instructions Precautions to ensure the electromagnetic compatibility (EMC) All covers and screws must tightly be fitted and should be tightly fastened. Contact feathers should not be oxidized or deformed. Copyright © Polytron-Vertrieb GmbH Subject to change without prior notice.
-
Page 3: Block Diagram
Description The new generation of CATV-Home-Distribution-Amplifiers is particularly designed for the use in small multiple family dwellings. Multimedia applications in cable networks (i.e. Internet) are supported by the integrated return path. The requested output level can be exactly adjusted by potentiometers. The interstage pre- equalization is fixed to 3 dB. -
Page 4: Technische Daten
Settings The amplifiers will be adjusted by the potentiometers. Power Supply Attenuator Equalizer Input Attenuator return path Output Power Supply LED Technische Daten General information Frequency range DS 85 - 1006 MHz Gain 30 dB Attenuator 0 - 20 dB Equalizer 0- 20 dB Interstage pre-equalization...
