Summary of Contents for Tuson RV Brakes RFCAM1000

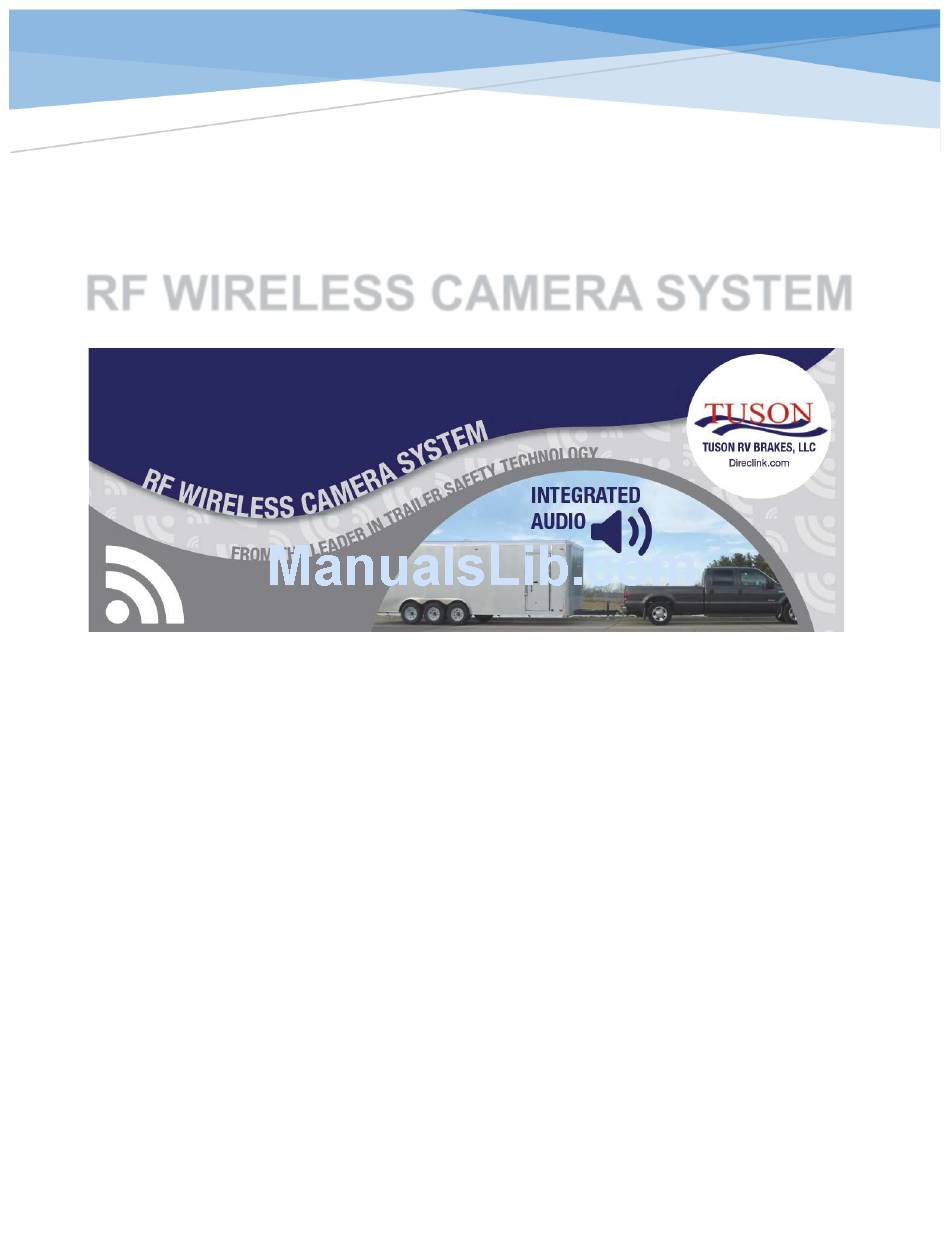

- Page 1 RF WIRELESS CAMERA SYSTEM INSTALLATION USER GUIDE RFCAM1000 RFCAM1200A RFCAM1200B REV 1.1 2017...
- Page 2 RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE RF Wireless Camera System Tuson RV Brakes’ RF Wireless Camera System is specially designed with multiple camera inputs to allow drivers to add different views: Hitch View, Backup View, or Side View together or individually.
- Page 3 RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE Please read this manual thoroughly before installing your new RF wireless camera system. THE DRIVER MUST VISUALLY CHECK WHEN INSTALLING THE CAMERA OR BEHIND AND AROUND THE VEHICLE WHEN CHECKING IF IT IS INSTALLED WHEN PUT IN REVERSE.
-
Page 4: Safety Information
RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE 1. Safety Information USE ONLY IN VEHICLE WITH A 12 VOLT Failure to make the proper connections may NEGATIVE GROUND. result in fire or product damage. Check with your dealer if you are unsure. Failure to do so may result in fire, etc. -
Page 5: Kit Contents
(adhesive failure) due to wind and vibration. The user is responsible to select the appropriate mechanical fasteners for their roof type. Tuson RV Brakes is not responsible for any roof damage that may occur while installing mechanical fasteners into the roof of your trailer or 5th wheel. Next snap the extension antenna module top (with the antenna side) onto the mounted base plate in the proper orientation. -
Page 6: Installation
RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE 3. Installation Wireless Backup Camera Installation: Mechanical Installation: Remove the plastic shrink wrap from the RF Wireless Backup Camera. Attach the provided antenna to the RF Wireless Camera by screwing it in place using only your fingers to tighten in place. Select the appropriate mounting location for your camera. - Page 7 RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE Hitch View Camera Installation: Mechanical Installation: Step 1 - Wired Camera The Tuson RF Wireless Hitch View System is made up of two parts the Wired Camera and the RF Transmitter Select the mounting location of your wired camera. We recommend that the camera be placed just above your rear license plate centered just above the hitch location for bumper pull trailers.
- Page 8 RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE 4. Wireless Monitor Operation Power System power On/Off CH1 or CH2 selection OSD functions : Volume(NC), Enter Brightness, Contrast Color, Line, Default On OSD operation : select forward. > Right Guideline display off. On OSD operation : select backward.
- Page 9 RF WIRELESS CAMERA SYSTEM INSTALLATION AND USER GUIDE Guideline #1 adjustment: o Press Enter key to select three types of guideline. o Press < Left key to move the guideline. Wireless backup camera LED light On/Off The wireless backup camera is equipped with an LED light that the driver can turn on or off from the monitor by following the steps below: 1.
-
Page 10: Specification
All product support and warranty coverage is provided by the distributor that your product was purchased from. Please contact your distributor who originally sold you your RFCAM product. Or contact us: www.tusonrvbrakes.com www.direclink.com Tuson RV Brakes, LLC 475 Bunker Court Vernon Hills, IL 60061 800-968-8766 P a g e... -
Page 11: Limited Warranty
7. Limited Warranty Tuson RV Brakes, LLC (Tuson) warrants the Tuson Wireless backup camera system (RFCAM) to be free of defects in material and workmanship for a period not to exceed One (1) year from the date of sale to the original consumer, or to the first retail purchaser of a trailer on which the RFCAM is installed.
