Summary of Contents for iAT101 WiFi-PA1

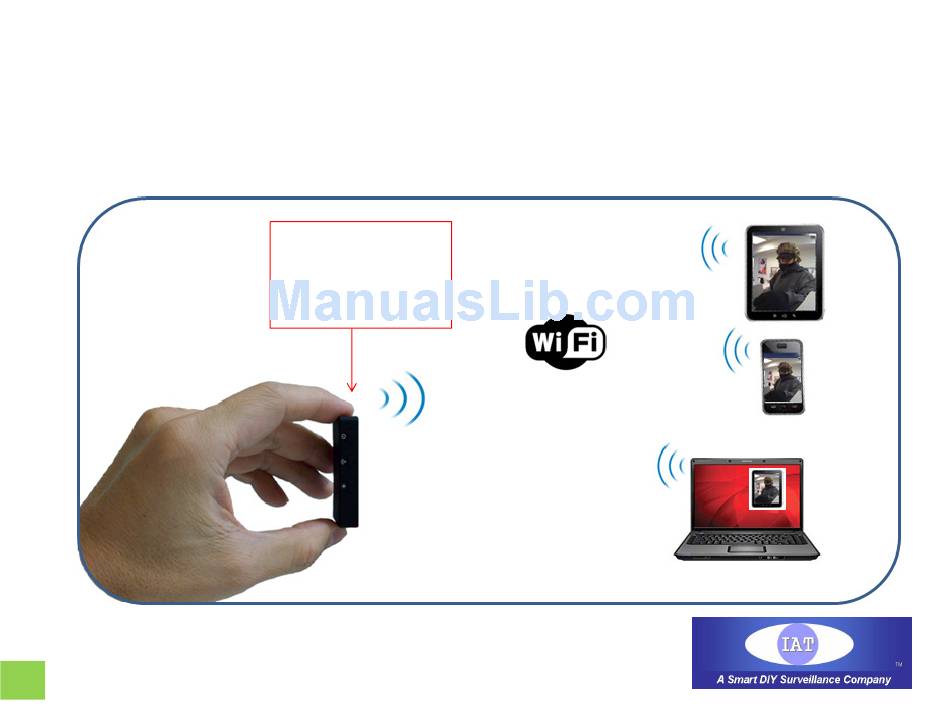

- Page 1 Setup and Installation Guide Mini WiFi Transceiver for Smartphone Surveillance System with Motion-Detect Recording Function Connecting to • Home Door Camera • Window Camera • Mini SPY Camera • And more…. WiFi Transceiver www.peephole-store.com www.iat101.com...
-
Page 2: Table Of Contents
Page Understand the Mini WiFi Transceiver (TXRX) ----------------------------- • Basic Concept of a WiFi Transceiver ----------------------------- • Diverse applications of an iat101 WiFi A/V transceiver ----------------------------- Fixed Point WiFi Applications ----------------------------- 6 - 7 Portable WiFi Applications ----------------------------- Software Installation on your phone... -
Page 3: Understand The Mini Wifi Transceiver (Txrx)
3) REC Button 4) WI-FI On/ Off Button 5) Power Button 5.4 cm 6) Microphone 7) Red LED (Red/No SD Card) 8) Green LED (WI-FI / Client) 9) Blue LED (Power ON) 10 ) Analog Audio / Video In www.peephole-store.com www.iat101.com... -
Page 4: Basic Concept Of A Wifi Transceiver
2) USB interface 3) REC Button 4) WI-FI On/ Off Button 5) Power Button 6) Microphone 7) Red LED (Red/No SD Card) 8) Green LED (WI-FI / Client) 9) Blue LED (Power ON) 10 ) Analog Audio / Video www.iat101.com www.peephole-store.com... -
Page 5: Diverse Applications Of An Iat101 Wifi A/V Transceiver
Diverse applications of an iat101 WiFi A/V Transceiver Fixed Point WiFi Applications Portable WiFi Applications Powered on using a wall plug Powered on using a battery Compatible to most of iat101’s Compatible to most of iat101’s Mini SPY Cameras, Dental camera as a portable... - Page 6 Connecting any analog surveillance camera video signal to the WiFi transceiver Video Signal in Door Camera Outdoor Camera Window Camera 8GB Micro SD card DC power in from a wall plug Note: For buying any door cameras, and window cameras, please visit our on-line shopping store www.peephole-store.com www.iat101.com www.peephole-store.com...
- Page 7 Typical wire connection diagram for a Fixed Point WiFi Surveillance Fixed Point WiFi Applications Powered on using a wall plug Analog Camera Such as iat101’s door camera, and window camera products WiFi signal to smartphone, ipad, and PCs 12 V DC...
- Page 8 Mini Window Camera WiFi Surveillance Applications WiFi signal to smartphone, ipad, Mini WiFi Transceiver Our window camera products would be ready for sale soon! www.ia-tecs.com/download/iat101_Window_Camera.pdf www.iat101.com www.peephole-store.com...
- Page 9 Placing our window camera and door camera products to protect your lovely home and family members Window Camera Door Camera Window Cameras Door Camera Our window camera products would be ready for sale soon! www.ia-tecs.com/download/iat101_Window_Camera.pdf www.iat101.com www.peephole-store.com...
- Page 10 Note 1: If you want to change the default password to your own password, you must write down and remember your own password and don’t forget it. There is no way to reset password, if you forgot your password. www.iat101.com www.peephole-store.com...
-
Page 11: Operation Procedures For The Wifi Transceiver
3) Green LED Light On：WI-FI On Green LED Light Blinking：WI-FI Direct / WI-FI Client connecting 9) Blue LED (Power ON) Green LED Light Continue Blink 2 times and stop one sec.：Enter Client, But no connection. 10 ) Analog Audio / Video In www.iat101.com www.peephole-store.com... -
Page 12: Modes Of Operations
Router / AP Please make sure, you do press button (4) for 3 sec. to switch the operational mode between WiFi- Direct or Wi-Fi Client mode www.iat101.com www.peephole-store.com... - Page 13 WiFi Direct Mode ( for Local Area WiFi network) Phone No.1 WiFi Client Mode For remote location video viewing, please make sure having a stable internet connection or 3G/4G/ 4.5G phone signal. Home In other city 3G, 4G , 4.5G 3G, 4G.
- Page 14 WiFi router or a smartphone (set as a hot-spot), after enter the correct AP name and password, and then switch to the WI-FI client mode. *When the device switch to Client Mode, please make sure it is under signal of AP to avoid the disconnect www.iat101.com www.peephole-store.com...
- Page 15 DV-LT1-XXXXXXXXXX 1)Choose settings 4)Enter password. (The factory initial password is 123456878) 2)Choose Wi-Fi. 5)Confirm WI-FI has been connected. 3)Choosing the host’s Wi-Fi which you need to connect. 6.)Enter WI-FI connection. After finish setup please go to page 14 www.iat101.com www.peephole-store.com...
- Page 16 4) Click WiFi Connect 2) Choose the WiFi device. 5.) Enter WI-FI connection. Note: 3) Enter password. (The factory password is 123456878.) Different smartphone may has different operational display screen After finish setup please go to page 14 www.iat101.com www.peephole-store.com...
-
Page 17: Other Setup Information
1)Film archives. 1)Video playback window. 2)Photographic archives. 2)Back to last page. 3)Film and photo all archive. 3)Pause button. 4)Mark archive what you need. 5)File name. 6)Mark all archive. 7)Unmark all archive. 8)Back to homepage. 9)Play button. 10)Delete button. www.iat101.com www.peephole-store.com... - Page 18 11)Download archive of SD card to smartphone. 12)Play button. 13)Delete button. Setting 1)WI-FI setting. 2)Privacy setting. (After switch privacy setting, entry APP and enter password.) 3)Video setting. 4)Date and time setting. 5)System information. 6)Reset all setting. 7)Firmware upgrade. 8)Back to homepage. www.iat101.com www.peephole-store.com...
- Page 19 2)Wi-Fi password. 3)WEP encrypt(64bit)： 3)Way of encryption. Original password 12345. 4)Set WI-FI SSID invisible or not. 4)WPA/WPA2/PSK encrypt(128bit)： 5)Back to homepage. Original password 12345678. 6)Back to last page. Please also read Appendix 1 after you changed the WiFi encryption www.iat101.com www.peephole-store.com...
- Page 20 4) When the phone stops up to 3 minutes to connect with the host, the host close WI-FI. 5) When the phone stops up to 5 minutes to connect with the host, the host close WI-FI. * When the host is down WI-FI, required from the host operating www.iat101.com www.peephole-store.com...
- Page 21 2)Date format. * Upgrading method of devices： 3)Time format. Writing the initial firmware on SD card then 4)Synchronization with device time. put the SD card into device, connecting 5)Confirm the setting. device with APP, and choose initial firmware version. www.iat101.com www.peephole-store.com...
- Page 22 Other Functions 1)Quick setting. 2)Resolution setting. (D1) 3)Brightness setting. 4)Contrast setting. 5)Flip Top to Bottom. 6)Mirror left-right model. 7)Mic volume when recording. Black camouflage screen shortcuts When black camouflage screen, slide from right to left to exit black screen. www.iat101.com www.peephole-store.com...
- Page 23 Rotate the smartphone for viewing a larger display www.iat101.com www.peephole-store.com...
-
Page 24: For Client Mode Operation
1)Privacy setting. (After privacy on, enter password.) White dot to the left：Privacy off White dot to the right：Privacy on 2)Privacy password. (Only number, no word limit.) 3)Confirm password again. 4)Back to homepage. Select corresponding 5)Back to last page. router name. www.iat101.com www.peephole-store.com... - Page 25 9.1 Setup PC Tool and Broadcasting to social media networks (such as Facebook/ YouTube/ USTREAM…etc) a.) download PC tool from our web site: www.ia-tecs.com/download/PCTools_1.0.0.6.rar b.) unzip the file: PCTools_1.0.0.6.rar c.) execute the file: upgradeddownloadtools.exe file within the PC_tool folder (please make sure to Turn ON your PC’s WiFi, and also connected to internet if you want to live stream broadcasting your video Facebook, YouTube ) Click WiFi Scan Click UID and write down the UID code...
- Page 26 9.2 Broadcasting to social media networks using free OBS software to social media network You may click record or snapshot to save video on PC Open OBS studio software and under Source (click add and select Window Capture) Setup live stream: under Settings / Stream: Stream Type: Custom Streaming Server URL and Stream key information copy from your Facebook, YouTube , USTREAM, Wowza account...
- Page 27 WI-FI options of the device and clear connection information of device, then connecting back to the hosted WiFi device again to ensure the changing of encryption method is successful. (Note: Different smartphone may has different operational screen.) Clear www.iat101.com www.peephole-store.com...
- Page 28 *iOS： ： ： ： How to removing the host WI-FI connection information. www.iat101.com www.peephole-store.com...
- Page 29 And more customized design to come … In case there are any questions or product design requirements, please email us ia-tecs@hotmail.com shop@iat101.com Thank you for your reading our product manual! We look forward to assisting you with a good design solution matching your need.
