WOS Series
WOS-M
PIR Sensor
WOS-MN
PIR Sensor
WOS-SN
PIR Sensor
WOS-MN2T
PIR and Ultrasonic Sensor

DESCRIPTION

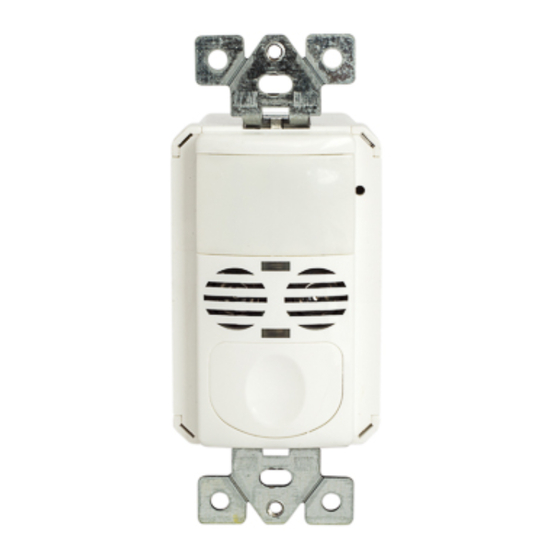

The WOS Series is a line voltage powered wall switch occupancy sensor.
They turn lighting systems on and off based on occupancy. The sensor is
configured to turn lighting on, and hold it on as long as the sensor detects
people moving in the room. After no movement is detected for a user
specified set time (5 to 30 minutes), the lights are switched off.
Optional energy savings features are included. The "walk-through" mode
shortens turn-off timing to 3 minutes when no activity is detected after 30
seconds. An integral light sensor can keep lights off if sufficient daylight is
present in the room.*
*WOS-SN no light sensor

SPECIFICATIONS

VOLTAGE: 120/230/277 VAC
WOS-SN: 120 VAC Only
OPERATING TEMPERATURE: 32°to 131°F (0°to 55°C)
ADJUSTABLE TIME DELAY: 5 minutes - 30 minutes (software settable)
WALK-THROUGH MODE: 3 minutes if no activity after 30 seconds
(software settable)
TEST MODE: Software setting
PIR COVERAGE: SENSITIVITY ADJUSTMENT - Software settable
COVERAGE: 1200 sq. ft. PIR
*WOS-SN VOLTAGE: 120 VAC Only
*WOS-MN2T COVERAGE: 1200 sq. ft. PIR and 400 sq. ft. Ultrasonic

CAUTION

We recommend that installation be made by a liscensed electrician.
Before wiring and servicing, power to this unit and the
equipment it controls must be turned off at the main panel. Connect in
accordance with national and local electrical codes.

WARNING

Unit must be properly grounded to operate correctly.

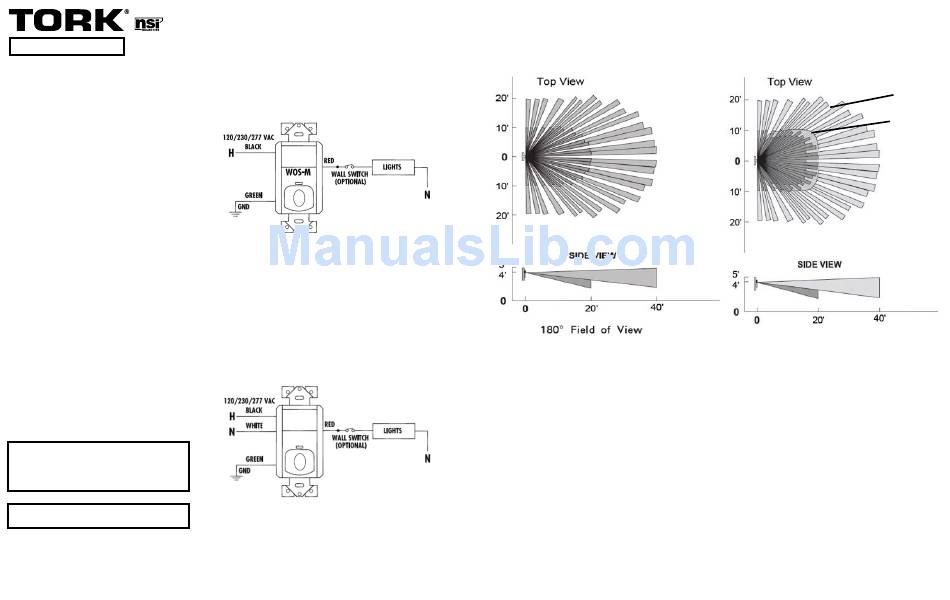

WIRING INSTRUCTIONS: WOS-M

1. Turn power off at the electrical panel.
2. Connect the sensor black wire to line. Connect the sensor red wire to the load.
3. Connect the green wire to the ground. Unit must be properly grounded to operate correctly.
4. Mount the sensor to the electrical box using 2 mounting screws provided.
5. Install wall plate.
6. Turn power on at the electrical panel.
7. Program only if custom setting is desired. Refer to push button chart and follow FOUR & OUT THE
DOOR instructions.

WIRING INSTRUCTIONS: WOS-MN, WOS-SN, WOS-MN2T

1. Turn power off at the electrical panel.
2. Connect the sensor black wire to line. Connect the sensor white wire to neutral. Connect the sensor red
wire to the load.
3. Connect your system grounding wire to the green screw on the sensor. Unit must be properly grounded
per local codes.
4. Mount the sensor to the electrical box using 2 mounting screws provided.
5. Install wall plate.
6. Turn power on at the electrical panel.
7. Program only if custom setting is desired. Refer to push button chart and follow FOUR & OUT THE
DOOR instructions.
*
*WOS-SN 120 VAC only
FOR TECHNICAL SUPPORT: techsupport@nsiindustries.com 888.500.4598

COVERAGE PATTERN: WOS-M, WOS-MN, WOS-SN

The WOS Series provides a pattern of 1200 square feet. The diagram shows the motion detection
area with small motion detection closer to the sensor. Barriers within the space that block line-of-
sight to sensor detection will decrease coverage area.
The sensor should be installed with a visually unobstructed view of the workspace normally
occupied. If the occupant cannot see the sensor from their normal work position, the sensor will
not be able to detect their presence. File cabinets, doors, partitions, and walls are typical types
of obstructions.
Avoid sensor placement with a view through a doorway. If doorway view is unavoidable, set
sensor to manual move (vacancy setting) with Function 6. If hallway movement trips ultrasonic
sensor, set to PIR only for initial trigger (Function 10 For WOS-MN2T Only).

COVERAGE PATTERN: WOS-MN2T

The WOS-MN2T Series provides a pattern of 1200 square feet with the PIR. The diagram shows
the motion detection area with small motion detection closer to the sensor. Barriers within the
space that block line-of-sight to PIR sensor detection will decrease coverage area. Workspace
area should be placed to fall within the Ultrasonic coverage area.

PLACEMENT GUIDELINES

PIR Coverage
Ultrasonic Coverage
LI-959(A)
