ScienTECH LS-10 Operation Manual

The magic box home management gateway
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
L
S
-
1
0
L
S
-
1
0
T
h
e
M
a
g
i
c
B
o
x
T
h
e
M
a
g
i
c
B
o
x

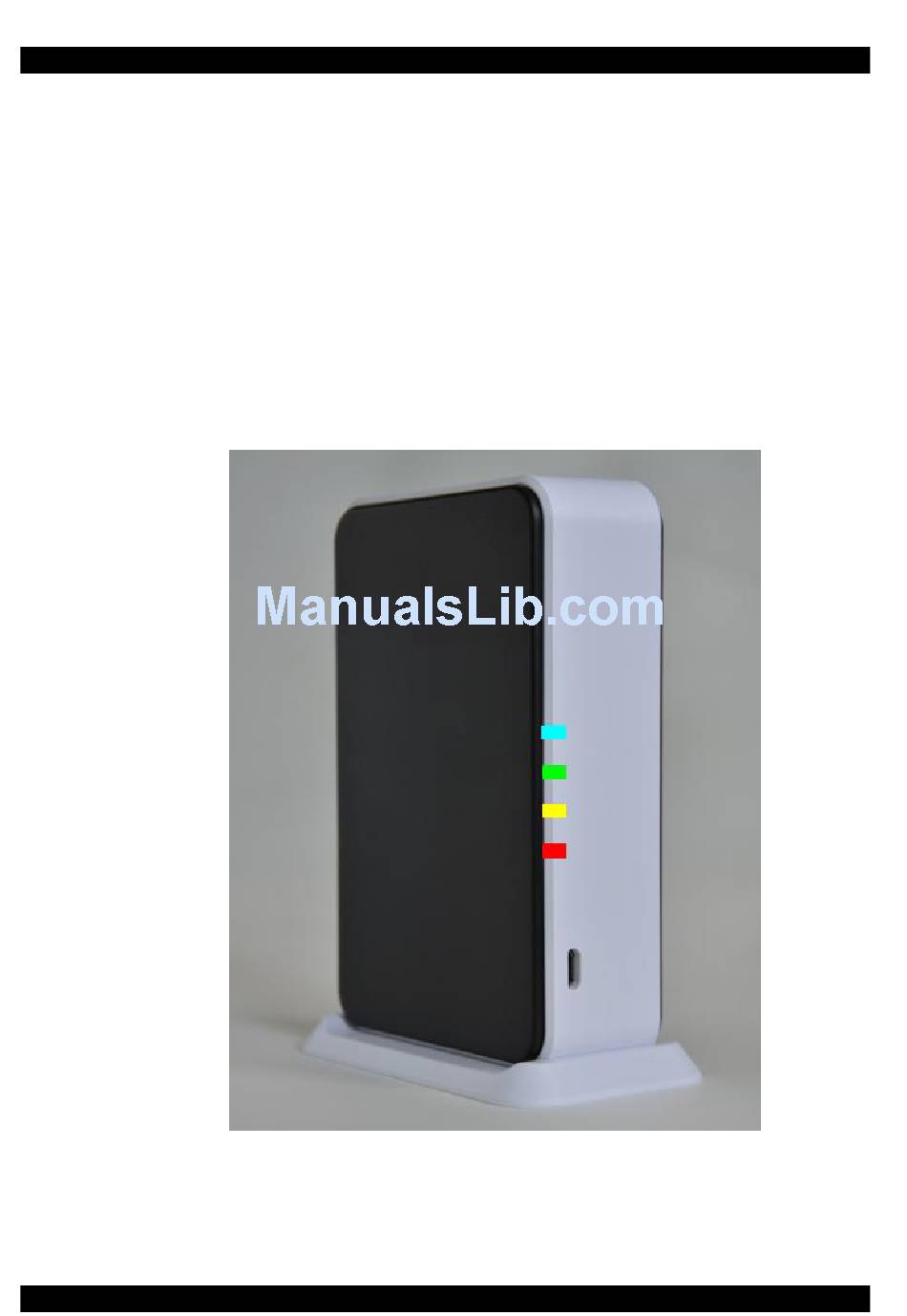

HOME MANAGEMENT GATEWAY
OPERATION MANUAL
V2.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ScienTECH LS-10

  • Page 1 HOME MANAGEMENT GATEWAY OPERATION MANUAL V2.01...

  • Page 2: Table Of Contents

    3, Working Scenario: 3.1 Works with HyperSecureLink software through USB port for local access. 3.2 Access the LS-10 by HyperSecureLink software or Mobile App. from local Intranet. 3.3 Works with HyperSecureLink software or Mobile App. from Internet. 3.4 Connects to a Cloud Server to Get Full Home Management Service from the Provider.

  • Page 3: Introduction

    Internet. The LS-10 not only provides you a secure life but also a convenient living environment that allows you to control as many as 15 programmable switches through a cloud server, mobile App. or a PC by using HyperSecureLink software from all over the world.

  • Page 4: 1, Base Unit

    1. BASE UNIT 1.1 Display The Blue LED flashes when there is data sending out from the LS-10. Three LEDs in green, yellow and red colors represent the system operation mode and alarm/ warning status as listed in the following table.

  • Page 5: Rear Panel

    (with a long beep). The LED status also can be cleared from HyperSecureLink command. Device Enroll: Press the button for about 3 sec. the LS-10 enters into Enroll Device State for 30 seconds. (Buzzer beeps and Green, Yellow, Red LEDs blink) Please refer to Section 4.1.

  • Page 6: Beeps & Led Indication

    1.4 Beeps & LED indication Status Beep Remark PWR On (OK) Beeps on operation mode Disarm Monitor Home Away Clear (OK) Entry Delay M-M-M--( >10sec.) S-S-S--- (< 10sec.) Exit Delay M-M-M--( >10sec.) S-S-S--- (< 10sec.) Open Detect 5sec. continuous Alarm delay M-M-M--- (30sec.) Panic alarm L-L-L---...

  • Page 7: Device Numbering Plan

    1.5 Device Numbering Plan All the sensors of LS-10 are divided into five main categories. 1, Controller /Panic Devices (C) x 32: Remote Controller, Keypad. 2, Burglary Sensors/Sirens (B) x128: Door Magnet, PIR, Glass Break Detector, Vibration Sensor, Pressure Change Detector, Wireless Siren.

  • Page 8: 2, System Connection

    2, System Connection Complete Connection Diagram of LS-10 System 2.1 I/O Terminals: For the settings of the I/O Terminals, please refer to Appendix A.

  • Page 9: Home Automation Control Interface

    This port connects to the user’s Ethernet Hub or Router for remote control through cloud web server, mobile App. or HyperSecureLink software. 2.4 Power Input 7V DC adaptor socket of the LS-10 Base Unit. 2.5 Micro USB Interface USB connector to PC for local control from HyperSecureLink software or external power backup.

  • Page 10: 3, Working Scenario

    3.1 Works with HyperSecureLink software through USB port for local access. (Only for the LS-10 with USB Data Interface option) Connecting the LS-10 with PC by USB cable for both power and data interface. Note: When the USB interface is connected to PC, the Base Unit can’t be controlled through Ethernet but data out from Ethernet interface is still available.

  • Page 11: Access The Ls-10 By Hypersecurelink Software Or Mobile App. From Local Intranet

    3.2 Access the LS-10 by HyperSecureLink software or Mobile App. from local Intranet. Note: LS-10 must be set as a Server. Connecting the LS-10 to a router as a server to be accessed by Mobile App. or HyperSecureLink software locally.

  • Page 12: Works With Hypersecurelink Software Or Mobile App. From Internet

    2, The LS-10 has to be mapped to a TCP port that can be accessed from Internet by virtual server or port forwarding function in the router. (Ex: Using the free Domain Name Service from the router manufacturer DLINK and...

  • Page 13: Connects To A Cloud Server To Get Full Home Management Service From The Provider

    3.4 Connects to a Cloud Server to Get Full Home Management Service from the Provider. Note: LS-10 must be set as a Client, please refer to the Appendix C.2.. Cloud Server IP address and port setting. Service example from a cloud server..

  • Page 14: Connects To A Central Monitor Station To Get Alarm Service From The Service Provider

    3.5 Connects to a Central Monitor Station to Get Alarm Service from the Service Provider. Note: LS-10 must be set as a Client. CMS monitoring software example from a service provider.

  • Page 15: 4, Installation

    4, Installation 4.1 Device Enroll The first step to start the operation of LS-10 is to enroll all the sensor/controller devices into the Base Unit one by one. (Please refer to the User Guide of the devices to be enrolled as well.) *Press the Clear/Enroll button for 3 seconds, the LS-10 enters into Enroll Device State for 30 seconds.

  • Page 16: Placement Of The Base Unit And Sensors

    4.2 Placement of the Base Unit and Sensors It is important for the Base Unit to have a good reception quality for the RF signals transmitted from all the sensors and controllers.  Place the Base Unit near the central of your home or business if possible. ...

  • Page 17: 5, Operation Mode

    (0-255 seconds) Set AWAY mode Note: When you set the LS-10 in AWAY Mode, the Base Unit clears any previous alarm and warning status on the LED and check the state of the Door Magnet sensors. If any of the sensors is still open (for example, you forgot to close the back door before you leave), the Base Unit will issue a 5 sec.

  • Page 18: Home Mode

    Note: When you place the LS-10 in Home Mode, the Base Unit will check the status of the Door Magnet sensors. If any of the sensors is still open (for example, you forgot to close the back door), the Base Unit will keep a “Protection Loop Open”...

  • Page 19: Disarm/ Monitor Mode

    5.3 DISARM/ MONITOR Mode: The LS-10 will not issue any alarm for Burglar sensors, but 24-Hour sensors, Fire sensors, Panic, Medical Buttons and Environment sensors still work all the time. Enter into “DISARM” or “MONITOR” Mode from different devices or services.

  • Page 20: Reaction Of Ls-10 To Burglar Alarm

    24-Hour Zone device, while Fire, Panic, Medical and Environment alarms can be triggered anytime, regardless of the system operation mode. The siren can be stopped by disarming the system. 5.6 Reaction of LS-10 to Other Alarms except Burglar Alarm Alarm → Warning Beep Delay (if any) Any Operation Mode ↑...

  • Page 21: System Check

    6. SYSTEM CHECK 6.1 Event Log: The Base Unit can store 512 event records in its memory. These events can be checked from HyperSecureLink Software or Mobile App. If user applies a Cloud Service then much deeper Event Log can be recorded. Event Log read from HyperSecureLink software Event Log read from a mobile App.

  • Page 22: Device Status

    6.2 Device Status: The latest state of the sensors including, signal strength and readings can be checked by device status from the HyperSecureLink Software or Mobile App. If user applies a Cloud Service then each device can be named for easy identification and Environment readings or activities can be show in graphics.
  • Page 23 Cloud server allows user to assign a name to each device for user to identify the sensor much easier. Device Status read from a Cloud Server. 24 Hours history of a CO2 sensor shown from a Cloud Server.

  • Page 24: Home Automation Control

    7. HOME AUTOMATION CONTROL There are 15 switches can serve as alarm indications or home appliances control purpose. These switches can be controlled by Remote Controller, Keypad locally or by HyperSecurelink software, mobile App or Cloud Server remotely. 7.1 Switch setting by HyperSecureLink software to be controlled by Remote Controller. 7.2 Directly control from HyperSecureLink software, Mobile App or cloud service.
  • Page 25 7.3 Switch control from Keypad. (Please refer to the KP-3S User Guide for more information.) 7.4, Automatic controlled by Burglar Sensors with “Home Automation=Yes” in Disarm Mode. Ex. Below settings will turn the switch #3 on for 10 minutes when the Burglar Sensor 01-02 was triggered in Disarm Mode.
  • Page 26 7.5 Automatic control by the Special Sensors with their “High/Low” limit settings. Ex, Below settings will turn on switch #3 when reading is above “28” and turn off switch #3 when reading is below “26”. (Note: “High Limit” Control is for cooler, and “Low Limit” Control is for Heater) 7.6 Automatically switch control scheduled by HyperSecureLink software.

  • Page 27: Control And Parameter Settings

    8. CONTROL AND PARAMETER SETTINGS 8.1 Control *Siren Test: This test will activate the beeper, external alarm siren and send an Activate signal to the Remote Siren (if a remote siren is installed) immediately. *Device Test: Enter into Device Test Mode for 5 minutes. Any trigger signal (not including the control signal from Remote Controller) in this time will be treated as a test signal.

  • Page 28: Settings For Timers

    8.2 Settings for Timers *Entry Delay ( for Burglar Sensor only, 0-255 seconds, default=10 sec.) This setting is the time between any burglar sensor triggers and the alarm action procedure starts. When you return home and open the door, the Base Unit will issue warning beeps (if the Delay Activation = On) to remind you that the system is still in the Arm state and you should disarm the system within this time.
  • Page 29 RF signals to the Base Unit at a certain time interval. If the Base Unit does not receive the RF check signal from a supervised sensor within the Sensor Supervise Time, the LS-10 considers this sensor to be missing and issues a warning message.
  • Page 30 *Remote Siren Time: 0 seconds to 30 minutes (default, 60 sec.) The time of the wireless Remote Siren sounds when the alarm trips. ( Remote Siren is an Option.) * Pre-warning Time: 0-30min. (default, 2 min.) The switch action time when triggered by a Pre-warning Burglar sensor. *Home Automation Time: 0-30min.

  • Page 31: Setting For Beep & Siren

    8.3 Setting for Beep & Siren *Door Bell (default= ON): The Base Unit will issue a doorbell beep in Disarm Mode when receiving a triggering signal from a Burglar sensor with its “Bell in Disarm = ON”. Note: The Bell function only works for the Burglar Sensor with “Bell in Disarm = Yes”. *Tamper Siren In Disarm: (default, Off) Some of the sensors (Door Magnet, PIR, Keypad) have a Tamper sensor inside, if it was detached from the wall or the case was opened then the sensor would issue a “Tamper”...

  • Page 32: Device Status Settings

    8.4 Device Status Settings: *Device Bypass (default= No): (For all devices) Bypass = Yes: The system will ignore the trigger signal from this sensor. *Delay Activation(default= Yes): (For Controller & Burglar sensor) Delay Activation =Yes: (Refer to Exit Delay/Entry Delay.) For the Remote Controller, the Exit Delay time will be imposed on the Away command from this controller.
  • Page 33 *24-Hour Zone (default = NO): (For Burglar sensor) 24-Hour Zone=YES: This Burglar sensor’s trigger signal will be processed all the time regardless of the system’s operation mode, either in Arm or Disarm. 24-Hour Zone=NO: This Burglar sensor’s trigger signal will only be processed in Arm Mode. *Guard in Home Mode (PIR default=No, Door Magnet default= Yes): (For Burglar sensor) Home Mode =Yes: This Burglar sensor will trigger an alarm in Home Mode operation.

  • Page 34: Special Settings For Environment Sensor

    Inactivity Time (refer to Inactivity Time), the Inactivity Alarm (medical) will be issued. Note: “Inactivity” function will be disabled in “Away” mode automatically and will issue alarm if the Inactivity sensor is triggered. Inactivity=No: This is a normal Burglar Sensor. *Supervised: (Automatically set by the sensor itself, refer to Sensor Supervise Time.) Supervised=Yes: System will check the “heartbeat”...
  • Page 35 “Control High Limit” then the corresponding switches will turn on and when the reading is below the “Control Low Limit” the corresponding switches will turn off. Low Limit: For the control of heater type device, it means when the reading is below the “Control Low Limit”...

  • Page 36: Wire Sensor Input Settings

    8.6 Wire Sensor Input Settings Trigger Open/Close (default, Trigger=Close): Alarm will be triggered by close (grounded) or open (>3V) the sensor input contact (or voltage). Away Open/Close (default, Away=Close): (For Wire Sensor input assigned as a Controller only) System will enter Away or Disarm Mode by close (grounded) or open (>3V) the sensor input contact (or voltage).

  • Page 37: Switch Settings

    8.8 Switch Settings *Switch Type (Default X-10 type): House Code <A-P>: (X-10 Type switch only, default <A>) This code should be the same as the House Code set on the X-10 switches, user can select from A to P. 8.9 MISC. Settings * Deny Arm If Not Ready: (default, No) If set “yes”...

  • Page 38: Cms Settings

    *Alarm Report Format The data format used for reporting to the Cloud Server or Internet CMS Server. Please check with your service provider first, when you connect the LS-10 to the server most of the service providers will set this parameter automatically.
  • Page 39 *Operation Scene: 8 operation scenes can be set and controlled by KP-3S Keypad Ex.: If Scene 2 is selected by KP-3S then Partial Zone 91, 92, 93 will enter into “Away Mode”.

  • Page 40: Specifications

    Control of 16 units X-10 switches or (XRM-01) Relay Modules. I2C Adaptor (optional) Internal beeper for Alarm, warning and status reminding. Internet CMS protocol: Proprietary Scientech Protocol (ST-I, ST-II), CSV and SIA ADM-CID (2007) IP Alarm protocol. Wire Sensor Input: Can be assigned as Panic, Burglar, Fire, Medical, Tamper or Controller.
  • Page 41 Appendix A: I/O Terminals A.1 External Wire Sensor Input: The External Wire Sensor should have NO/NC contact and connects to Input and Ground terminals. It can be assigned as a Controller, Panic, Burglar, Fire, Medical or Tamper device. The Zone number of this input is fixed as “00-03”. Setting of Wire Sensor Type and its parameters from HyperSecureLink software.
  • Page 42 “Alarm with Siren” needs to be enabled on the wire input or sensors if the Sirens (both Wire Siren and Remote Siren) should go off when alarm triggered by this sensor after the Delay time. Enabling the Alarm Siren of the Wire Sensor Input from HyperSecureLink software. Enabling the Alarm Siren of the Wireless Sensor (01-01) from HyperSecureLink software.
  • Page 43 Number “ 91” only controls (Away, Home, Disarm) the burglar sensors with the Group Number “91”. When the LS-10 receives an AWAY/HOME/DISARM signal from the Remote Controller of Group Number “9x”, the Base Unit’s LEDs (Green, Red and Yellow) will only follow the status of the main groups (Group number ”...
  • Page 44 Appendix C: How to Configure the Internet parameters C.1, Working with HyperSecureLink Software or Mobile App. Configure the LS-10 as a server to be accessed by the HyperSecureLink Software or mobile Apps from Internet. Note: Mobile Apps are from third parties and are not free, please refer to the web sites: https://play.google.com/store/apps/details?id=com.uioo.uioomyhome...
  • Page 45 Enter the web page of your Ethernet Router and find the setting of Virtual Server. Select a proper internal IP address and corresponding port number for the TCP/IP communication protocol of the LS-10. Ex: The internal IP address of 192.168.2.90 and port number 1690 is assigned as the Virtual Server address of the LS-10.
  • Page 46 * The VCOM software searches in the network for the LS-10 and shows the findings on the screen. * Open the Internet browser you are using and enter the IP address. admin * Enter User Name and Password. (Default User Name: admin, default Password: admin.
  • Page 47 Nickname: Name or location of the system. IP Address: As the setting of the Virtual Server in the Ethernet Router. Subnet mask: 255.255.255.0 Gateway: Please enter the gateway address of your Ethernet Router. DNS: Please get this address information from your ISP. IP Configure: To operate as a server, Static must be selected Password Setting: Enter new User Name and Password.
  • Page 48 If the IP address has been changed then enter the new IP address and User Name/ Password to access the LS-10 setup web page again. (You can use VCOM software to locate the new IP address.) * Select TCP Mode and change the settings according to your network environment: Telnet Server/Client: Select Server.
  • Page 49 * Select UART to check if the settings are the same as below. Mode: RS-232. Baudrate: 9600. Character Bits: 8. Parity Type: None Stop Bit: 1. Hardware Flow Control: None. Delimiter: No need * If any of the settings has been changed then double click the Update to update the settings. Then Click the Reset to save the settings.
  • Page 50 (This setting is only valid for the user who has Cloud or CMS service. User has to know the IP address and port number of the Cloud server or CMS service before setting the LS-10.) Note: For the Cloud Server or Central Monitor Station please refer to web sites: Cloud Server: www.livingpattern.co...
  • Page 51 * RUN the VCOM program on your PC. Click the Search * The VCOM software searches in the network for the LS-10 Ethernet Adapter and shows the findings on the screen. * Open the Internet browser you are using and enter the IP address.
  • Page 52 admin * Enter User Name and Password. (Default User Name: admin, default Password: admin. * The setup menu of Administrator Setting will be shown on the screen and change the “IP Configure” to “DHCP”. Nickname: Name or location of the system. IP Address: Don’t care Subnet mask: 255.255.255.0 Gateway: Don’t care.
  • Page 53 Then Click the Reset to save the settings. Use VCOM software to locate the new IP address and enter the LS-10 setup web page again. * Select TCP Mode and change the settings according to the information from the web server or CMS service provider.
  • Page 54 * Select UART to check if the settings are the same as below. Mode: RS-232. Baudrate: 9600. Character Bits: 8. Parity Type: None Stop Bit: 1. Hardware Flow Control: None. Delimiter: No need * If any of the settings has been changed then double click the Update to update the settings. Then Click the Reset to save the settings.
  • Page 55 Appendix D: Switch Action Table for Burglar Sensors PW= Pre-warning, HA= Home Automation, A= Away, H=Home, D=Disarm, M=Monitor, S=Motion Stop Door Mag. (Guard in Home Mode, no Inactivity) Inact State Alarm Switch on time CID code Remark Alarm Burg Alarm Burg Alarm Burg...
  • Page 56 For Any Burglar Sensor Assigned as An Inactivity Monitoring Device DC=Don’t Care Inact State Alarm Switch on time CID code Remark Alarm Burg Disable Inactivity D/M/H Trigger Medical Alarm if no action detected in the Inactivity Time Alarm Burg Disable Inactivity D/M/H Trigger Medical Alarm if no action detected in the Inactivity Time...
  • Page 57 D.8, Run the VCOM and you will see the device on the list. Note: If the PC and the LS-10 are not in the same IP segment then “Search IP Address” will be blank and the little “Searching” screen will not show.
  • Page 58 D.9, Change the IP address and the Gateway address of the PC to the same segment of the LS-10. Ex: Since the IP address of LS-10 is 192.168.2.53 then set the IP address and Default gateway to 192.168.2. xx as below.
  • Page 59 WARRANTY The Manufacturer warrants its products (hereinafter referred to as the Product) to be in conformance with its own plans and specifications and to be free of defects in materials and workmanship under normal use and service for a period of twelve months from the date of shipment by the Manufacturer.
