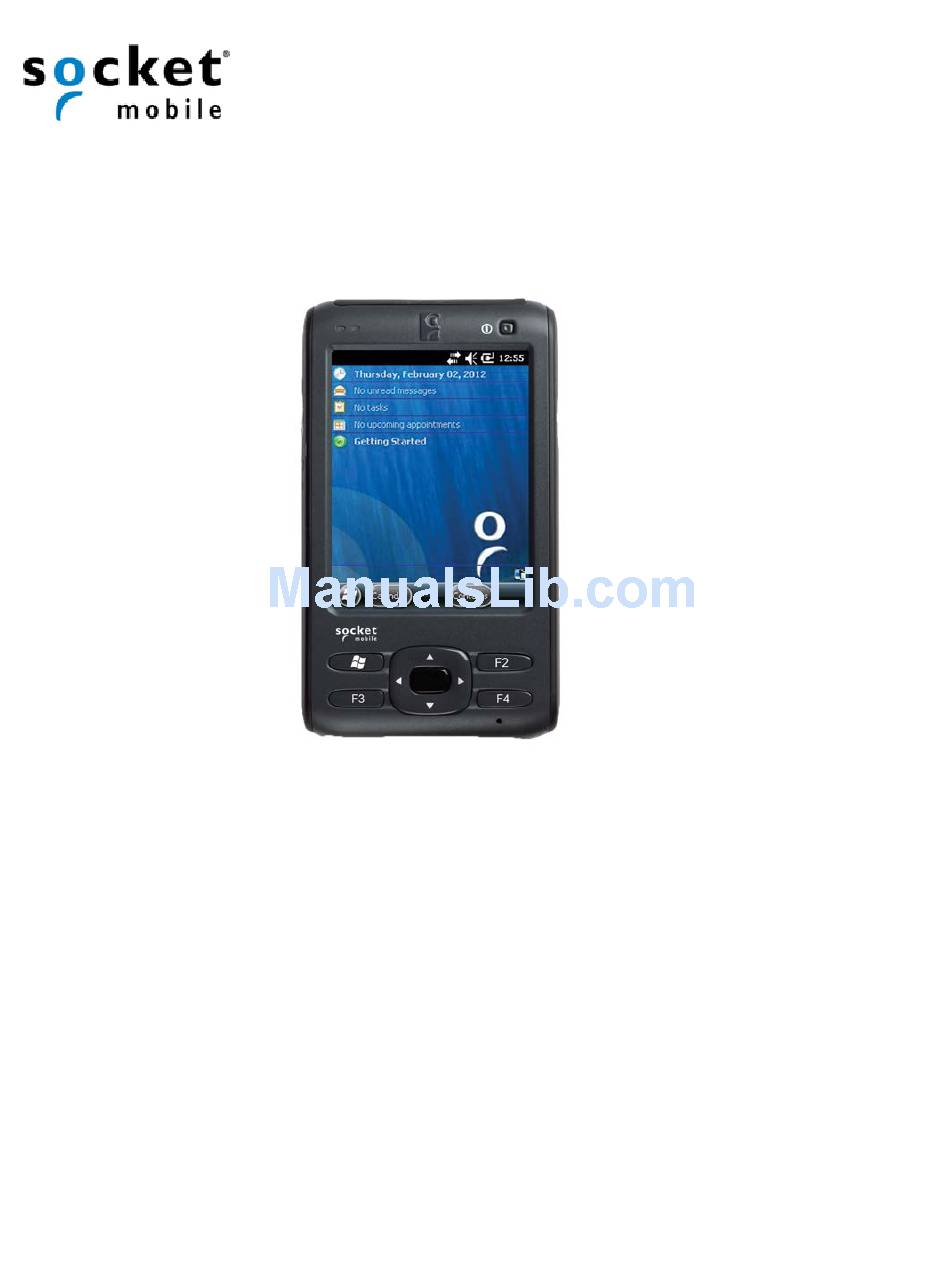

USER'S GUIDE
SOMO® 655
HANDHELD COMPUTER
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SoMo 655 and is the answer not in the manual?

Questions and answers

Summary of Contents for SocketMobile SoMo 655

  • Page 1 USER’S GUIDE SOMO® 655 HANDHELD COMPUTER...
  • Page 2 Other than the above, Socket Mobile can assume no responsibility for anything resulting from the application of information contained in this manual. Please refrain from any applications of the SoMo 655 that are not described in this manual. Please refrain from disassembling the SoMo 655. Disassembly of this device will void the product warranty.
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS Please read and follow these safety instructions before using your device for the first time, and save them for future reference. • Keep away from extremely hot, cold or humid conditions. • Avoid using in dusty environments. •...

  • Page 4: Table Of Contents

    STEP 1: Install the Battery ..........................14 STEP 2: Charge the Battery ..........................15 STEP 3: Set up your SoMo 655 ........................16 STEP 4: Install Synchronization Software on Host PC ..................17 STEP 5: Connect to Host Computer ......................... 17 STEP 6: Set Up Your Device Partnership ......................
  • Page 5 Voice Recorder ..............................38 Adding a USB Keyboard/Mouse ........................38 4 | Wi-Fi Companion ............................39 Additional Documentation .......................... 39 Useful Links ..............................40 Turning on the Wi-Fi Radio ..........................40 Main Screen of Wi-Fi Companion ........................42 Wi-Fi Status Icon ............................. 42 Wi-Fi Finder ..............................
  • Page 6 Specifications ..............................55 Appendix B Care and Maintenance ........................58 Cleaning the SoMo 655 or SoMo 655DXS: ....................58 Cleaning the SoMo 655Rx (antimicrobial version): ..................58 Carrying or Storing the SoMo: ........................58 Appendix C Resetting the SoMo 655........................59 Soft Reset ..............................

  • Page 7: Introduction

    Government/high-security and no microphone applications Ready to Customize The SoMo 655 can be deployed out of the box with a wide range of Socket or third-party peripherals because it comes pre-loaded with the following software: Socket/Third-Party Peripheral Pre-loaded Software Socket CHS v3 Bluetooth barcode scanners SocketScan™...

  • Page 8: Power Management Software

    Power Management Software The SoMo 655 features the following power management software so you can optimize battery life according to your performance needs: Software Description Socket Power Plus Battery Friendly® utility Performance optimization, analysis and troubleshooting utility Socket CPU Performance utility...

  • Page 9: Socketcare™ Extended Warranty

    The SoMo comes pre-loaded with software for STAR products from UIC and SocketSerial. Synchronization Software Windows Mobile Device Center synchronization Before you start using your new SoMo 655, install software on your PC. For the most current version, go to http://www.microsoft.com/windowsmobile/devicecenter.mspx...

  • Page 10: Hardware Features

    Hardware Features Front...
  • Page 11 Back Bottom...
  • Page 12 The SoMo should be able to maintain a standby state for 160 hours. To determine the battery life of the SoMo with your application, please visit: http://www.socketmobile.com/products/handheld-computer/BatteryEstimator/index.html To learn about SoMo battery best practices, please visit: http://ww1.socketmobile.com/Libraries/Documents/Battery_Best_Practices.sflb.ashx http://support.socketmobile.com/FrontLinesGlobalSupport_Socket_Ext/SocketMobile/Attach/Answer3-0- 34_CSN1006%20%20Socket%20Customer%20Notice%20%20Batteries%20discharging%20quickly%2020010 0524.pdf...
  • Page 13 Socket offers a broad range of charging accessories for the SoMo, including durable charging cradles, four-bay chargers, car chargers, and more. Certain USB devices may require additional software or drivers. The cradle for the SoMo 650 is NOT compatible with the SoMo 655.

  • Page 14: Getting Started

    2 | Getting Started CAUTION: TO ENSURE PROPER OPERATION OF YOUR SOMO 655, FOLLOW THE BELOW INSTRUCTIONS PRIOR TO USE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN YOUR SOMO TEMPORARILY NOT TURNING ON. STEP 1: Install the Battery To remove the battery cover, press the release button on the bottom of the battery cover with your thumb.

  • Page 15: Step 2: Charge The Battery

    OPTION 2: Charge the SoMo using the Sync-charge cradle. The SoMo 655 should be charged for at least 4 hours before first use. Afterwards, charge the device as needed according to its battery level. The right LED indicator on the front of the SoMo turns red while charging, then green when fully charged.

  • Page 16: Step 3: Set Up Your Somo 655

    STEP 3: Set up your SoMo 655 NOTE: For optimal results, make sure the SoMo 655 is fully charged before proceeding. 1. Check to see that the A/B Mode switch on the left side of the device is up, in the A position.

  • Page 17: Step 4: Install Synchronization Software On Host Pc

    STEP 4: Install Synchronization Software on Host PC Do not connect your SoMo 655 to your host PC until the synchronization software has been installed on the PC. Windows 7/Vista Enable Windows Mobile Device Center which comes installed on your computer. Download the latest version for free at: http://www.microsoft.com/download/en/details.aspx?id=14...
  • Page 18 OPTION 2: Connect to the host computer with the optional Cradle. NOTE: It is recommended that you also connect the AC adapter.

  • Page 19: Step 6: Set Up Your Device Partnership

    Calendar, Contacts and Tasks and other applications on your SoMo 655 have been updated. The next time you wish to use the synchronization software, just plug your SoMo 655 into your computer. The software will open automatically and update your device.
  • Page 20 In the Today screen, tap Getting Started. A list of wizards will appear. Some are generic for Windows Embedded Handheld 6.5, but some are specifically for the SoMo 655: Some of the latest wizards included with Windows Embedded Handheld 6.5 include the following: •...
  • Page 21 Socket highly recommends that all customers register their SoMo devices. Registered users benefit from update notifications and expedited service and support. In the list of Getting Started wizards, tap Register SoMo 655. In the next screen, tap on the link.
  • Page 22 Install Microsoft Windows Mobile Updates In most cases, you will not need to use this utility. In the list of Getting Started wizards, tap Install Microsoft Windows Mobile Updates. Tap on the links for the updates you wish to install. •...
  • Page 23 Set up Enhanced Wi-Fi Companion By default, the SoMo has Wi-Fi Companion (WFC) installed. For SoMo devices running Windows Mobile 6 Service Pack 4 or later, Enhanced Wi-Fi Companion (e-WFC) is also pre-loaded but must be manually installed. Enhanced Wi-Fi Companion offers many benefits, including advanced authentication (including PEAP-GTC, EAP-TTLS, LEAP, EAP-FAST);...
  • Page 24 Set up SocketScan 10 SocketScan 10 software is for Socket CHS Series 7 v3 barcode scanners. In the list of Getting Started wizards, tap Set up SocketScan 10. To install the application, tap on the link. Follow the remaining screens to install the software.
  • Page 25 The A/B Mode Switch Utility lets you change the default behavior of the switch. ROM v1.1 and later includes the utility. For previous ROMs, download the utility from: http://www.socketmobile.com/support/downloads/handheld-computer/somo-655/ When the A/B Mode switch is activated, any connections or programs running on the SoMo will remain active.
  • Page 26 Use the utility to configure your settings. NEED NEW SCREEN SHOT THAT DOESN’T SAY HOLD SWITCH • Leave screen enabled: Select this checkbox to keep the screen on when the A/B Mode switch is activated. A dialog will confirm the switch is activated. Tap OK or deactivate the switch to close the dialog. When the SoMo is reset, this option is automatically re-enabled.
  • Page 27 Set up Connect!Agent Connect!Agent software is compatible with the Socket CHS Series 7 v1 or v2 and the Socket CRS Series 9. In the list of Getting Started wizards, scroll down and tap Set up Connect!Agent. Tap on the link. Follow the on-screen instructions to install the software. Sprite Backup Trial SoMo devices running Windows Mobile 6 Service Pack 5 or later include a free 10-day trial of Sprite Backup software.
  • Page 28 For instructions on how to set up data capture triggers for Socket barcode scanners or RFID readers, please refer to Chapter 6. Set up WAN Connections For instructions on how to set up WAN Connections with the SoMo 655 Back Pack wireless broadband ExpressCard adapter (sold separately), please refer to Chapter 7.
  • Page 29 Configure CF/SD slots In most cases you will not need to use this utility. If you insert a memory card into the SoMo and cannot access data from the card after the device suspends/resumes, use the utility to leave the card slot enabled even when the device has suspended.

  • Page 30: Using The Somo 655

    A/B Mode Switch The A/B Mode switch on the left side of the SoMo 655 can be used to prevent accidental input by disabling all buttons and the screen. Any applications or wireless connections running on the device will remain active.

  • Page 31: Start Menu

    From the Start menu, you can access programs, settings and Help topics. The Start menu can be accessed by tapping the Windows logo Online Help Your SoMo 655 contains online help files. These can be accessed in two ways: Tap Windows logo > Help > Contents for a list of Help topics.

  • Page 32: Wireless Radio Manager

    Wireless Radio Manager Microsoft Wireless Manager SoMo devices running Windows Mobile 6 include the Microsoft Wireless Manager by default. If you install Enhanced Wi-Fi Companion, the Socket Radio Manager will appear instead (see next page). To open the Microsoft Wireless Manager, press the button on the right side of the SoMo. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen.
  • Page 33 Socket Radio Manager also appears on SoMo devices running Windows Mobile 6 with Enhanced Wi-Fi Companion installed. To open the Socket Radio Manager, press the button on the right side of the SoMo 655. Alternatively, tap the Wi-Fi and Bluetooth status line in the Today screen.

  • Page 34: Somo 655 Power Plus Battery Friendly® Utility

    SoMo 655 Power Plus Battery Friendly® Utility This utility provides advanced power management and monitoring and is available on SoMo devices running Windows Mobile 6 Service Pack 6 or later. With MCU firmware 2.7 or later, the utility provides detailed information on SoMo performance.
  • Page 35 Current usage typically ranges from 150 mA to over 450 mA depending on how the SoMo is being used. After a suspend/resume, it can take up to 30 seconds for the applet to make a reasonable determination of time remaining. If a battery is changed and the SoMo reset, it may take several minutes to report the battery current usage and estimated time remaining.

  • Page 36: Backlight And Power Settings

    To determine the battery life of the SoMo with your application, please visit: http://www.socketmobile.com/products/handheld-computer/BatteryEstimator/index.html Backlight and Power Settings You may want to adjust the backlight and power settings to maximize the battery life of your SoMo 655. Tap the Windows logo > Settings > System tab > Backlight.

  • Page 37: Cpu Performance Utility

    CPU Performance Utility The CPU Performance utility allows you to choose a fixed processor speed based on your own criteria of performance versus battery life. This utility is available with SoMo devices running Windows Mobile 6 Service Pack 6 or later. Tap the Windows logo >...

  • Page 38: Voice Recorder

    Toolbar. Adding a USB Keyboard/Mouse If you are using the SoMo 655??, add a USB Keyboard and/or mouse by docking the SoMo in the cradle and using the cradle’s two USB ports to connect. Socket also offers an optional USB host cable and Y cable, sold separately at;...

  • Page 39: Wi-Fi Companion

    Socket now offers two WLAN configuration options for the SoMo: Persistence Mode and Fast Roaming. To learn more, read our white paper: http://www.socketmobile.com/pdf/techbrief/somo-wifi-persistence-mode_white-paper.pdf Additional Documentation This chapter covers basic instructions for using Wi-Fi Companion on the SoMo 655. For detailed instructions, please refer to the User’s Guide available online at: http://www.socketmobile.com/support/downloads/...

  • Page 40: Useful Links

    Wi-Fi Companion will automatically launch after you turn on the Wi-Fi radio. Open the Radio Manager. Press the button on the right side of the SoMo 655. Alternatively, you can tap on the Wi-Fi and Bluetooth status line in the Today screen.
  • Page 41 The Wi-Fi status icon will appear at the top of the screen. The icon varies based on your connection status. Tap on the icon to view the main screen of Wi-Fi Companion. To view the different versions of the icon, please refer to the chart on the next page.

  • Page 42: Main Screen Of Wi-Fi Companion

    Main Screen of Wi-Fi Companion The screen content varies depending on your connection status. Your device properties Wi-Fi status icon Tap to access this screen • Device name from outside the utility • IP address • Packets sent and Valid IP address received Tap to access email, the The icon always appears...

  • Page 43: Wi-Fi Finder

    Wi-Fi Finder The Wi-Fi Finder displays a list of WLAN networks found in range. To access the Wi-Fi Finder, tap on the large tower icon in the bottom right corner of the main screen of Wi-Fi Companion. Wi-Fi Finder Icons Current connection Signal strength of strongest AP (access point)/ad hoc radio WEP encryption, WPA (PSK), WPA (TKIP), WPA2 or 802.1x...

  • Page 44: Finding And Connecting To A Wlan

    Finding and Connecting to a WLAN Ask your network administrator for the necessary security settings for your WLAN. If the WLAN uses 802.1x, WPA or WPA2, you need to install authentication certificate(s) before you can connect. Refer to the Wi-Fi Companion User’s Guide for instructions on the Socket certificate utility.
  • Page 45 A wizard will launch to help you create a profile for your network. Complete the wizard, entering the security settings obtained from your network administrator. Microsoft profile editor Socket profile editor For Wi-Fi Companion, the Microsoft profile editor (Wireless Zero Configuration) will launch. For Enhanced Wi-Fi Companion, a Socket profile editor will launch with dynamic configuration and advanced security options.
  • Page 46 After a profile is saved, if the WLAN is in range, the SoMo will automatically try to connect to it. To connect to another network in the list, tap and hold your stylus on the WLAN. In the pop-up menu, tap Connect.

  • Page 47: Socketscan 10 For Chs Series 7 Barcode Scanners

    HID instructions please refer to your CHS manual. Additional Documentation This chapter covers basic instructions for using SocketScan 10 on the SoMo 655 with a CHS v3. For detailed instructions, please refer to the appropriate User’s Guide for your type of CHS: •...

  • Page 48: Step 1: Charge The Chs

    STEP 1: Charge the CHS Refer to your CHS manual for hardware preparation instructions. You may also want to attach the tether. If you have a 1D version of the CHS (7C, 7E, 7M, 7NRx or 7P) you will need to perform extra steps: Change the CHS to SPP mode.

  • Page 49: Step 3: Pair The Chs With The Somo

    STEP 3: Pair the CHS with the SoMo Tap Start | Programs | SocketScan 10 folder | SocketScan 10 In the Today screen, tap on the SocketScan 10 icon in the task tray. In the pop-up menu, tap SocketScan 10 Settings. Make sure an available COM port is selected.

  • Page 50: Step 4: Start Application

    STEP 4: Start Application Start the application that you want to enter data into (e.g., Excel Mobile or Google.com). From the Today screen, tap Start | Programs and select your program. Make sure a document, spreadsheet or form is open in your program.

  • Page 51: Socketscan Plug-In For Scanners And Readers

    SocketScan software sends data from your Socket barcode scanner, RFID reader or magnetic stripe reader into any application running on the SoMo 655. This lets you use Socket data collection peripherals without having to program custom applications. The software comes pre- loaded on the SoMo 655.

  • Page 52: Step 1: Assign A Trigger Button

    STEP 1: Assign a Trigger Button This step is NOT required for the CF Mag Stripe Reader Card. Method 1: Use this method for the SD Scan Card, CF Scan Card or CF RFID Reader Card 6E with any version of Windows Mobile.

  • Page 53: Step 2: Start Socketscan

    In the list, tap Set up Data Capture triggers. In the next screen, tap either LEFT or RIGHT in the appropriate section to select the button you want to use to trigger your device. The SoMo will automatically set up the trigger button and send a confirmation message to your inbox. STEP 2: Start Socketscan Press the trigger button that you assigned.

  • Page 54: Step 3: Insert The Card

    STEP 3: Insert the Card Open the slot cover at the top of the SoMo 655 and then insert the card into the appropriate slot. Do not insert the card backwards or force the card in too hard. When SocketScan is running, an icon will appear at the bottom of the Today screen.

  • Page 55: Appendix A Specifications

    White LED backlight Audio Headset Jack: 3.5mm, 4-ring type, support for both Voice & Stereo music 0.5W speaker Omni-directional microphone Connectors SoMo 655: DC-in (5V, 1A) USB synchronization/host cable connector Cradle: Docking connector DC-in (5V, 3A) USB synchronization cable connector USB v2...
  • Page 56 Series 9; needs to be manually installed via Getting Started wizard for SP8 or later) Socket Modem and Ethernet Utilities Socket SoMo 655 Back Pack Utilities Socket Power Plus Battery Friendly Utility Socket CPU Performance Utility Socket Hold Switch Utility Enhanced Wi-Fi Companion and SocketScan 10 are pre-loaded but need to be manually installed via the Getting Started Wizard.
  • Page 57 Pre-Loaded Third- Programmable Home Screen Party Software Calculator MSN Messenger Client Word Mobile 2010, Excel Mobile 2010, PowerPoint Mobile 2010 IE Mobile, Outlook Mobile .NET Compact Framework v2.0 Remote Desktop Mobile Windows Media Player 10.2 Mobile ActiveSync Client v4.x SocketSerial drivers SOTI MobiScan Agent Sprite Backup (trial version)

  • Page 58: Appendix B Care And Maintenance

    Cleaning the SoMo 655 or SoMo 655DXS: • With the device switched off, clean the SoMo 655 by wiping it with a soft, clean cloth that is lint-free and slightly moistened. Do not allow the earpiece, microphone, speaker, card slots, sync/charging port or other metal surfaces to get wet.

  • Page 59: Appendix C Resetting The Somo 655

    Each of these resets is designed to clear different levels of data storage and impact the hardware differently. Additionally, removing the battery and any external sources of power from the SoMo 655 will result in the equivalent of a reset.

  • Page 60: Soft Reset

    Windows Mobile powered devices do not normally shut down an application after it is started, this is one way to stop all applications. To perform a soft reset: Using the tip of your stylus, lightly press the Soft Reset button inside the hole on the back of your SoMo 655 and then release.

  • Page 61: Hard Reset

    Release the Start Control button and F2 Configurable buttons. It is recommended that you hold the SoMo 655 upside-down in your right hand. Press the Start Control button and F2 Configurable button with the index and middle fingers. Hold the stylus in your other hand to press and release the reset button.
  • Page 62 RESTORED TO THEIR FACTORY DEFAULTS. ALL DATA, RECORDS AND ENTRIES, EXCEPT THOSE STORED IN ROM, WILL BE ERASED. If you set a security password on the SoMo 655 and forget it, a clean reset will remove the password setting. To perform a clean reset: With the SoMo upside-down in your left hand, press and hold the Left Programmable Application Button, the Start Control button and F2 Configurable buttons.
  • Page 63 A Socket Splash Screen will appear. After the Socket Splash Screen disappears, release the three buttons and follow the onscreen instructions.

  • Page 64: Appendix D Upgrading The Rom Image

    THE WINDOWS MOBILE DEVICE CENTER! The directory SOMO655 containing the ROM image files must be moved to the SoMo 655 with a SD or CF memory card that is formatted in FAT12 or FAT16. Make sure your memory card has at least 40 MB of free space.
  • Page 65 While holding the three buttons, use the stylus to quickly press the Reset button inside the hole on the bottom of your SoMo 655. Keep holding the Right Programmable Application Button. An EBOOT screen will appear with a timer, counting down from 5 seconds.
  • Page 66 The Windows Mobile splash screen will appear for about 30 seconds. The Windows Welcome wizard will prompt you to set up Windows Mobile. Follow the instructions on your screen. After setting up Windows Mobile, the Today screen will appear, and the SoMo 655 will be ready to use.

  • Page 67: Appendix E Troubleshooting

    Appendix E Troubleshooting SYMPTOM: When I press the power button, the SoMo does not turn on. Possible Reason Solution The SoMo battery does not have adequate Plug the SoMo into AC power or insert a charged charge. battery. The SoMo hold switch is on. Slide up the hold switch on the left side of the SoMo.

  • Page 68: Appendix F Technical Support

    Appendix F Technical Support If you have trouble installing or using the SoMo 655, Socket has different support options to help you. Online Knowledge Base: Search for articles, Frequently Asked Questions or Hot Topics any time, day or night. http://support.socketmobile.com/EU_S1a.asp Online Requests: Register your product and submit a question to our Technical Support Team.

  • Page 69: Limited Warranty

    CF-to-PC Card adapters: 90 day coverage only. An enhanced warranty is available separately for some Socket products. For more information, please visit: http://support.socketmobile.com Incompatibility is not a defect covered by the Socket warranty. During the warranty period, Socket will, at its option, repair or replace the defective product at no charge when furnished with proof of retail purchase, provided that you deliver the product to Socket or to an authorized Socket Service Center.

  • Page 70: Disclaimer

    PRODUCT DISPOSAL: Your device should not be placed in municipal waste. Please check local regulations for disposal of electronic products. Disclaimer EXCEPT TO THE EXTENT EXPRESSLY WARRANTED BY SOCKET COMMUNICATIONS, INC, THIS PRODUCT IS PROVIDED "AS IS" WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 71: Regulatory Compliance

    CONTROLLING LAW AND SEVERABILITY. This License shall be governed by the laws of the United States and the State of California. If for any reason a court of competent jurisdiction finds any provision, or portion thereof, to be unenforceable, the remainder of this License shall continue in full force and effect. Regulatory Compliance FCC: Part 15, Class B Industry Canada...

  • Page 72: Industry Canada Statement

    IMPORTANT: RADIATION EXPOSURE STATEMENT THIS EQUIPMENT COMPLIES WITH FCC RADIATION EXPOSURE LIMITS SET FORTH FOR AN UNCONTROLLED ENVIRONMENT. END USERS MUST FOLLOW THE SPECIFIC OPERATING INSTRUCTIONS FOR SATISFYING RF EXPOSURE COMPLIANCE. TO MAINTAIN COMPLIANCE WITH FCC RF EXPOSURE COMPLIANCE REQUIREMENTS, PLEASE FOLLOW OPERATION INSTRUCTIONS AS DOCUMENTED IN THIS MANUAL. This PDA has been tested and demonstrated compliance when Bluetooth and WLAN are transmitting simultaneously.
