Summary of Contents for Lexus LS 430
-
Page 1: Preface

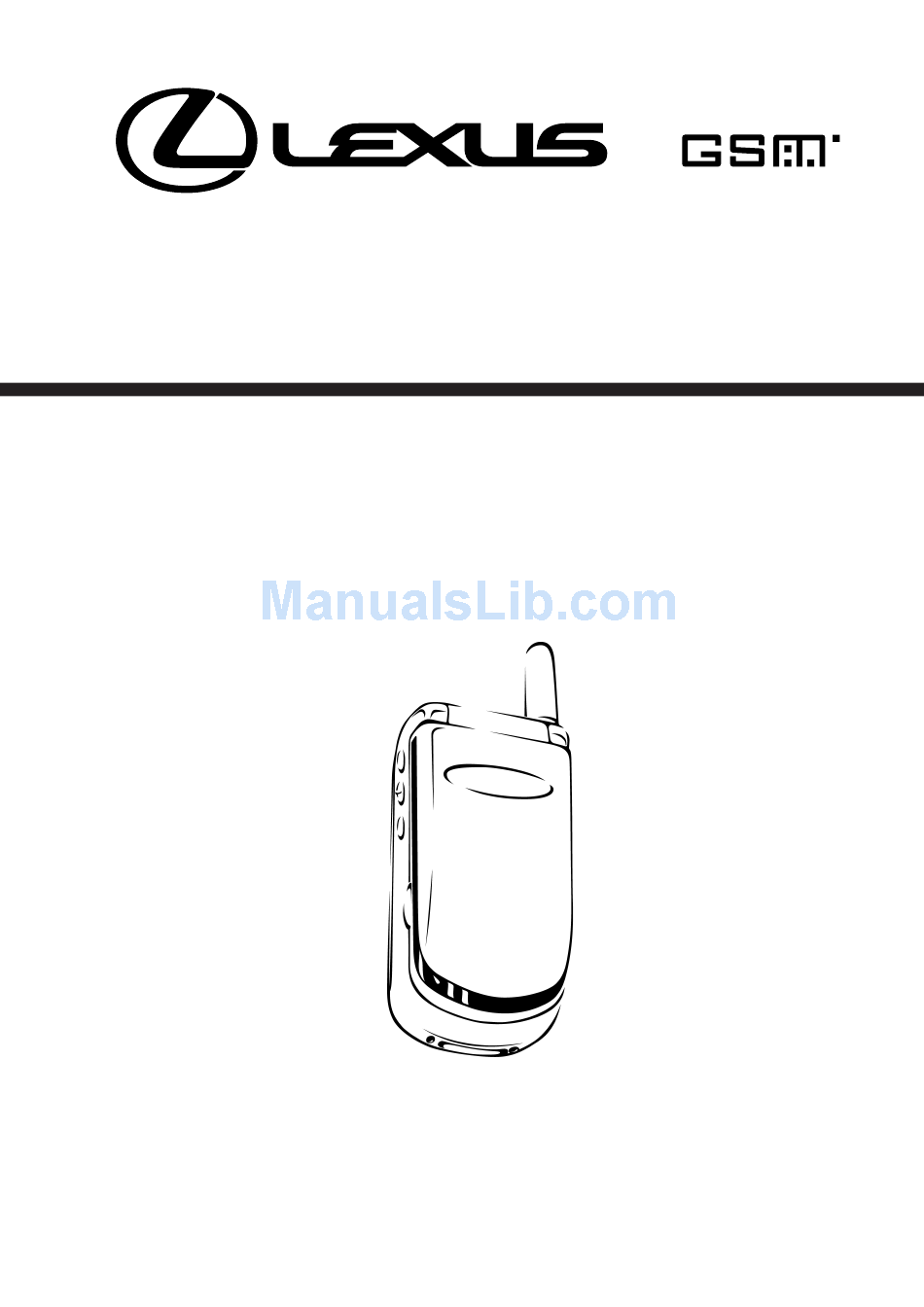

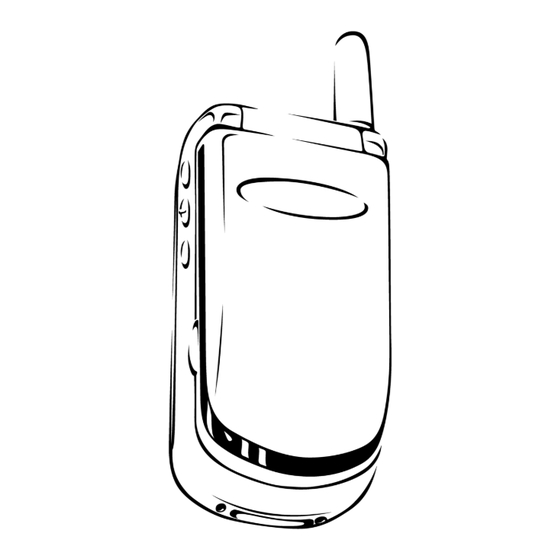

Cellular Mobile Telephone Einbauanleitung - Installation Manual - Manuel d’installation LS 430 Dual band portable phone FOR all GSM-countries Manual Ref. Nr. P7 F3/W-0-400... - Page 2 This GSM telephone is only allowed by the Toyota Motor Company to be installed in a Lexus motor vehicle and to be operated only within the normal use of this vehicle. It should not be operated in any other system installation.
-
Page 3: Table Of Contents
Table of Contents Preface ......................31 Table of Contents ................... 33 Lexus Telephone System Overview ............... 34 Pre-Installation Instructions ................35 Contents List • Main Kit PZ409-F1275-00 / PZ409-F1276-00 ....36 • Subkit 86075-50060 ............37 • Switch case Charcoal 86174-50030-B0... -
Page 4: Lexus Telephone System Overview
Lexus Telephone System Overview Microphone Cradle Antenna (Factory installed) Antenna connector Steering wheel command module Navigation ECU (If equipped) Cradle conversion wire Subkit wire harness Universal controller, PSE + speaker relay LS 430 CMT - Dual band portable phone... -
Page 5: Pre-Installation Instructions
3. When disconnecting connectors, be sure to grip the connector body. Do not tug on the wiring. 4. If further information is required and for trouble shooting, please refer to the Lexus Workshop Manual and the Electrical Wiring Diagram Manual EWD 435F. LS 430... -
Page 6: Main Kit Pz409-F1275-00 / Pz409-F1276-00
Speaker relay 86162-0W010 PSE (Portable Support Electronics) 86714-0W050 Universal controller PZ409-F1275-01 VIII 25P Subwire adapter cable 86713-0W110 Leather case 86778-0W030 Mainland Europe adapter plug 86771-0W060 UK adapter plug 86771-0W070 Ear Phone 86730-0W160 LS 430 CMT - Dual band portable phone... -
Page 7: Subkit 86075-50060
Main bracket Bolt (M4x12) Bolt (M4x5) Bolt (M4x12) Nut (M4) Nut (M6) Cradle conversion wire 86773-50030 Microphone amplifier 86290-50010 Grommet Wire tie (small) (L=142mm) Wire tie (large) (L=190mm) Foam (60x75) Foam (60x85) LS 430 CMT - Dual band portable phone... -
Page 8: Ivory
86250-50010 Telephone tray Partition plate Cable support Tapping screw (Ø4x9) Flat head screw (Ø4.5x12) Clip (large) Clip (small) Command Module (SWITCH CASE) Part No. Charcoal 86174-50030-B0 Black 86174-50030-C0 Ivory 86174-50030-E0 Ecru 86174-50030-E1 LS 430 CMT - Dual band portable phone... -
Page 9: Command Module Installation
: Hook (3x) 1.2 Fit the command module as shown. Inspect to ensure that the module firm- ly locks onto the steering wheel. : Hook (3x) LS 430 CMT - Dual band portable phone... -
Page 10: Microphone Installation
2.2 Remove the overhead module : Connector (1x) : Screw (2x) 2.3 Remove the screw Connect the microphone on the microphone amplifier after installing one screw on the overhead module : Screw (1x) LS 430 CMT - Dual band portable phone... -
Page 11: Cmt - Dual Band Portable Phone
(The illustration is for LHD vehicle, but it is also valid for RHD vehicle) : Hook (2x) Reinstall the overhead module to the vehicle. LS 430 CMT - Dual band portable phone... -
Page 12: Cmt - Dual Band Portable Phone
: Clip (2x) 2.7 Remove the control switch panel from the vehicle as shown. : Connector (1x) : Clip (2x) 2.8 Remove the centre console shifter cov- : Connector (1x) : Clip (4x) LS 430 CMT - Dual band portable phone... -
Page 13: Cmt - Dual Band Portable Phone
Remove the centre console cup holder : Screw (2x) 2.10 Disconnect the two 2P centre console wire harness connectors 2.11 Remove the bolts and screw from the lower console box : Bolt (4x) : Screw (1x) LS 430 CMT - Dual band portable phone... -
Page 14: Cmt - Dual Band Portable Phone
: Screw (26x) Plate 2.14 Remove 4 bolts on the lower part of the console box , then remove the armrest : Bolt (4x) LS 430 CMT - Dual band portable phone... -
Page 15: Portable Phone Installation
Cut here Drill two Ø7mm holes on the marked area on the front of the lower console Install the console tray in the lower Ø7mm hole console box LS 430 CMT - Dual band portable phone... -
Page 16: Cmt - Dual Band Portable Phone
M4x5 bolts Wire harness : Bolt (M4x5) (4x) 3.6 Install the cable support for the tele- phone wire on the back of the tray using the tapping screws : Tapping screw (2x) LS 430 CMT - Dual band portable phone... -
Page 17: Cradle Conversion Wire
: Flat head screw (4x) : Cradle See fig. 3.1 3.9 Bundle up the antenna wire and cra- dle conversion wire as shown in the illustration using 3 wire ties : Wire tie (small) (3x) LS 430 CMT - Dual band portable phone... -
Page 18: Grommet
Remove the dummy connector Connect the cradle conversion wire to the 18P vehicle connector. Connect the antenna cord to the Mini UHF vehicle connector (Mini UHF). Vehicle connector LS 430 CMT - Dual band portable phone... -
Page 19: Cmt - Dual Band Portable Phone
3 positions using clips When doing this, be careful not to catch the telephone wire. : Clip (large) (2x) : Clip (small) (1x) LS 430 CMT - Dual band portable phone... -
Page 20: Pse Installation
4.1 Remove the luggage compartment car- pet and floor board 4.2 Remove the luggage compartment floor boards (RH) : Clip (1x) 4.3 Remove the luggage compartment floor boards (LH) : Clip (1x) LS 430 CMT - Dual band portable phone... -
Page 21: Cmt - Dual Band Portable Phone
4.5 Remove the luggage cable cover Disconnect Pull flat blade screwdriver Push Push Pull Remove the luggage compartment light : Hook (1x) : Clip (1x) Remove the filter cover (if applica- ble). : Clip (2x) LS 430 CMT - Dual band portable phone... -
Page 22: Cmt - Dual Band Portable Phone
RH). : Bolt (2x) Remove the luggage compartment front trim : Hook (4x) : Clip (5x) : Clip (2x) Pinch this 4.8 Remove the luggage compartment side trim (RH) : Clip (3x) LS 430 CMT - Dual band portable phone... -
Page 23: Cmt - Dual Band Portable Phone
Make sure the connectors of the different parts face as indicated in the drawing. 4.10 Connect the subwire adapter cable VIII to the PSE , the universal controller and the speaker relay VIII LS 430 CMT - Dual band portable phone... -
Page 24: Cmt - Dual Band Portable Phone
Secure the wire harness with strips of foam (small) Be careful not to cover the original thread hole LS 430 CMT - Dual band portable phone... -
Page 25: Cmt - Dual Band Portable Phone
Locate and disconnect the 20P connec- 4.15 Connect the 20P connectors of the sub- kit wire harness to the disconnected 20P connector of the vehicle har- ness. Refit the luggage compartment trims, D-rings, covers, boards etc. LS 430 CMT - Dual band portable phone... -
Page 26: Antenna Connection
Antenna cord Locate and release the male connector secured to the vehicle wire harness. Connect the antenna connectors and wrap them in the foam Vehicle antenna cord : Foam (small) (1x) LS 430 CMT - Dual band portable phone... -
Page 27: Steering Wheel Switch Mode Setting
During a handsfree communication: the speaker volume can be raised and low- ered by buttons If neither of the steps 4 and 5 operates please perform the “selection procedure” 6.2 again. LS 430 CMT - Dual band portable phone... -
Page 28: Reassembly
Before returning the vehicle to the customer, test the phone for proper operation by following the instructions “Getting Started” in the Owner’s Manual. In the event that the default language has to be changed, please select “language selection” in the Phone setup menu (see Owner’s Manual). LS 430 CMT - Dual band portable phone... - Page 29 TOYOTA MOTOR EUROPE MARKETING & ENGINEERING PRINTED IN BELGIUM...
