Summary of Contents for Genuin Audio Drive

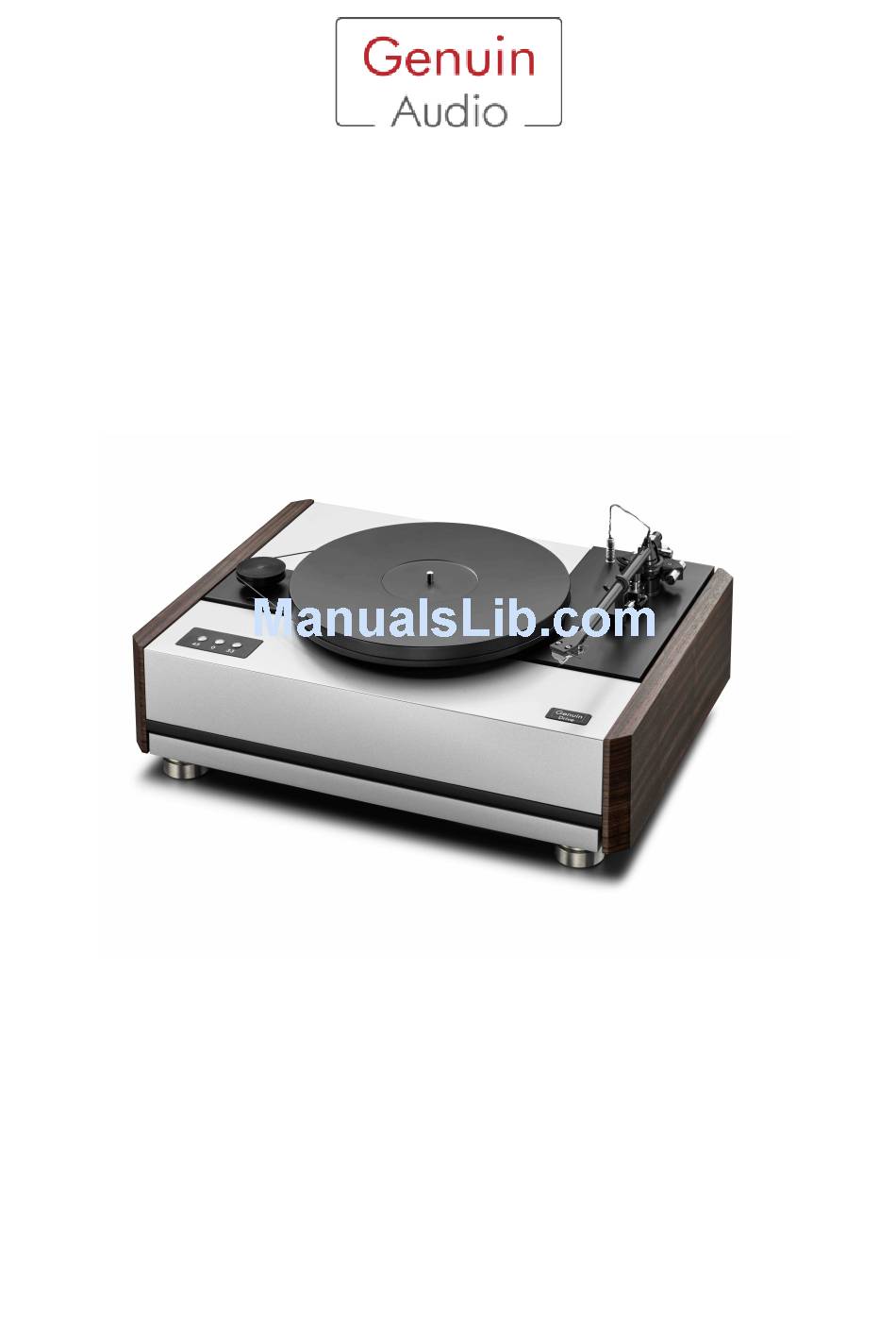

- Page 1 Operation Manual Technical Description Drive Record Player / Turntable...
- Page 2 Welcome to the world of natural music playback! We would like to thank you for choosing a high-end product from Genuin Audio. Genuine Audio manufactures audio components that are exclusively designed for Genuin and made under manufactory conditions in Germany. The devices uncompromisingly pursue the goal of an authentic reproduction.
- Page 3 Carefully remove the tonearm Point from the wooden box and place it with the bearing tip on the single point bearing of the tonearm base mounted in the drive. Then insert the LEMO plug of the tonearm cable from the tonearm into the LEMO socket next to the tonearm base.
- Page 4 Initial Operation Turn on the main switch on the power supply and press the ‘33’ or ‘45’ button on Drive. The ring around the button of the currently active speed will be lit. To switch off, press the ‘0’ button.
- Page 5 Adjustment Options Subchassis The subchassis is preset by the manufacturer. However, it is possible to carry out a re-adjustment if additional weights such as alternative turntable mats or pucks are used. Three adjustment screws for the three subchassis bearings are located on the underside. By turning the screws, the sunken subchassis as a result of the additional weight can be raised, if necessary, to the correct level.
- Page 6 The VTA on the tonearm Point can, for example, be adjusted for the use of an additional turntable platter mat. This is done by turning the based screw with the supplied pin, which is inserted into a corresponding hole of the bolt circle to turn the base. The support bench of the tonearm tube is adjusted accordingly after loosening the end-face Allen key, and the screw is then tightened again.
- Page 7 Important: before doing this, turn off Drive and then handle the pulley with great care. Afterwards the two screws should be tightened again carefully without great force.
- Page 8 There are no user-serviceable parts inside the unit. Always leave repairs to trained professionals. Warranty will be void if the product has been handled by unauthorized persons. In case of repair, please contact Genuin Audio or your authorized dealer. Disclaimer The information in this document is subject to change without prior notice and does not constitute any obligation on the part of Genuin Audio.
