Summary of Contents for Quicksmart EtherRain

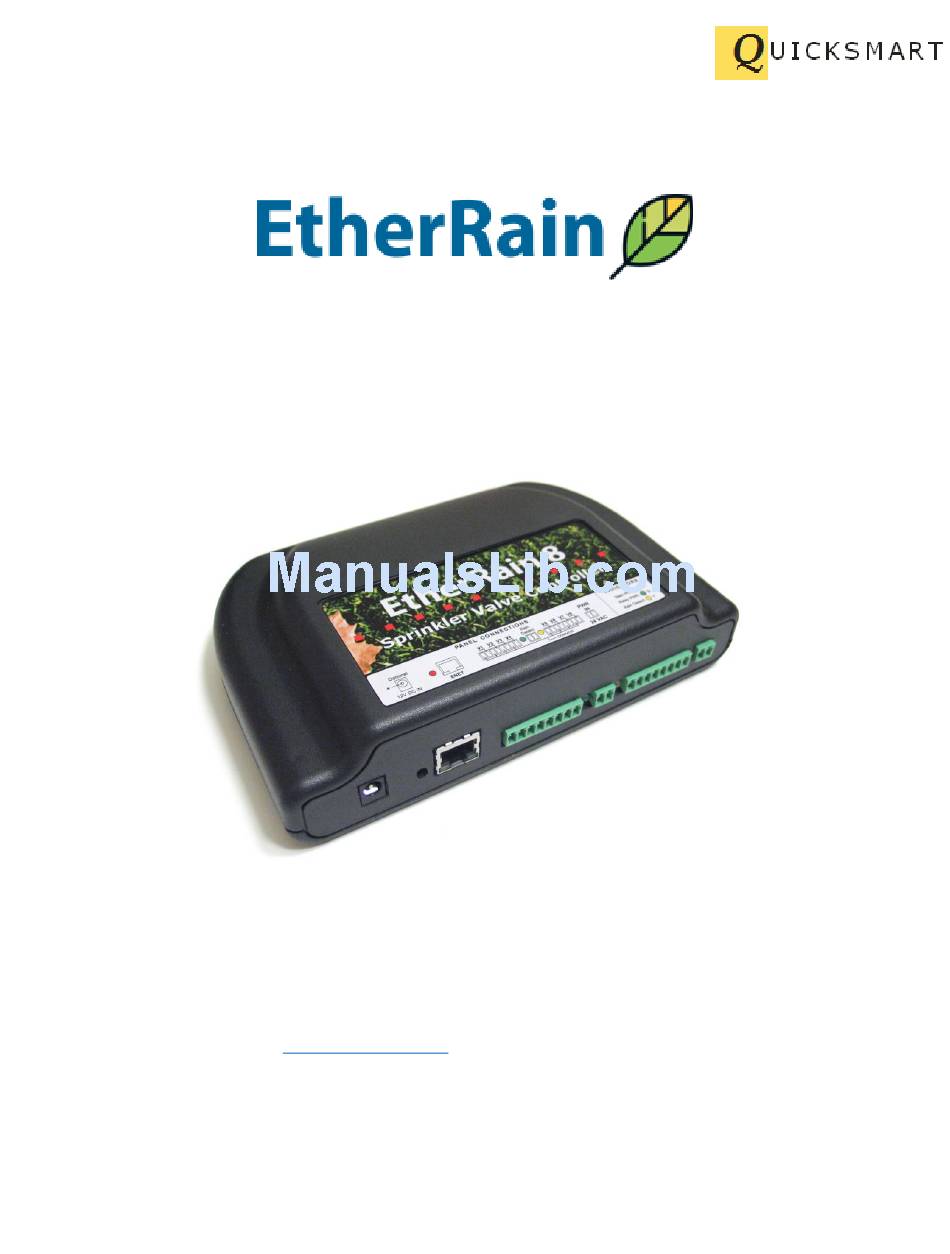

- Page 1 User Guide QuickSmart Development www.quicksmart.com Telephone: 408-777-0944 Santa Clara California USA. EtherRain User Guide Rev 1b, August 2017...
-
Page 2: Power Requirements
EtherRain employs a reliable command protocol whereby only one command is required in order to execute a full irrigation cycle. Multiple EtherRain controllers can exist on a single network. Scheduling applications are available to create 16, 24, and 32 zone controllers from multiple EtherRain devices. - Page 3 3. Verify that your network has a DHCP server to provide the controller with an IP address. Most networks have this service. EtherRain can be configured with a static address, but requires use of DHCP to initially configure. 4. Connect the controller to your network by plugging one end of an Ethernet patch cable into the controller and the other end into open switch port.
- Page 4 The EtherRain Admin application is required in order to configure EtherRain. EtherRain Admin is available as a Windows application for use on Windows computers (Windows 7 through Windows 10) and is available as a Java application for use on Macintosh and Linux computers. EtherRain Admin is downloadable from this URL: http://www.quicksmart.com/qs_etherrain_support.html...
-
Page 5: Web-Based Configuration
Do NOT use a “.” (period) in your controller name to use this feature. Note: if you have multiple EtherRain controllers on your network it is best to install one controller at a time and give each controller a unique name before another controller is installed. If multiple EtherRain controllers have the same name the router’s name service won’t be able to uniquely identify... - Page 6 2. Default address: 192.168.1.204 3. Default netmask: 255.255.255.0 4. Default password: pw Once the controller has been reset, it can be configured using the Windows-based EtherRain Admin configuration software. Opening the controller voids the warranty, so please be careful! EtherRain User Guide Rev 1b, August 2017...
- Page 7 User Interface Applications EtherRain does not have a built-in user interface. Instead, it uses a set of applications in order to provide the user interface. This interface strategy results in a much easier-to-use interface experience while providing a much more powerful scheduling service without the need to constantly update and patch the device firmware.
- Page 8 3. Set the Operating Mode to Polling. Save changes. It is important to make sure that the name of your EtherRain controller is exactly the same as the name of your irrigation device that you created in the LawnCheck application.
-
Page 9: Rain Sensor
Rain Sensor EtherRain provides a rain sensor interface. The rain sensor interface works with any commercially available rain sensor that has a NORMALLY OPEN (NO) configuration. An application programming interface (API) document is available to customers who wish to write their own control applications for EtherRain. -
Page 10: Appendix A. Connection Diagrams
24 VAC 24 VAC ENET ENET To Pump Power Relay Master Valve Control Common C o m m o n Zone 1 Zone 2 Zone7 Zone 3 Zone 6 Zone 4 Zone 5 EtherRain User Guide Rev 1b, August 2017...
