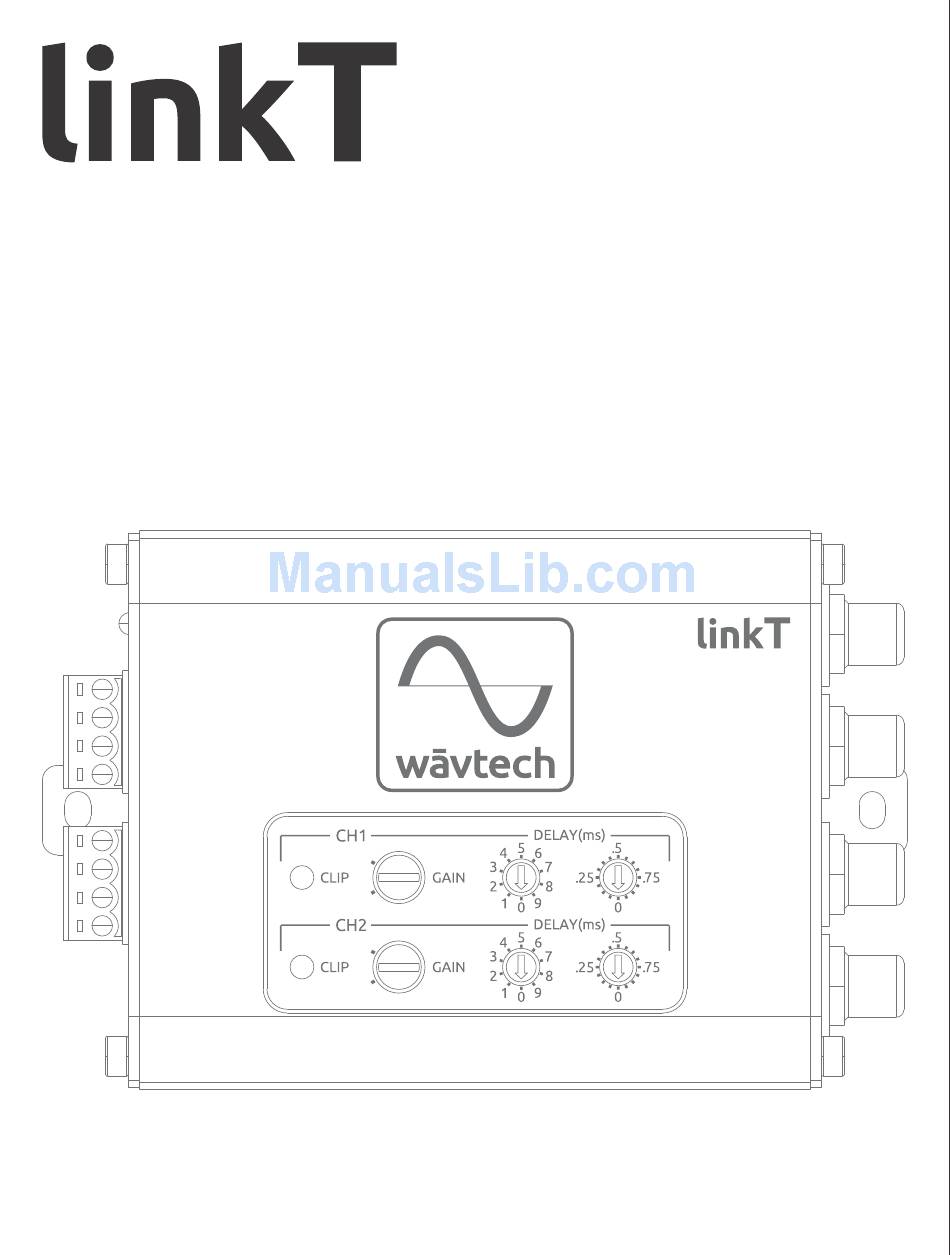

- Page 1 2-Channel LOC / Line Driver + DSP Digital Time Alignment Independent Channel Gain Ÿ Ÿ Ÿ 10Vrms Output OEM Load Detect Compatible Owner’s Manual www.wavtech-usa.com...
- Page 2 This symbol means important instructions. WARNING Failure to heed them can result in serious injury or death. This symbol means important instructions. CAUTION Failure to heed them can result in injury or property damages. WARNING • DO NOT DRIVE WHILE DISTRACTED. Any function that requires your prolonged attention should not be performed while driving.
- Page 3 • ROUTE WIRING AWAY FROM SHARP EDGES AND MOVING PARTS. Arrange cables and wiring away from sharp or pointed edges and avoid moving parts such as seat hinges or rails to prevent pinching or wear. Use loom protection where appropriate and always use a grommet for any wiring routed through metal.
- Page 4 ’ Œ Power Indicator: This red LED indicates when the linkT is powered on. Once illuminated, there will be a short delay before audio signal output is enabled. During initial power connection, the LED may illuminate for a brief period.
- Page 5 +12V only when turned on), connect it to the REM IN terminal. If a remote lead is unavailable, the linkT is also enabled with an automatic turn-on circuit that detects audio signal from SPK and RCA inputs, as well as DC-offset from SPK inputs.
- Page 6 Œ clipping, and full bright at clipping. Since the linkT will produce over 10Vrms at full output, gain may need to be reduced well below the point of illumination in order to match your amplifier’s maximum input capability or optimize source volume range.
-
Page 7: System Examples
Note: Portable devices such as smartphones or MP3 players typically have an output voltage of 1Vrms or less. While the linkT’s auto turn-on circuit will detect very low signal levels, in some cases the gains may need to be adjusted for reduced total volume range... - Page 8 CH3/4 CH1/2 Note: When adding the linkT for time alignment after another Wavtech model such as the link4, adjust the link4’s gain to both maximize the linkT’s input signal without clipping and match its output with the input capability of the connected amplifier(s).
-
Page 9: Specifications
Specifications Max Flat (+0/-1dB) <20Hz to >36kHz Frequency response Extended (+0/-3dB) <10Hz to >44kHz Spk Input 180Ω Input Impedance RCA Input 20kΩ Spk Input (max-min gain) 2 - 20Vrms Input Sensitivity RCA Input (max-min gain) 0.5 - 5Vrms Spk Input <5sec 40Vrms Max Input Voltage (peak) -
Page 10: Installation Notes
(size/location, etc.) Subwoofer(s) Ÿ (size/location, etc.) Amplifier(s) Ÿ (location, output voltage, etc.) Other: Ÿ linkT Connections & Settings Installed Location: Ÿ Wiring Ÿ (connection locations, signal type, turn-on mode, etc) Level Settings Ÿ (gain position, max master vol, etc.) Other: Ÿ... - Page 11 Warranty & Service Care Wāvtech warrants this product to be free from defects in material and workmanship for a period of one (1) year when purchased from an authorized Wāvtech retailer within the United States. This warranty will be extended to a period of two (2) years when the installation is performed by an authorized Wāvtech retailer.
