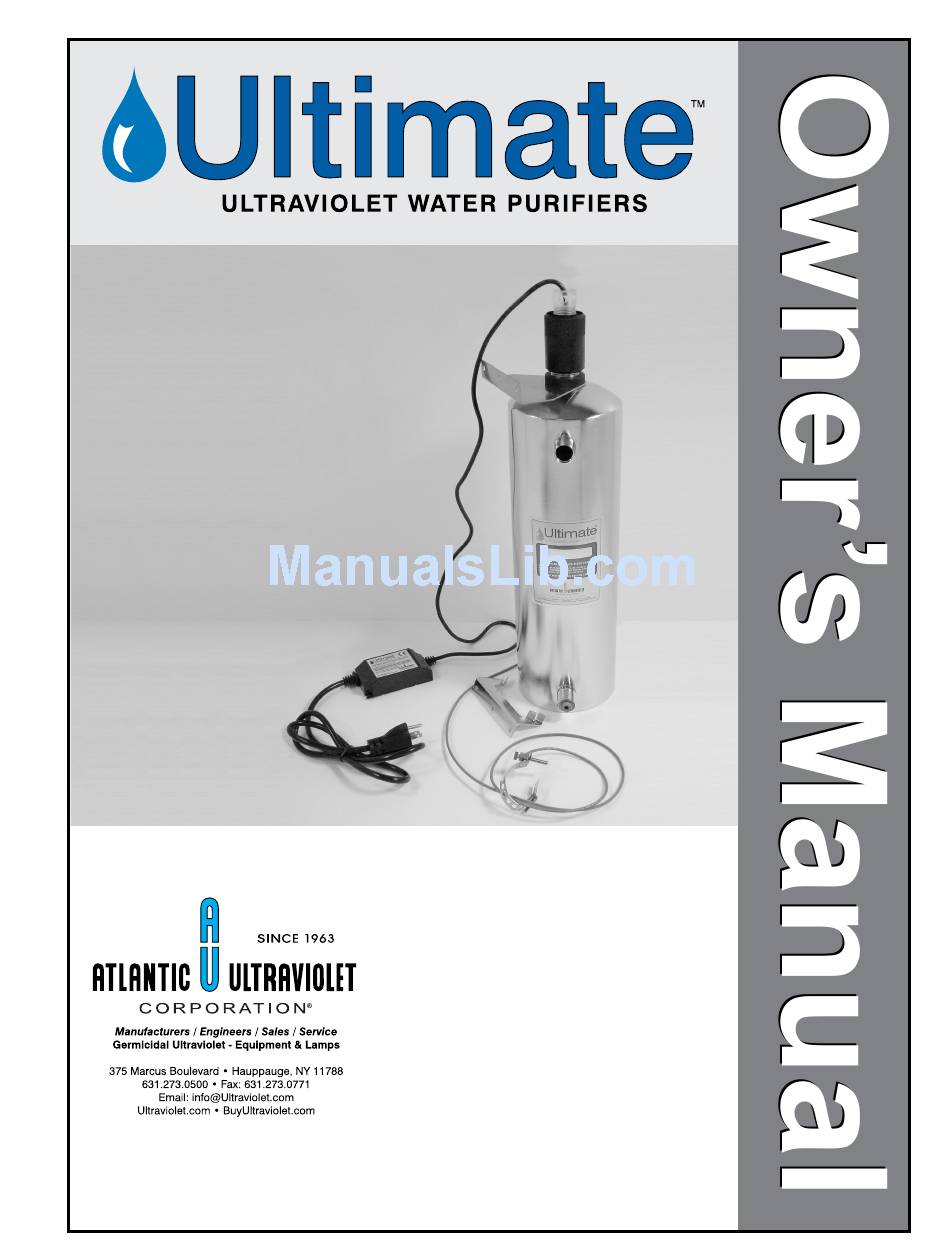

Models U4, U7, U9 & U15
Installation,
Operation
& Maintenance
Read and Follow All Safety Instructions. Save These Instructions.
Extensive Product Information Available at:
ultraviolet.com
buyultraviolet.com
1
Document No. 98-1450A5 •June 2017 • ©2017 Atlantic Ultraviolet Corporation
• ASSEMBLED IN THE USA
®
Advertisement
Table of Contents
Summary of Contents for Ultimate U4
- Page 1 Models U4, U7, U9 & U15 Installation, Operation & Maintenance Read and Follow All Safety Instructions. Save These Instructions. Extensive Product Information Available at: ultraviolet.com buyultraviolet.com Document No. 98-1450A5 •June 2017 • ©2017 Atlantic Ultraviolet Corporation • ASSEMBLED IN THE USA...
-
Page 2: Table Of Contents
These instructions generally describe the installation, operation and maintenance of the Ultimate line of water purifiers, Models U4, U7, U9 and U15. Questions that are not specifically answered by these instructions should be directed to the Factory. ® Atlantic Ultraviolet Corporation takes all possible precautions when packaging equipment to prevent damage. -
Page 3: Safety Warnings
15. SAVE THESE INSTRUCTIONS. SAFETY LABELS CAUTION Date: 7/1/10 Model No: Ultimate U15 (120V 50/60Hz) Part No: 25-8315A1 It is the user’s responsibility to determine and validate the suitability of this equipment for use in the user’s system or process. -
Page 4: Product Application
The ultraviolet intensity is the amount of energy, per unit time, emitted by the germicidal lamp. The dosage is the product of ultraviolet intensity and the exposure time. The operation of the Ultimate as follows: •... -
Page 5: Unpacking
6” on the opposite end of the water purifier. Minimum clearance to the floor 18’’ Choose a location for your Ultimate unit that is isolated from vibration. Vibration will damage lamp and lead to premature system failure. -
Page 6: D Imensional D Ata
The shut off valves allow the purifier to be isolated from the water supply, which is required when removing the quartz sleeve. imensional Figure 1 - Dimensional Drawing Table 2 - Ultimate ® Dimensional Data Model 3-7/8” Dia. -
Page 7: R Ecommended I Nstallation
eCommenDeD nstallation Figure 2 -Recommended Installation... - Page 8 nstallation tePs Step 1 - Install bottom bracket Step 2A - Install top bracket and bracket nuts Step 2B - Place chamber & top bracket assembly onto the bottom bracket Step 2C - Secure the top bracket to the Step 3A - Slowly slide quartz sleeve into the Step 3B - Carefully guide quartz sleeve until it mounting surface disinfection chamber...
-
Page 9: R Ecommended I Nstallation
Unpack the water disinfection chamber and components following the steps in the “Unpacking” section on Page 5. • Be sure that you have read and followed all the instructions mentioned in the “Location” section on Page 5. To allow for adequate room for installation and maintenance of the Ultimate • Ultraviolet Water Purifier refer to “Dimensional Data”... -
Page 10: G Round K It I Nstallation
• (Continued from Page 9) With the disinfectant solution in the purifier chamber, turn the ultraviolet purifier on. Open the “down-stream” outlet until a chlorine or disinfectant solution odor is noticed. Close the outlet and allow the disinfectant to remain in he plumbing for at least three (3) hours. -
Page 11: I Nspection
Regularly inspect the water purifier to ensure that the germicidal lamp is still in operation. Surelite Electronic Ballast designed specifically for the Ultimate line of water purifiers, includes an LED that provides visual indication (Green and Red LED Indicators) of the germicidal ultraviolet lamp operation and a Promate Audio Alarm that alerts the user to lamp failure. -
Page 12: Eplacement Of Roken Uartz Leeve
ePlaCement of roKen uartz leeve Figure 4 - Quartz Sleeve Exploded View IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling broken quartz sleeve. -
Page 13: Amp Nstallation Eplacement
nstallation or ePlaCement Figure 5 - Lamp Replacement IN ORDER TO PERFORM THIS TASK, BE SURE TO WEAR THE FOLLOWING SAFETY EQUIPMENT: SAFETY GOGGLES OR A FACE SHIELD, AS WELL AS GLOVES Broken Quartz is SHARP. It is recommended that protective goggles and gloves are worn when handling broken quartz sleeve. -
Page 14: Troubleshooting
Equipment wiring and hook up should be performed by a qualified, licensed electrician. Failure to comply with this requirement could result in serious injury or death. TECHNICAL SPECIFICATIONS Table 4 - Technical Specifications Model: U4/120 U7/120 U9/120 U15/120 Flow Rate (GPM): Inlet\Outlet Size: 3/4”M NPT... -
Page 15: Replacement Parts
REPLACEMENT PARTS Figure 6 - Exploded View U4, U7, U9 and U15 Table 5 - Replacement Parts Item No. Description Quantity Surelite 10-0505B 10-0505B 10-0505B 10-0505B Ballast 120v Red/Green Alarm Surelite Ballast 220v Red/Green Alarm 10-0152A 10-0152A 10-0152A 10-0152A STER-L-RAY ®... -
Page 16: User Assistance
This manual Fax: 631.273.0771 installation or use of this unit, contact describes the installation, operation E-mail: info@ultraviolet.com and maintenance of the Ultimate our offices, weekdays between 8:30 am Website: www.ultraviolet.com and 5:00 pm Eastern Time, at: Ultraviolet Water Purifiers www.buyultraviolet.com...
