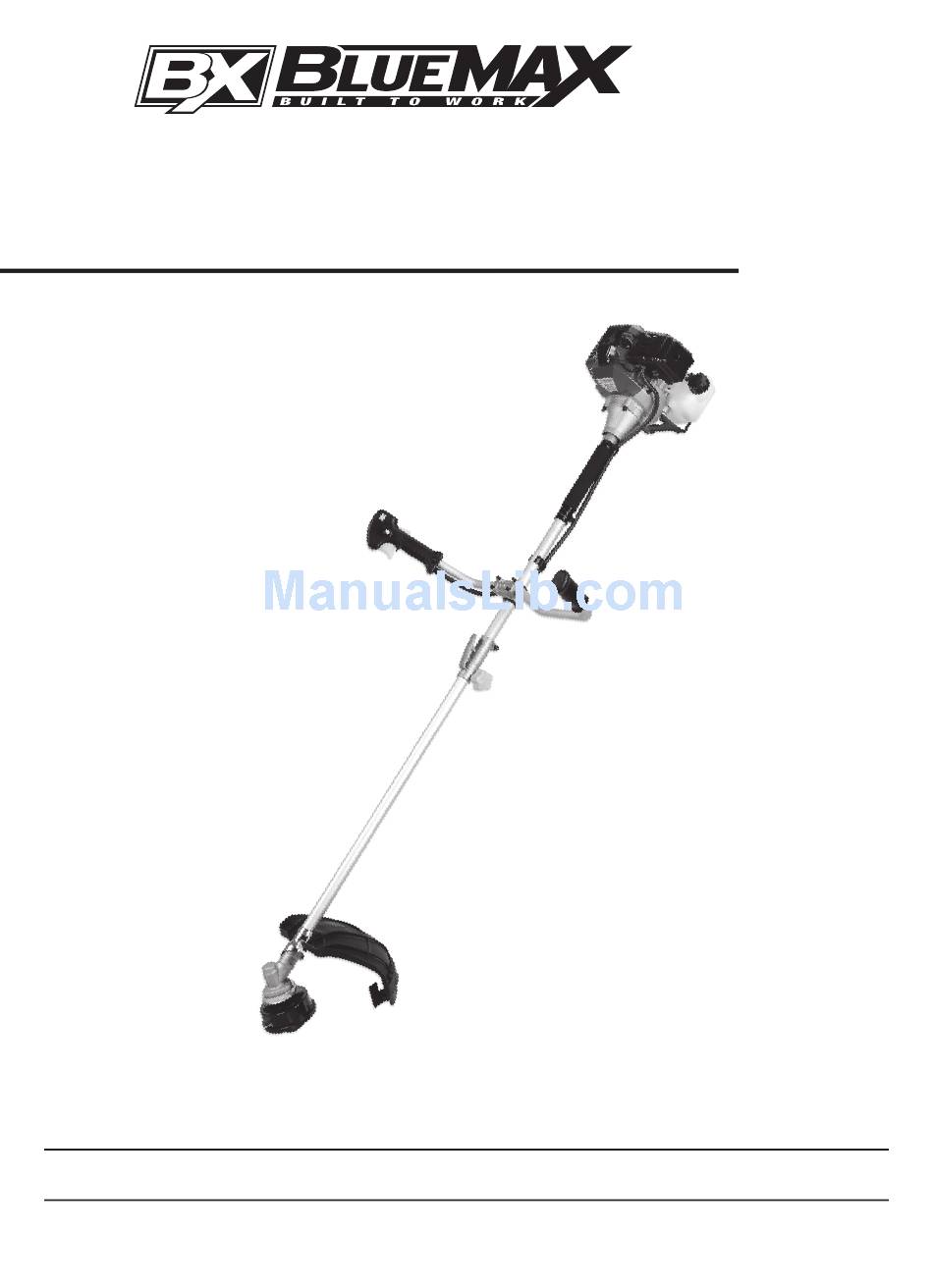

2-IN-1 BRUSH CUTTER/
STRING TRIMMER
Please carefully read and save these instructions before attempting to assemble, maintain, install, or operate this product.
Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property
damage and/or personal injury. Please keep instructions for future reference.
For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping.
For Customer Service, Call 1-800-348-5004
or e-mail customerservice@focus-ontools.com
*Actual product may vary slightly
52623
03/2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Blue Max 52623
- Page 1 Observe all safety information to protect yourself and others. Failure to observe the instructions may result in property damage and/or personal injury. Please keep instructions for future reference. For warranty purchases, please keep your dated proof of purchase. File or attach to the manual for safe keeping. For Customer Service, Call 1-800-348-5004 52623 03/2017 or e-mail customerservice@focus-ontools.com...
- Page 2 Important Operating Instructions 3. Make sure the contents are CALIFORNIA PROPOSITION 65 CAUTION: complete and free of damage. If WARNING: You can create dust FOR YOUR OWN SAFETY READ when you cut, sand, drill or INSTRUCTION MANUAL you find that parts are missing or grind materials such as wood, COMPLETELY AND damaged, contact your dealer.
- Page 3 15. The symptoms of HAVS Never store the product or fuel 2. Never allow children or people unfamiliar with these instructions to include any combination of the container inside where there is an following: open flame, such as near a water use the product.
- Page 4 2. Never carelessly touch the product, 4. Before using this product and after MAINTENANCE & STORAGE doing so may cause serious injury. any impact, check for signs of wear or 1. When the product is stopped for While the product is in operation damage and repair as necessary.
- Page 5 11. Close the tank lid immediately being used over long periods of time after filling the tank. Make sure that it or not adequately managed and is properly closed. properly maintained. 2. Injuries and damage to properly 12. Never use the product without an due to broken accessories or the air filter.
- Page 6 SHAFT 6. Place the locking flange (34) and 1. Remove the protection cap from the the washer onto the cutter blade lower shaft (22) (Fig.4). (33). 2. Align the lower shaft (22) with the 7. Secure the cutter blade (33) with clamp (15) so that the slot is the nut (36) (Fig.
- Page 7 1. Unscrew and remove the fuel tank BEFORE STARTING, MAKE SURE Ensure that no unauthorized people, cap (7) (Fig. 11). YOU HAVE NOTED THE especially children, and pets are FOLLOWING INSTRUCTIONS: nearby or could enter the working 2. Only use correctly mixed fuel/oil. area.
- Page 8 PRIMER WARNING: Always attach the product to the harness. Do not Use the primer (8) when starting the carry it only with your hands. product with a cold engine (Fig. 13). 5. In case of emergency, release the RECOIL STARTER product from the harness by opening 1.
- Page 9 STOPPING CARBURETOR 1. Release throttle control and If the cutting heads fail to operate at interlock. operational speed the carburetor may 2. Run idle. need to be adjusted. Please contact 3. Set ignition switch to “O”. an authorized service center or qualified person to adjust it.
- Page 10 7. Trim longer grass in stages. 3. Stand upright, do not lean DO NOT cut lon g grass in one for ward and pay attention to cut (Fig. 23). posture. Keep both feet apart to help r etain y our balance. 8.
- Page 11 SPOOL Step (2) Step (7) : Align the holes of the roll and the small holes of the WARNING: Before replacing the nylon groove and install the cover. line, stop the engine of the brush cutter Step (8) : Pull the line out of the cover. and check whether the cutting head (A): Pull out one end of the line out of stops rotating.
- Page 12 customerservice@focus-ontools.com...
- Page 13 customerservice@focus-ontools.com...
-
Page 14: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause(s) Corrective Action Not enough fuel in fuel tank Add fuel Primer has not been pressed at cold start Press the primer and restart Engine does not start Primer has been pressed at warm start Dry spark plug Spark plug is wet Dry spark plug Spark plug is damaged... - Page 15 Troubleshooting Guide Set unit on the ground with the on/off switch set to on Set the choke lever fully open Squeeze the throttle lever all the way down Engine is flooded In quick short pulls try starting the unit until you hear a "pop" then let go of the throttle lever. Follow start up procedure An alternative to the above steps is to remove the spark plug and allow the cylinder and spark plug to "dry out".
- Page 16 Brush Cutter Model: 52623 Parts List For Customer Service, please call 1-800-348-5004 or 1-800-348-5004 email customerservice@focus-ontools.com...
- Page 17 Parts List For Customer Service, please call 1-800-348-5004 or 1-800-348-5004 1-800-348-5004 07/15 email customerservice@focus-ontools.com...
- Page 18 Parts List Description Description Spark Plug Connector Lower Shaft e l i Recoil Starter Handle Hand Grip Fuel Tank Cap Throttle Control Air Filter Case Ignition Swith(ON/OFF) Auxiliary Handle Backing Flange Locking Lever Trimmer Head Spring Washer Screwdriver For Customer Service, please call 1-800-348-5004 or 1-800-348-5004 email customerservice@focus-ontools.com...
- Page 19 Limited Manufacturer Warranty FOT makes every effort to ensure that this product meets high quality and durability standards. FOT warrants to the original retail consumer a 1-year limited warranty from the date the product was purchased at retail and each product is free from defects in materials.
