Summary of Contents for Toworld TS400

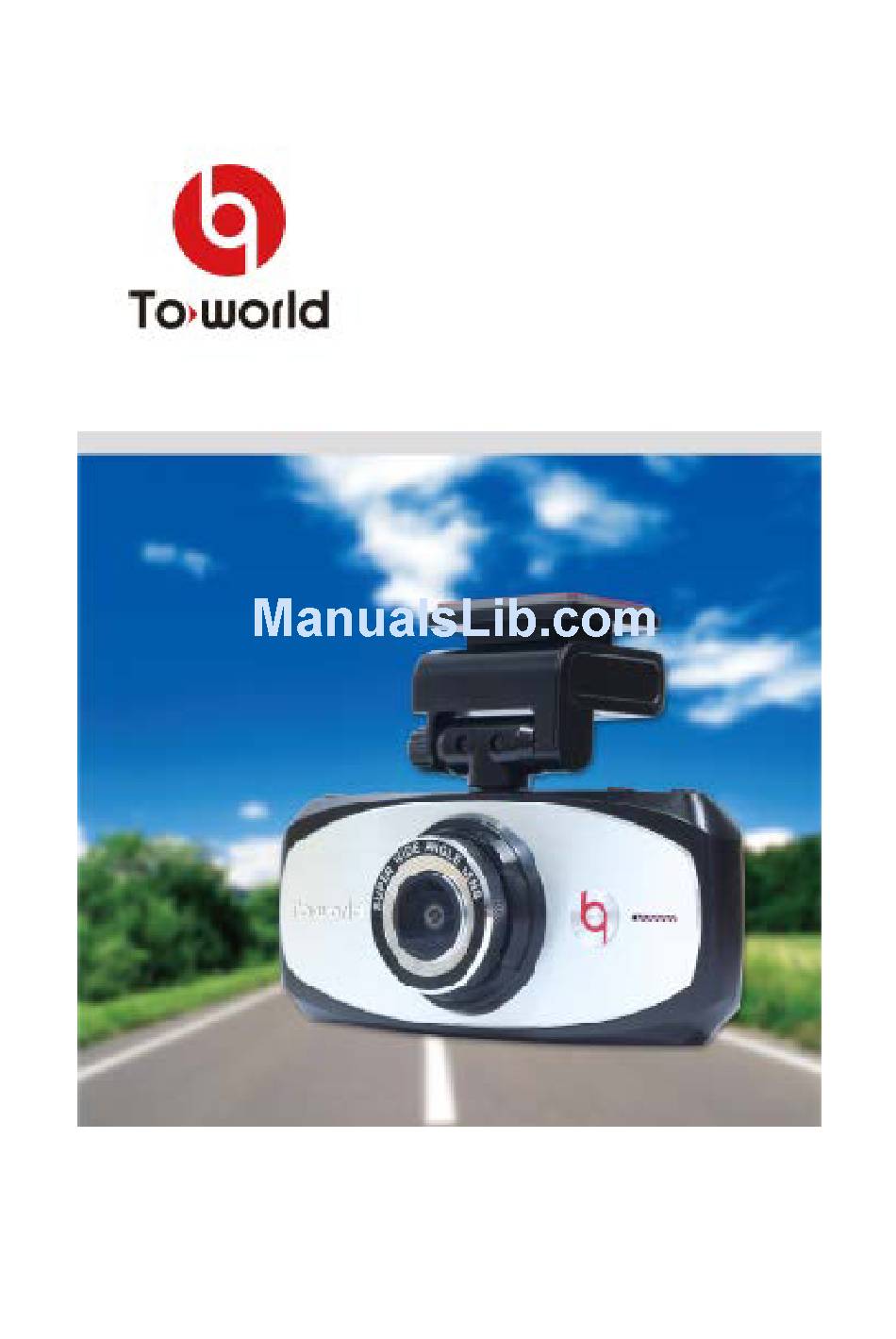

- Page 1 Cloud Share Car DVR Users’ Manual...
- Page 2 1. Do not operate this product while driving vehicles. Please operate this product after parked vehicles. 2. Please don’t do authorized disassemble and modification of this product. It may cause fire or damage of this product. Toworld is not liable for any user’s private disassembly, modification and recombination.
- Page 3 TF card be missed or damaged. 9. Please use genuine TF card, Non-genuine TF card may cause data information missed or damaged. Toworld is not be responsible for this. Please use TF card CLASS6 or the upper version. 10. TF Card Installation and Remove Please make sure the correct inserting direction of TF card.
- Page 4 4. Cable Holder×5 5. 3M Double Faced Adhesive Tape×1 6. Certificate×1 7. Sucker Cover×1 Introduction of structure Sucker Menu Holder Knob Lock/Confir Down Front View Lens Speaker Back View...
- Page 5 Right ON/OFF Left Mode Top View Reset TF Card Slot Bottom...
- Page 6 DC Charge Light Charge Light Record Light HIMI GPS Light Side View TF Card Installation Warning: Users Must Use C6 or Upper Version TF Card Please do disk formatting for TF card before use...
- Page 7 Please pinch the tail of TF card by your fingers and press the tail of the TF card at the breach of card slot and the TF card will be pop-up. Sucker and DVR Installation Stick the sucker on the right position of car windshield and install it on the correct position on slot.
- Page 8 Rotate left and right, you can rotate the angle of the DVR ( max 200 degree) Use cable holder to fix the cable of vehicle power adaptor. Straighten out the cable and hide it in an appropriate place.
- Page 9 Operating Instructions Menu (Back) key: It is used to choose the menu in the menu interface. It is used to set the parameter in the Recording Video/ Taking Photos interface. Press it again to exit the menu. 1- Click Lock (Confirmation) Key: Press this key you can lock the profile with one-click, which make sure that the locked profile cannot be deleted.
- Page 10 Recording Video Interface/ Video Recording. Left Key: Press it to close the screen, press it again to recover. Choose the Video Recording setup, Taking Photos setup and Menu in the left hand. Right Key: Choose the Video Recording setup, Taking Photos setup and Menu in the right hand.
- Page 11 and when recording stops, the light is off. 3. GPS light: When GPS has positioned, the light is on, when GPS has no signal the light flashes. Video Recording When the car DVR is connected to the vehicle power adapter, car starts, WIFI signal becomes green, the DVR will automatically start recording.
- Page 12 1) Image Resolution: size and resolution can be chose : 3M(2048*1536); 2.1M(1920*1080) 2) Image Quality: hyperfine/ good/ normal image can be chose. 3) Stamp: ON/OFF, set up time or date stamp in the video or not. Operator Interface: (Press menu key in the circumstance of recording video, the press right key to choose setup menu) 1) System: PAL/NTSC, corresponding format can be chose.
- Page 13 wake up. 9) Split Time: 1/2/5/10min: set up loop recording, when TF card is full, new video will cover earliest one. (Caution: when the setup split time of video is longer, the video profile’s size is larger.) 10) GPS: ON/OFF, open or close GPS satellite orientation. 11) Time Zone-12to+12: Different zones can be chose, time will update automatically.
- Page 14 17) Language: it is used to choose corresponding languages 18) Recover WIFI Default Setup: it is used to recover name and password of WIFI back to factory settings. 19) Version No.: it is used to check product firmware. Replay Interface: Replay Interface Menu: 1) In the recording mode, press mode key, then you can preview and replay videos and photos in the replay mode, press confirm key...
- Page 15 Video Resolution Setting 2304X1296P 1920X1080P 1920X1080P 1280X720P 848X480P Video Effect Setting Hyperfine、Good、Normal Good Exposure Compensation - 2.0/-1.7/-1.3/-1.0/ -0.7/-0.3/0.0/+0.3/ +0.7/+1.0/+1.3/+1.7 /+2.0 Video Segmentation Time 1Min、2Min、5Min、10Min 2Min G-sensor Sensitivity Close Record Turn On/ Off Turn Off Watermark Date Turn On/ Off Turn On License Plate Setting Support Chinese、...
- Page 16 Note: When It Crashed Caused By Misuse, Please Press "RESET" Hole Button, It Can Restart And Recover The Normal Working. Shenzhen Toworld Technology Co. LTD. Address: No.162 Nan Huan Road,Wan Feng Industry Park, Sha Jing Town,Bao An District, Shenzhen City, Guangdong Province, China...
- Page 17 FCC ID: 2AC3FTS400 Shenzhen Toworld Technology Co. LTD. Model No.: TS400 Model name: Car DVR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
