Secure Evidence Model ‐ SE‐M9‐GPS
Operation Manual
1. Introduction
Thank you for purchasing the SE M9 GPS body worn HD camera system. This manual includes
detailed instructions on how to select and use the many features that are included with the M9.
2. Overview
The SE M9 GPS Body Worn Camera System includes many features that are essential to the law
enforcement and security industries, such as 30 second event pre‐recording and low light Infrared
illumination. It has been designed to assist with accurate recollection of events, collection of
evidence and protection against false litigation claims.
Secure Evidence ‐ SE M9 GPS Operation Manual
Page 1
Advertisement
Summary of Contents for Secure Evidence SE-M9-GPS
- Page 1 Secure Evidence Model ‐ SE‐M9‐GPS Operation Manual 1. Introduction Thank you for purchasing the SE M9 GPS body worn HD camera system. This manual includes detailed instructions on how to select and use the many features that are included with the M9. 2. Overview The SE M9 GPS Body Worn Camera System includes many features that are essential to the law enforcement and security industries, such as 30 second event pre‐recording and low light Infrared illumination. It has been designed to assist with accurate recollection of events, collection of evidence and protection against false litigation claims. Secure Evidence ‐ SE M9 GPS Operation Manual Page 1 ...

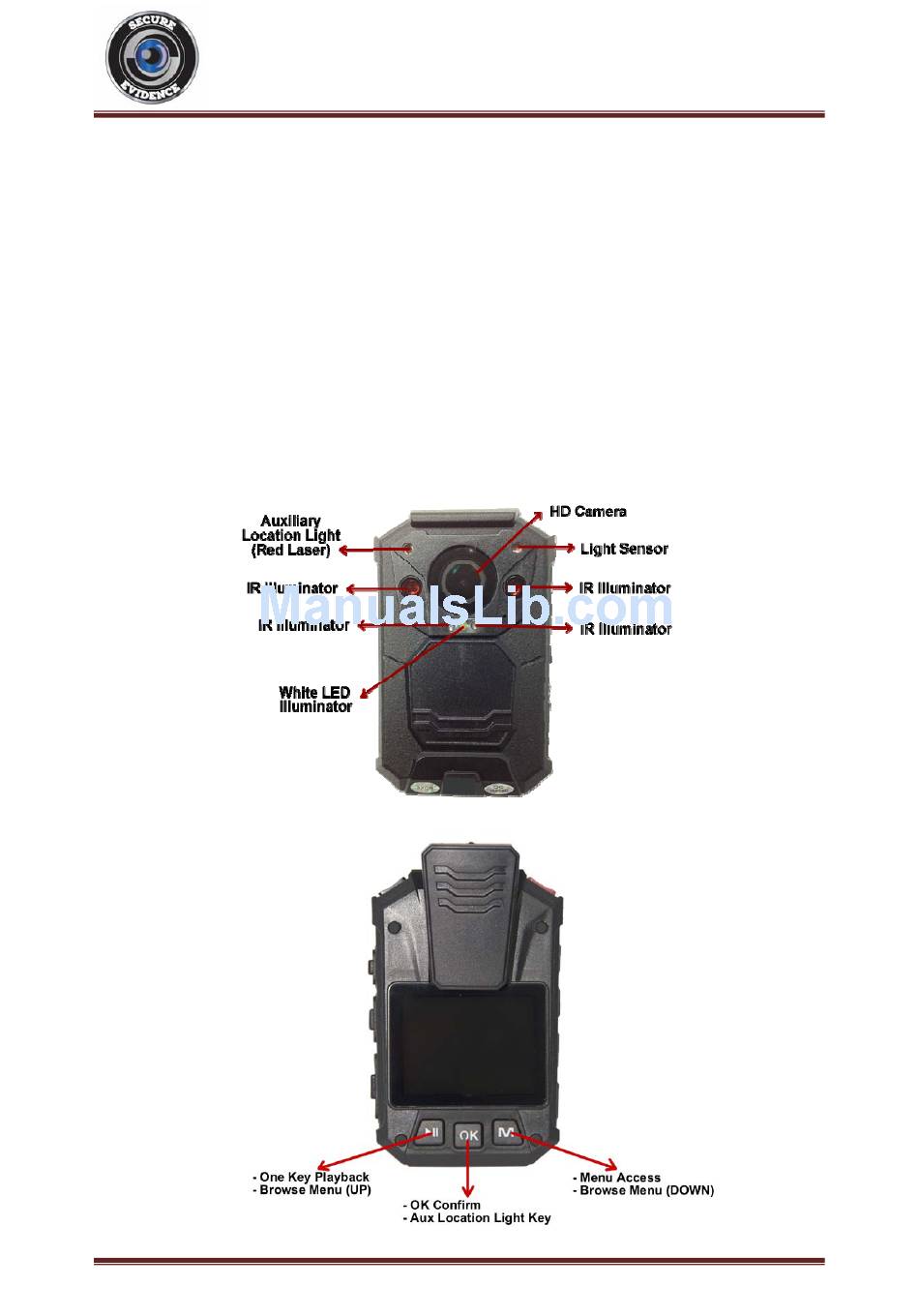

- Page 2 Secure Evidence Model ‐ SE‐M9‐GPS Secure Evidence ‐ SE M9 GPS Operation Manual Page 2 ...
- Page 3 Secure Evidence Model ‐ SE‐M9‐GPS Secure Evidence ‐ SE M9 GPS Operation Manual Page 3 ...
-
Page 4: Getting Started
Secure Evidence Model ‐ SE‐M9‐GPS Button Reference Chart Power Button Light Button Marker Button Sound Button Video Button Photograph Button ... -
Page 5: Recording And Playback
Secure Evidence Model ‐ SE‐M9‐GPS 4. Recording and Playback Recording Audio Normal Audio Recording While the camera is switched on, press and release the Audio Button once. The camera will vibrate, display a flashing amber LED and display a microphone image with the current duration of the audio recording. To stop the recording, press the Audio Button once. One Key Audio Recording While the camera is switched off, press and hold the Audio Button until the unit vibrates and 'Audio Recording' is displayed on the LCD screen. A microphone image will be displayed with the current duration of the audio recording. To stop the recording, press the Audio Button. The camera will remain switched on after this process. Taking Photographs While the camera is switched on, press and release the Photograph Button. The image will be automatically saved to the camera. Recording Video Normal Video Recording While the camera is switched on, press and release the Video Button to start recording. When the recording starts, a red LED will begin to flash, the video camera icon will be displayed on the screen and the current video recording duration will be displayed. To end the video recording, press the Video Button once. One Key Video Recording While the camera is switched off, press and hold the Video Button until the unit vibrates and 'Video Recording' is displayed on the LCD screen. A red LED will be displayed and begin to flash, the video camera icon will be displayed on the screen and the current video recording duration will be displayed. To end the video recording, press the Video Button once. The camera will remain switched on after this process. Taking a Photo while recording video ... -
Page 6: Other Functions
Secure Evidence Model ‐ SE‐M9‐GPS 5. Other Functions Digital Zoom To adjust the digital zoom, firstly ensure that the unit is switched on. To zoom in, press and hold the Play/Pause Button until the zoom feature is activated then release the button when the required limit is reached. To zoom out, press and hold the Menu Button until the zoon feature is activated then release the button when the required limit is reached. Infrared LED The infrared LED can be used in low light conditions where the camera will not normally receive an image. While the camera is recording video, press the Light Button once to turn the infrared LEDs on. The recorded video and the image on the LCD screen will be displayed in black and white. To turn the Infrared LEDs off, press the Light Button. White LED (Flashlight & Strobe) The white LED may be used in low light conditions at close proximity to illuminate an area. To activate the White LED light, press and hold the light button until the white LED is turned on. To turn the white LED off, press and hold the Light Button until the white LED is switched off. By pressing and holding the Photograph Button, the front white LED will flash / strobe and may be used for location at night. Auxiliary Location Light (Red Laser) The Auxiliary Location Light can be used to direct attention to a specific location. The laser may not be visible on recordings if the ambient light is too high. To activate the red laser, ensure the unit is switched on, then press and hold the OK Button until the Laser is on. To de‐activate the laser, press and hold the OK Button until the laser turns off. WARNING – Do not shine any laser into the eyes as it may cause injury. Resetting the Camera In the unlikely event where the camera 'hangs' (cameras display is unresponsive to any input), press the reset button using an open paperclip or a similar item to reboot the camera. The reset button can be located beside the HDMI port. This is designed to have no effect on the data stored on the ... -
Page 7: Menu Settings
Secure Evidence Model ‐ SE‐M9‐GPS 6. Menu Settings NAVIGATION Press to enter the menu system Press to select a menu item Press to Scroll Down Press to scroll up Press to go back 1/29 ‐ VIDEO RESOLUTION This setting enables one of eight preset video resolutions. 2304x1296 30P 16:9 1920x1080 30P 16:9 1440x1080 30P 16:9 1280x720 60P ... - Page 8 Secure Evidence Model ‐ SE‐M9‐GPS 4/29 ‐ PHOTO DELAY TIMER This setting enables or disables the Photo Delay Timer Feature. The Photo Delay Timer can be disabled by selecting 'OFF'. When a Photo Delay Timer time period is selected, a delay will occur between when the photo button is pressed and when the photo is taken. The delay will be the time period which is selected. Self timer: Off Self timer: 5 sec Self timer: 10 sec 5/29 ‐ CONTINUOUS PHOTO SHOOTING This setting enables or disables Continuous Photo Shooting. Continuous Photo Shooting can be disabled by selecting 'OFF'. When a Continuous Photo Shooting time period is selected, pressing the photo button will take the first photo, a delay will occur then another photo will be taken. Another delay will occur then another photo will be taken automatically. The delay will be the time period which is selected. This process will continue until the photo button is pressed a second time. Continuous Shooting: Off Continuous Shooting: 5 sec Continuous Shooting: 10 sec 6/29 ‐ VIDEO QUALITY One of three Video Quality settings can be selected. ...
- Page 9 Secure Evidence Model ‐ SE‐M9‐GPS 9/29 CAR MODE Car mode enables the camera to auto start recording when power is received through the docking station – ideal when the camera is mounted as an in vehicle recorder. This feature can be turned off during normal use. CarDV Mode: Off CarDV Mode: On 10/29 LOOP RECORD Loop recording is only available in CarDV mode and it works on a first on first off basis. If enabled and once the camera’s memory is full, the camera will write over the oldest files first in an endless loop. When disabled and the camera memory is full the camera with turn off, saving all data. Loop Record: On Loop Record: Off 11/29 ‐ SPLIT TIME This setting determines the duration of each video file that is saved to memory. A long recording may contain multiple files. Split Time: 3 minutes Split Time: 5 minutes Split Time: 10 minutes Split Time: 15 minutes ...
- Page 10 Secure Evidence Model ‐ SE‐M9‐GPS 15/29 ‐ GPS If fitted with GPS your camera has the ability to record GPS coordinates on the video file. This data can be used in supplied software to show both the video image and camera location/track on a map, within a split screen viewing screen. Speed and direction are also recorded if moving. The GPS icon displayed on the screen will be red when not connected and green when connected to global positioning satellites. GPS: Off GPS: On 16/29 ‐ TIME ZONE This setting adjusts the time zone for the unit's time & date setting. Select a time zone for your location using a value between ‐12 and +12 17/29 ‐ LANGUAGE Language: English Language: Russian Language: Polish Language: French Language: Chinese Language: Portuguese Language: Spanish ...
- Page 11 Secure Evidence Model ‐ SE‐M9‐GPS 21/29 ‐ LED LIGHT This enables or disables the LED lights on top of the unit Led Light: On Led Light: Off 22/29 ‐ KEY TONE This setting enables or disables the Key Tones feature. Key Tones can be disabled by selecting 'OFF'. Note: the Volume Setting (19/24) must be enabled to hear this alert. Key tone: On Key tone: Off 23/29 ‐ VOLUME This setting adjusts the volume of the unit's key tones and voice alerts. It has no effect on the recorded video's volume. Select volume level 0 to 12 24/29 ‐ FILE MARKER TYPE This setting selects which file marker is to be used. Files can be marked by using the yellow star button. Type: NONE Type: Traffic Type: Police ...
