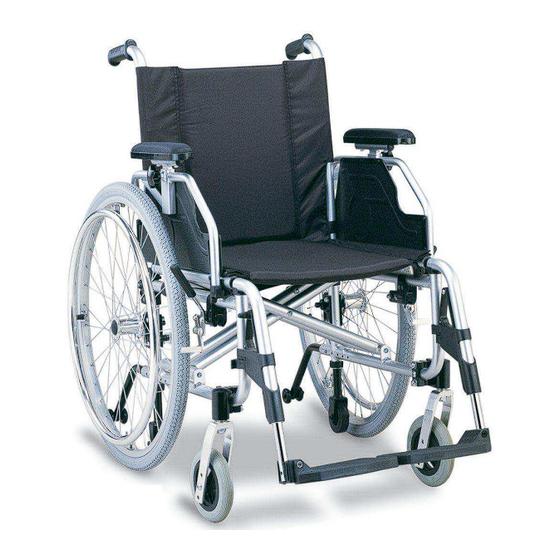

Summary of Contents for FS Wheelchairs FS903LQ

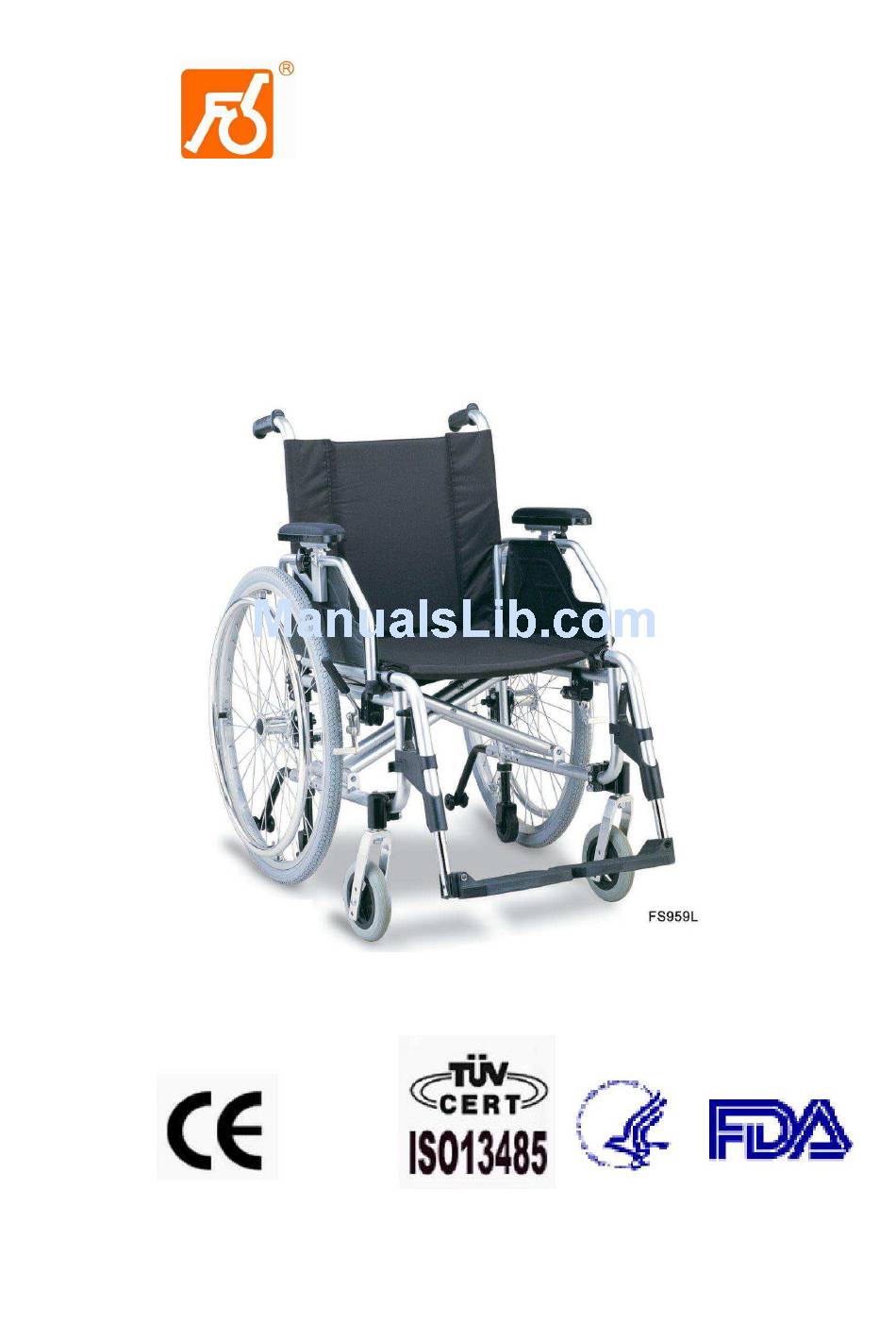

- Page 1 OPERATION MANUAL...
- Page 2 Dear Users: Hello! Thank you very much for choosing the wheelchairs made by FoShan Medical Equipment Manufactory. This series of wheelchairs is function enhanced electric wheelchairs. You will be our service object when you purchase the product. Please read this manual seriously and you will receive satisfying service. FOSHAN MEDICAL EQUIPMENT MANUFACTORY Structure Picture 120kg...
- Page 3 Type Seat Rear Wheel Seat Width 16” □ FS950LBP 201/2” 24” □ 18” 20” Functional Type Seat Height Rear Wheel Seat Width 16” □ FS952LC 20” 24” □ 18” 20” Functional Type Seat Height Rear Wheel Seat Width 16” □ FS953L 20”...
- Page 4 Operating and Adjusting Method Deploy the wheelchair Fold the wheelchair 1. Draw the handle back，and make sure 1. Press the ream then you have reach the right position can fold the backrest. 2. Take of the armrest and unhinge forth 2.
- Page 5 Function Using ☆Adjust the lift-handles ☆Press the end of the axis to detach the rear wheels ☆Adjust the position of ☆Adjust the position of the rear wheels the castors ☆Release the nip to ☆Draw the wheel lock back adjust the wheel lock to park the wheelchair ☆Press the hoodle to offload ☆Press the handspike to draw...
- Page 6 ☆Offload the rear wheel ☆Adjust the height of put the truckle instead the truckle ☆Use and leave unused ☆Loosen the knob and adjust the anti tip wheels the armrests up and down ☆Release the bolt to ☆Fix and offload the adjust the footrest footrests vertically ☆Lift up the long footrests...
- Page 7 Notice and Warning ☆ Don’t put your fingers between two reams when using foldable backrest. ☆ Please notice the position of your fingers when folding the seat. ☆ To avoid turning over, please don’t press the footrest when you want to stand up from the wheelchair ☆...
- Page 8 Maintaining Method 1. Please put the wheelchair away in some dryness and draught place, avoid causticity chemic substance such as oil, acid, alkali and so on. 2. Keep the wheelchair body clean, you can use nature scour to clean the wheelchair. Dry it in time and put some lubricating oil on the bearing place after cleaning.
- Page 9 ③The surface of armrest crazes.（This subassembly repair for free during three months） ④The spoke of the driving wheel slack or break. ⑤The metal turns colors. ⑥The moveable components gritting with others damage their coatings and change their color. ⑦The coatings’ disrepair because of collision. ⑧The frame distorts, even break or other components disrepair because of tumble or collision.
- Page 10 FOSHAN DONGFANG MEDICAL EQUIPMENT MANUFACTORY(LTD.) Notice：Please choose the content that offered, and make a“√”in the □,then post return. The primary reason that you choose wheelchairs： Price rand Quality Function The reason that you use wheelchair： Instead of walk for elders Commonweal Service Crural Deformity The frequency you use the wheelchair：...
