SF30
Accelerated rangefinder
Product manual
3. Powering up the SF30
The SF30 gets power from either a regulated +5 V DC supply on the main connector or via the USB port when it is connected to a PC.
There are a number of digital and analog interfaces on the main connector and either one or a combination of interfaces may be
connected to a host controller. The built-in micro-B USB port can be used to input settings and to test the performance of the SF30.
Power supply option 1: USB
The SF30 can be powered directly from the USB port of a PC or laptop. This is particularly useful for testing the SF30 before it is
installed in your system and also for changing the settings in readiness for the final application.

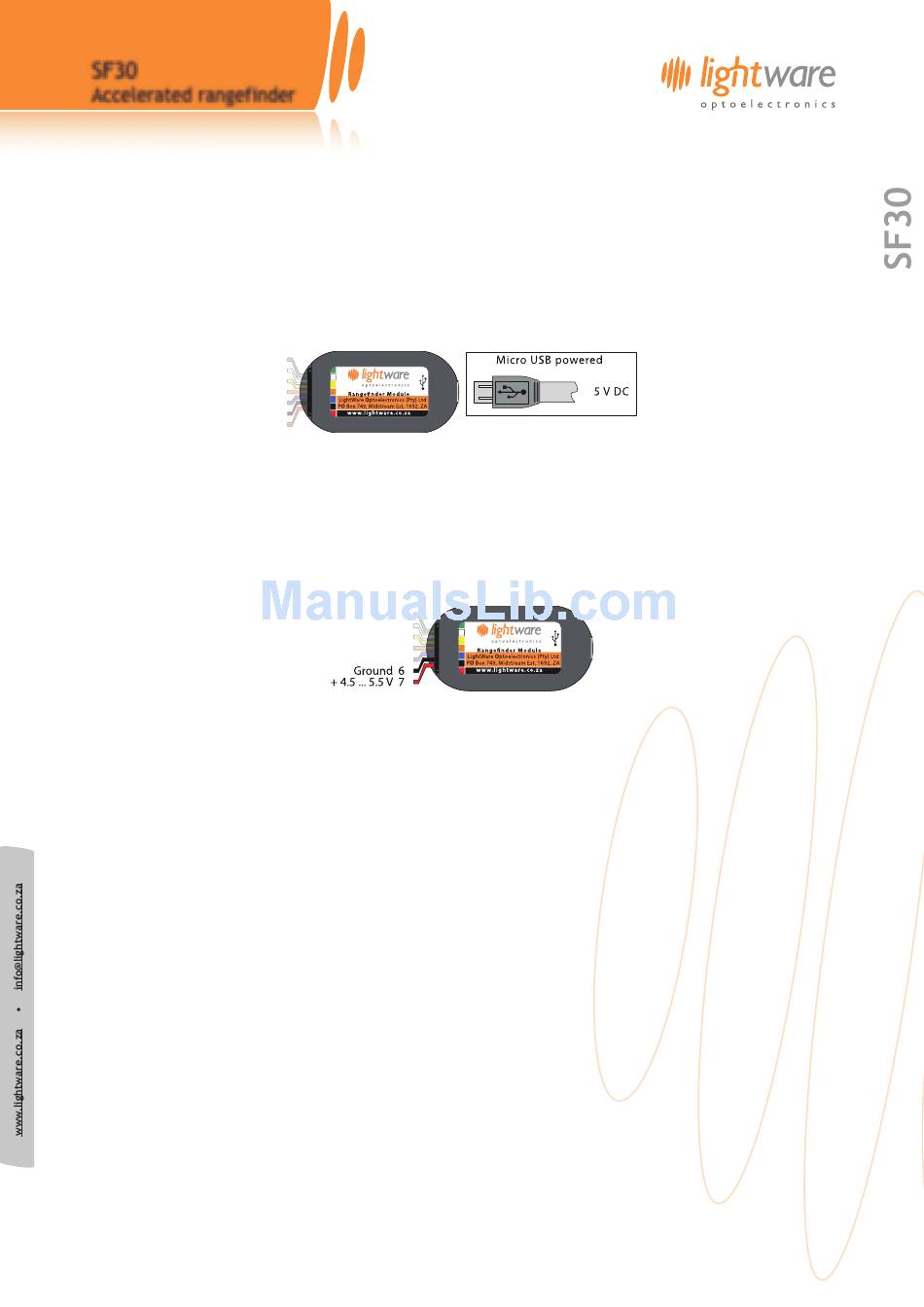

Figure 3 :: Power from the USB port
Power supply option 2: Regulated +5 V DC
The second power supply option is to connect a regulated voltage of 5 ± 10% V DC to the main connector. If the power wires are more
than 30 cm long, we recommend using a 100uF, 6.3V decoupling capacitor, or other noise suppression components to reduce the
chance interference being picked up or transmitted by the wires.
Figure 4 :: Regulated +5 V DC power supply connections
6
of
15
SF30 Accelerated laser rangefinder - Product Manual - Revision 5
© LightWare Optoelectronics (Pty) Ltd, 2015
