Table of Contents

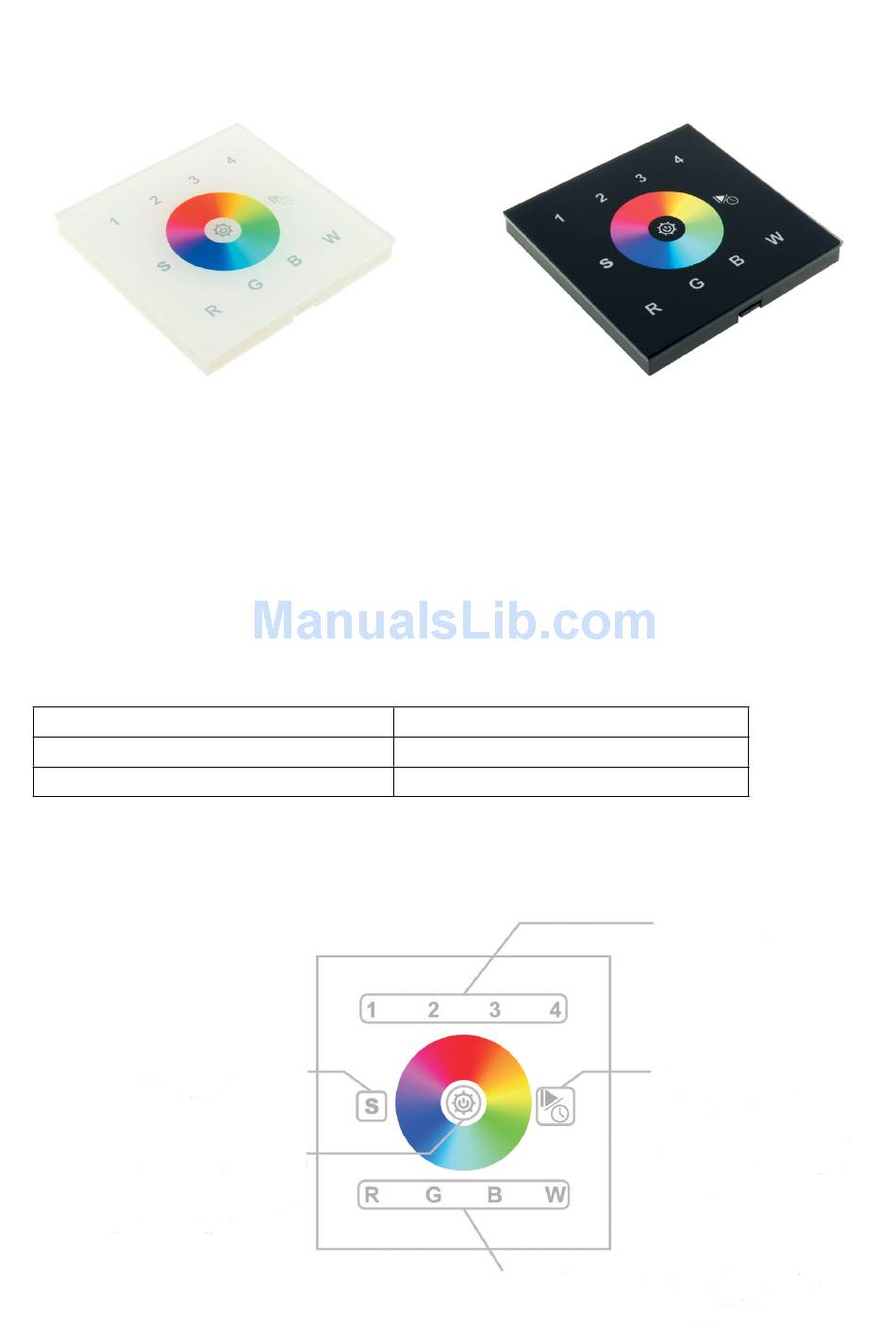

LED DMX WiFi Controller Touch RGBW 4 Zonen - User Manual
Item no.: white: LC-007-034

1. Product Description

The controller is a touch panel and sends DMX singals to DMX decoder for connection. It has a
highly sensitive glass touch panel with which each color or scene can be adjusted. This control-
ler is suitable for any RGB or RGBW LED light and can be controlled via WIFI with IOS/Android
software. Mounting on a standard 68mm flush-mounted socket.
2. Performance Para-
Operation Voltage
Output Signal
Product Dimensions (L x W x H in mm) L 86 x W 86 x H 29,1 mm
3. Button Introduction
Button Function:
S button is for saving color or mode
short press: switch on/off of lighting
long press 1,2,3,4 switch on/off
each zone
R/G/B/W are 4 colors. Short press is to get direkt color. Long press is to dim each color
12-24VDC
DMX512
Item no.: black: LC-007-134
button 1,2,3,4 are zone
numbers. long press zone
number is turn on/off that zone
individually
short press: starting scene mode,
press again pause mode, there are
10 build-in scenes
long press: press zone button (1 or
2 or 3 or 4), then do long press on
button which is to adjust running
speed.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LC-007-034 and is the answer not in the manual?

Questions and answers

Summary of Contents for AUTLED LC-007-034

  • Page 1: Product Description

    LED DMX WiFi Controller Touch RGBW 4 Zonen - User Manual Item no.: white: LC-007-034 Item no.: black: LC-007-134 1. Product Description The controller is a touch panel and sends DMX singals to DMX decoder for connection. It has a highly sensitive glass touch panel with which each color or scene can be adjusted.

  • Page 2: Operation

    4. Operation Description of Zone Buttons: Each Zone have 4 addresses adjusted. Button 1 have the address 1-4 adjusted, Button 2 have the address 5-8, Button 3 have the address 9-12, Button 4 have the address 13-16. In total 16 addresses Zone number Indicator After connect well with DMX decoder, please set the DMX decoder address as below...
  • Page 3 5. WIFI connection 1. Download the APP on your Android/IOS Sys- tem. Open the WIFI connection setting interface and conntect your Android/IOS System with the „EASYCOLOR“, „REALCOLOR“ or „EASYLIGHTING“ network. 2. Open the network „EASYCOLOR“ you installed, press the setting interface and enter the following: SSID: EASYCOLOR IP: 10.10.100.254 :8899 Name: (the name you want or dont enter anything)

  • Page 4: Installation

    7. Installation 8. Conjunction Diagram LC-007-034 od. 134 The Touchpanel can be controlled by IOS/Android Software...

  • Page 5: Safety Warnings

    9. Safety warnings 9.1. To avoid installed the product in minefield, strong magnetic field and high voltage area. 9.2. To ensure the wiring is correct and firm avoiding short circuit damages to components and cause fire. 9.3. Please install the product in a well ventilated area to ensure appropriate temperature environment.
