3D Gadgets MAGBOT DE-10 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

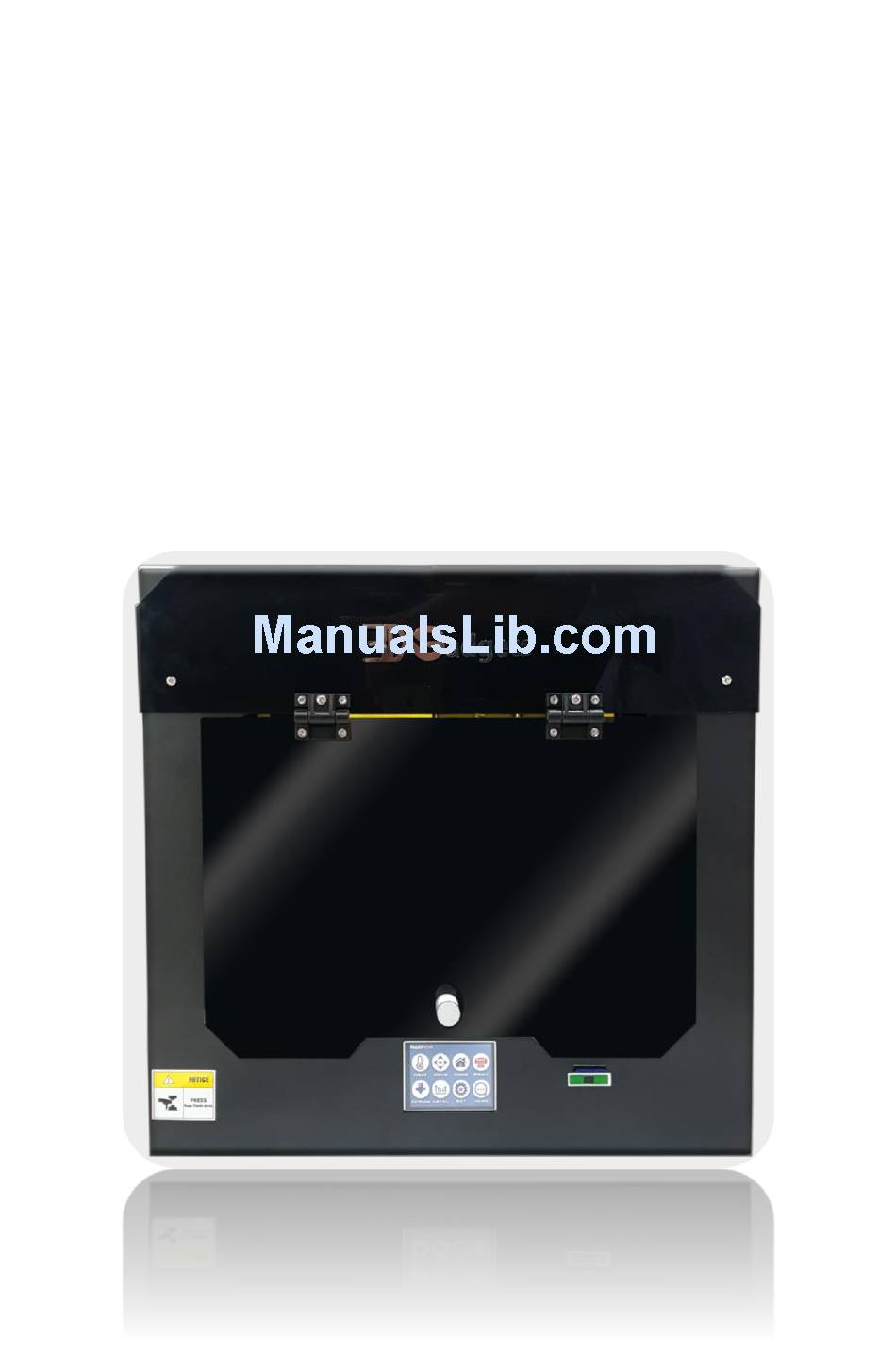

MAGBOT DE-10
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAGBOT DE-10 and is the answer not in the manual?

Questions and answers

Summary of Contents for 3D Gadgets MAGBOT DE-10

  • Page 1 MAGBOT DE-10 User Manual...
  • Page 2 DE-10. Within these pages, we want to show you how simple and easy it is to produce great prints. You might be familiar with other type of 3D-printers. It is essential that your read this manual carefully as there are a lot of new procedures with MAGBOT DE-10.
  • Page 3 Specification of the MAGBOT Dual Printing Technology : FDM Print Size : 240 x 195 x 205mm Extruder Type : MK8 Printing Color : Dual Extruder, Dual color Layer Resolution : 0.05- 0.4mm Positioning Accuracy : Z Axis 0.0025mm; X, Y Axis 0.011mm Print Material : PLA, ABS, WOOD, FLEX TPU, NYLON and many more.

  • Page 4: Unpacking Your

    Unpacking your MAGBOT DE-10 PTFE holder Power cord Hex wrenches Spool Holder Enclosure Knob Card reader Tools Memory card USB cable Cutter...
  • Page 5 MAGBOT Dual at a glance Extruder 1 Extruder 2 Print Bed Touch panel SD Card slot PTFE tube PTFE holder Spool holder 1 Spool holder 2 10. Power socket 11. On/Off switch...

  • Page 6: Understanding The Menu

    Understanding the Menu Preheat extruder 1 Preheat extruder 2 Move Axis Set Home More Setting Printing Extrude control Set extruder leveling Filament change...

  • Page 7: Leveling The Bed

    Leveling the bed Adjust the leveling screws to level the print bed. 1. Touch the 'level' icon on the touch LCD then select ‘FIRST’ Cut a small piece of paper from the A4 paper and slide it in between the nozzle and the print bed, adjust the nut until there is slight resistance on the paper from the nozzle while moving the paper.

  • Page 8: Basic Installation

    Basic installation FILAMENT HOLDERS • Install the filament holders from the Kit provided • Ensure the screws are screwed outwards FILAMENTS 1. Insert filament to the PTFE tube 1 behind the printer 2. Insert filament to the PTFE tube 2 behind the printer 3.

  • Page 9: Slicer Software

    Slicer software Repetier-Host Installation Go to SD card > Software > click for MAC or Repetier-Host-Mac_1_0_2.dmg setupRepetierHost_2_0_1 for PC and follow the instructions Select the destination folder to install Click Next Click Next Click Next Continue...
  • Page 10 Slicer software Repetier-Host first time launch / Setup The Port is automatically detected once the printer is connected to the PC. Select the right COM port Follow the above settings to setup the printer Click Printer Settings Continue...
  • Page 11 Slicer software Key in the required values according to the image Name the Printer as Magbot DE-10 Set as per image Continue...
  • Page 12 Slicer software Select > CuraEngine b. Click > Import a. Click > Configuration...
  • Page 13 Slicer software c. Select from SD card Click to import a stl file...

  • Page 14: First Print

    First Print • Prepare the file in 3D design software • Safe the file as .stl • Open it in a slicer software (i.e. Cura, Reptier-host, Simplify3D etc) • Ensure your settings are set correctly for a optimal print • Save the file (gcode) to a SD card •...

  • Page 15: Basic Maintenance Tips

    Basic maintenance tips • Lubricating the axis every six months is essential to maintain the smooth movements of all the movable parts and ensure error free printing • Cleaning the nozzle to prevent clogging and smooth extruding is essential...
