Micro Sensys iID PENsolid UHF User Manual

iID PENsolid UHF
®
User Manual

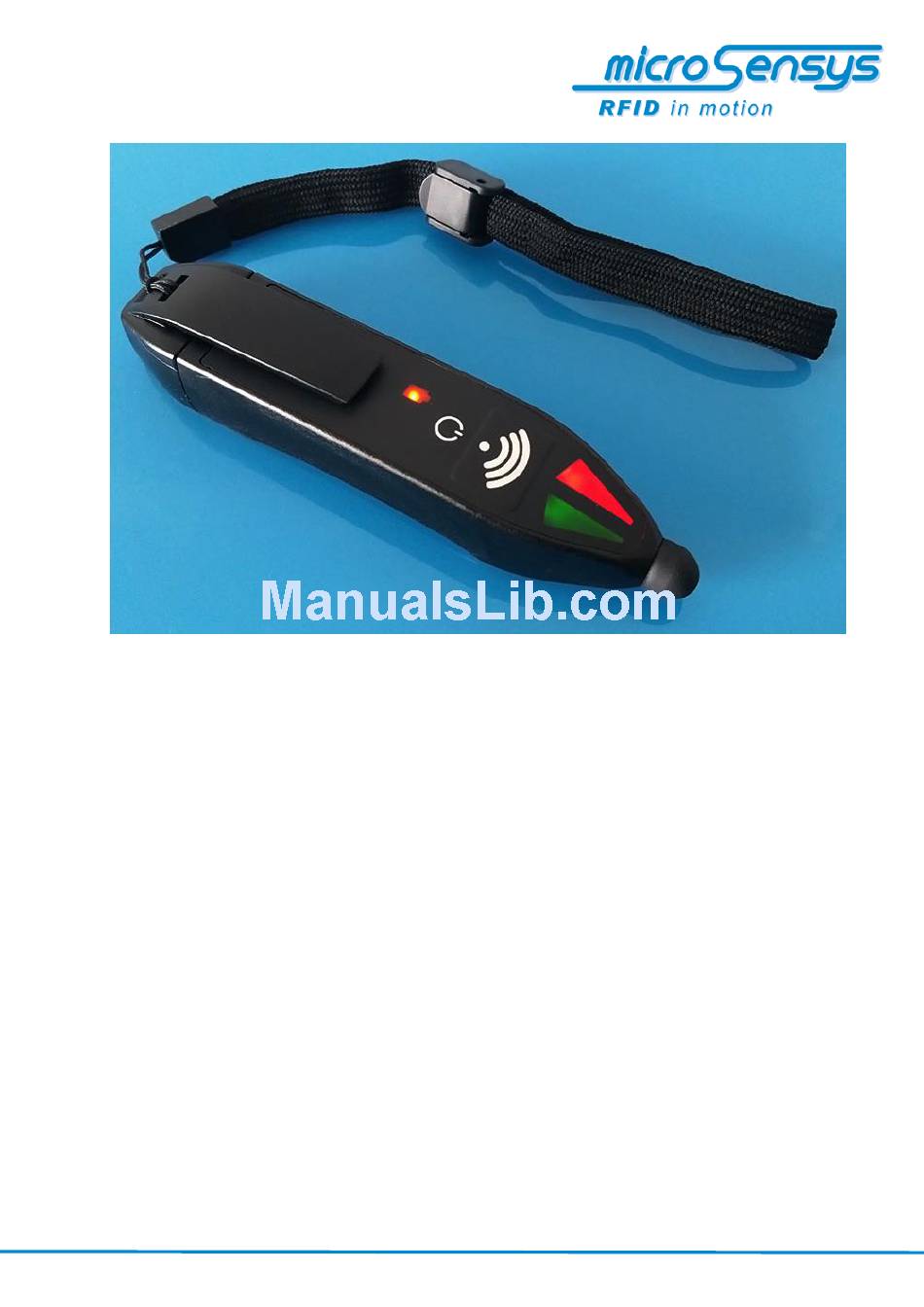

RFID Read/Write Device for mobile scan applications
PENsolid is a mobile RFID device suitable as Bluetooth™ enabled RFID read/write unit for UHF
®
iID
(868/915 MHz) frequency applications.
Based on it's PEN style form and the implemented touch tip it can be used as input device for tablets and
smartphones with touch and capacitive screens. iID
In this operation mode it emulates a Bluetooth™ keyboard.
Depending on operation mode, iID
Product Short Description & available Versions:
iID PENsolid UHFcc
RFID Pen Style Read/Write Unit v1.00 with RTC, MEM, BT, USB, Li accu
Display: LEDs for power, BT, status
System: iID4000 EU, ISO 18000-6c, EPC G2, all customized
Antenna: P3U Operation Mode: DOC / SPC
Dimensions: 120x26x20 mm³, Li Ion Battery 450mAh
Including: micro USB cable, hand strap
iID PENsolid UHFcc
RFID Pen Style Read/Write Unit v1.00 US frequency with RTC, MEM, BT, USB, Li accu
Display: LEDs for power, BT, status
System: iID4000 US, ISO 18000-6c, EPC G2, all customized,
Antenna: P3U Operation Mode: DOC / SPC
Package: 120x26x20 mm³, Li Ion Battery 450mAh
An additional product version of iID® PENsolid is available for HF (13.56 MHz) RFID applications. Please
contact microsensys for further information.
UserMan-iID PENsolid UHF-002E.DOCX
PENsolid can be configured in Bluetooth™ HID mode.
®
®
PENsolid works together with Windows, Android and iOS devices.
System: iID-4000 EU
Buttons: SCAN, F1, F2
Bluetooth: SPP / HID
System: iID-4000 US
Buttons: SCAN, F1, F2
FCC
Bluetooth: SPP / HID
© 2017 microsensys
Product Code: 43.72.850.xx
Product Code: 43.72.851.xx
QuickStartGuide
