  • Page 1: User Guide

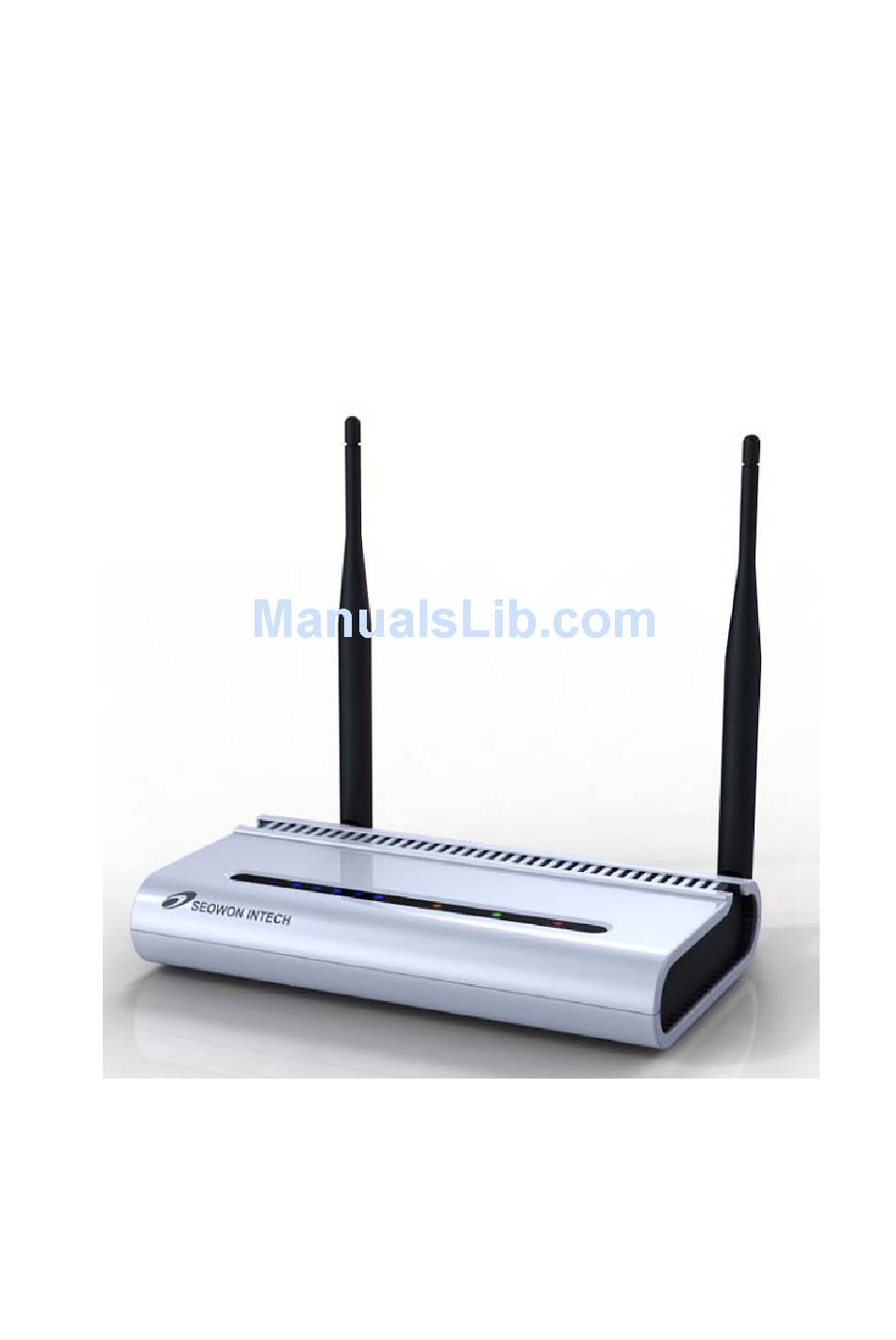

    SWC-2100(VoIP CPE) User Guide SEOWON INTECH...

  • Page 2: Table Of Contents

    Contents 1. VoIP CPE Overview 1.1 Product Introduction ------------------------------------------------- 4 1.2 Packaging Contents ------------------------------------------------- 5 1.3 Description of Product Functions ---------------------------------- 6 1.4 Network Configuration ----------------------------------------------- 8 VoIP CPE Connection 2.1 WiMAX Wired Connection (CPE) --------------------------------- 10 2.2 WiMAX Wired PHONE Connection ----------------------------- 11 PC Configuration 3.1 Windows 98/ME Setup ---------------------------------------------- 13 3.2 Windows 2000 Setup ------------------------------------------------ 17...
  • Page 3 7. VoIP CPE LAN Setup 7.1 DHCP Server Setup ------------------------------------------------ 30 7.2 MAC Address Setup ------------------------------------------------ 31 7.3 LAN Status Information ------------------------------------------- 32 8. Application Support Setup 8.1 Firewall Setup ----------------------------------------------------- 33 8.2 Port Forwarding --------------------------------------------------- 34 8.3 VPN Pass through Setup ----------------------------------------- 35 9.

  • Page 4: Product Introduction

    VoIP CPE Configuration and Connection 1.1 Product Introduction This product receives external WiMAX signals to construct in-building infrastructure on WiMAX network and is covered by Ethernet network internally. The product serves as a relay as well as a USB Modem and an internet router. But the product is purposed to supply to users, focusing on a relay part rather than a modem.

  • Page 5: Packaging Contents

    1.2 Packaging Contents <Figure: Main Unit> <Figure: CD> <Figure: Antenna X 2> <Figure: Quick Guide> <Figure: UTP Cable> <Figure: USB Cable> <Figure: Adapter>...

  • Page 6: Description Of Product Functions

    1.3 Description of Product Functions SEOWONINTECH <Figure: VoIP CPE Front LED part> LED Indicator Function Power Supply status (On at Power ON) ON when connected to PC, Flashing at communication PHONE ON when connected to Telephone, Flashing at communication Representation WiMAX received signal strength indication(RSSI), on RSSI when the mode was selected router.
  • Page 7 1.3 Description of Product Functions(Cont’) VoIP CPE Rear Side WiMAX WiMAX Diversity Power Main Antenna Switch Antenna Hardware Power Adapter Tele Phone Reset Description Item Details External ANT1: WiMAX Diversity Antenna ANT2: WiMAX Main Separable external antenna User external type antenna attachable * Antenna Classification - 3: 2.3GHz - 5: 2.5GHz...

  • Page 8: Network Configuration

    1.4 Network Configuration Local Network External Network Gateway Internet WiMAX Telephone <VoIP CPE Connection Example> To Verify normal operation of router LEDs You have to check if each LED of the router operates properly after connecting router, modem, and PC with LAN cable as follows:.
  • Page 9 1.4 Network Configuration If LED light is not in “normal operation”, check if there is any failure according to actions to be taken. Install a router after connecting to network. „ If normal connection between router and PC is checked, you have to set up PC and router. „...

  • Page 10: Voip Cpe Connection

    VoIP CPE Connection 2.1 WiMAX Wired LAN Connection (CPE) WiMAX...

  • Page 11: Wimax Wired Phone Connection

    2.2 WiMAX Wired PHONE Connection Telephone...

  • Page 12: Pc Configuration

    PC Configuration This chapter describes how to set up PC network environment by connecting to VoIP CPE according to Windows operating system. To use Internet under operating system such as Windows, the protocol called ‘TCP/IP’ is required. For normal use of VoIP CPE, you have to set up the TCP/IP protocol normally. In general, the condition Windows is installed first in PC is the condition router can be used, in which no separate TCP/IP setup is required.

  • Page 13: Windows 98/Me Setup

    3.1 Windows 98/ME Setup This procedure is to restore your Windows 98/ME TCP/IP settings to default values. If Windows is installed in your PC for the first time, there is no change and check if all values are normal as the following: After completing the TCP/IP setup of your PC, connect PC and VoIP CPE with a LAN cable according to the instructions of Chapter 2 (STEP II) and turn the VoIP CPE on before Windows setup in order to check if IP address is being given automatically in the VoIP CPE.
  • Page 14 3.1 Windows 98/ME Setup < Select TCP/IP > < Select Obtain an IP address automatically > - Remove all gateways installed in Gateway. … - Choose “Disable DNS” from DNS Configuration. <Chosse ‘Disable DNS’ > <Remove all Gateway items>...
  • Page 15 3.1 Windows 98/ME Setup - When IP Address, Gateway, DNS Configuration setups are completed, click on ‘OK’ to close the TCP/IP Properties dialog box. When “Network” window is displayed, click ‘OK’ again. - In case of Windows 98, the system restarts automatically when network related setup is changed. When the ‘Change System Setup’...
  • Page 16 3.1 Windows 98/ME Setup Select LAN card adapter used by connecting the router from the winipcfg IP Configuration window (Select NDIS 5.0 or the appropriate LAN card. Do not select PPP adapter) to check if the IP address of your PC is assigned to the value between 192.168.1.10 and 192.168.1.150 automatically.

  • Page 17: Windows 2000 Setup

    3.2 Windows 2000 Setup This procedure is to restore Windows 2000’s TCP/IP setup to default values. If Windows is not installed for the first time in PC or Internet is not operated properly, check all values are normal according to the following. After completing the TCP/IP setup of PC, to check if IP address is obtained from VoIP CPE automatically, connect PC and VoIP CPE with a LAN cable according to the instructions of Chapter II and keep VoIP CPE turned on before Windows setting up.
  • Page 18 3.2 Windows 2000 Setup <Select “Obtain an IP address automatically” “Obtain <Double-click TCP/IP> DNS server address automatically” and click OK> - After completion of setup, click OK button and close all of Network Connections windows. - When TCP/IP setup is completed, IP address is automatically assigned by VoIP CPE. For automatic assignment, PC and VoIP CPE should be connected with a LAN cable.
  • Page 19 3.2 Windows 2000 Setup - You can check the automatic IP address assignment by using the ipconfig command from Command Prompt. - To run the Command Prompt, click the Start button on the lower left corner of Windows screen and click Run to enter “cmd”...
  • Page 20 3.2 Windows 2000 Setup <Verify IP address> IP Address: 192.168.1.100~150 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.1.1 [Note] If IP address is not assigned normally, check the following and restart PC so as to check if the IP address is assigned. - LAN cable connection between PC and VoIP CPE - Check TCP/IP setup details - Whether or not to remove ADSL access program...

  • Page 21: Windows Xp Setup

    3.3 Windows XP Setup This procedure is to restore Windows XP’s TCP/IP setup to default values. If Windows is installed for the first time in PC, there is no change and check all values are normal according to the following. After completing the TCP/IP setup of PC, to check if IP address is obtained from VoIP CPE automatically, connect PC and VoIP CPE with a LAN cable according to the instructions of Chapter 2 and keep VoIP CPE turned on before Windows setting up.
  • Page 22 3.3 Windows XP Setup - Double-click the Local Area Connection from the Network Connection to select. <Double-click the Local Area Connection> - Click Properties in the Local Area Connection Status to select. <Double-click Properties>...
  • Page 23 3.3 Windows XP Setup - Double-click Internet Protocol (TCP/IP) and then select the Obtain an IP address automatically and Obtain a DNS Server address automatically. <Select the <Double-click TCP/IP > ‘Obtain an IP address automatically’ , ‘Obtain a DNS Server address automatically’ and click OK>...
  • Page 24 3.3 Windows XP Setup - To run the Command Prompt, click the Start button on the lower left corner of Windows screen and click Run to enter “cmd” in the Open box, and then click OK button. <Run cmd> When the Command Prompt runs, enter the “ipconfig” command to verify IP address, Subnet mask, and Gateway, which are automatically assigned to PC.
  • Page 25 VoIP CPE Internet Connection This chapter describes how to connect VoIP CPE to Internet. Internet connection setup is made by accessing to internal web setup screen. Therefore, Internet connection setup can be done from one of PCs connected to the VoIP CPE by executing just once. To access to the web server built in the VoIP CPE, you have to set up PC normally.

  • Page 26: Voip Cpe Built-In Web Server Access 4.1 Web Server Access

    4.1 Access to the VoIP CPE Built-in Web Server You can access to the web server built in the VoIP CPE, even in the environment not connected to Internet. To access to the web server, run Internet Explorer and input 192.168.1.1, the address of VoIP CPE, in the address box as shown below.

  • Page 27: Ip Address Setup

    VoIP CPE WiMAX Connection and Setup 5.1 IP Address Setup This screen is to set the mode assigning the IP address from the WiMAX modem. You can not only assign the host name and domain name of VoIP CPE but also set the IP address to DHCP(Dynamic IP) or Static IP address.

  • Page 28: Wimax Modem Setup

    5.2 WiMAX Modem Setup Browse The screen is to perform various settings for WiMAX modem. You can assign whether or not to use the PKM Authentication on the top and accordingly set the PKM Authentication mode, ID/Password, anonymous ID, and ISP Certificate in the VoIP CPE. At the bottom, you can assign to perform customized command at initial boot of WiMAX modem.

  • Page 29: Voip Cpe Setup

    VoIP CPE Setup 6.1 VoIP Setting This screen is to perform all kinds of set up related VoIP. In first, you can assign SIP URL, Port, Username, Password, Registration Expire. Secondly, can select RTP Port Range. Thirdly, set up the Voice Compression type, Primary, Secondary, Third compression Type.

  • Page 30: Voip Cpe Lan Setup

    VoIP CPE LAN Setup 7.1 DHCP Server Setup This screen is to perform all kinds of setup related internal LAN. First of all, you can assign the IP address of gateway and subnet mask to be used in the LAN that VoIP CPE manages.

  • Page 31: Mac Address Setup

    7.2 MAC Address Setup This screen is to change MAC address used for internal LAN connection. In most of cases you can use default setup.

  • Page 32: Lan Status Information

    7.3 LAN Status Information This screen displays all sorts of status information on internal LAN.

  • Page 33: Application Support Setup

    Application Support Setup 8.1 Firewall Setup This screen is to set whether or not to use firewall. Using firewall enables to set VoIP CPE to being not affected by hacking from the outside, including Ping Flooding or DoS. Internal LAN PCs are usually isolated/protected from external Internet even though they do not use firewall, but it is preferable to use firewall to be ON as possible.

  • Page 34: Port Forwarding

    8.2 Port Forwarding Port Forwarding function is used to forward incoming packets of specific TCP/IP port from outside to the assigned PC. If you have to use programs, such as VoIP and P2P, or have to operate servers, such as HTTP and FTP, in a PC of internal LAN, packets from outside may be forwarded.

  • Page 35: Vpn Pass Through Setup

    8.3 VPN Pass through Setup VPN (Virtual Private Network) function is used to get access to security network installed in a company or organization via Internet network. If there is a VPN Server outside and one has access to the VPN Server via Internet network by using VoIP CPE, this screen shows to activate security protocol supported by the appropriate VPN Server.

  • Page 36: Administrator Function Setup

    Administrator Function Setup 9.1 Administrator Time Server The ‘Time’ function is to set up time of the VoIP CPE system. Please select your time zone.

  • Page 37: Administrator Password Setup

    9.2 Administrator Password Setup This screen is to set up Password to be given to Administrator who manages all setups of VoIP CPE. Default password is “admin” and by changing the default password he can input and use the password set up every time he/she gains first access to web interface.

  • Page 38: Firmware Upgrade

    9.3 Administrator Firmware Upgrade Browse The screen is used for Firmware Upgrade. If there is a Firmware Upgrade file, press the Browse button to select and press the Upgrade Now button to start Firmware transmission and Upgrade. It takes about 2-3 minutes for Firmware Upgrade. And please pay attention because interruption during upgrade may cause damage to or malfunction of VoIP CPE.

  • Page 39: Administration Rebooting

    9.4 Administrator Rebooting The Reboot tab is used for rebooting the VoIP CPE via the web-based configuration page. To apply any changes, you should reset the VoIP CPE using ‘Apply’ button.

  • Page 40: References

    References 10.1 LAN CABLE Standards LAN Cable includes straight cable (direct cable) and cross cable. VoIP CPE has Cable Auto Sense feature, so either of the two can be used. However, it is not possible of normal communication if you use the cable that does not maintain the #1-2 and 3-6 twisted pairs according to the regulations.

  • Page 41: Ip Router Ping Test Method

    10.2 IP Router PING Test Method PING Test through router in the PC shows whether PC is normally connected to IP router or not. You must check if the IP address of your PC is normal before PING Test. To perform a PING Test, run MS-DOS in Win98/ME, while Command Prompt in Windows 2000/XP. To do this, click the “Start”...

  • Page 42: Product Specifications

    10.3 Product Specification Parameter Description Parameter Description WiMAX System IEEE 802.16e, Wave 2 Receiver Under 7dB @ High Gain Mode Profile compliant Noise Figure Multiple Access OFDMA RF Sensitivity -88dBm @QPSK1/2 Frequency 2.3GHz / 2.5GHz UICC UICC Support(1.8/3.0/5.0V) Band Maximum RF 23dBm(200mW) SAR Limits Comply with FCC regulation...

  • Page 43: Troubleshooting(Actions To Be Taken When Internet Is Disconnected)

    10.4 Troubleshooting(Actions to be taken when internet is disconnected) 1. Check the status of external type modem. : Check if Link lamps of cable, modem is turned ON. 2. Check the LED status of VoIP CPE. 1) Check if POWER LED is turned ON. 2) Check if LEDs of WiMAX are turned ON.
  • Page 44 10.4 Troubleshooting(Actions to be taken when internet is disconnected) 3) In case of Windows XP ① Execute [Start -> Control Panel -> Network and Internet Connection], double-click [Local Area Connection], and click [Properties]. Click Properties of [Internet Protocol (TCP/IP)] among Components. ②...

  • Page 45: Product Warranty And Customer Support

    10.5 Product Warranty and Customer Support Product Warranty Product Name: Gateway Modem Model Name: SWC-2000 This product comes with a one-year warranty and its compensation will be based on the following: Contents of Warranty Rules Equipment for Warranty: VoIP CPE Warranty Period: 1 year Free repair service - If a defect or failure of the product occurs within the warranty period...

  • Page 46: Regulatory Notices

    Regulatory Notices Caution: The WiMAX device has been tested for compliance with FCC RF exposure limits. The WiMAX device should not be used with external antennas that are not approved for use with this device. Use of this device in any other configuration may exceed the FCC RF exposure compliance limits.
