Summary of Contents for Mine Site Technologies ImPact WAP3
-

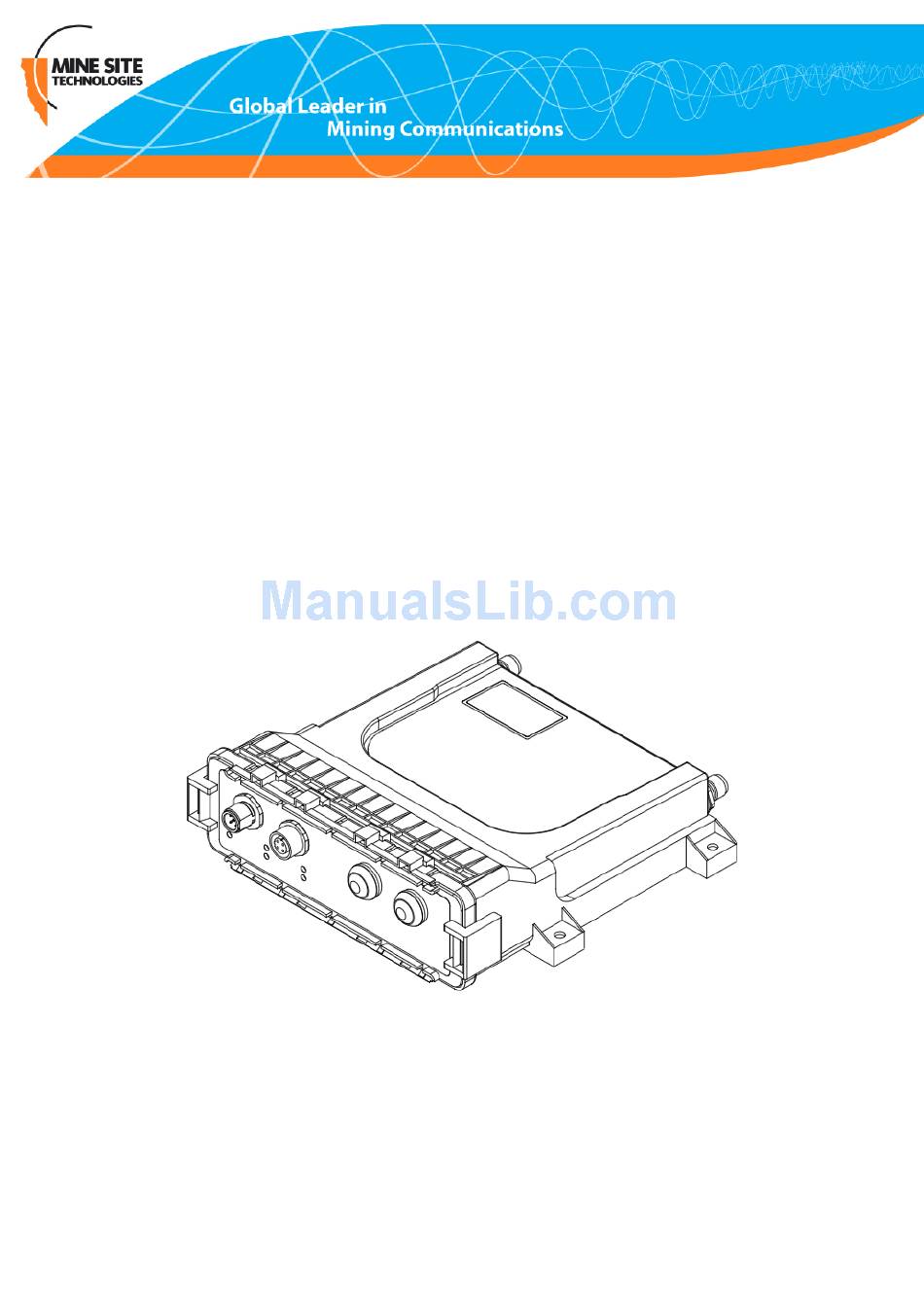

Page 1: Wireless Access Point
Wireless Access Point Quick Start Guide Revision B WAP3_QSG_EN_B... -
Page 3: Table Of Contents
Contents Contact Information......................5 Chapter 1: Introduction..............7 1.1 What's In The Box.....................8 1.2 WAP3 At A Glance...................9 1.3 Cabling Requirements..................10 Chapter 2: Web Configuration..........13 2.1 Device Discovery....................13 2.2 Logging onto the Web Browser Interface............14 2.3 Configuration screen..................15 Chapter 3: Centralised Configuration Management .....17 Chapter 4: Antenna Configuration..........19 Chapter 5: Restoring Factory Default Settings.......21 Chapter 6: Repairs and Maintenance........23... - Page 4 WAP3 Quick Start Guide Revision B...
-
Page 5: Contact Information
Tel: +86 571 85803320x206 UNITED STATES - Denver 13301 W 43rd Drive Golden Colorado 80403 USA Tel: +1 303-951 0570 GERMANY - Berlin Mine Site Technologies (GmbH) Uhlandstr. 20-25 10623 Berlin GERMANY Tel: +49 30 8861 4511 Revision B WAP3 Quick Start Guide... -
Page 7: Chapter 1 Introduction
Chapter Introduction Mine Site Technologies' ImPact WAP3 is an 802.11 b/g wireless access point. It is used in conjunction with the ImPact Wireless Network Switch to provide a wireless network for underground mining environments. The WAP3 forms part of the ImPact network infrastructure, in which voice, tracking, video, automation and process control applications can be used to enhance mining safety and productivity. -
Page 8: What's In The Box
Introduction 1.1 What's In The Box 1. WAP3 unit x1 2. M12 Ethernet connector x1 3. RP-TNC WHIP Antenna x2 4. Quick Start Guide WAP3 Quick Start Guide Revision B... -
Page 9: Wap3 At A Glance
Introduction 1.2 WAP3 At A Glance 1. MAIN RP-TNC Connector 2. AUX RP-TNC Connector 3. Serial Number and MAC address 4. Console Port 5. Ethernet Port 6. Power LED - Solid red indicates the unit has power. 7. Status LED - Flashing red indicates normal operation. 8. -
Page 10: Cabling Requirements
Introduction 1.3 Cabling Requirements The WAP3 is typically powered from an 802.3af (Mode A) Power over Ethernet (PoE) supply, which sends power down the Ethernet cable. The WAP3 is normally connected and powered via an M12-to-RJ45 Ethernet cable from the WAP3's Ethernet port to an MST Wireless Network Switch (WNS, NS50), but can also be powered by a separate PoE power supply. - Page 11 Introduction M12 Console Connection If PoE is not available, the device can be powered directly via the console connector as shown below. Important: • All coaxial cable and antenna connections must be electrically insulated using self-amalgamating rubber tape. • The PoE supply must conform to the 802.3af (Mode A) standard. The WAP3 is NOT compatible with Mode B power supplies.
-
Page 13: Chapter 2: Web Configuration
Chapter Web Configuration The WAP3 has a built-in web-server that can be accessed from a PC to configure the device's settings. The IP address of the WAP3 can be discovered and configured using the MST Device Scanner software tool. Note: The Device Scanner tool can be downloaded from http://minesite.net/downloads. -
Page 14: Logging Onto The Web Browser Interface
Web Configuration • Type - The device type or model. • MAC Address - The MAC address of the device. • Interface - The network interface via which the Device Scanner is communicating with the device. • ID - The serial number on the device housing. •... -
Page 15: Configuration Screen
Web Configuration Note: Each Wireless Access Point is fitted with a single Wireless Access Card (WAC). Some documentation may use the term 'WAC' to refer to the wireless radio inside the WAP. To log in to the web browser interface: 1. - Page 16 Web Configuration • STATUS - Displays the running state of the device. • Device Info - System time, firmware version, LAN and wireless LAN summary information. • Wireless - Information about wireless clients connected to the access point. • Logs - Device logs, filtered by the type of logged events and the event level. •...
-
Page 17: Chapter 3: Centralised Configuration Management
Chapter Centralised Configuration Management For large networks of underground devices, individual configuration via the web interface for each device is time-consuming and prone to human error. In order to manage large networks, centralised configuration management is strongly recommended. It uses Trivial File Transfer Protocol (TFTP) to enable devices to read and apply configuration files from a TFTP server. -
Page 19: Chapter 4: Antenna Configuration
Chapter Antenna Configuration The WAP3 can operate with a single antenna or diversity antennas. Diversity antennas provide improved signal reception. Single Antenna • Connect the antenna to the MAIN antenna port on the back of the unit. • In the web interface, go to Settings > Radio > Radio Settings , and set both Transmit Antenna and Receive Antenna to Main. -
Page 21: Chapter 5: Restoring Factory Default Settings
Chapter Restoring Factory Default Settings An operator can return the unit to factory defaults with the following steps: 1. Hold down the DEFAULT button on the front of the unit. 2. Press and release the red RESET button on the front of the unit while keeping the DEFAULT button depressed. -
Page 23: Chapter 6: Repairs And Maintenance
Chapter Repairs and Maintenance It is recommended that all WAPs, antennas, cables and connectors are inspected at regular intervals to ensure safe and reliable operation. A maintenance checklist is provided below. Inspection Action Structural Inspect the outer case for any structural damage. Check there is no excessive damage or markings to the case. - Page 24 Repairs and Maintenance Note: Please contact MST for all maintenance and repair enquiries. WAP3 Quick Start Guide Revision B...
