Summary of Contents for Scheiber WIFI SERVER
-
Page 1: Table Of Contents

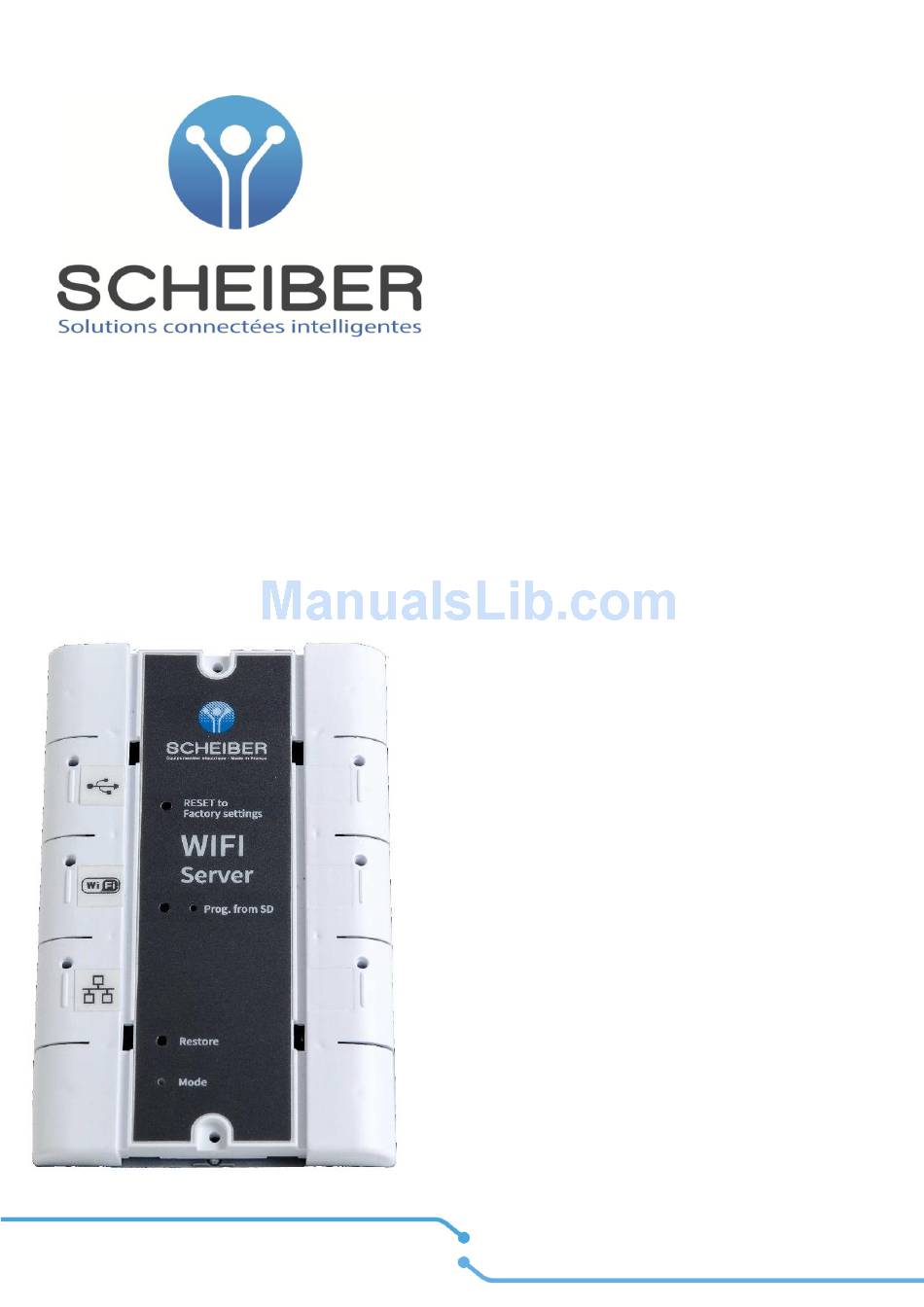

WIFI SERVER User Manual and Troubleshooting Guide ACKNOWLEDGEMENTS SAFETY WARNINGS EQUIPMENT DESCRIPTION ACCESSORIES/ASSOCIATED PARTS TECHNICAL CHARACTERISTICS P3- P5 INSTALLATION TROUBLESHOOTING GUIDE TERMS AND CONDITIONS WARRANTY TERMS + AFTER-SALES... -
Page 2: Acknowledgements P2

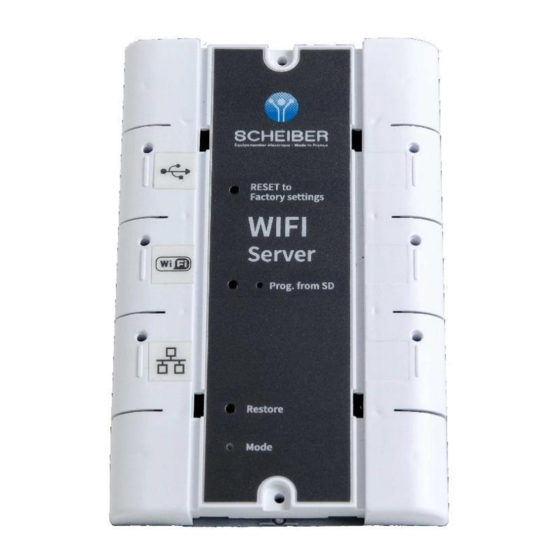

Do not leave any part of the packaging within the reach of children or vulnerable adults EQUIPMENT DESCRIPTION Module containing a WiFi server and router. The server hosts HTML pages created from data in the CAN network. Then, from a device with a WiFi connection or equipment with a browser connected to the network (NAVICOLOR screen, tablet, smartphone, smart TV), it is possible to consult these pages and interact with items in the network. -
Page 3: Accessories/Associated Parts
ACCESSORIES/ASSOCIATED PARTS ACCESSORIES TO BE ORDERED SEPARATELY: 120 Ω CAN bus termination TECHNICAL CHARACTERISTICS WIFI SERVER TECHNICAL CHARACTERISTICS PART NUMBER: 36.159446.00 PERIPHERALS: 2 Ethernet/WiFi ports 1 SD port 1 USB port (option) 1 Micro USB port 1 connector for temperature sensor... - Page 4 POWER SUPPLY MANAGEMENT Power modes: On, Standby, Hibernate Standby exit events (wake-up): RTC and wake-up by Scheiber bus Li-ion battery/monitor charger: CLOCK Real-Time Clock: PERIPHERALS CAN bus: Up to 2 channels, CAN bus 2.0B, 250 kbit/s bit rate Scheiber Multibloc V8 protocol SD card: High-speed USB 2.0:...
- Page 5 APPROVALS AND CERTIFICATIONS FOR THE PROCESSOR Emissions: FCC Part 15 Class B, EN 55022 Class B, EN 61000-3-2, EN 61000-3-3, ICES-003 Class B, VCCI Class II, AS 3548, FCC Part 15 Subpart C Section 15.247, IC (Industry Canada), RSS-210 Issue 5 Section 6.2.2(o), EN 300 328, EN 301 489- Immunity: EN 55024, EN 301 489-3 Safety:...
-
Page 6: Installation P6
Scheiber CAN bus (see item 3 on the illustration below). Connect the temperature sensor to the JST receptacle. Connect 2 CAN connectors to the SCHEIBER network (connect the 2 other connectors to the client network if there is one). The 2 CAN networks are separate. -
Page 7: Troubleshooting Guide
SCHEIBER representative for your in this manual. country of any error or omission we may have overlooked. SCHEIBER reserves the right to change the characteristics of its products in the interest SCHEIBER reserves the right to change the of its customers. -
Page 8: Warranty Terms + After-Sales
RESPONSIBILITY LIMITS: In any case, the company SCHEIBER will not be held responsible for direct damages or damages not due to the normal use of the equipment. In case of a dispute arising between the parties, the case shall be submitted to the...
