Page 2
AUXTAIL FITTING GUIDE In The Box 1. Shims x 2 2. Auxtail Receiver 3. M10 Bolts x 5 4. M10 Nylock Nuts x 5 5. M10 Washer x 8 6. TEK Kit Bracket 7. Receiver Straps x 2 8. M8 NyLock Nuts x4...
Page 3
Step 1. Remove Rear Bumper Please see video tutorial online on how to remove the bumper of your vehicle: www.auxtail.com Torx Flat Blade Socket Set Screwdriver Step 2. Upper Bolt Removal Screwdriver Locate the two upper bolts on the end cans either side of...
Page 4
Auxtail is tted. Step 4. Loosely Fix Auxtail Fitting 17mm 17mm Assemble the Auxtail tting onto the rear beam and loosely tighten the four bolts to allowing the tting to still be positioned. Socket Set Spanner...
Page 5
TEK Kit and install as per the directions given. Step 7. Assemble TEK Kit Bracket 17mm 17mm Following the installation of the TEK Kit to the vehicle, install the TEK Kit bracket provided onto the Auxtail tting. Socket Set Spanner...
Page 6
Step 8. Fix 13 Pin Connector 10mm Mount the 13 Pin connector to the TEK Kits Bracket. Ensure the orientation of the 13 pin connector matches the illustration below with the cable directed towards Cross-Head Spanner Screwdriver the tting. EXTRA CARE Ensure cable is directed to tting to make bumper re- t easier.
Page 7
Drill Holes 90mm Centre Line Cut Line IF DOWNLOADED ONLINE PLEASE CHECK SCALE BEFORE USE Alignment Hole...
Page 8
FLANGE FITTING GUIDE 24mm 24mm Remove the tow-bar and re-assemble with the ange tting in the order shown below. It is important to check torque requirements in the original tow-bar manual. Socket Set Spanner WARNING Check the required torque for bolts in tow-bar instruction manual.

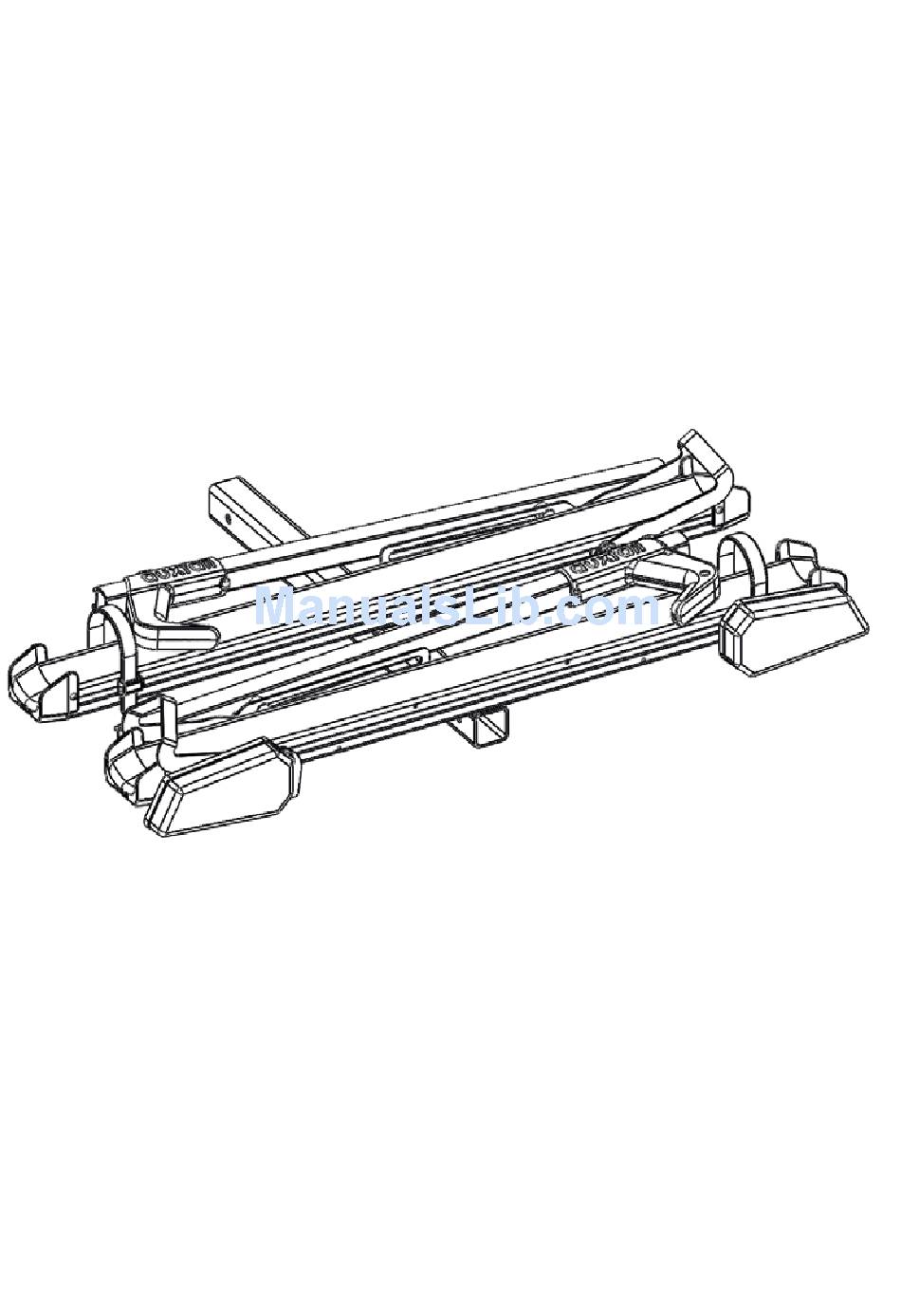

CARRIER ASSEMBLY Step 1. Assemble Lights Assemble the lights to light brackets. Step 2. Assemble Lights to Rail Align light brackets to rail ends and tighten nuts to secure in place. CAUTION Check rail orientation before securing lights. Align Step 3a. Fit Cable Tidy to Rail Push Fit...
Page 10
Step 3b. Fit Cable Tidy to Steel Frame Step 4. Fix Rails to Steel Frame Lay both rails face down with bolts protruding upwards. Locate the four holes of steel frame to the four protruding bolts. It is best to lightly tighten the bolts and then centre the rails before securing completely.
Page 11
Step 5. Tidy Light Cable Use cable tidies to secure the wiring from lights to the rear of the carrier. Ensure there is no loose hanging cable. Step 6. License Plate First align the license plate in a central position and then secure using the 4 provided r-tree clips.
Page 12
Step 3. Load Carrier Using the front lip of the Auxtail tting to help guide the carrier load it into the tting ensuring it is pushed in fully.
Page 13
LOADING BIKES TO CARRIER Step 1. Unfold Front Wheel Arm Unfold the front wheel arm to the end of its stop position. Ensure the wheel hook is in its upper most position to make loading bike easier. Step 2. Unfold Front Wheel Support Unfold the front support ensuring it is folded to its stop position.
Page 14
Step 3. Load Bicycle onto Carrier Load the bicycle onto the carrier ensure that the front wheel is rmly pushed into its support and aligned straight with the rail. NOTE Heaviest bike to be 25Kg placed closest Per Bike to the vehicle. Step 4.
Page 15
Step 5. Strap Rear Wheel Ensure rear wheel strap is secured tightly around rear wheel, take extra care with low pressure tires. Step 6. Secure with Cable Lock Using cable lock and xing points provided secure both bikes and carrier. The carrier should be secured to the vehicle tting using provided hole.
Page 16
WARNINGS Auxtail EasyRide2 MAX BIKES MAX WEIGHT MAX WHEEL BASE MAX TIRE 25Kg / Bike 120cm 3” (8cm) WARNINGS - Please follow all instructions carefully both for assembly of the carrier and loading of bikes. - Ensure all bolts are fully tightened.
