Page 1: Reciprocating Saw

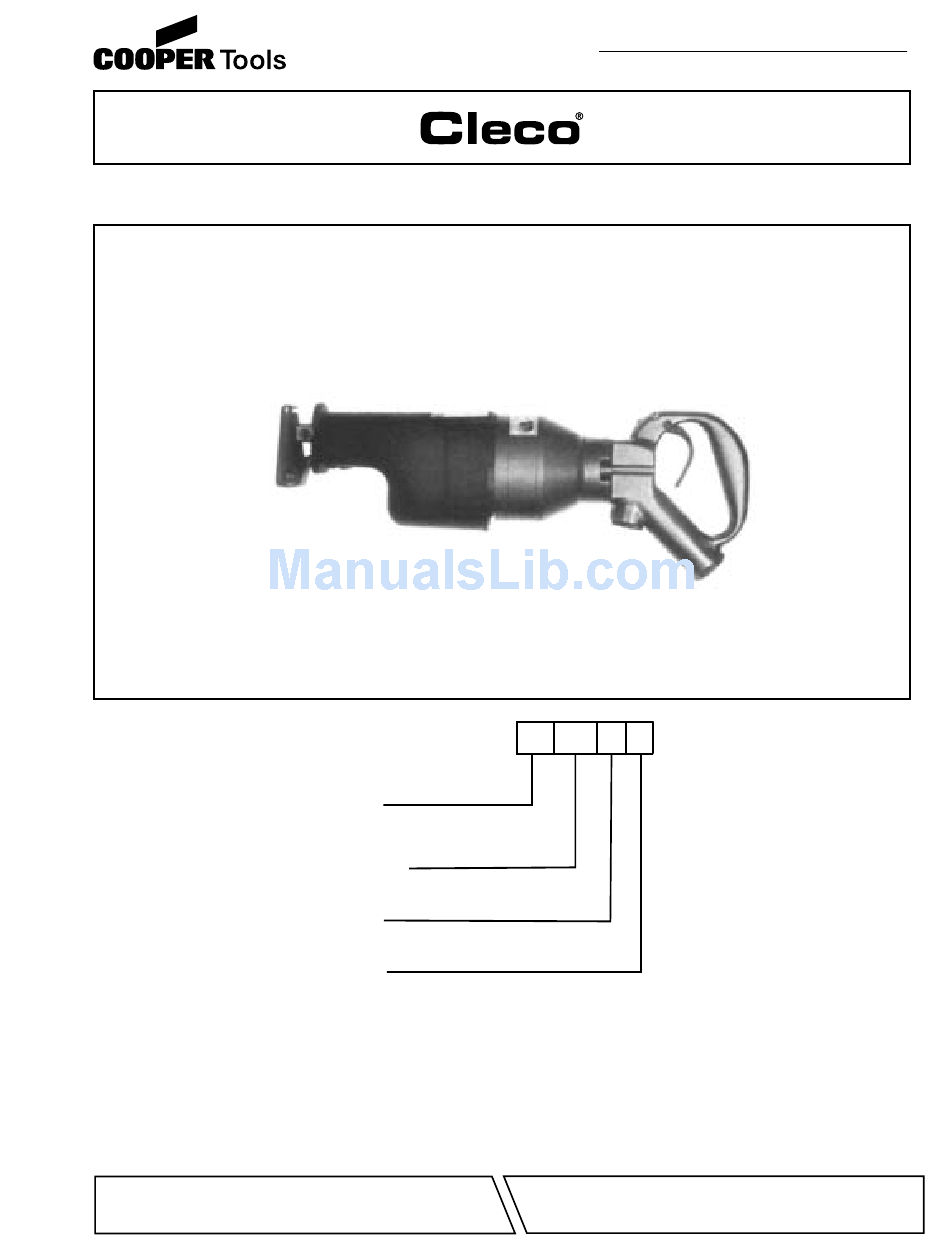

136 Reciprocating Saw Series: Tool Type: Speed: Handle: NORTH AMERICA CooperTools P.O. Box 1410 Lexington, SC 29071 Operation & Service Manual 823209 Reciprocating Variable Spade EUROPE Cooper Power Tools GmbH & Co. Postfach 30 D-73461 Westhausen 2/01... - Page 2 Safety Recommendations For your safety and the safety of others, read and understand the safety recommendations before operating this saw. Always wear protective equipment. WARNING Impact resistant eye protection must be worn while operating or working near this tool. Caution: Faceshields do not provide unlimited protection against flying particles and are not to be considered as eye protection.
- Page 3 Safety Recommendations movements and postures dictated by the job design, it may be nec- essary for the employer to take steps to prevent further occurrences. These steps might include, but are not limited to, repositioning the workpiece or redesigning the workstation, reassigning workers to other jobs, rotating jobs, changing work pace, and/or changing the type of tool used so as to minimize stress on the operator.
- Page 4 READ SAFETY RECOMMENDATIONS BEFORE CONNECTING TOOL. OPERATING INSTRUCTIONS The Cleco reciprocating saw is designed to operate on 90 psig (6.2 bar) maximum air pressure, using a 5/16" (8mm) x 8' whip hose. If additional length is required, the next larger hose size may be connected to the 8' whip hose. The Cleco reciprocating saw is designed for cutting wood up to 12"...
-
Page 5: Maintenance
USING THE SAW STARTING WORK Consult the Blade Selector Charts for the blade best suited for the material to be cut. For greatest economy, use the shortest blade suitable for the thickness of the material to be cut. Be sure the material to be cut is rigid. Small work pieces should be securely clamped in a bench vise or to a work table. - Page 6 A blade for every type of sawing application; will cut smoothly and easily through wood, metal and composition material. Blades designed for use on Porter-Cable, Cleco and most competive saws. Proper Blade Selection for metal: ALWAYS select a blade where at least three teeth are engaged in the thickness of the metal.
- Page 7 Porter-Cable Blades...
- Page 8 DISASSEMBLY HANDLE Should the throttle valve seal 847426, need replacing, unscrew the throttle valve cap 867753, for removal of the throttle valve and components. The tool is equipped with an air screen for protection of the internal motor parts from foreign material. The air screen located in the inlet bushing may be removed for cleaning and inspection by unscrewing the inlet bushing 867758.
- Page 9 RECIPROCATING SAW HEAD 204694 204695 204692 204697 204759 204682 204698 204687 204676 204676 Part Name of Part 204203* Safety Instruction Label 204204* Warning Label 204675 Intermediate Plate Bearing 204676 Front Housing Bearing 204677 Gear 204678 Reciprocating Shaft 204679 Blade Clamp 204680 Blade Clamp Screw 204681...
-
Page 10: Parts List
RECIPROCATING SAW MOTOR 204712 847528 869448 ROTOR COLLAR PART NO. 864489 847525 864493 865417 * ONLY ONE ROTOR COLLAR REQUIRED. 869449 SIZE .122" .124" .126" .128" RECIPROCATING SAW MOTOR PARTS LIST Part No. Name of Part 204222 Rear Bearing Plate 204312 Cylinder (incls. -
Page 11: Name Of Part
RECIPROCATING SAW HANDLE AND MOTOR HOUSING SUBASSEMBLY 204706 204727 204708 204711 204715 204715 Parts not included in Subassembly - 201794 NAME OF PART PART NO. 204706 Motor Housing Insert 204707 Washer 204708 Spacer 204709 Throttle Valve 204710 Motor Housing Plate 204711* 204713 Throttle Bushing... - Page 12 CooperTools 670 Industrial Drive Lexington, SC 29072 Phone: (803) 359-1200 Fax: (803) 359-2013 www.cooperindustries.com...
