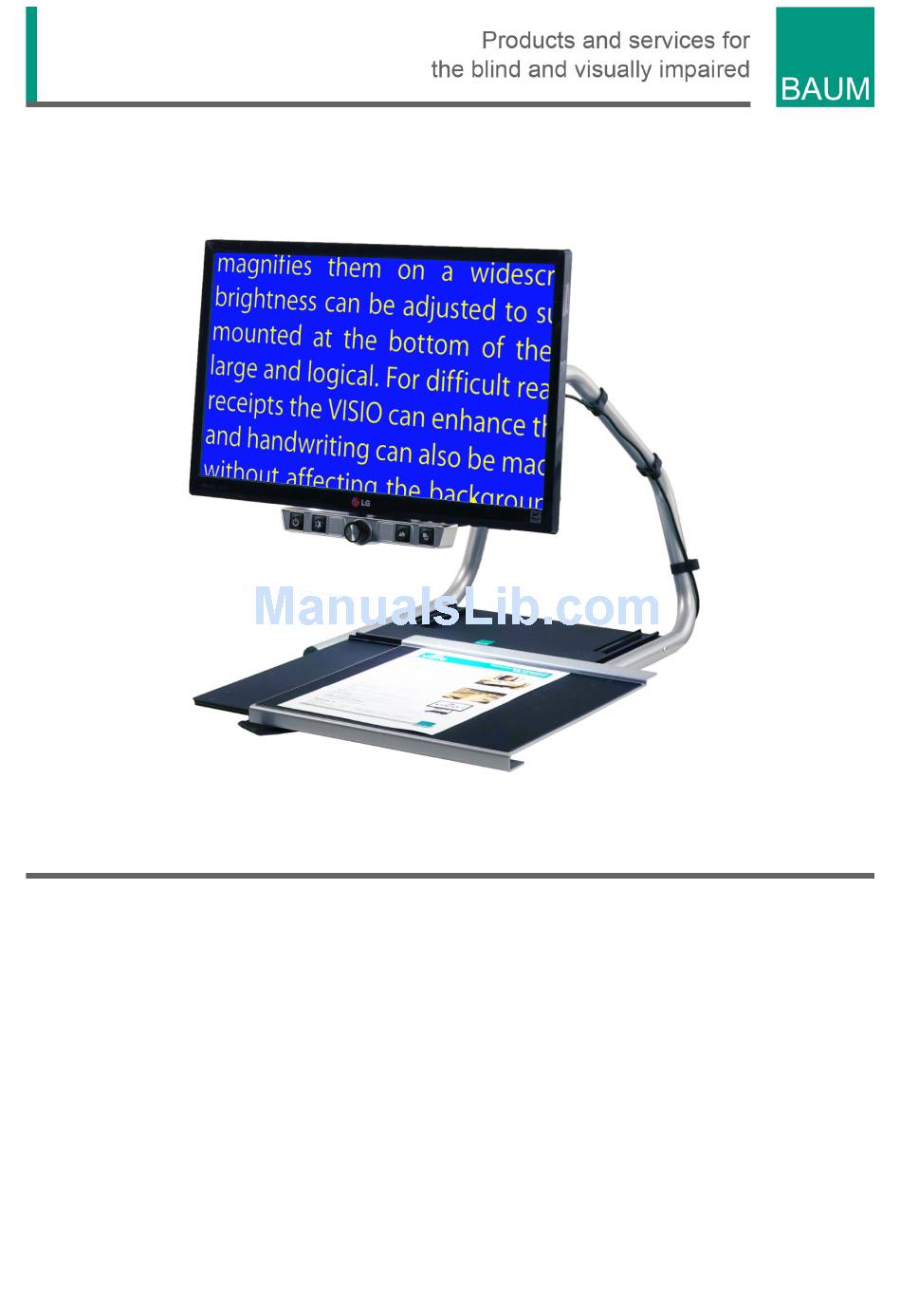

- Page 1 VISIO 22 User Guide Item number: 105806H03 User guide version: 2.8 English 06/2017...
- Page 3 About BAUM BAUM Retec AG has been a leading provider of products and services for blind and visually impaired people for more than 35 years. The high quality and innovative braille products, desktop magnifiers, reading machines, and software solutions are developed and manufactured in Germany, and are ideal for educational, professional and private use.
-
Page 4: Table Of Contents
ABOUT THIS USER GUIDE ..................... 5 ABOUT VISIO 22+ ......................5 BEFORE YOU START ...................... 7 HOW TO POSITION VISIO 22+ ON YOUR DESK ............7 VERY FIRST TIME POWER ON AFTER INSTALLATION ..........8 VISIO 22+ CONTROL PANEL ..................9 VISIO 22+ CONTROL PANEL BUTTONS - QUICK REFERENCE ......... -
Page 5: About This User Guide
Retec AG. All efforts have been made to ensure that information contained in this document is correct at the time of issue. Neither BAUM Retec AG nor its representatives assume any responsability for errors or omissions. Nor is any liability assumed for damages resulting from the use of information contained herein. - Page 6 VISIO 22 provides most functionality you expect from a basic CCTV reader. VISIO 22 features full colour autofocus and a limited choice of false colours. Reverse foreground and background colour is also provided. Thanks to its image optimizer feature VISIO 22 will always provide an optimum image quality.
-
Page 7: Before You Start
4 How to position VISIO 22 on your desk Place VISIO 22 on your desk and set it so far back that when pulled out to the maximum position (nearest to your belly) the front edge of the XY- table is aligned to the front edge of your desk or even a little further back. -
Page 8: Very First Time Power On After Installation
5 Very first time power on after installation The following chapter usually can be skipped, as this has usually already been done when you received your VISIO 22. It should not be necessary that you do this again. Connect VISIO 22 power supply to mains. -
Page 9: Visio 22 Control Panel
6 VISIO 22 Control Panel 7 VISIO 22 Control Panel Buttons - Quick Reference Power Short press of about 1 second will power up the device (lights on). Long press will switch off. Image optimizer Selects one of five image quality optimizer settings for viewing critical documents with low contrast or bad print. -
Page 10: Getting Familiar With Your New Visio 22
A short press for about a second on the power button will switch on VISIO 22. As soon as the lights turn on, you may release the power button. The Display may show a message “Invalid video mode”, after a few seconds VISIO shows a magnified... - Page 11 Move the XY-table to a position where you see some text on the display. Now press the text button. The text button is the rightmost button on the control panel. The image will be displayed in high contrast now and in Getting familiar with your new VISIO 22...
- Page 12 Note: VISIO 22 remembers the colour settings you made. So if you switch between Text mode and Picture mode and come back to Text mode, you find the previous colours there. VISIO 22 will even remember your last settings when you switch it off.
- Page 13 VISIO will always focus on the part displayed and thus always present a sharp image on the display. Now you have already learnt about all options on VISIO 22. We hope you will enjoy your new CCTV.
- Page 14 Is the light in the display’s lower right edge on? Is it red? If not, switch VISIO 22 off and on again or press the sensor button in lower right edge of display. Best you touch the edge and move your finger leftwards.
- Page 15 XY-Table is not moving Move lever to leftmost position. Letters are fluttering Increase zoom by turning zoom knob clockwise. Try different settings of Image optimizer button. Common problems and solutions...
-
Page 16: Defects And Repair
Are you sure the mains outlet is live? Do not use a broken device! Unplug broken device from mains! Please do not hesitate to contact your local distributor or BAUM Retec AG. You can reach BAUM Retec AG at telephone number +49 (0) 6223 4909-0 in Germany. -
Page 17: Service Box
11 Service box For shipping VISIO 22 in the service box, proceed as follows: Switch off VISIO Unplug from mains Put display in upright position, fasten brake of XY-table Remove white foam parts and corrugated card board cover from box. -
Page 18: Compliances
12 Compliances 12.1 CE Conformity This product conforms to the guidelines of the European Union and takes the CE- and ROHS Marking. 12.2 FCC Conformity 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, (2) This device must accept any interference received, including interference’s that may cause... -
Page 19: Environmentally Friendly Disposal According To Eu-Directive 2012/19/Eu19
12.3 Environmentally friendly disposal according to EU-Directive 2012/19/EU The symbol (crossed garbage can), which is also attached to the device, states that this device and its accessories, once come to the end of its lifetime, should not be regarded as household waste. - Page 20 Compliances...
-
Page 21: Warranty
BAUM Retec AG reserves the right to repair or replace with a similar or better product. In no event shall BAUM Retec AG or its distributors be liable for indirect or consequential damages. -
Page 22: For Your Safety
Do not use the device if you find any damages at device or wires. If the device appears to be operating abnormally, or to be damaged in any way, please contact your BAUM dealer as soon as possible. For your safety... - Page 23 If you smell smoke or an door coming out of the device, turn off the power immediately. Do not try to repair the device yourself. Opening or removal of housing may cause damage or injury. Do not allow sand or dust to come into contact with the device as this may lead to serious damage and could make repair impossible.
- Page 24 Do not pull the plug out by the lead when removing the power plug. Avoid shock. Do not throw or let fall. Repairs may only be carried out by BAUM service personnel or by service technicians authorized by BAUM Retec AG.
- Page 25 the device with a soft cloth dampened with a diluted neutral detergent (stay clear from the Braille cells and Roll-bars!), then wipe dry with a cloth. Do not attempt to clean the Braille cells and/or Roll-bars yourself. Contact your dealer for intensive and professional cleaning of your device.
-
Page 26: Technical Data
Display diagonal 54,61 cm (22 in.) in 16:9 format Monitor with LED Backlight Maintenance-free LED reading lights VISIO 22: Full colour 4 False colours with enhanced contrast + Reverse image giving 8 combinations (black-white, black-yellow, black-green and blue- yellow). - Page 28 Hamilton House Email: info@baumuk.com Mabledon Place Web: www.baumuk.com London, WC1H 9BB United Kingdom Please be advised that this user guide may contain errors, and is therefore subject to being changed or updated without prior notice. © 2017 BAUM Retec AG...
