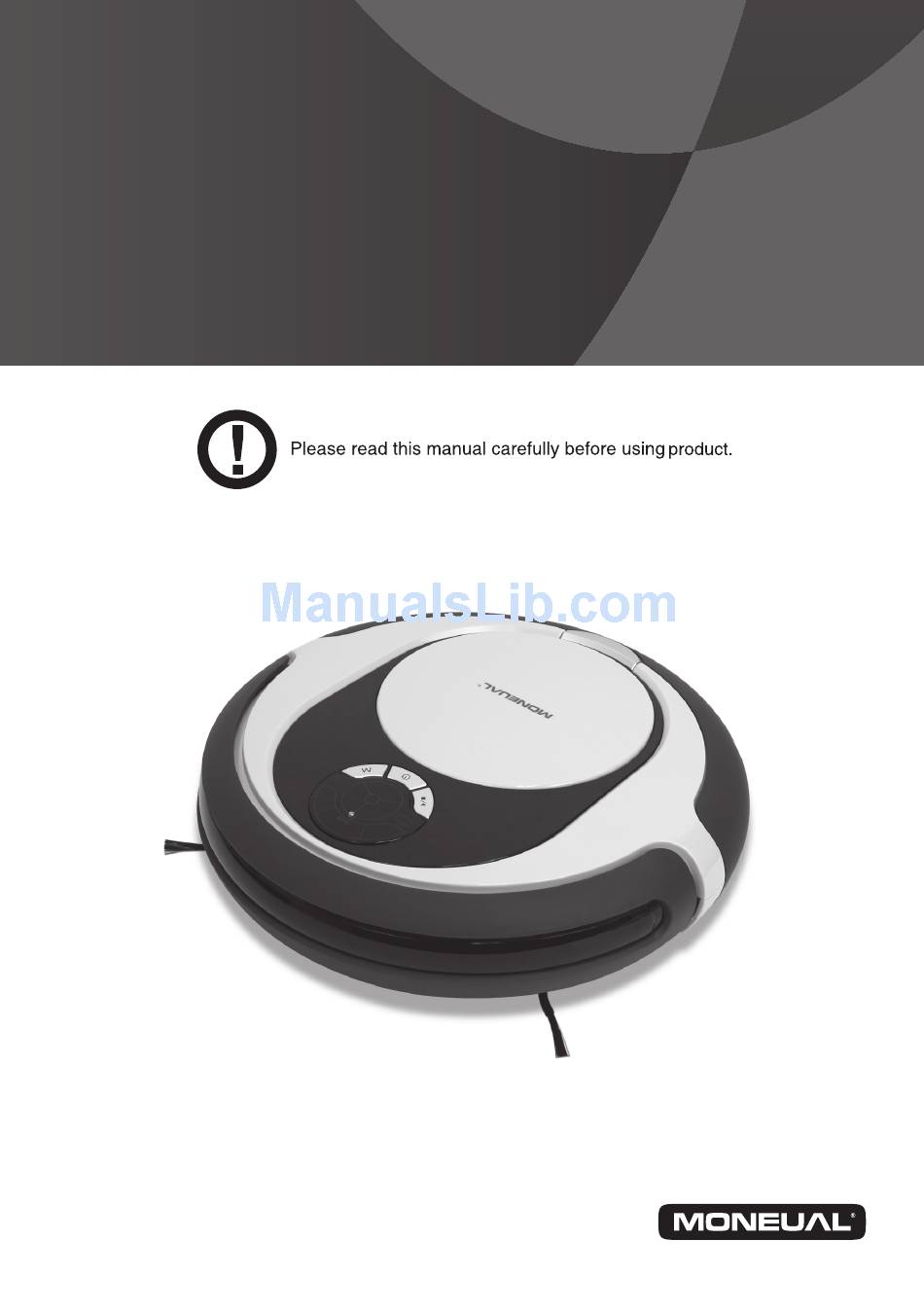

Robot cleaner RYDIS MR6550 Ver 1.0 Robot cleaner RYDIS MR6550 Copyright ⓒ 2012 MONEUAL Inc. All rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of MONEUAL Inc. in the Republic of Korea and/or other countries.
Page 4
As the function that mainly cleans the dark floor space with no light, Shadow cleaning mode allows the cleaning of the deep locations under a bed or a sofa that were impossible to clean with the existing vacuum cleaners. 4 RYDIS MR6550 User Manual...
Page 5
※ Indicator is included in certain models. Mounting/dismounting microfiber dustcloth cleaning With the mounting/dismounting microfiber dustcloth mounted, the cleaner can remove even fine dusts conveniently. ※ Mopping guard and cloth are included in cetain models. RYDIS MR6550 User Manual 5...
Cleaning the dust box Replacing the filter Cleaning the Sensor Cleaning wheels Cleaning the dust inlet Battery usage and management Voice announcement list System check Code List Checkpoints before request for after-sales service Product specifications 6 RYDIS MR6550 User Manual...
Make sure that the charger is always plugged into a power source. If no power is supplied to the charger, you cannot use the function of robot cleaner charging after automatically returning to the charger. RYDIS MR6550 User Manual 7...
Page 8
Avoid using the product in a utility room, in the room with a wet floor, on the stairways, on a table, on a shelf, in a storage room, in a commercial building and outdoors. If you have dropped the product or caused an impact to the product, contact the designated service center immediately. 8 RYDIS MR6550 User Manual...
Page 9
For indicator power, use rated batteries and adapters. If not, the product can be damaged set on fire or it may not work. In case of insufficient indicator battery, replace with a new one. Without batteries, indicator functions may not work normally. RYDIS MR6550 User Manual 9...
Page 10
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. for compliance could void the user’ s authority to operate the equipment. 10 RYDIS MR6550 User Manual...
◆ 2800mA large battery Pack: MR6500- **** C/F/I/J/L/M/O/P ◆ Mopping Guard + Cloth: MR6500- **** D/G/I/K/L/N/O/P ◆ Indicator: MR6500- **** E/H/J/K/M/N/O/P The appearance and specifications are subject to change without prior notice for better product functions or performance. RYDIS MR6550 User Manual 11...
In case of storing the robot cleaner after its charging is completed, leave it docked on the charger or turn off Power switch located at the bottom of the rear side. 12 RYDIS MR6550 User Manual...
⑨ Daily Reservation Indicator ⑩ 1-hour reservation setting indicator ⑪ Automatic Cleaning Mode Indicator ⑫ Suction input turbo indicator ⑬ Shadow Cleaning Mode Indicator Robot cleaner(Rear) ① Dust box ② Air outlet ③ Power switch ④ Signal Receiver RYDIS MR6550 User Manual 13...
Page 14
⑥ Main brush ⑦ Dustcloth guard mounting hole Indicator(Top) ① Signal transmission sensor ② Mode switch button ③ Distance setup button ④ Indicator number setup button Indicator(Bottom/Rear) ① Battery cover ② Power button ③ Adaptor jack 14 RYDIS MR6550 User Manual...
Charger(Front) ① Operation lamp ② Guide signal transmission sensor ③ Charging terminal Charger(Rear) ① Adapter jack ② Adapter compartment ③ Sensor Signal Distance Adjustment Switch. RYDIS MR6550 User Manual 15...
◆ If the charger is installed in a narrow space and 8M is selected, automatic charging may not work properly. ◆ Do not place the indicator on the charger. Signal inference may occur to disrupt automatic charging. 16 RYDIS MR6550 User Manual...
Page 17
If you do not want to use the dust cloth function, skip this step and go to the next procedure. Mopping guard and cloth are included in certain models. 06. Turn on the power switch of the robot cleaner (at the left of the rear dust box). RYDIS MR6550 User Manual 17...
Page 18
If the adaptor whose output is more than 5V is connected, be careful because the indicator may be damaged. If the adaptor for the charger (18VDC) is connected, do not connect it because the indicator may be damaged. 18 RYDIS MR6550 User Manual...
Used for manual cleaning operation (See the page 28.) Press this button to use ⑫ CORNER CL. button the remote controller as motion-controlling tool Selects corner cleaning (See the page 22.) (See the page 29). RYDIS MR6550 User Manual 19...
When dustcloth guard is installed to the bottom part of the robot cleaner, it is automatically switched to the dustcloth cleaning mode. In this mode, the robot cleaner does not go to the carpet, foothold or threshold. 20 RYDIS MR6550 User Manual...
02. Press the [START/STOP] button. After cleaning is completed, the robot cleaner stops at its current place. On the remote controller, press the focused cleaning button to start cleaning immediately. RYDIS MR6550 User Manual 21...
After cleaning is completed, the robot cleaner will return to the charger. Main body button Remote controller button CHARGE VACUUM INTENSIVE AUTO SHADOW MODE START/STOP MANUAL CORNER CL. MUTE (None) CHARGE VACUUM ROOM SEL. RESERVE INTENSIVE AUTO SHADOW MANUAL CORNER CL. MUTE ROOM SEL. RESERVE 22 RYDIS MR6550 User Manual...
AUTO SHADOW MANUAL CORNER CL. MUTE Press the mode ROOM SEL. RESERVE selection button Press the [start/stop] repeatedly. button to start cleaning. 03. After cleaning is completed, the robot cleaner will return to the charger. RYDIS MR6550 User Manual 23...
ROOM SEL. RESERVE MODE START/STOP (None) CHARGE VACUUM INTENSIVE AUTO SHADOW MANUAL CORNER CL. MUTE ROOM SEL. RESERVE 02. Press the [START/STOP] button. After the cleaning is completed, the product will move to the charger. 24 RYDIS MR6550 User Manual...
MODE START/STOP MODE START/STOP CHARGE VACUUM INTENSIVE AUTO SHADOW MANUAL CORNER CL. MUTE ROOM SEL. RESERVE Press the [start/stop] button to start cleaning. CHARGE VACUUM INTENSIVE AUTO SHADOW MANUAL CORNER CL. MUTE ROOM SEL. RESERVE RYDIS MR6550 User Manual 25...
Page 26
03. Operate the robot cleaner as you like with the direction keys of the remote controller. Manual control is not available while charging. If you only need a manual move, without vacuuming, this function is useful. 26 RYDIS MR6550 User Manual...
Page 28
Slightly flick the remote controller toward left/right. The inhalation motor will start/stop working. [Adjusting the sucking power - [VACUUM] button from the remote controller] Slightly pull the remote controller following the arrow. 28 RYDIS MR6550 User Manual...
Page 29
[Controlling the rotation - [LEFT/RIGHT] button from the remote controller] Turn the remote controller to the left/right. (Turning counterclockwise) (Stop the rotation) (Turning clockwise) 05. To release the remote controller from the motion control mode, press the motion control conversion key again. RYDIS MR6550 User Manual 29...
03. When the reservation is made, the robot cleaner returns to the charger and starts cleaning automatically after the reserved time passes. If every day is selected, cleaning will start at the same time every day. 30 RYDIS MR6550 User Manual...
Repeat pressing until the setup is made for the door width. 1m(●) - 3m(●●) - 5m(●●●) For the average home, 1m setup is adequate. If the distance is set too excessively, the robot cleaner may not function correctly. RYDIS MR6550 User Manual 31...
Page 32
If two or more indicators are installed, INDICATOR NO should not be duplicated. INDICATOR DISTANCE MODE CLEAN AREA INDICA 05. Leave the door open. If you do not want to clean the room with the indicator installed, close the door. 32 RYDIS MR6550 User Manual...
If the distance is set as too short or too long, the robot cleaner may not properly understand the area. 03. Calculate the signal distance to arrange the indicator in the appropriate position. If the signal does not reach the wall, the robot cleaner may slip through the crack. RYDIS MR6550 User Manual 33...
Page 34
It is recommended that you not install indicators in a place with the charger in it. The emitting signals of the charger (in the radius of 8 meters) may be overlapped with the signals of indicators, which can be ignored. Charger Emitting signals of the charger 34 RYDIS MR6550 User Manual...
Germany French Korean Chinese Japanese 05. Press the power button at the upper part of the main body to complete language setting in the selected language. RYDIS MR6550 User Manual 35...
02. Pull out the dust box. 03. Remove the dust filter. The dust filter can be water-cleaned. After cleaning the filter with water, let air dry. In water-cleaning the filter, do not use any detergent. 04. Empty the dust box. 36 RYDIS MR6550 User Manual...
For removal of the filter, refer to Step 3 in the “Cleaning the dust box” section. The life span of the filter is around six (6) months and can decrease depending on usage environment. Any end-of-life filter will show a decrease in performance RYDIS MR6550 User Manual 37...
Do not directly apply water, benzene or alcohol to the sensors. Cleaning Wheels Clean the wheels with a brush. Turn each wheel while cleaning to clean the entire wheel. Remove hairs and other foreign substances, which can disturb operation of the wheels. 38 RYDIS MR6550 User Manual...
03. Clean the removed main brush with a cleaning brush. 04. Insert the main brush back. Check the groove shape and insert it into the fixing hole of the rubber brush. Then, fix the wing of the fixing pin to the fixing pin. RYDIS MR6550 User Manual 39...
Page 40
05. Insert the dust inlet cover. Insert the protruding part first. Press the opposite side until the fixing pin is fully installed. 40 RYDIS MR6550 User Manual...
Replacing the battery Once the cleaning operation time gets considerably shortened, you will need to replace the battery. Make sure to use factory standard batteries. To purchase an additional battery, contact the RYDIS Customer Service Center. RYDIS MR6550 User Manual 41...
Page 42
02. Loosen the four screws of the battery cover and lift it off. 03. Pull out the battery pin and remove the battery. Press the lock at the same time to pull out the battery pin. 04. Replace with the new battery and insert the battery pin. 42 RYDIS MR6550 User Manual...
Page 43
Charge the battery between each use of the product. In charging or long-term storage, keep the product away from direct sunlight and fire. RYDIS MR6550 User Manual 43...
The main brush is tangled or jammed in a foreign substance. Check the side brush. The side brush is tangled or jammed in a foreign substance. Errors are generated. Errors have occurred (See the error code chart). 44 RYDIS MR6550 User Manual...
Cause Attempt to run the robot cleaner without the dust box. Action Install the dust box. Cause Both wheels are lifted. Place the robot cleaner on the floor or lift it to another site. Action RYDIS MR6550 User Manual 45...
Page 46
Remove foreign substances from the bumper. Check if the bumper is properly Action installed. Cause The fall warning keeps activating and disrupting cleaning. Action If the floor is black, relocate the robot cleaner. Cause Others Please contact our service center for unknown other errors. Action 46 RYDIS MR6550 User Manual...
(2) Even when the robot cleaner is fully charged, keep it connected to the charger. (3) If you want to store the robot cleaner for a long time, turn off power switch at the rear before storing. RYDIS MR6550 User Manual 47...
5m / 8m distance (IR) ● Company name: Moneual, Inc ● Device: Electromagnetic compatible device ● Certification No.: KCC-REM-MOL-MRD6500 ※ The output distance for each signal can vary depending on adjacent environments and the remaining battery capacity. 48 RYDIS MR6550 User Manual...
Page 49
This wireless system can cause interference of radio waves, and so, it is not available for services related to safety for human life. ● Company name: Moneual, Inc. ● Product name: Wireless device for wireless data communication systems ● Authentication No.: MOL-RC750 RYDIS MR6550 User Manual 49...
Page 50
The warranty period for the product and the battery is one (1) year. We, Moneual, offer the following warranty service to our consumers based on the customer compensation regulation. By the request for the warranty service, DAEWOO Elec Service Co., Ltd. will provide the service.
Page 52
Robot cleaner RYDIS MR6550 Copyright ⓒ 2012 MONEUAL Inc. All rights reserved. The MONEUAL, MONCASO, MiNEW, RYDIS, SONAMU are trademarks, or registered trademarks of MONEUAL Inc. in the Republic of Korea and/or other counties.
Page 53
FCC INFORMATION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
