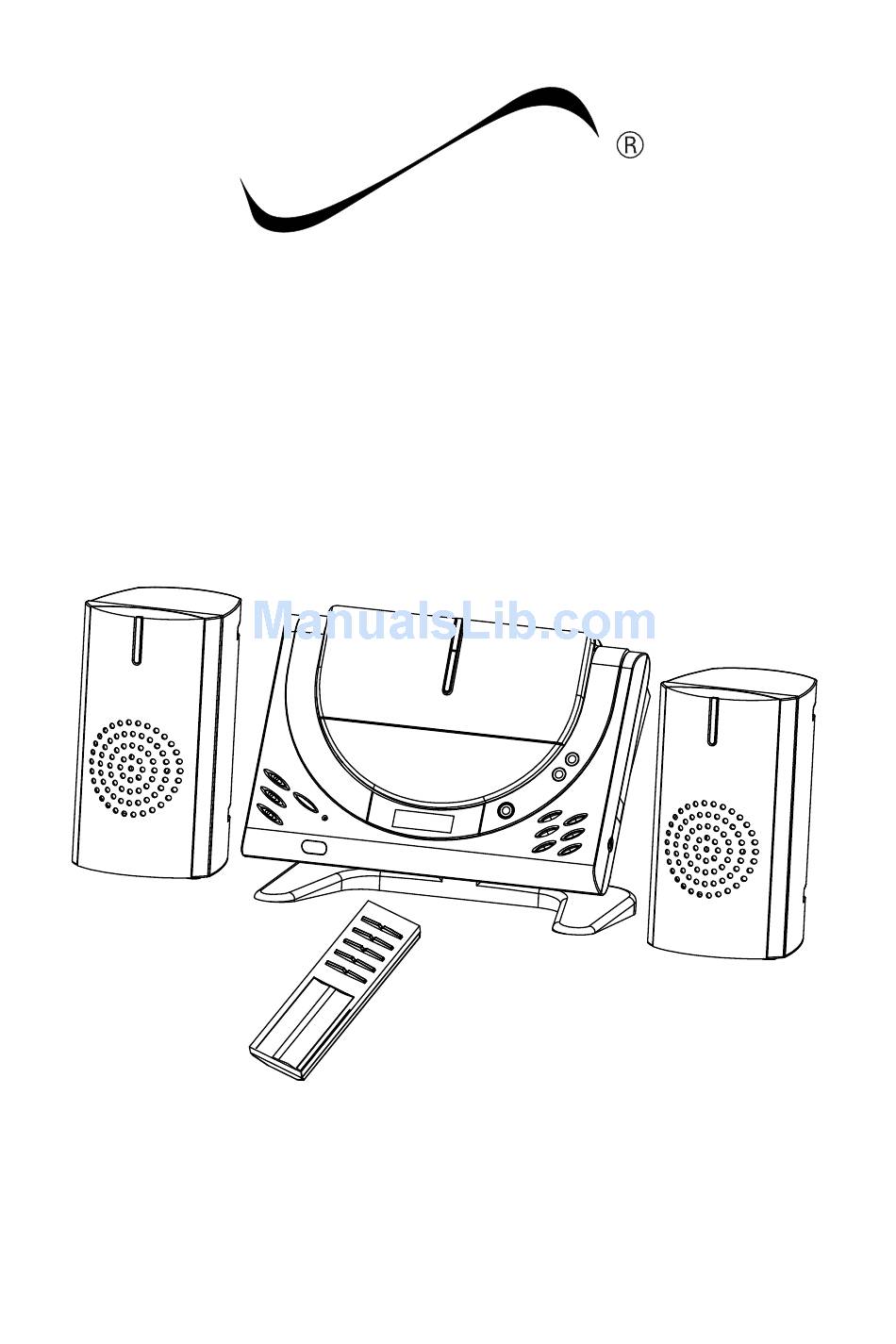

- Page 1 UPER ONIC Home Audio BT System CD Micro System with Bluetooth function KS-3398B INSTRUCTION MANUAL...
-
Page 2: Important Notes
IMPORTANT NOTES Please read the Important Notes before you operate this product, keep this information in a safe place for future use. Avoid installing the unit in locations described below: Please exposed to direct sunlight or close to heat radiating appliances such as electric heaters. -
Page 3: Dangerous Voltage
For safety reasons,do not remove any covers or attempt to gain access to the inside of the prodcut. Refer any servicing to qualified personal. Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside, refer all servicing to qualified service personal. -
Page 4: Main Unit
MAIN UNIT LOCATION OF CONTROLS 11 12 1. CD door 12. AUX in jack 2.Standby/BT indicator 13. Stop/Band(AM/FM) button 3.Standby button 14. Program/Play-mode button 4. Folder up/M + button 15. EQ button 16. Open button 6. Function Button(CD/MP3 17. LCD display /RADIO/AUX/BT) 18. -
Page 5: Putting Batteries Into The Remote Control Unit
REMOTE CONTROL 1. STANDBY To turn the unit on or off. To select CD/MP3 /RADIO/AUX/ 2. FUNCTION BT modes. /FM ST To start play or pause play temporari- ly; to receive FM Stereo stations. To stop play; Press to cycle between /BAND(AM/FM) AM and FM radio bands. -
Page 6: Radio Operation
RADIO OPERATION Listening to AM or FM broadcasts. Basic Operation 1.Press FUNCTION button to select tuner mode. 2.Press /BAND button to select the AM or FM band. AM: Listen to AM broadcasts. FM: Listen to FM broadcasts. 3.Press to select a broadcast station, press /FM.ST to receive a FM Stereo broadcast station. -
Page 7: Volume Control
Listening to CD/MP3 Basic Operation 1. Press FUNCTION button repeatedly to select CD/MP3 mode. 2. Press OPEN button to open the CD door.Insert a CD/MP3 disc with its label facing up. Close the CD door(it will click into place) 3. Press PLAY/PAUSE button to start play. 4. -
Page 8: Repeat And Random Play
REPEAT and RANDOM PLAY The following function of PLAY-MODE. In CD disc Mode 1.During CD playing, press the PLAY-MODE button repeatedly to select the following repeat options: Repeat,Repeat all, Random play. Repeat: Repeat the current track. ( REPEAT will be flashing on the LCD display) Repeat All: Repeat all tracks in the CD disc.( REPEAT will be steadily shown on the LCD display) -
Page 9: Program Play
PROGRAM PLAY The following function of PROGRAM. In CD disc Mode 1.Press STOP button to make sure playback is stopped. 2.Press PROGRAM button to enter program mode. The LCD will display “P01”. 3.Press to select a track number ,and then press PROGRAM button to to store it in memory. -
Page 10: Clock Adjustment
CLOCK ADJUSTMENT Basic Operation 1.Press the STANDBY button to turn the unit to standby mode. The power indicator light will be enlightened. 2.Press the PROGRAM button to start the function of clock adjustment. The LCD will display 12H or 24H, press to select 12H or 24H display mode. -
Page 11: Bluetooth Operation
BLUETOOTH OPERATION Basic Operation This unit can receive stereo audio signal from a BLUETOOTH stereo source device. 1. Press STANDBY button to Power on this unit. the power indicator light is on. 2. Press FUNCTION button to BT. BLUETOOTH indicator blinks. 3. -
Page 12: Care And Maintenance
CARE AND MAINTENANCE On the label side(the side with writing) Do not write anything using a pencil, ball-point en...etc.. Do not stick papers or labels. On disc (shiny) side Handle this side carefully to keep it free from fingerprints or scratches. Cleaning a disc Should the disc become soiled,wipe off dust,dirt and fingerprints with a soft cloth. - Page 13 Do not touch the reflective recorded surface. Do not stick paper or write anything on the surface. Do not bend the disc. UNIT 1. Clean your unit with a damp (never wet) cloth.Solvent or detergent should never be used. 2. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places. 3.Keep your unit away from heating appliances and sources of electrical noise, such as fluorescent lamps or motors.
-
Page 14: Troubleshooting Guide
TROUBLE-SHOOTING GUIDE Before requesting service of this unit, check the chart below for a possible cause of the problem that you may encounter. Some simple checks or a minor adjustment on your part may eliminate the problem and restroe proper operation. If you are in doubt about some of the check points or it the remedies indicated in the chart below do not solve the problem, consult an authorized service center or your dealer for instructions. -
Page 15: Specification
SPECIFICATION POWER SUPPLY: AC 120V 60Hz POWER CONSUMPTION: UNIT DIMENSION: 291(L)x 202(W)x82(H) MM SPEAKER DIMENSION: 110(L)x 141(W)x205(H) MM 3.05KG N.W.: RADIO SECTION FM:87.5-108 MHz FREQUENCY RANGE: AM:520-1710 KHz COMPACT DISC SECTION OPTICAL PICK UP: 3-BEAM LASER FREQUENCY RESPONSE: 100Hz-1600KHz E-14... - Page 16 FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
