Summary of Contents for Ilsco TaskMaster TB-PMP

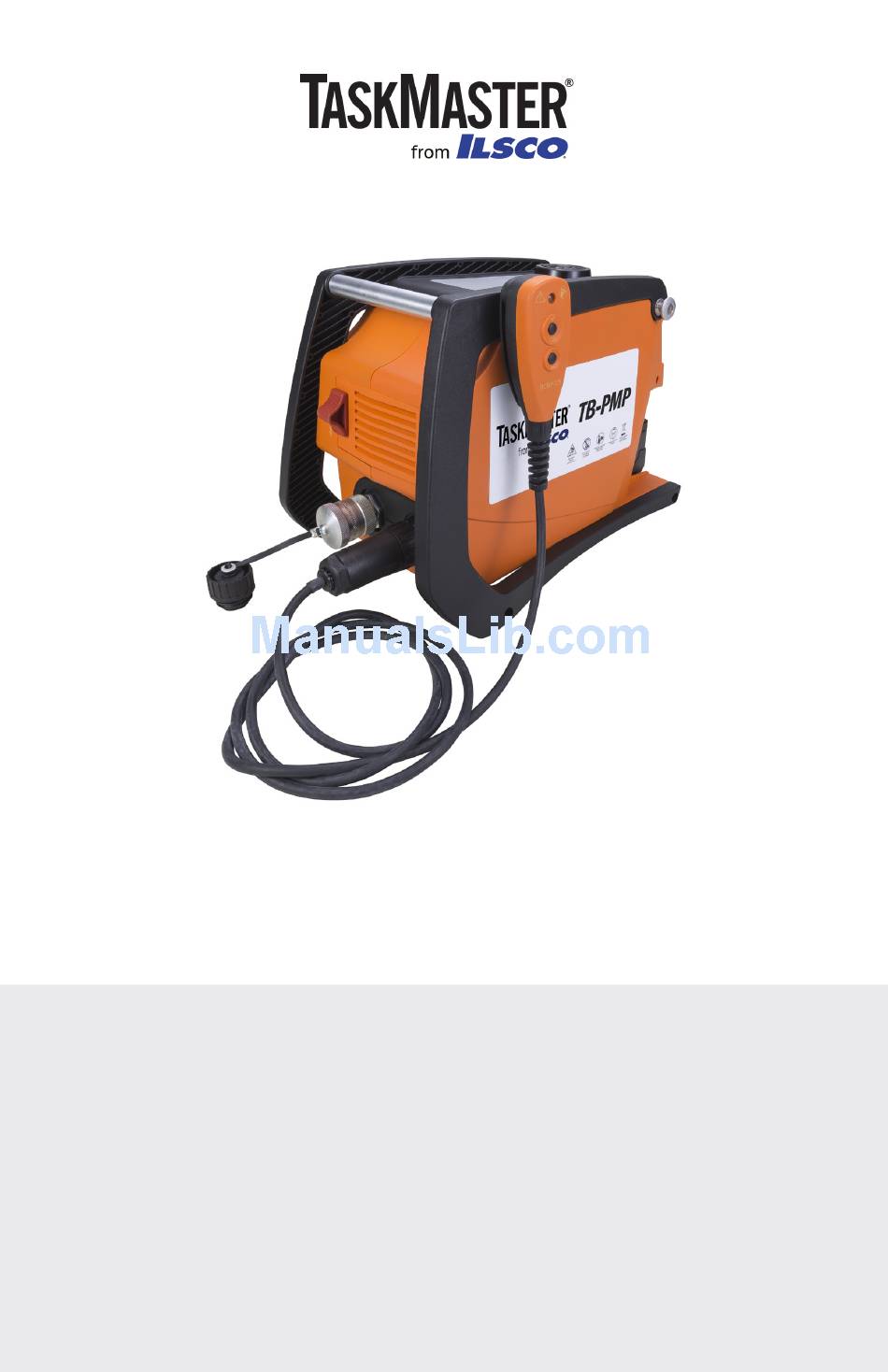

- Page 1 Model: TB-PMP Instruction manual Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. Phone: TaskMaster from ILSCO 800-776-9775 4730 Madison Road 513-533-6200 Cincinnati OH 45227 www.ilsco.com...
-
Page 2: Table Of Contents
14. Software Installation Page THANK YOU... for buying an ILSCO TaskMaster Tool. Our mission is to bring product innovation and exceptional customer service to the marketplace. This tool line is reliable, dependable, and durable for our customer’s needs. Please read this instruction manual carefully before using the product. If you have any questions about our product please reach out to our customer service department (see back cover). -
Page 3: Warranty And Service/Safety Symbols
Your first reconditioning is on us! Call us in about 20,000 cycles. To Find a Service Partner Call ILSCO for assistance in solving tool performance issues or for any of your service needs. ILSCO tool owners will be offered options to solve any tool replacement, parts or repair issues. -
Page 4: General Battery Operated Tool Safety Information
TB-PMP 2. General Battery Operated Tool Safety Information Read all safety warnings, instructions provided with this battery operated tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. Description of Safety Symbols: Electric Shock Attention! - Page 5 TB-PMP • Store idle tool out of the reach of children and do not allow persons unfamiliar with the tool, or these instructions, to operate the tool. Battery operated tools are dangerous in the hands of untrained users. • Maintain battery operated tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tool‘s operation.
-
Page 6: Pump Parts Identification
TB-PMP 3. Pump Parts Identification Œ Ž Ž ’ ‘ Battery compartment LED operating indicator lights Oil cap Return adjustment knob USB interface Shoulder strap connector Air Filter Label Manual release switch Remote pump cord Remote connection Hydraulic connection Pg. -
Page 7: Kit Includes
TB-PMP 4. Kit Includes 1 Battery Powered Pump 2 Milwaukee 5.0 Ah Batteries 1 Milwaukee 120V Charger 1 Shoulder Strap 1 Bag 1 Remote Pump Cord 1 Non-Conductive Hose 1 USB Cable 1 Male Adapter 1 Female Adapter Pg. 7... -
Page 8: Technical Specifications
TB-PMP 5. Technical Specifications Output Pressure: 10,000 PSI Battery voltage: 18 V 5.0 Ah Battery capacity: Lithium-ion Type of battery: Charging time: 60 min (approx) Hydraulic oil: Shell Tellus S2 V 15 Oil capacity: 25 oz (45.1 in -14°F to 104°F Operating temperature range: 11.6 in x 8.1 in x 7.4 in (L x H x W) Dimensions:... -
Page 9: Functional Description Of Battery Charger And Battery Pack
TB-PMP 6. Functional Description of Battery Charger and Battery Pack Charger Battery Pack “ } Œ ‘ Ž ’ ‘ Œ Light Indicators: • Continuous red: Charging • Slow flashing green: Approaching full charge • Continuous green: Charging is complete •... -
Page 10: Battery Charger
TB-PMP 7. Battery Charger Charge only MILWAUKEE M18™ Li-Ion batteries in this MILWAUKEE Li-Ion charger. Other types of batteries may cause personal injury and damage. WHEN TO CHARGE THE BATTERY PACK WITH THIS MILWAUKEE CHARGER Remove the battery pack from the tool for charging when convenient for you and your job. MILWAUKEE batteries do not develop a memory when charged after only a partial discharge. -
Page 11: Battery Charger
TB-PMP CHARGING A HOT OR COLD BATTERY PACK The Red Flashing Indicator light on the charger indicates that the battery pack temperature is outside the charging range. Once the battery pack temperature is within the acceptable range, normal charging will take place and the red light will be continuous. Hot or cold batteries may take longer to charge. -
Page 12: Battery Pack
TB-PMP 8. Battery Pack FUEL GAUGE Use the Fuel Gauge to determine the battery pack‘s remaining run time. Press the Fuel Gauge button to display the lights. The Fuel Gauge will light up for 2-3 seconds. When less than 10% of charge is left, one light on the fuel gauge will flash slowly. -
Page 13: Battery Pack
TB-PMP COLD WEATHER OPERATION MILWAUKEE Li-Ion battery packs are designed to operate in temperatures below freezing. When the battery pack is too cold, it may need to warm up before normal use. Put the battery on a tool and use the tool in a light application. It may buzz for a short time until it warms up. When the buzzing stops, use the tool normally. -
Page 14: Pump Setup
TB-PMP 9. Pump Setup 1. Attach shoulder strap by rotating connecting clip and pulling down until it locks in place. 2. Remove cover from remote port and attach remote cord. Pg. 14... - Page 15 TB-PMP 3. Remove hydraulic fitting cap on pump and attach hydraulic hose to pump. 4. Attach hydraulic hose to head. Pg. 15...
-
Page 16: Operating Instructions
TB-PMP 10. Operating Instructions Be sure to read instructions carefully, wear safety goggles, and keep fingers away from moving parts. ATTACHING THE BATTERY TO THE PUMP 1. Insert battery into opening at rear of pump by squeezing battery side buttons, and pushing battery in. - Page 17 TB-PMP UNDERSTANDING THE REMOTE CONTROL UNIT Front Rear Œ Operating LED Œ ON or ADVANCE Button Ž STOP or RETRACT Button Ž Magnet Fastening Clip (can attach to pump) Description of Operating LEDS on the Remote Control Unit: ORANGE LED - comes on during start up, and flashes slowly (ON) GREEN LED...
- Page 18 TB-PMP RETURN ADJUSTMENT DIAL Turn dial counter clockwise to align with 0 for no retraction. Turn dial clockwise to align with A for maximum retraction of 10 seconds. Maximum retraction of 10 seconds No retraction (can use remote control unit for retraction) OPERATING THE PUMP To advance cutter or compression tool, push + button on remote.
-
Page 19: Tool Maintenance
TB-PMP 11. Tool Maintenance Daily maintenance: • Use a soapy cloth to wipe away any oil that may be on the housing of the tool. • After each crimping cycle wipe the cutting head jaws free of metal shavings. • Wipe down all steel parts with WD-40. -
Page 20: Tool Parts Breakdown
TB-PMP Pg. 20... -
Page 21: Parts List
TB-PMP Pg. 21... -
Page 22: Software Installation
TB-PMP 14. Software Installation System requirements Before proceeding with the installation of the software, assure that your PC satisfies the following requirements: Operating system: Windows 2000, Windows XP, Windows Vista, Windows 7 CPU: Pentium 4, at least 1,7 GHz Memory: 512MB or more (1 GB or more recommended) Hard Drive: 200 MB (1 GB recommended) - Page 23 TB-PMP Notes: Pg. 23...
- Page 24 Date: 07/17 Version 1 TaskMaster from ILSCO Service: 4730 Madison Rd. Cincinnati, OH 45227 Phone: 800-776-9775 513-533-6200 www.ilsco.com...
