Bulk

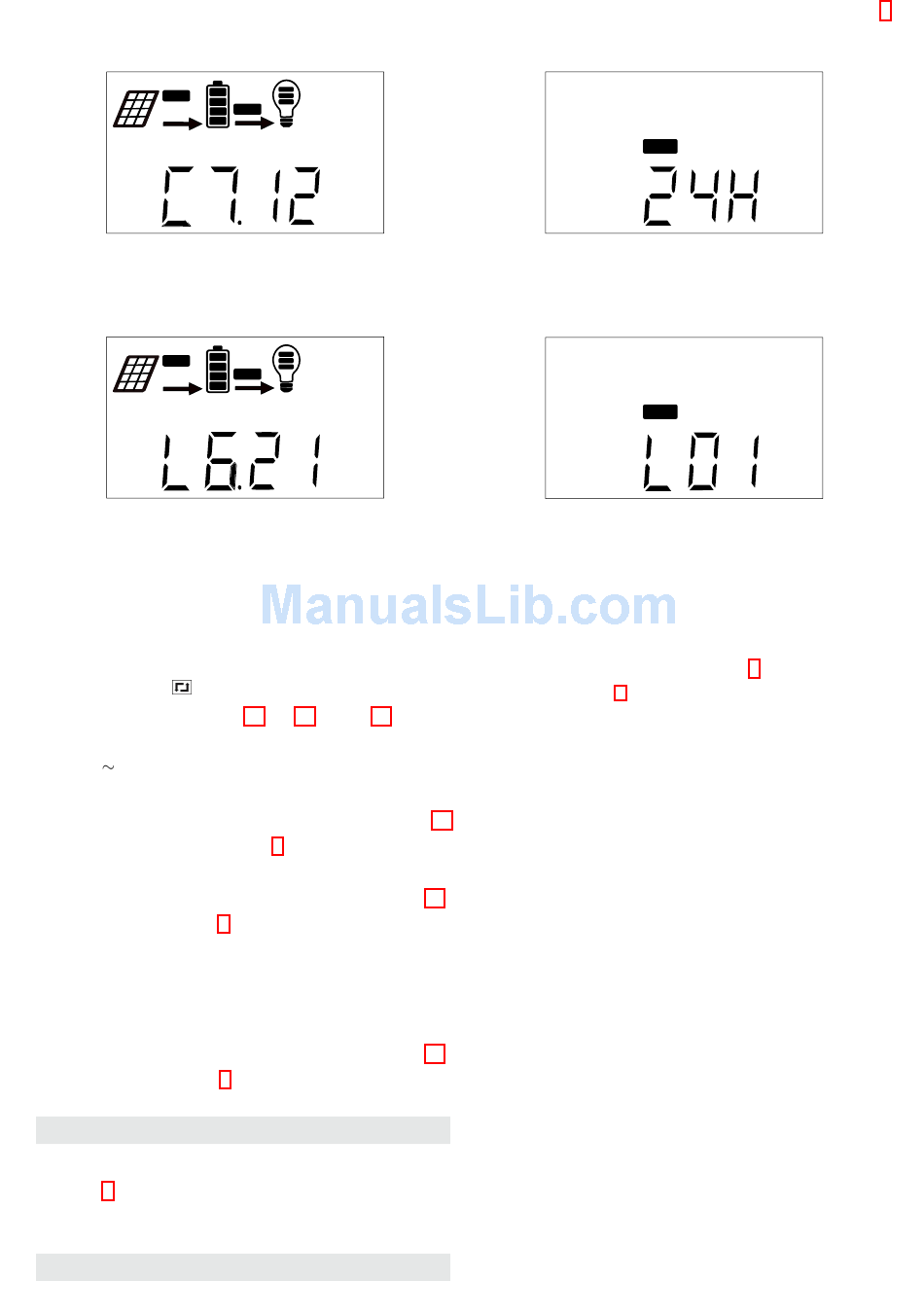

Fig 7. battery charge current
Bulk
Fig 8. load current
duration-second time duration.
• power percentage setting of 3 time-sections
When load control mode is set as 3L (3-time-section
mode), press button to select until the display of
LCD is as shown in Fig16, Fig17 and Fig18. Adjust
the power percentage of 3 time sections within the range
of 1 100%.
• Battery low-voltage protection value setting
Battery low-voltage protection setting is shown in Fig13
and the range is shown in Tab4.
• battery low-voltage return value setting
Setting of low-voltage protection value is shown in Fig15,the
range is shown in Tab4.To prevent the fluctuation of load
at starting and closing,low-voltage protection value and
low-voltage return value must have at least 0.2V voltage
difference.
• Battery overvoltage setting
Setting of low-voltage protection value is shown in Fig14,the
range is shown in Tab4.

4. Troubleshooting and maintenance

If the following abnormal situations happen in use, please
check Tab3.If technical support is required, please record fault
phenomenon and status of indicator light, and then contact us.

5. Technical parameters

12V
A
12V
A
LMS series intelligent solar controller — 6/8
Mode
Fig 9. Load control mode setting
Mode
Fig 10. Light-control timer setting
5.1 Voltage parameters and threshold parameters of
battery
Voltage parameters are shown in Tab4. Threshold parame-
ters are shown in Tab5.
