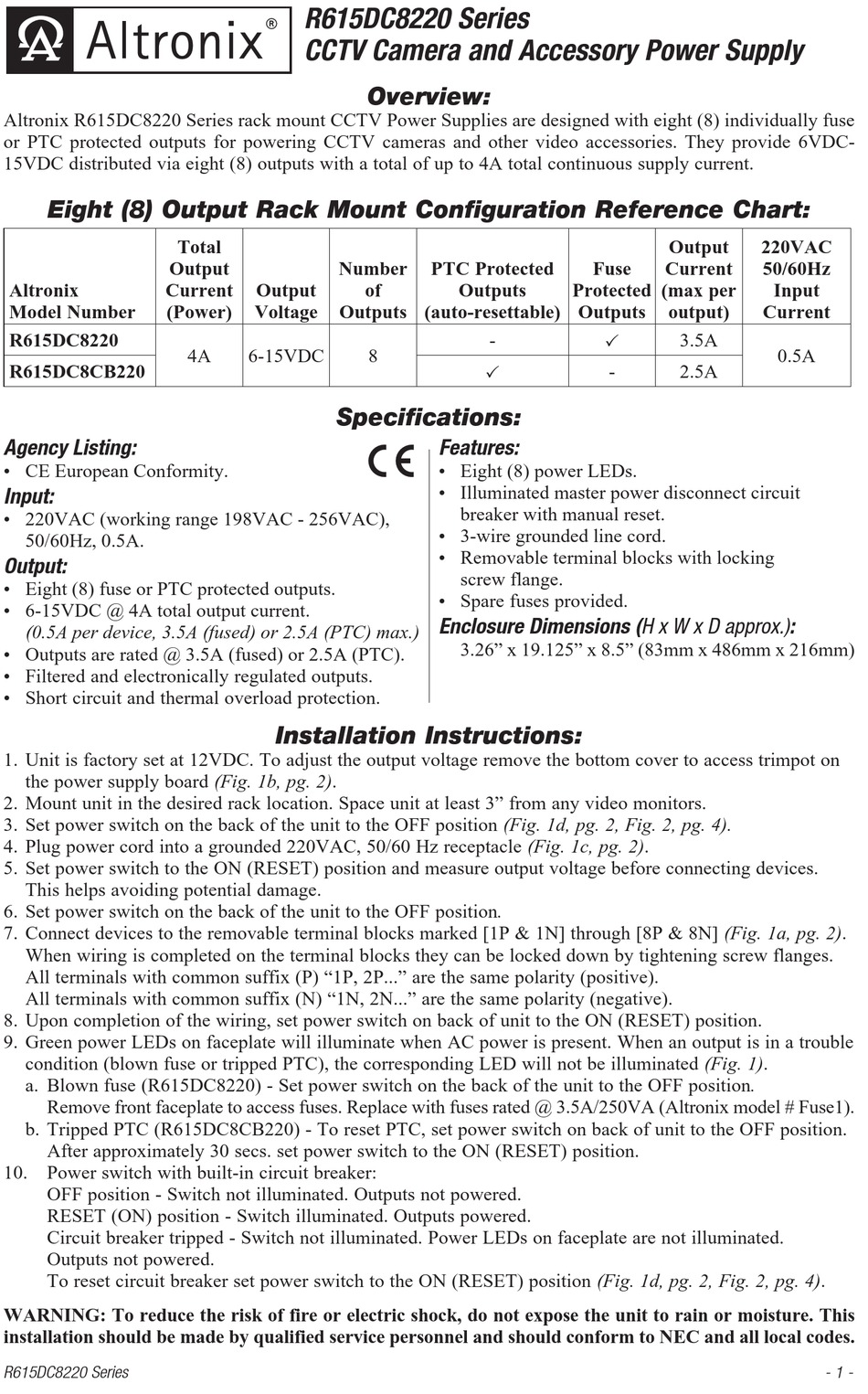

Atronix R615DC8220 Installation Instructions

Altronix R615DC8220 Series rack mount CCTV Power Supplies are designed with eight (8) individually fuse
or PTC protected outputs for powering CCTV cameras and other video accessories. They provide 6VDC-
15VDC distributed via eight (8) outputs with a total of up to 4A total continuous supply current.

Eight (8) Output Rack Mount Configuration Reference Chart:

Altronix Current
Model Number
R615DC8220
R615DC8CB220

Agency Listing:

• CE European Conformity.

Input:

• 220VAC (working range 198VAC - 256VAC),
50/60Hz, 0.5A.

Output:

• Eight (8) fuse or PTC protected outputs.
• 6-15VDC @ 4A total output current.
(0.5A per device, 3.5A (fused) or 2.5A (PTC) max.)
• Outputs are rated @ 3.5A (fused) or 2.5A (PTC).
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
1. Unit is factory set at 12VDC. To adjust the output voltage remove the bottom cover to access trimpot on
the power supply board (Fig. 1b, pg. 2).
2. Mount unit in the desired rack location. Space unit at least 3" from any video monitors.
3. Set power switch on the back of the unit to the OFF position (Fig. 1d, pg. 2, Fig. 2, pg. 4).
4. Plug power cord into a grounded 220VAC, 50/60 Hz receptacle (Fig. 1c, pg. 2).
5. Set power switch to the ON (RESET) position and measure output voltage before connecting devices.
This helps avoiding potential damage.
6. Set power switch on the back of the unit to the OFF position.
7. Connect devices to the removable terminal blocks marked [1P & 1N] through [8P & 8N] (Fig. 1a, pg. 2).
When wiring is completed on the terminal blocks they can be locked down by tightening screw flanges.
All terminals with common suffix (P) "1P, 2P..." are the same polarity (positive).
All terminals with common suffix (N) "1N, 2N..." are the same polarity (negative).
8. Upon completion of the wiring, set power switch on back of unit to the ON (RESET) position.
9. Green power LEDs on faceplate will illuminate when AC power is present. When an output is in a trouble
condition (blown fuse or tripped PTC), the corresponding LED will not be illuminated (Fig. 1).
a. Blown fuse (R615DC8220) - Set power switch on the back of the unit to the OFF position.
Remove front faceplate to access fuses. Replace with fuses rated @ 3.5A/250VA (Altronix model # Fuse1).
b. Tripped PTC (R615DC8CB220) - To reset PTC, set power switch on back of unit to the OFF position.
After approximately 30 secs. set power switch to the ON (RESET) position.
10. Power switch with built-in circuit breaker:
OFF position - Switch not illuminated. Outputs not powered.
RESET (ON) position - Switch illuminated. Outputs powered.
Circuit breaker tripped - Switch not illuminated. Power LEDs on faceplate are not illuminated.
Outputs not powered.
To reset circuit breaker set power switch to the ON (RESET) position (Fig. 1d, pg. 2, Fig. 2, pg. 4).
WARNING: To reduce the risk of fire or electric shock, do not expose the unit to rain or moisture. This
installation should be made by qualified service personnel and should conform to NEC and all local codes.
R615DC8220 Series
R615DC8220 Series
CCTV Camera and Accessory Power Supply
Total
Output
Output
(Power) Voltage
4A 6-15VDC

Installation Instructions:

Overview:

Number PTC Protected
of Outputs
Outputs (auto-resettable)
-
8
P

Specifications:

Features:

• Eight (8) power LEDs.
• Illuminated master power disconnect circuit
breaker with manual reset.
• 3-wire grounded line cord.
• Removable terminal blocks with locking
screw flange.
• Spare fuses provided.

Enclosure Dimensions (H x W x D approx.):

3.26" x 19.125" x 8.5" (83mm x 486mm x 216mm)
Output
Fuse Current
Protected (max per
Outputs output)
3.5A
P
- 2.5A
220VAC
50/60Hz
Input
Current
0.5A
