Summary of Contents for IDECH ASK-VW23

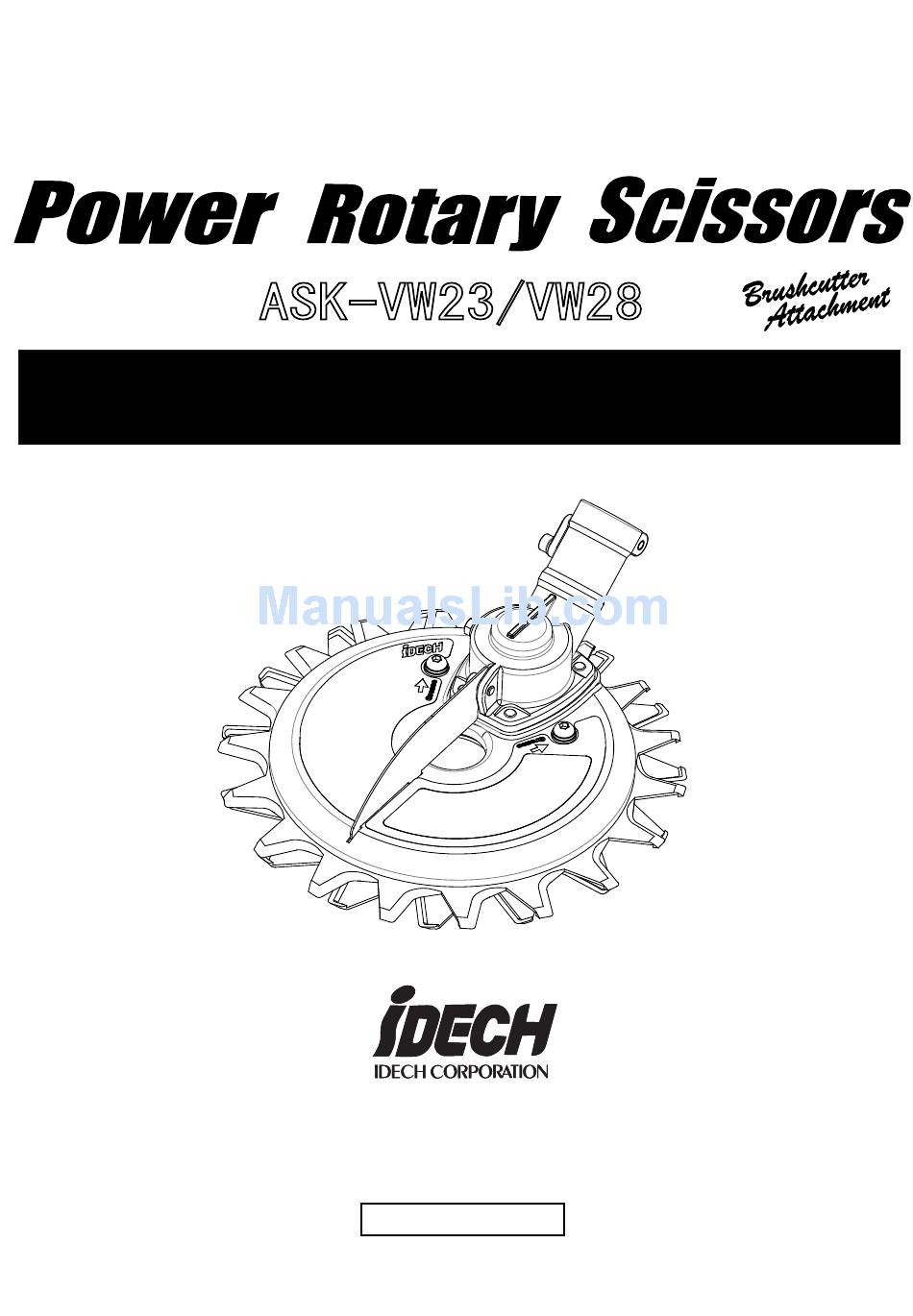

- Page 1 ASK-VW23/VW28 Installation and Operation Instructions Read and understand this manual before using this product. Original instruction Translation of the original instructions...
-
Page 2: Safety Precautions
Check the brushcutter Power Rotary Scissors can attached to the （Ｂ）Drive shuft shape brush cutter in the table on the right Outer tube Diameter diameter(mm) No. of teeth Teeth shape Spline φ２４ｍｍ Spline φ２５ｍｍ (See pages 4～5) Serration φ２５．４ｍｍ Spline φ２６ｍｍ... - Page 3 DANGER! Be careful not to touch the blades. The blades are sharp and may cause serious injury. Read the manual of the brushcutter in advance. WARNING! Wear safety glasses while using the Power Rotary Scissors. Wear gloves when handling the Power Rotary Scissors. Be very careful of the blades.
-
Page 4: Parts List
Ｐａｒｔ Quantity Ｐａｒｔ Ｎｏ． Ｒｅｆ Ｎｏ． SKVW-26 Type Label V SKVW-27 Caution Label V SK-1815NW Upper Blade 18/Lower Blade 15 1Set ASK-VW23 series 1Set ASK-VW28 series SK-2118VW Upper Blade 21/Lower Blade 18 SKNW-19 Bottom Disk SKN-22 Bottom Disk Fixing Bracket SKR-06AJ Gear Case AJR... - Page 5 MOUNTING Check the outer tube diameter ① Remove the exsting gear case. ② Check the outer tube diameter. Outer tube Check the outer tube diameter. Check the outer tube diameter. Select the sleeve Outer tube diameter φ26ｍｍ φ25.4ｍｍ φ25ｍｍ φ24ｍｍ Unnecessary for sleeve Sleeve φ25.4 Sleeve φ24...
- Page 6 Select the adapter Drive shuft shape Adapter Diameter No. of teeth Teeth shape Outer tube Adapter 6-10 Spline Spline Adapter 7-7 Drive shuft Serration Adapter 7-13 Spline Adapter 8-9 Square Adapter ＳＱ ※Check whether the shaft fit the hole of adapter. Mount the slected adapter to the unit Adapter Gear case...
- Page 7 ６...
- Page 8 BLADE REPLACEMENT WARNING Make sure the engine is stopped before replacing the blades. Wear gloves to handle the blades. *To replace the blade, exclusive long nose pliers or snap ring pliers is required. 1. Ｒemove the bottom disc fixing bracket. ※...
-
Page 9: Maintenance Points
MAINTENANCE Make sure the engine is stopped before replacing the blades. Wear safety glass and gloves to handle the blades. Lower Blade 1. Clean the blades and bottom disc with a brush, to remove grass or dirt stuck to them. Maintenance points below for details 2. - Page 10 Consult a physician. Ingestion: ・Do not induce vomiting. Immediate consult a physician. Notes to Physicians: ・Supportive care. Treatment based on judgment of the physician in response to reactions of the patient. ASK-VW28 ASK-VW23 285×280×101 258×230×101 （ｍｍ） Diameter （ｍｍ）...
-
Page 11: Troubleshooting

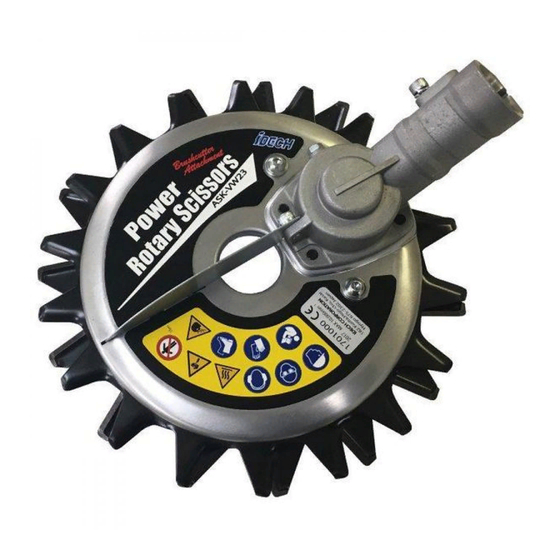

Product Name : Power Rotary Scissors Model Name : ASK-VW23 / ASK-VW28 Council Directives : DIRECTIVE 2006/42/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 17 May 2006 on machinery, and amending Directive 95/16/EC... - Page 12 182 Kurita, Hojo-cho, Kasai Hyogo 675-2302 Japan TEL:+81-790-42-6688 FAX:+81-790-42-6633 http://www.idech.co.jp E-mail info@idech.co.jp...
