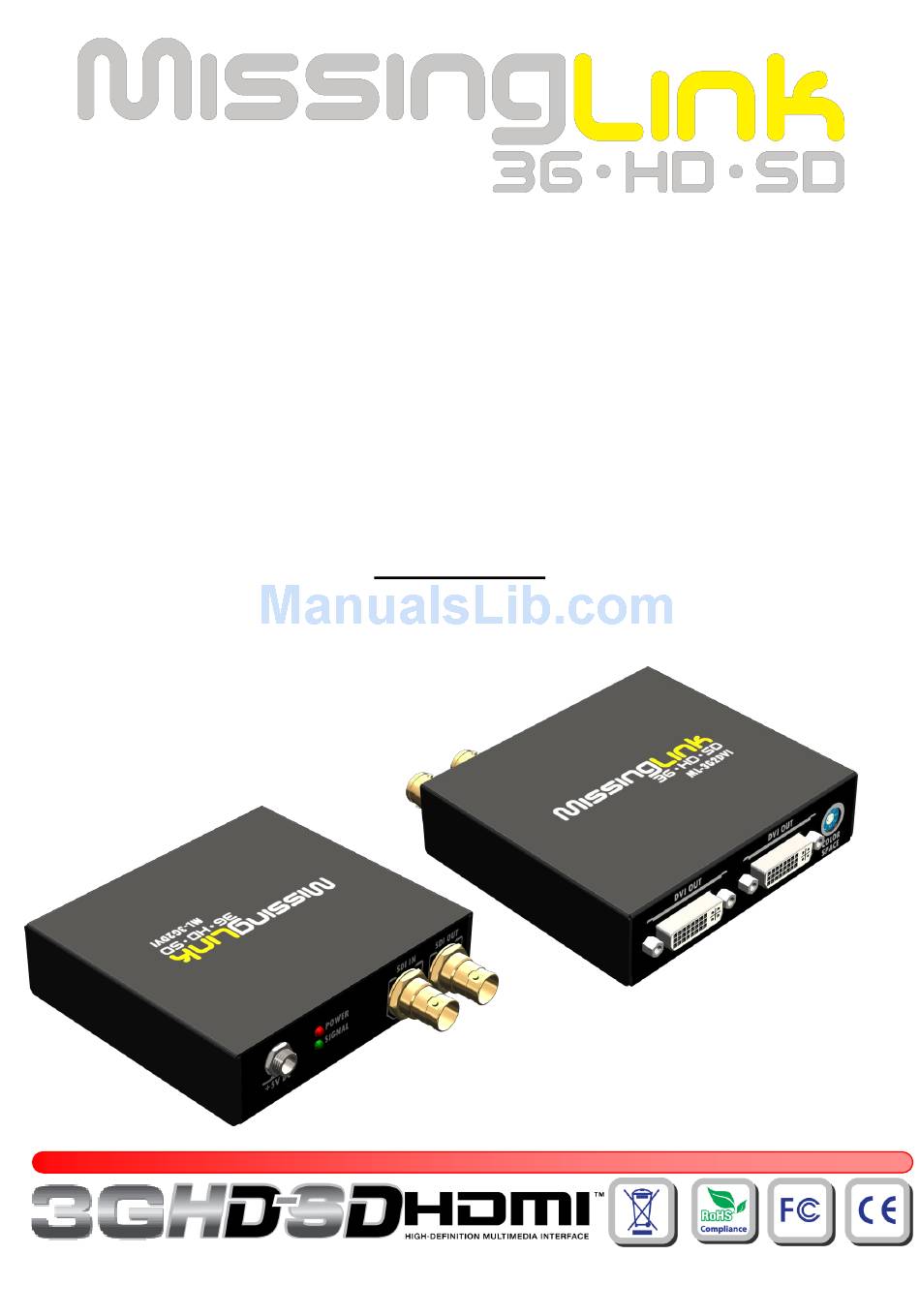

- Page 1 ML-3G2DVI SDI to DVI Converter User Manual Made in Taiwan...
-
Page 2: Safety And Notice
However, like all electronic equipments, the ML-3G2DVI should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 3G/HD/SD-SDI signal to DVI signal. The conversion between SDI and DVI is pure digital and guarantees no loss transformation for both audio and video. Plus, with up to 8 channels audio support, 7.1 channel or 5.1 channel audio becomes available. The ML-3G2DVI also provides 1 low jitter and re-clocked outputs for daisy chain or a monitor.
- Page 4 Specifications & Package Contents Model Name ML-3G2DVI Technical Role of usage SDI to DVI Converter SDI standards SD-SDI, HD-SDI & 3G-SDI Input Video bandwidth 2.970Gpbs, 2.970/1.001Gbps [3G] 1080p @50/59.94/60Hz (4:2:2) Input Video support [HD] 720p @50/59.94/60Hz, 1080i @50/59.94/60Hz, 1080p @24/30Hz [SD] NTSC @59.94Hz, PAL @50Hz...
- Page 5 Supported Resolutions 3G INPUT 1080p @ 50/ 59.94 / 60Hz SMPTE 424M, SMPTE 425M HD INPUT 720p @ 50Hz SMPTE 296M -3 720p @ 60 / 59.94Hz SMPTE 296M -1, -2 1080i @ 50Hz SMPTE 274M -6 1080i @ 60 / 59.94Hz SMPTE 274M -4, -5 1080p @ 24 / 23.98Hz SMPTE 274M -10, -11...
-
Page 6: Front Panel
Panel Descriptions Front Panel +5V DC:Dip Switch for audio output ON/OFF Signal LED – <red> Power LED <green> Signal LED SDI IN: 3G/HD/SD-SDI input SDI OUT: 3G/HD/SD-SDI output Rear Panel DVI OUT: connect to digital DVI display DVI OUT: connect to digital DVI display MODE: 8-level rotary switch for color space settings 0: color space Auto 1: color space force YCbCr... - Page 7 Limited Warranty The SELLER warrants the ML-3G2DVI SDI to DVI Converter to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year warranty period, The SELLER, at its option, repair or replace the unit, provided that the unit has not been subjected to accident, disaster, abuse or any unauthorized modifications including static discharge and power surges.
