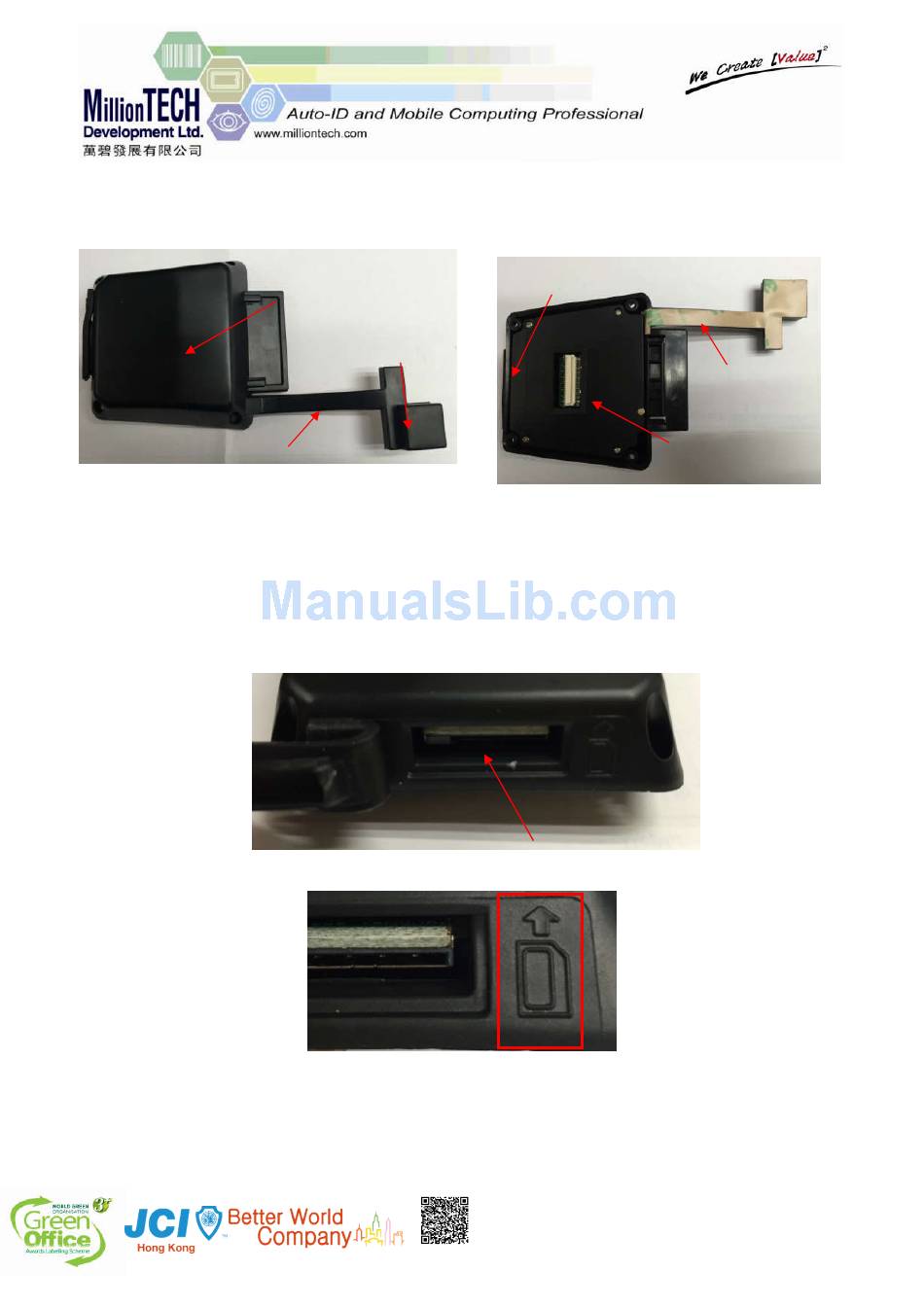

3G backpack for Casio IT-9000 Quick Installation Guide
3G backpack:
GPS antenna cable cover
Top View
SIM Card Installation
1)
In the bottom of 3G backpack, there is a socket to place the SIM card as shown as
follows :
2)
Follow the SIM card outline and insert the SIM card correctly.
3G backpack
GPS Antenna
SERVICE HOT LINE: 2784 2888
SIM connector
Bottom View
SIM card socket
Unit 509, 5/F, Tower II, Cheung Sha Wan Plaza,
833 Cheung Sha Wan Road, Kowloon, Hong Kong
Tel: (852) 2788 3306
Fax:(852) 2319 2967
Double sided adhesive
IT9000 interface
香港九龍長沙灣道 833 號
長沙灣廣場 2 期 5 樓 509 室
電話: (852) 2788 3306
傳真: (852) 2319 2967
Advertisement
Table of Contents
Summary of Contents for Million Tech MT-IT9KUD3GGPS
-
Page 1: Top View
3G backpack for Casio IT-9000 Quick Installation Guide 3G backpack: SIM connector 3G backpack GPS Antenna Double sided adhesive IT9000 interface GPS antenna cable cover Top View Bottom View SIM Card Installation In the bottom of 3G backpack, there is a socket to place the SIM card as shown as follows : SIM card socket Follow the SIM card outline and insert the SIM card correctly. - Page 2 3G backpack Installation ** IT-9000 must be powered off before installation or un-installation. To attach the 3G backpack to IT9000, the IT9000 expansion connector cover shall be removed. IT-9000 expansion connector Remove the protective sheet of double sided adhesive tape on GPS antenna. Turn over the terminal and place the 3G backpack on the IT-9000 expansion connector.
- Page 3 Press the middle of the 3G backpack to connect to the terminal. A “pop” sound is heard when the connector is plugged properly. Press Here The GPS antenna should be fit into correct position as shown below : Notes that there are 4 same screws included. 香港九龍長沙灣道...
- Page 4 Tighten all the screws by following the figure. Screw The whole layout : SIM Card Replacement The power must be powered off before changing SIM card. Pull out the rubber protection cover in the bottom of 3G backpack. 香港九龍長沙灣道 833 號 Unit 509, 5/F, Tower II, Cheung Sha Wan Plaza, 833 Cheung Sha Wan Road, Kowloon, Hong Kong 長沙灣廣場...
-
Page 5: Fcc Regulations
Attaching the 3G backpack to IT-9000 and tightening all the screws. FCC Regulations: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 6 RF Exposure Information (SAR) This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the United States. During SAR testing, this device is set to transmit at its highest certified power level in all tested frequency bands, and placed in positions that simulate RF exposure in usage near the body.
