Benton ICEMAN 5.0 BLE User Manual

Switch mode battery charger

Hide thumbs

Table Of Contents

User's Manual

BENTON

ICEMAN 5.0 BLE

SWITCH MODE BATTERY CHARGER

For Lead acid batteries

User's manual and guide to professional battery charging

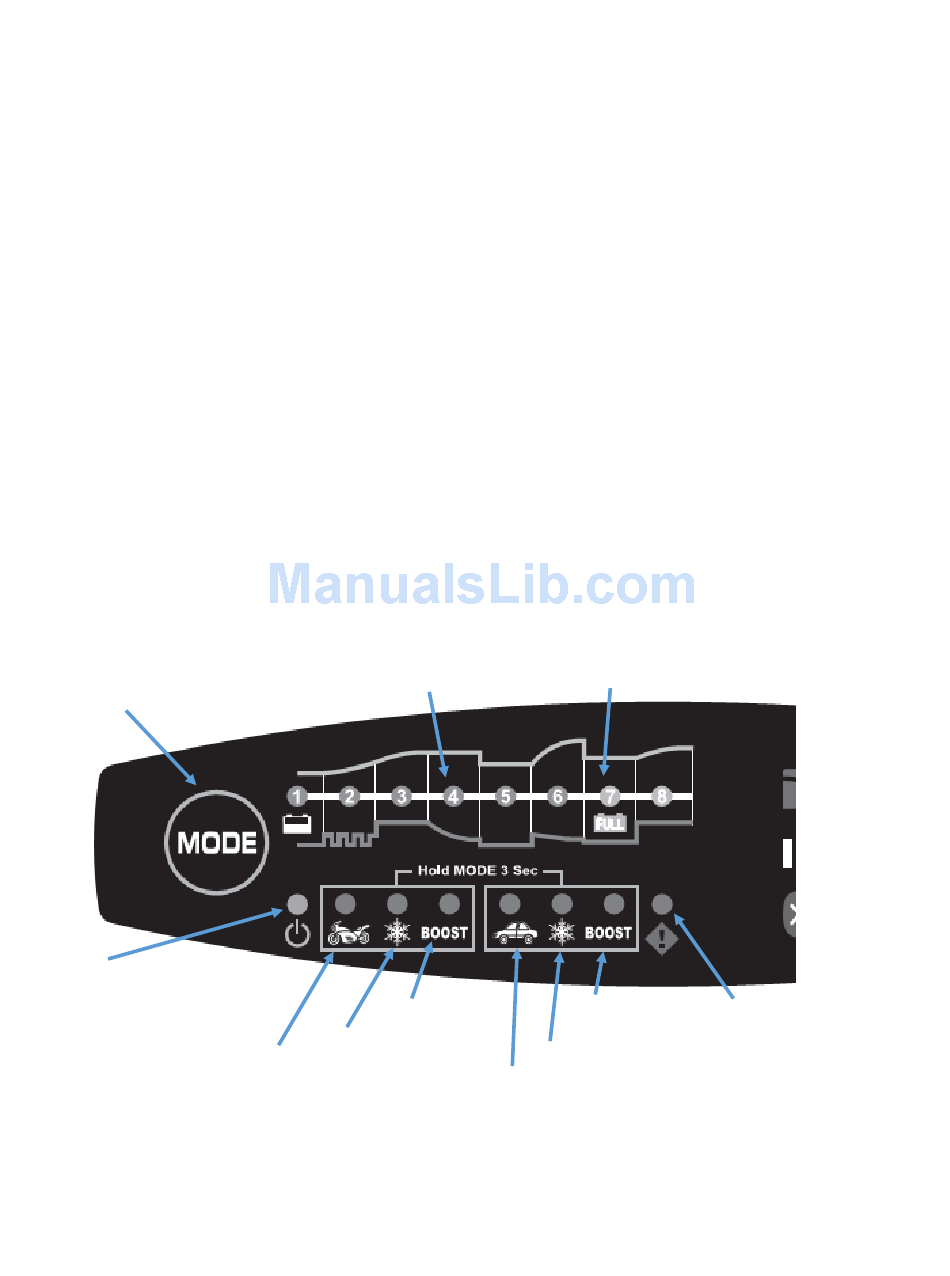

Mode Button

Power LED

For Your Safety

This manual contains important safety and operating instructions. Read this manual

carefully before using the charger for the first time and keep the manual in a safe place

for future reference.

1.2-120Ah (charging), up to 160 Ah for maintenance

Ready To Use

Boost Mode

Cold Mode

Small Battery Mode

8 STEP

12V 5A

Fully Charged

Boost Mode

Cold Mode

Normal Battery Mode

Error LED

Table of Contents

Need help?

Do you have a question about the ICEMAN 5.0 BLE and is the answer not in the manual?

Questions and answers

Summary of Contents for Benton ICEMAN 5.0 BLE

Page 1 User‘s Manual 8 STEP 12V 5A BENTON ICEMAN 5.0 BLE SWITCH MODE BATTERY CHARGER For Lead acid batteries 1.2-120Ah (charging), up to 160 Ah for maintenance User’s manual and guide to professional battery charging Fully Charged Ready To Use Mode Button...
Page 2 Contents 1) BENTON® ICEMAN 5.0 BLECharger 2) Quick contact battery leads with clamps 3) Quick contact battery leads with eyelet terminals (Ø 6.3mm) with in-line battery protection fuse (10A) for permanent attachment to the battery posts to allow quick connection/disconnection through snap-connector.
Page 3 Safety Information  BENTON® ICEMAN 5.0 BLE charger is designed for charging 12V 1.2-160Ah Lead-Acid rechargeable batteries. Do not intend to supply power to low voltage electrical system. Do not use it for any other purpose. WARNING! DO NOT ATTEMPT TO CHARGE A NON-RECHARGEABLE BATTERY (PRIMARY CELLS).
Page 4 Charging Modes Mode 14.4V/0.8A This mode is normally suitable for batteries less than 14 Ah Mode 14.7V/0.8A This mode is recommended for AGM batteries less than 14 Ah. This mode is also suitable for charging batteries in sub-zero temperatures. Mode 14.4V/0.8A + 16.0V/0.3A, BOOST This mode is suitable to recover severely discharged batteries smaller than 14 Ah.
Page 5 OPERATION Charging 1) Charging of a permanently installed battery in a vehicle a) Before connecting or disconnecting the battery leads, the power cord should be removed from the mains. b) Check polarity of battery post. A positive (“+”) battery post usually has a larger diameter than a negative (“-”) post.
Page 6 e) Charging of positive earthed battery: • Make sure the red clamp or terminal (“+” pole connection) has no contact with the fuel line or the battery. • Connect the black clamp or eyelet terminal (“-”) to the negative (“-”) pole of the battery and the red clamp or eyelet terminal (“+“) to the vehicle chassis.
Page 7 <50 dB (Tested from a distance of 50cm) * = Back current drain is the amount of current drawn by the charger from battery, when the charger is connected BENTON® ICEMAN 5.0 BLE to the battery, without power cord connected.
Page 8 Charging Phases BENTON® ICEMAN 5.0 BLE charger performs 8-step fully automatic charging cycle. 1) Diagnosis The unique diagnostic function checks status of battery and ascertains if battery can accept charging. 2) Recovery: A deeply discharged battery of over 2.0V can be recovered and charged with pulse charging of small current.
Page 9 There are 15 different languages to choose from. 4. Select Benton Battery Charger Model connected to battery to be charged. There are several model options. 5. Once Apps detects model being used to charge battery, it will show process status 6.
Page 10 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. BENTON PRODUCTS ARE PROTECTED BY: Patents, Designs, Trade Marks Premier Merchandises Limited Unit 2305-15, 23/F Metro Loft, 38 Kwai Hei Street, Kwai Chung, N.T.
