Amston CLD-3 Instruction Manual

Cross line/dot

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

INSTRUCTION

MANUAL

Cross Line/Dot

Laser Level

Model: CLD-3

Table of Contents

Need help?

Do you have a question about the CLD-3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Amston CLD-3

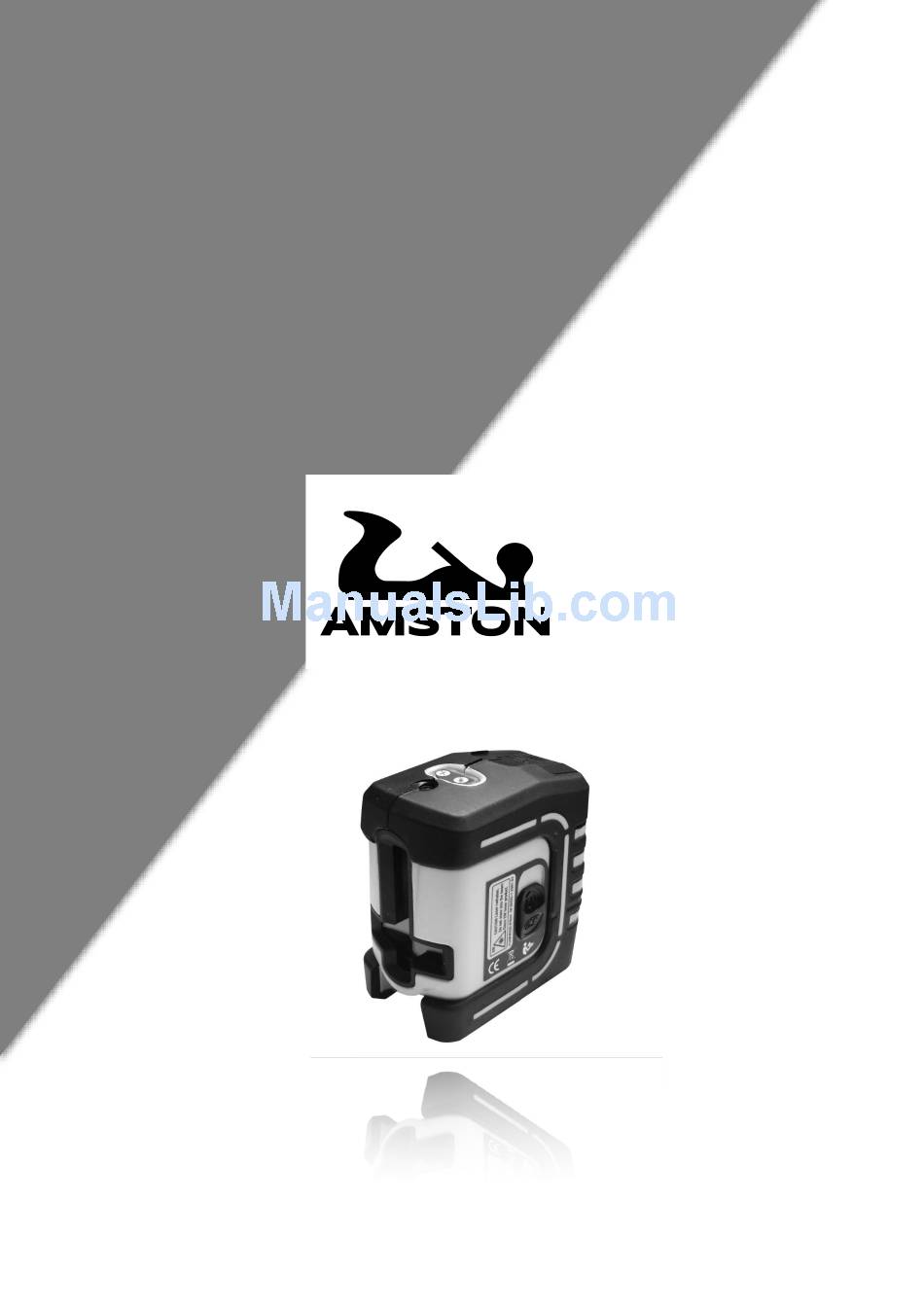

Page 1 INSTRUCTION MANUAL   Cross Line/Dot Laser Level Model: CLD-3...
Page 2: Table Of Contents
Fixed-Laser Mode …………………………….………….………… 10 Using the Spring Clamp ………….………………………………… 11 Accessories ……………………………………………….………… 13 Checking Laser Calibration ……………………………………..… 14 Maintenance and Repair……………………………….……………14 Additional Resources Warranty ………………………………………………….…………. 15 Troubleshooting ………………………………………….…………. 17 Frequently Asked Questions ……..…………………….…………. 18 © Amston Tool Company. All Rights Reserved.
Page 3 THANK YOU for choosing Amston! We proudly stand behind every product we sell. If you should ever have any question, concern, or issue with any product made by Amston Tools, please do not hesitate to contact us at CustomerCare@AmstonTools.com. EXTEND YOUR WARRANTY FOR FREE This laser level is backed by a 2 year limited warranty to the original purchaser.
Page 5: Safety Instructions
DO NOT use the laser level for any purpose other than measuring and marking. DO NOT use alcohol or other organic or chemical solvents to clean the lens.   © Amston Tool Company. All Rights Reserved.
Page 6: Technical Specifications
+/- 4 degres Working Temperature Range:40 F to 95 F Storage Temperature Range: 23 F to 110 F Batteries: Requires two Type AA batteries (not included) Weight: 6.5 ounces Dimensions: 1.75”w x 3.625”h x 2.875”d © Amston Tool Company. All Rights Reserved.
Page 7: Installing Batteries
Be sure to position one battery with the positive end up, and the other with the positive end down, as shown inside the battery slot. To close the cover, slide it forward until it snaps into place.   Battery Cover © Amston Tool Company. All Rights Reserved.
Page 8: Self-Leveling Mode
To operate the level in Self-Leveling Mode, push the ON/OFF switch on the side of the level UP to the ON position. ON POSITION/ SELF-LEVELING MODE To turn the Cross-Line laser on or off, press the + button on the top of the level. © Amston Tool Company. All Rights Reserved.
Page 9 + or * button on top of the level to turn the laser on. If it still does not turn on, verify that the batteries are in the correct position and that the batteries have sufﬁcient charge. © Amston Tool Company. All Rights Reserved.
Page 11: Using The Spring Clamp
Ball Joint Mounting Hole Wing Screw To set the position of the level, SLIGHTLY loosen the wing screw on the ball joint. Hold the level in the desired position and tighten the wing screw. © Amston Tool Company. All Rights Reserved.
Page 12 Once you have ensured that the mounting surface is stable and secure, open the clamp by squeezing the handles together. Carefully position the clamp onto the object and slowly release the handles. © Amston Tool Company. All Rights Reserved.
Page 13: Accessories
If you need to use a laser level primarily outdoors or in bright lighting conditions, a Rotary Laser will work much better than a line laser such as this model. © Amston Tool Company. All Rights Reserved.
Page 14: Checking Laser Calibration
Keep the level dry and avoid excessive dust build-up. DO NOT disassemble this tool. It contains very small wires which are easily damaged. If repair or service is needed, contact us at CustomerCare@AmstonTools.com to arrange a Service Ticket. © Amston Tool Company. All Rights Reserved.
Page 15: Additional Resources Warranty
Amston Tool Company ("Seller") warrants to the original purchaser only, that all Amston brand lasers and measuring tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase.
Page 16 ED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., OR PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.  © Amston Tool Company. All Rights Reserved.
Page 17: Troubleshooting
“Self-Leveling Range seems small.” • Because the level is compact, small adjustments to the position can represent several degrees. Many tripods include a bubble level which can be very helpful in getting the laser within range. © Amston Tool Company. All Rights Reserved.
Page 18: Frequently Asked Questions
You can extend the warranty to 4 years for free by submitting a completed warranty registration form online or in the mail. • Q: How can I contact Amston Tools with questions or comments? A: You can email us anytime at CustomerCare@AmstonTools.com.
Page 19 Q: Does this laser come with a case? A: A nylon pouch is included. The pouch is sized to ﬁt the laser level only. The clamp will not ﬁt in the pouch. A hardshell case is not included. © Amston Tool Company. All Rights Reserved.
Page 21 Many users may already have a tripod, or may want a tripod with enhanced design or features, such as a ﬁne- tuning height adjustment knob. This laser will attach to any standard-sized 1/4” thread tripod attachment screw. © Amston Tool Company. All Rights Reserved.
Page 22 A: Use only water on a damp, lint-free cloth to clean the lenses. DO NOT use alcohol or any other chemical. Chemicals may leave residues that impact the effectiveness of the laser beam and may risk igniting. © Amston Tool Company. All Rights Reserved.
Page 23 A: Check the calibration of the laser by following the procedure described on page 14. Still have questions? Contact our Customer Support Team: CustomerSupport@AmstonTools.com THANK YOU FOR CHOOSING AMSTON © Amston Tool Company. All Rights Reserved.
