Summary of Contents for DIP Grinders DKS-65

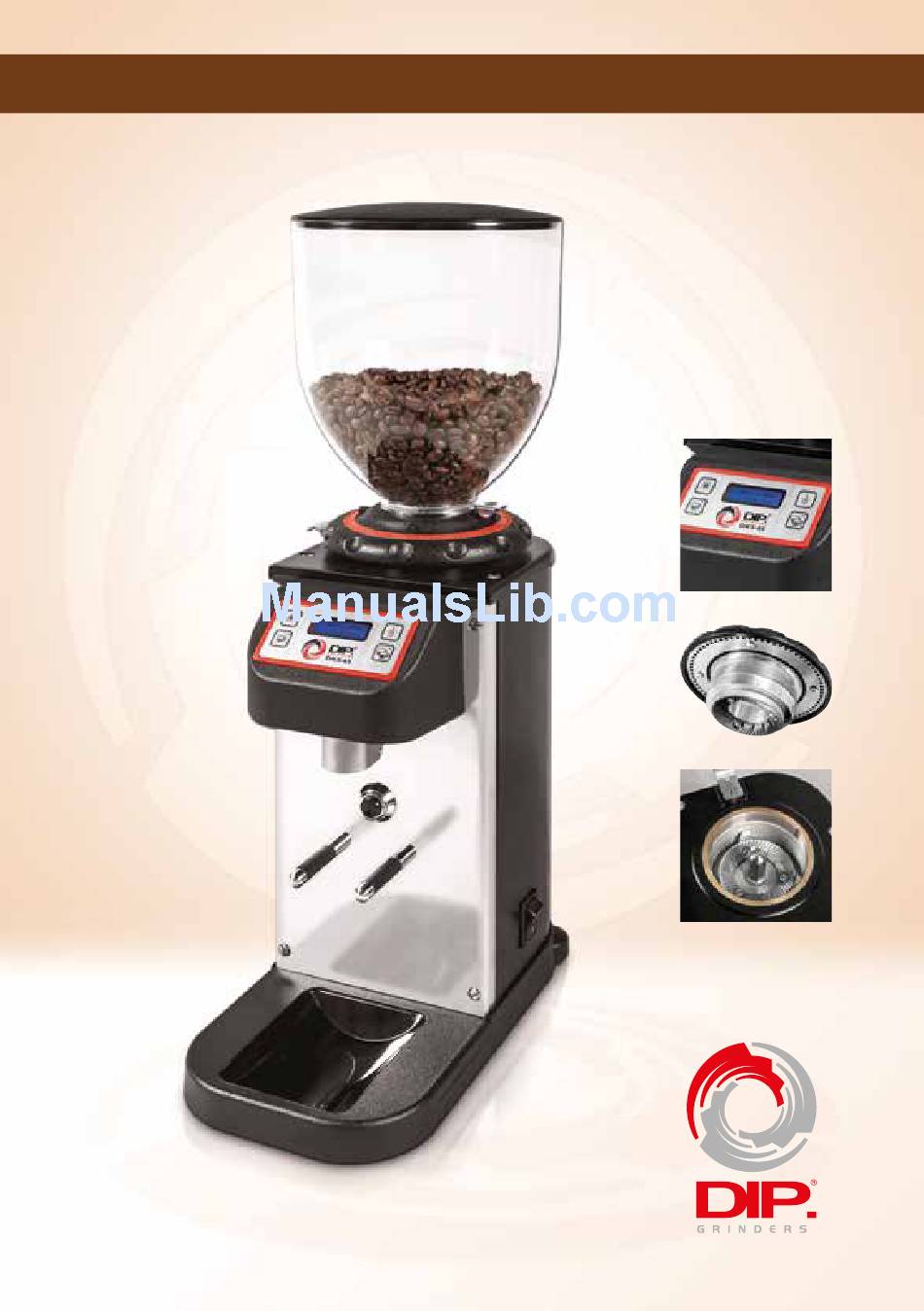

- Page 1 OPERATION AND MAINTENANCE MANUAL DKS-65 Precise dosing and fresh On Demand D e v o t e d t o p e r f e c t g r i n d i n g...
- Page 2 D.I.P. IMPEX SRL, located at 287 Theodor Pallady Blvd., 032258 Bucharest, Romania, manufactures the DKS-65 On demand Grinder in compliance to CEE requirements: N73/23 (low tension) N89/392 (machines) The DKS-65 On demand Grinder has been tested in accordance the following norms: • EN 60 335-1 • EN 55011 •...
- Page 3 GENERAL WARNINGS • Read this manual before using the appliance as it contains important instructions for the safety, operation and maintenance of the appliance. • Before plugging in the appliance, make sure that voltage and frequency values of the power supply correspond to the rating plate. •...
- Page 4 The grinder, therefore, is for the operator one of the most important tool, whose structure must meet certain characteristics such strength, durability and functionality. Dimensions DKS-65 - 4 -...
-
Page 5: Components Description
Components Description Hopper cover Hopper Indexing mechanism Coffee grinding adjustement disk Function button Hopper locking slide One cup button Control panel On/Off button Display Start microswitch Two cup button Filter holder On/Off switch Bottom plate Tray Figure. 1 - 5 -... -
Page 6: Packaging Disposal
Unpacking the DKS-65 On demand Grinder: When open the package, carefully check the equipment for any possible damage. If you have any doubt, do not use it and contact a qualified technician. If you have to ship back the equipment, this must be done in the original package otherwise the warranty is void. -
Page 7: Preliminary Operations
Adjusting the grind Your new DKS-65 is delivered from the factory at a preset grinding of minimum fineness. Use the Adjustment disk located under the hopper (fig. 1), for obtaining a finer or coarser grinding result. -
Page 8: Safety Protection
Safety protection: THERMAL OVERLOAD PROTECTION The appliance’s motor is protected against overheating by a thermal protection which, when tripped, cuts off the motor’s power supply. If the protection trips as a result of anomalous operation, such as jamming the grinding blades, the appliance must be turned off using the ON/OFF switch (fig.1), DISCONNECTED FROM THE MAINS, AND CONTACT A LICENSED TECHNICIAN. - Page 9 It is recommend to clean the hopper periodically. Grinding Disk Replacement: In order to change the grinding disks of the DKS-65 please follow the steps found below: • Close the Hopper locking slide (fig.1).
-
Page 10: Display And Functions
Display and functions 1. Starting the machine: Flick the main switch: The company’s logo appears Few seconds after: The Single cup menu appears. Auto grinding mode as default. To shift between grinding modes see Chapter 6 00000 = Partial doses counter, can be reset periodically (see Chapter 7) 4.5 = Nr of seconds per dose Auto = Grinding mode, to change (see Chapter 8) - 10 -... -
Page 11: Setting The Grinding Time
2. Choosing between Single or Double Dose a. Single shot (Default) Press To choose for single pictogram appears b. Double shot Press To choose for double pictogram appears 3. Setting the grinding time a. When single When machine is set for single doze, press: To increase or decrease the grinding time The Grinding time increments with 0.1 sec. - Page 12 b. When double When machine is set for Double doze, press: To increase or decrease the grinding time The Grinding time increments with 0.1 sec. ex 8.5, 8.6, 8.7, 8.8 4. Grinding a. When single When the dose switch is hit shortly the machine starts grinding, Auto/Auto+ disappears and: A.
- Page 13 b. When Double When the dose switch is hit shortly the machine starts grinding, Auto/Auto+ disappears and: A. A bar appears under the time index, i.e. 8.5, which is filled, during grinding time. B. Nr. of seconds decreases from 8.5 to 0 Auto/Auto+ When grinding finishes the bar disappears, appears...
- Page 14 Auto plus: When the grinding switch is struck shortly: The machine grinds for the preset time. When the cycle ends, for 5 seconds the word Manual appears. During these 5 seconds: The grinding switch activates grinding for as long as it is kept pressed. Every time the switch is pressed those 5 seconds are reset.
- Page 15 In this mode the Partial doses counter does not increment. 6. Locking Grinding time In order to avoid the change of grinding time during daily operation the grinding time has to be locked. A. To lock the grinding time press for 5 seconds simultaneously: The following pictogram appears: During lock, if the operator presses the following pictogram appears...
- Page 16 7. Resetting Partial Doses To reset the partial doses counter press for 5 seconds simultaneously: To prevent from changing the selected grinding time, lock before. (see Chapter 6) The following pictogram appears For the next 10 seconds the partial dozes counters can be reset Press simultaneously for 7 more seconds.
- Page 17 8. Setting Grinding mode Switch OFF the machine from the main switch With both pressed, flick the main switch Keep both pressed until the following pictogram appears You have 5 seconds to shift between modes by Pressing Every time you press these 5 secs are refreshed After 5 secs of no action, the grinding mode is saved to your selection: - 17 -...
- Page 18 9. Viewing the total doses When machine is in normal operation single or double Pres the single double for 5 seconds: The following pictogram appears Working Hours represents the total Nr. of hours that motor run since fabrication Total doses represent, the total number of shots grinded since fabrication.
- Page 20 ESPRESSO GRINDERS DKS-65 On Demand grinder is an innovative machine. With devotion to the needs of Coffee shops, Hotels and Baristas, DKS-65 delivers each coffee portion, freshly grounded on demand • Constant and cool grinding which assures crema and coffee aroma •...
