We strive to ensure that our products are of the highest quality
and free of manufacturing defects or missing parts. However, if
you have any problems with your new product,
pooltables@escaladesports.com
Please
have your model number when inquiring about parts.
When contacting Escalade Sports please provide your model number, date
code (if applicable) and part number if requesting a replacement part. These
numbers are located on the product, packaging, and this owners manual.
Your Model Number ____________________
2-MFT901-TBL-
Date Code ___________________________
Purchase Date ________________________
PLEASE RETAIN THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
All Rights Reserved.
© 2015 Escalade Sports
DO NOT RETURN IT TO THE STORE
please contact us toll free @:
1-866-556-2757
FAX: 1-866-873-3531
Customer Service Department
Evansville IN 47706
MFT901-TBL
Or write to:
Escalade Sports
P.O. Box 889
-DO
1
,
For Customer Service Call 1-866-556-2757
Advertisement
Related Manuals for Minnesota Fats MFT901-TBL
Summary of Contents for Minnesota Fats MFT901-TBL

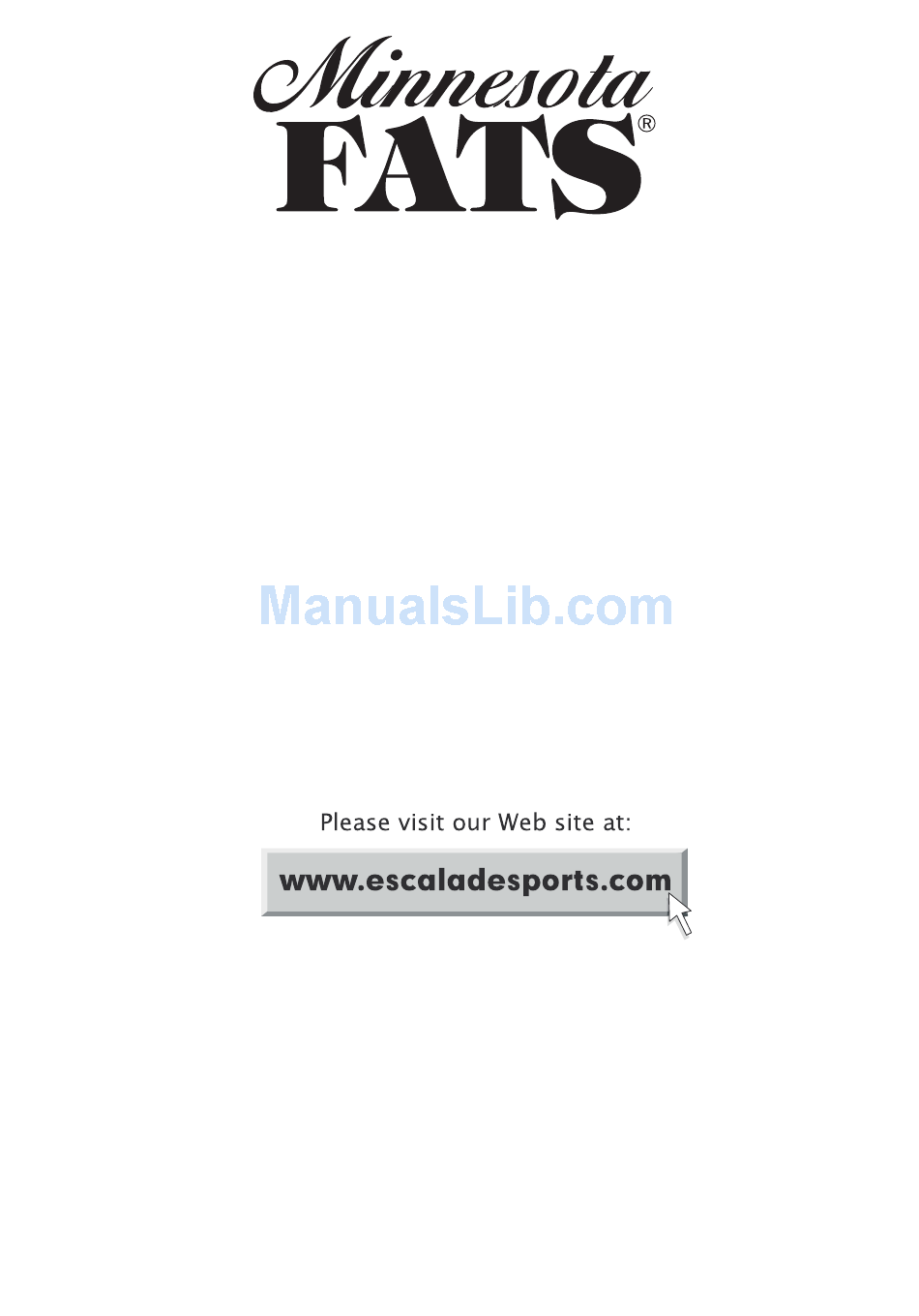

- Page 1 When contacting Escalade Sports please provide your model number, date code (if applicable) and part number if requesting a replacement part. These numbers are located on the product, packaging, and this owners manual. MFT901-TBL Your Model Number ____________________ 2-MFT901-TBL- Date Code ___________________________...

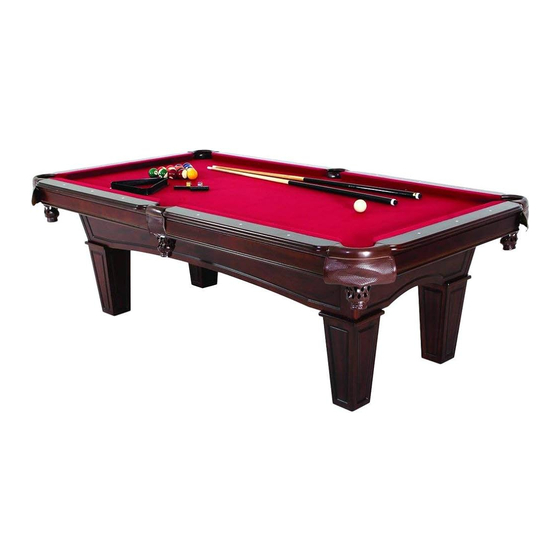

- Page 2 IN THIS MANUAL BEFORE YOU BEGIN THE ASSSEMBLY. TWO ADULTS ARE REQUIRED TO ASSEMBLE THIS THIS MINNESOTA FATS 7.5FT FULLERTON POOL TABLE T ools Required : Allen W rench T1 & Wrench T2 Included with the Hardware Kit Furniture Polish and Cloth An electric screwdriver is helpful in assembl y .
-
Page 3: Hardware Identifier
HARDWARE IDENTIFIER (To Scale) H2 - 1/4” H3 - 1/4” H4 - 4mm x 10mm H1 - 1/4” x 1-1/4” Phillips Round Flat Washer (16) Lock Washer (16) Allen Head Bolt (16) Head Screw (16) H5 - 5/16” x 2-1/4” H6 - 5/16”... -
Page 4: Parts Identifier
PARTS IDENTIFIER (Not To Scale) P1R - Pool Table Cabinet (1) P2R - Side Apron (2) P3 - End Apron (2) P5 - Leg (4) P6 - Leg P7 - Wooden P4 - Corner Support Block (12) Post (4) Brace (4) ACCESSORIES IDENTIFIER (Not To Scale) A2 - Triangle (1) - Page 5 PARTS REQUIRED: 1 pc - P1R Pool Table Cabinet 2 pcs - P3 End Apron 2 pcs - P2R Side Apron 4 pcs - P Corner Post STEP 1: With the help of another adult, install P2R Side Aprons and P3 End Aprons onto P1R Pool Table Cabinet with P4 Corner Posts attach as shown in FIGURE 1.
- Page 6 PARTS REQUIRED: 16 pcs - H1 Allen Head Bolt 16 pcs - H4 Phillips Round Head Screw 16 pcs - H2 Flat Washer 4 pcs - P6 Leg Support Brace 16 pcs - H3 Lock Washer 1 pc - T1 Allen Wrench STEP 2: Install P6 Leg Support Braces using H1 Allen Head Bolts with H2 Flat Washers and H3 Lock Washers as shown in FIGURE 2.
- Page 7 PARTS REQUIRED: 12 pcs - H5 Allen Head Bolt 12 pcs - H8 Nut 24 pcs - H6 Flat Washer 12 pcs - P7 Wooden Block 12 pcs - H7 Lock Washer 1 pc - T1 Allen Wrench 1 pc - T2 Wrench STEP 3: Install P7 Wooden Blocks using H5 Allen Head Bolts with H6 Flat Washers, H7 Lock Washers and H8 Nuts as shown in DETAIL A and FIGURE 3.
- Page 8 PARTS REQUIRED: 12 pcs - H6 Flat Washer 4 pcs - P5 Leg Allen 12 pcs - H7 Lock Washer 1 pc - T1 Wrench 12 pcs - H9 Allen Head Bolt STEP 4: Install P5 Legs to each P6 Leg Support Brace using H9 Allen Head Bolts, H6 Flat Washers and H7 Lock Washers as shown in FIGURE 4.
- Page 9 INSTRUCTIONS FOR LEVELING A POOL TABLE Assemble pool table according to the instruction. Any type of level would be sufficient to perform this procedure. However, a two-foot level is recommended. Before leveling, make sure level is placed on the playing surface, not the rails. Level the ends between the corner pockets: Place the level on the playing surface between the two corner pockets and adjust the height by placing shims (A6) underneath the leg apposite of which the bubble in the level favors until the bubbles rests in the middle of the...
- Page 10 6 . D O N O T set drinks on the table. 7 . The purchase of a pool table cover will both protect and help keep clean the entire top of the pool table. MFT901-TBL PRODUCT PARTS LISTS Part# Key#...
-
Page 11: 90-Day Limited Warranty
90 DAY LIMITED WARRANTY This customer warranty extends to the original owner, on the purchase of any ESCALADE SPORTS Product (hereinafter referred as the "Product"). WARRANTY DURATION: This Product is warranted to the original owner, for a period of 90 days from the original purchase.
