Summary of Contents for OFD-PA EHDF-manual

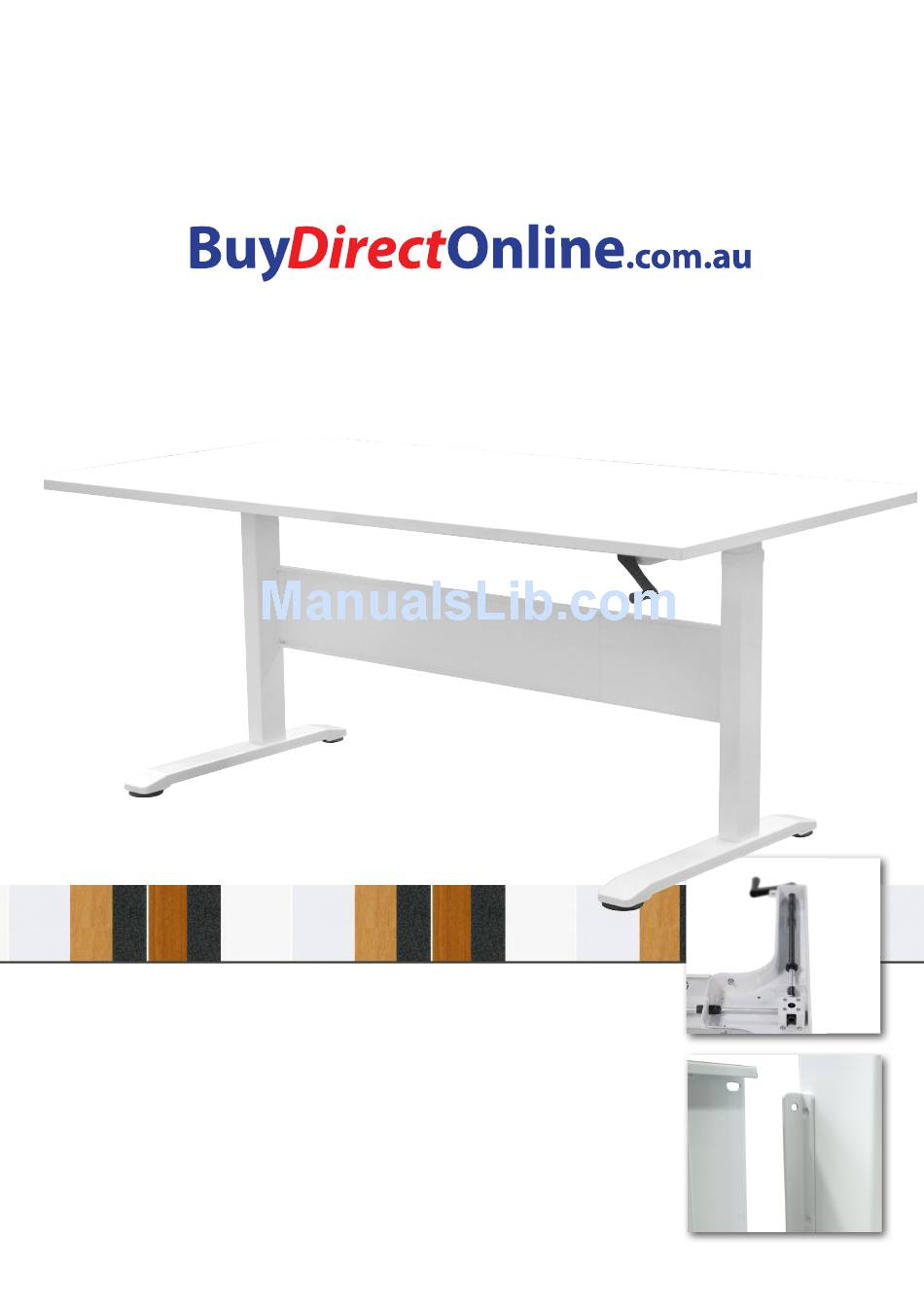

- Page 1 Quick Visual Assembly Guide Ergo-Rise Manual Height Adjustable Sit/Stand Desk Product Code: EHDF-manual Copyright BuyDirectOnline 2015. All Rights Reserved.
- Page 2 Ergo-Rise Manual Height Adjustable Sit/Stand Desk Quick Visual Assembly Guide 1. Unpack all parts out of the box and remove protective bubble wrapping. Layout the parts prior to assembly. 2. Place both legs to face forward with brackets for modesty panel facing inwards.
- Page 3 3. Attach two sides together using the cable tray. 4. Bring the tray to the leg and line up screw holes. Secure one side. Leave the other leg off for now.
- Page 4 5. When you assemble one side you can rest the cable tray on another desk for stability while you install the height adjustment bar. 6. Undo height adjustment bar cap. When loosened it will be easy to pull out expendable portion. 7.
- Page 5 9. Attach the second leg while threading height adjustment bar in to leg adjustment mechanism. Ensure both legs are adequately tightened. 10. Thread height adjustment bar in to second leg height adjustment mechanism. 11. Make sure to thread through leg mechanism. 12.
- Page 6 13. Attach modesty panel to table legs. Place modesty panel on one modesty panel tab and with opposite hand extend the panel until it meets the opposite tab. 14. Screws are attached from reverse side. (left image with arrows) 15. Choose a side for the height adjustable handle on either right or left side.
- Page 7 17. Thread handle through two brackets and attach handle locking piece. Use a Phillips head screw driver to loosen or tighten locking piece as needed to adjust retractable handle length as required. 18. (below) Retractable handle locked with short configuration. 19.
- Page 8 Short handle configuration. Long handle configuration. Long handle retracted. Attaching a Table Top Easiest way to attach the table top is to turn Ergo-Rise frame upside down. Note If you are unable to rotated the table without wobbling the frame you will need assitance.
