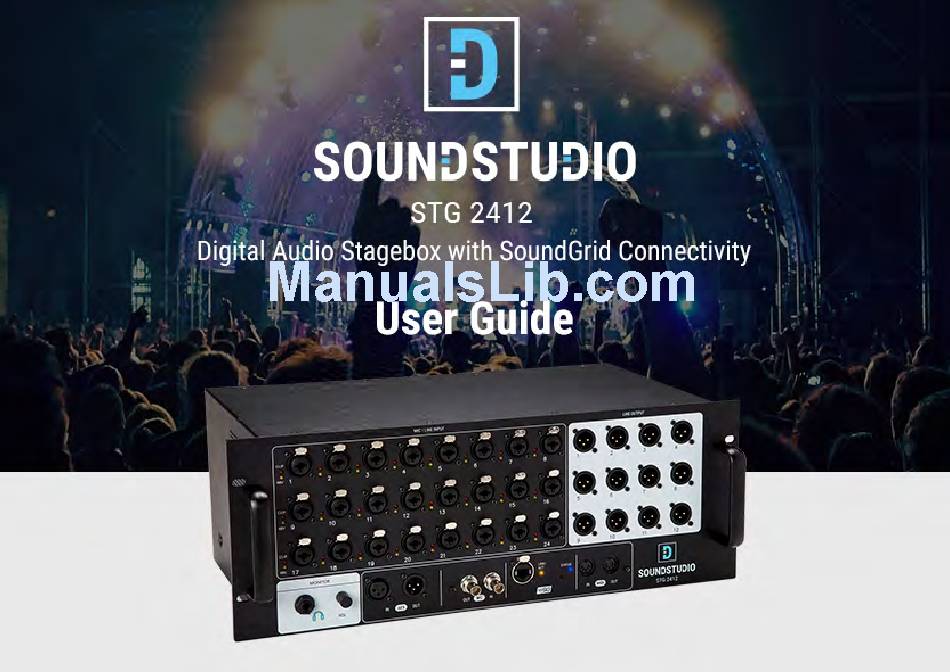

Summary of Contents for SoundStudio STG-2412
-
Page 2: Table Of Contents
Warning: Electrical Hazard ....................3 Safety Instruction Sheet for STG-2412 ................3 Product Overview ......................... 4 What’s in the box? ..........................4 Using STG-2412 for Mixing, Processing, and Recording ............. 5 Software Drivers ........................7 Configuration ............................8 SoundStudio STG-2412 Control Panel ....................11 Connections ........................ -
Page 3: Warning: Electrical Hazard
Safety Instruction Sheet for STG-2412 Warning: Electrical Hazard To ensure your safety, please read thoroughly before using the unit. Kindly observe all of these safety rules. Keep this user guide for future reference. Protect the power cord from being walked on or otherwise damaged by Take notice of and comply with all warnings included in the items placed on or against it. -
Page 4: Product Overview
Product Overview SoundStudio STG-2412 is a rugged stage box with 24 analog inputs and12 line outputs. It’s designed for both stage and studio applications. All connections on this 4U rack-mountable device are on the front panel, except the mains connection and power switch, which are on the rear panel. -
Page 5: Using Stg-2412 For Mixing, Processing, And Recording
Using STG-2412 for Mixing, Processing, and Recording STG-2412 uses Waves SoundGrid protocol to connect to an eMotion LV1 mixer, to a MultiRack processor, and to any DAW. A typical SoundGrid network consists of a host computer, a SoundGrid server, and I/O devices, all connected with Cat 5e (or better) Ethernet cables via a 1GB Ethernet switch. - Page 6 Connect multiple SoundStudio I/O units within a SoundGrid network for a high channel count. In this example, there are three I/O devices onstage. These are used for onstage microphones and monitoring. In the FOH are two SoundGrid servers (one primary and one redundant) and one I/O. This example has an external control surface and a DAW for recording.
-
Page 7: Software Drivers
Open Waves Central and log in. Select “Install” and choose “Online.” This shows all products on your Waves Cloud, including the STG-2412 driver. Locate the driver for your SoundStudio product. If the driver doesn’t appear in the list, check “All Waves Products.” Select the correct driver and click “Install.”... -
Page 8: Configuration
Configuration SoundStudio I/O devices must be assigned to a SoundGrid host application. This is done within the setup system inventory page. Assignment is similar in all SoundGrid host applications. Refer to the application’s user guide for detailed instructions. In this example, a STG-2412 will be assigned to SoundGrid Studio. - Page 9 Assign STG-2412 to the Host Application I/O devices are assigned in the Device Racks of the System Inventory tab. You can assign the STG-2412 to any Device Slot. ASSIGN 2412 TO A DEVICE RACK If the STG-2412 is not already assigned to the SoundGrid host, click on the arrow in an empty device slot.
- Page 10 Access the STG-2412 Control Panel Use the STG-2412 Control Panel to adjust preamps and channel outputs, and to manage device clocking. Firmware version, serial number and other hardware information are also displayed in the control panel. Click the GEAR button to open the STG-2412 control panel.
-
Page 11: Soundstudio Stg-2412 Control Panel
Clock Tab Use the Clock tab to manage the clock relationship between the STG-2412 and the SoundGrid network. In this example the device is locked to the network via Sync Over Ethernet (SOE). This is the most common configuration. You can also lock the STG-2412 to another clock source via AES or word clock. - Page 12 Input Tab STG-2412 has 26 inputs: 24 analogue and 2 digital. Use the Input tab to control Input I/O parameters. Channel input controls set here, are avalible in the Mixer and Channel windows of the eMotion LV1 and in other SoundGrid applications.
-
Page 13: Output Tab
The Output tab is used primarily to set the output headroom and monitor output levels. There are 12 analogue and 2 digital outputs. HEADROOM SELECT Choose between +18dB and AES OUTPUT METER +24 dB mixer headroom CHANNEL OUTPUT METER MONITOR METER SoundStudio STG-2412 / User Guide... -
Page 14: Connections
Connections Front Panel MIC / LINE INPUT LINE OUTPUT [24] [12] Clip / 48V Reset HEADPHONES WORD NETWORK MIDI / VOLUME CLOCK PORT/ STATUS INDICATOR SoundStudio STG-2412 / User Guide... -
Page 15: Rear Panel
Rear Panel INPUT: AC 100-240V 50-60Hz 0.3A SoundStudio STG-2412 / User Guide... -
Page 16: Specifications
+0/- 0.2 dB, 17 Hz to 40 kHz @ 96 kHz sample rate (+4dBu input @ +20 dB gain) Dynamic Range: (Measured bandwidth limited 20 Hz to 20 kHz) 110 dB Gain = 0 EIN (Gain 60, 150 ohms) -128 dBu A weighted THD+N (Measured at 1 kHz @ +4dBu, Gain = +20) 0.0023% SoundStudio STG-2412 / User Guide... - Page 17 Word clock input: Standard 5 Volt square wave. 50% duty cycle. Word clock output: 1X sample rate Standard 5 Volt square wave. 50% duty cycle. Word clock Input: 1X sample rates of 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz. SoundStudio STG-2412 / User Guide...
- Page 18 Power Universal input power supply 100V-240 VAC, 50/60 Hz, 1.0 Ampere Dimensions 482 x 177 x 254 mm Weight 8.9 kg (19.6 lb) Specifications subject to change without notice SoundStudio STG-2412 / User Guide...
